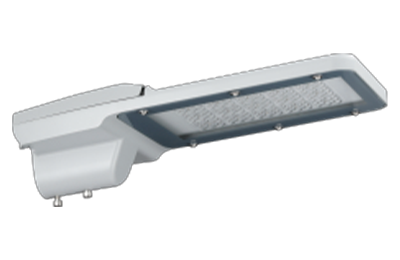

Outdoor IP66 Waterproof PACIFIC LITE Series LED Street Light Fixtures

Product Description

FEATURES
1. Flexible adaptation of three sizes, precise cost reduction: three standard sizes are provided to accurately match different space requirements, reduce customization costs, and achieve the best balance between project flexibility and procurement cost-effectiveness.
60mm universal side-mounted interface: the industry-standard 60mm side-entry installation structure is adopted, which is compatible with mainstream equipment frameworks and can be quickly deployed without secondary processing, significantly improving installation efficiency.
2. Tool-free quick-disassembly maintenance system: the innovative gear compartment buckle design allows the compartment to be opened in three seconds with bare hands, and the core components are within reach, which shortens the maintenance time by 50% and reduces the labor cost of operation and maintenance.
3. Optical lens intelligent light control: the asymmetric light distribution lens group realizes precise light field control, the glare value is <UGR19, the uniformity is >0.85, effectively eliminates visual fatigue, and improves the quality of the spatial light environment.
4. Modular and upgradeable architecture: the LED drive and gear transmission systems adopt independent modular design, which supports separate replacement during future technology iterations, extending the product life cycle by more than 30%.
5. Military-grade protection system: The high-pressure die-cast aluminum alloy body has passed the 1000-hour salt spray test, and is equipped with a nano-polyester coating to form a triple anti-corrosion barrier that can adapt to extreme temperature and humidity environments.
6. Bionic self-cleaning surface technology: The lotus leaf effect hydrophobic coating is used, and the 15° tilt angle design allows rainwater to automatically wash away surface dust, reducing the frequency of manual cleaning by 80%.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

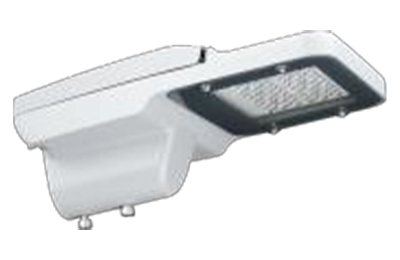

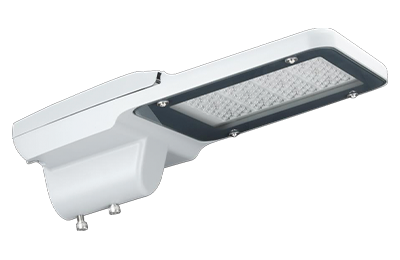

SPEC	MINI	MIDI	MAXI
Wattage	30-75w	80-150w	150-200w
Input voltage	100-277V/50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI>70
Operating temperature	-40℃~+50℃
Housing material	ADC12
Ingress protection	IP66
Impact strength	IK08/IK09 optional
Surge protection	10KV/20KV
Diffuser	Tempered glass
Spigot diameter	60mm
Weight	3.7kg	5.0kg	6.2kg

DESIGN IN DETAILS

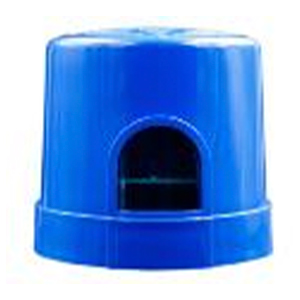

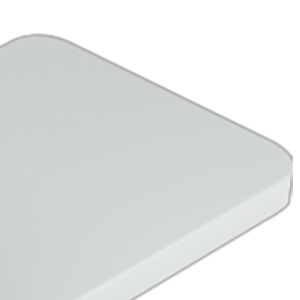

Body Flat surface with self-clean, rainy days can swash dust and bird droppings efficiency.	Photocontrol (optional) Optional with NEMA socket & photocell/shorting cap.

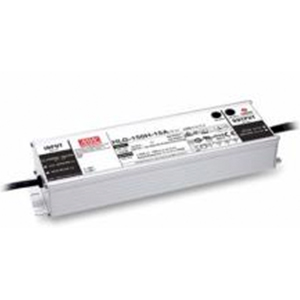

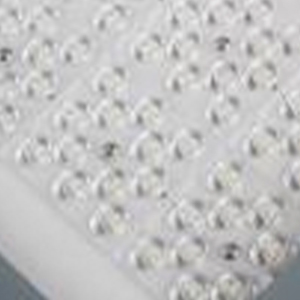

Led chips Lumileds 3030 & 5050 led chips with luminaire efficiency up to 150lm/w, long lifespan 50000 hours.	Power supply unit High performance led driver - 0-10v dimming upon request - Driver brand can choose among MOSO, Meanwell, Philips, Osram.

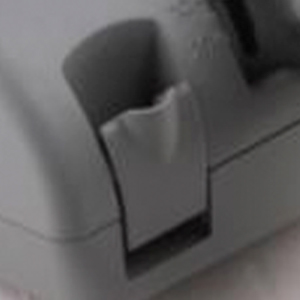

Buckles Toolless opening of gear compartment, easy for maintenance.	Power disconnector Automatically off luminaire when gear compartment open and after close turn on, safety for workers when during maintenance.

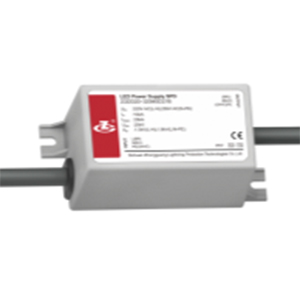

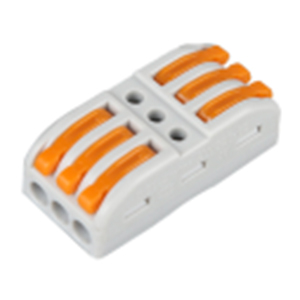

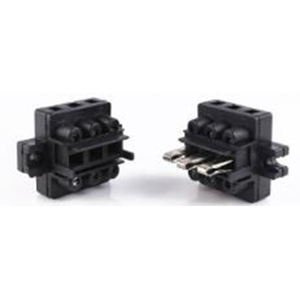

Connector Quick plug-in connector, tool-less, save time.	SPD 10kv (20kv optional) surge protection device, more reliable protection for the led power supply unit.

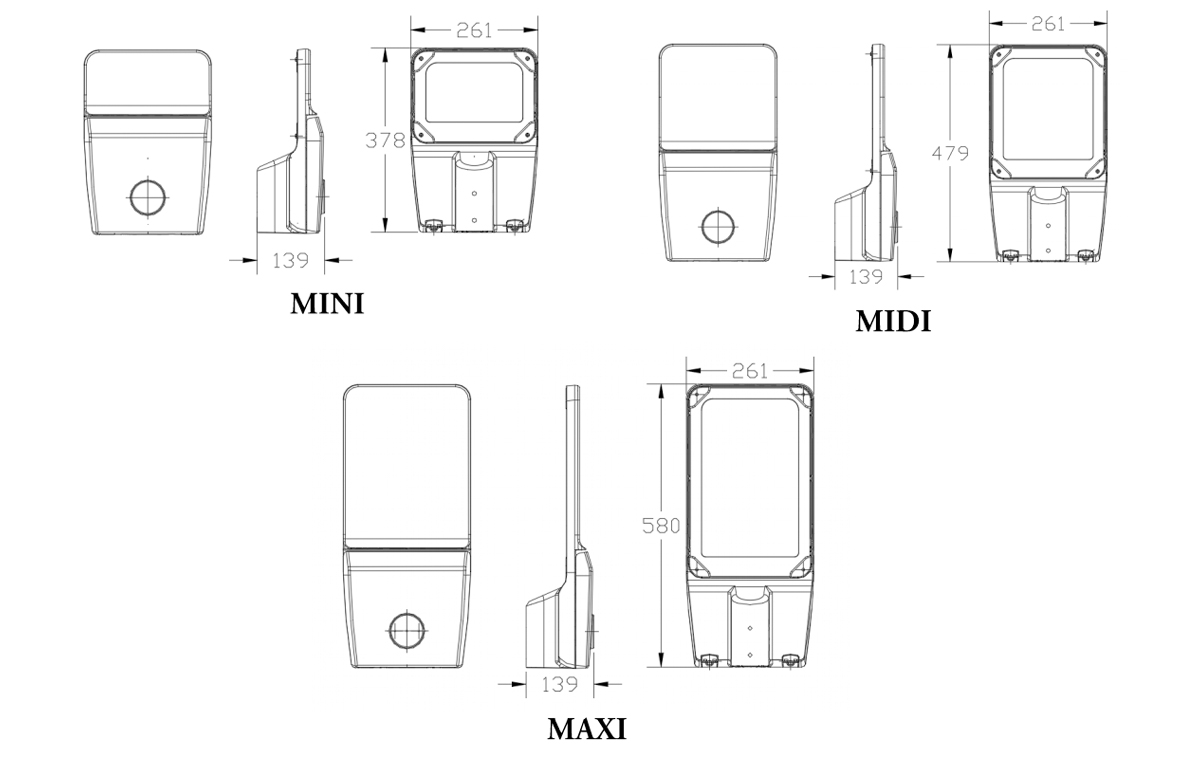

DIMENSIONS (mm)
