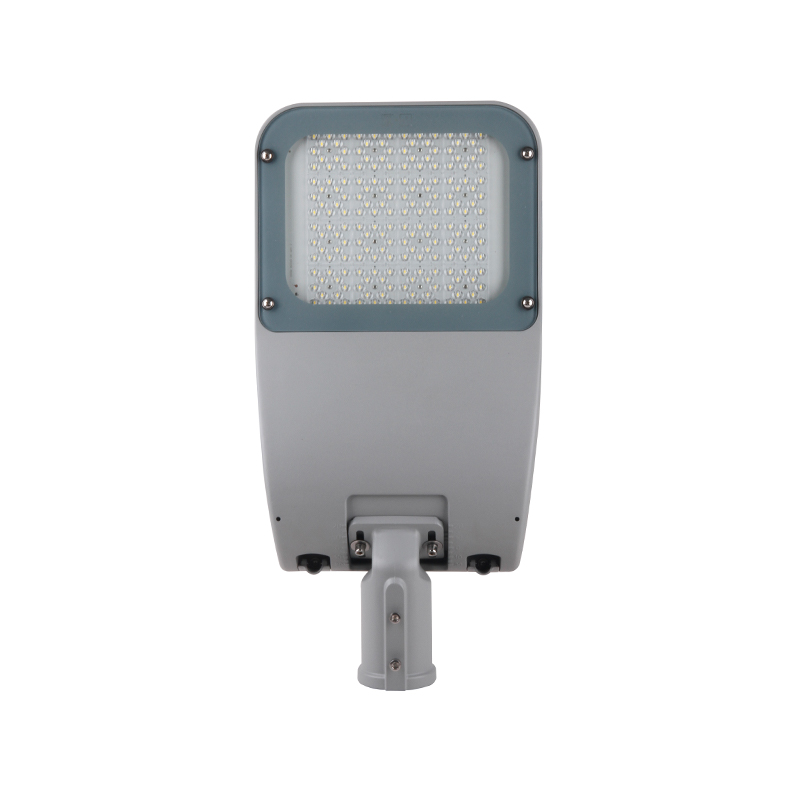

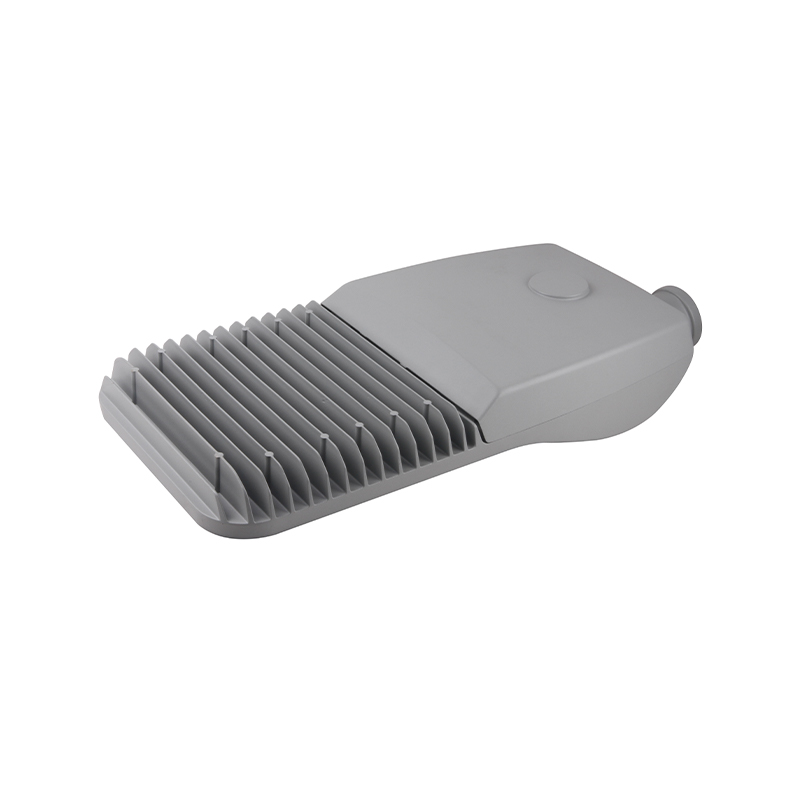

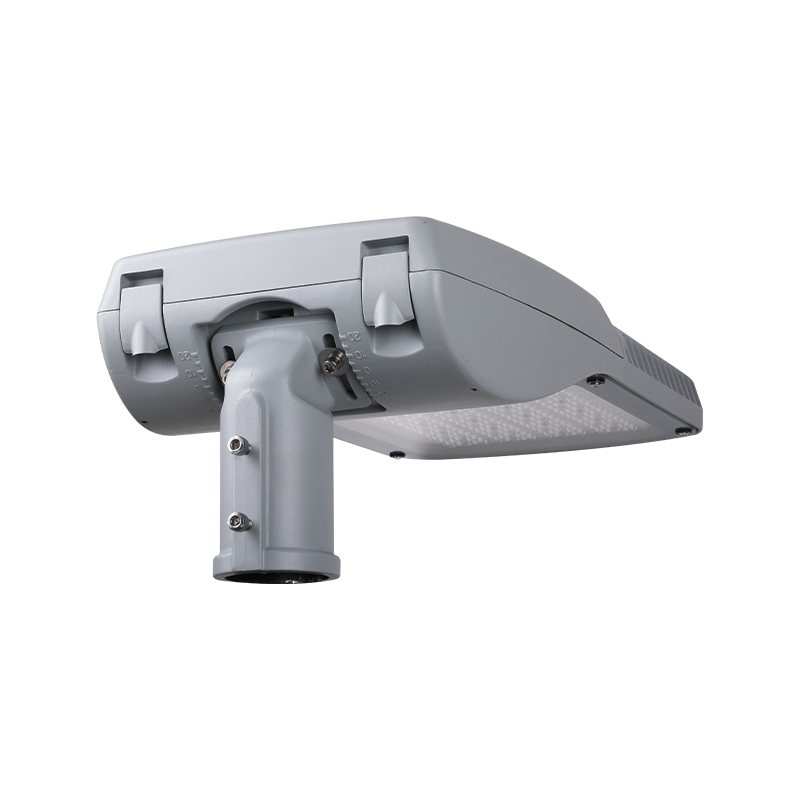

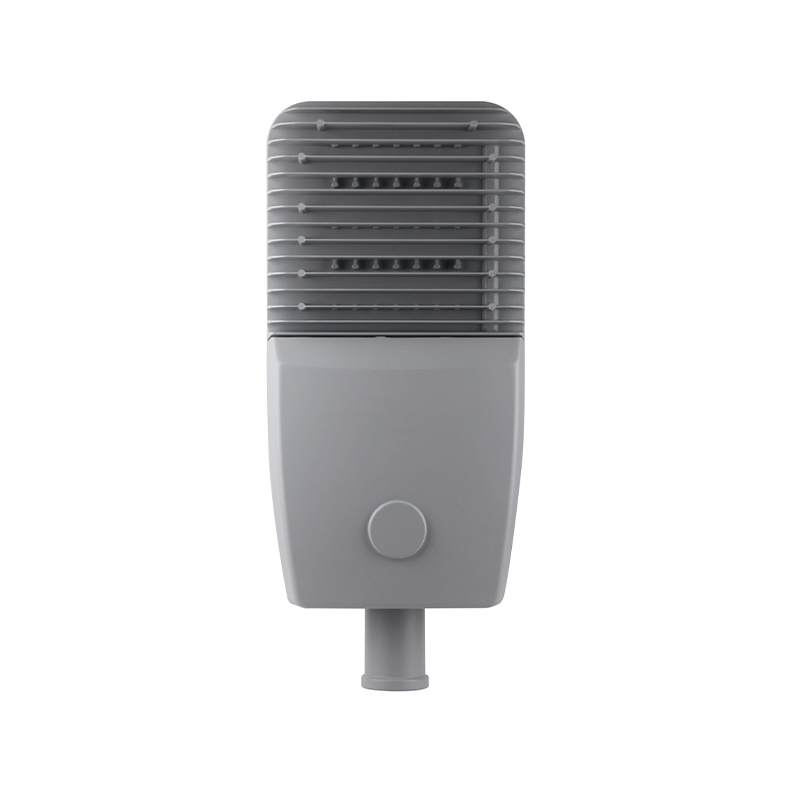

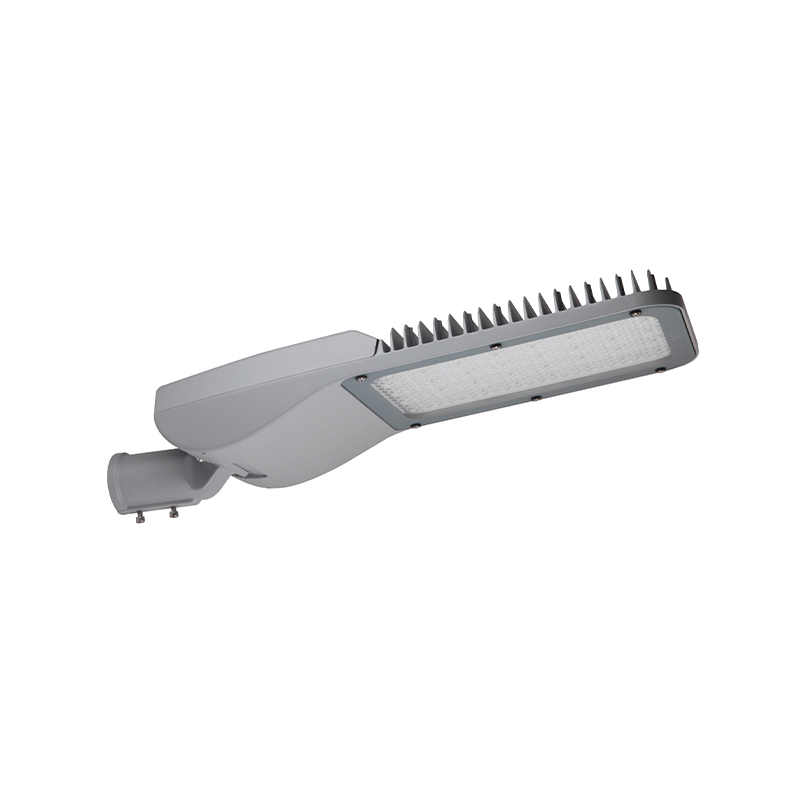

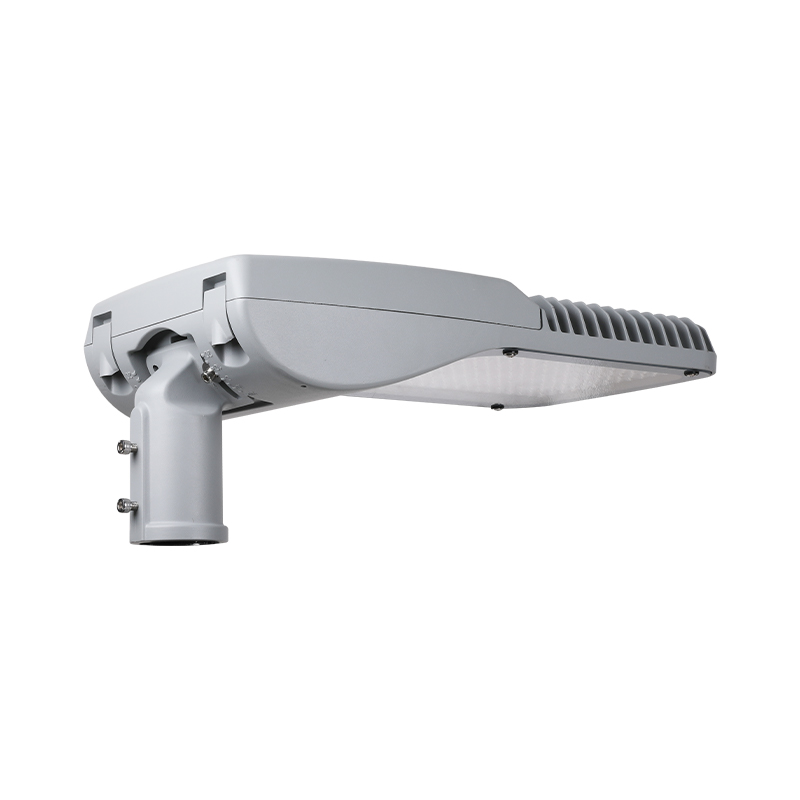

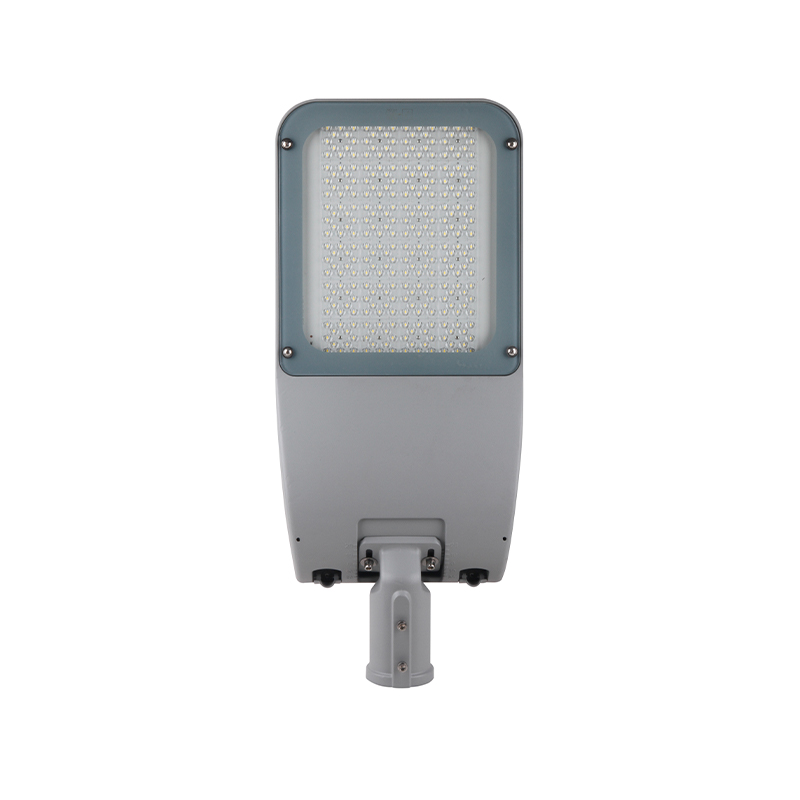

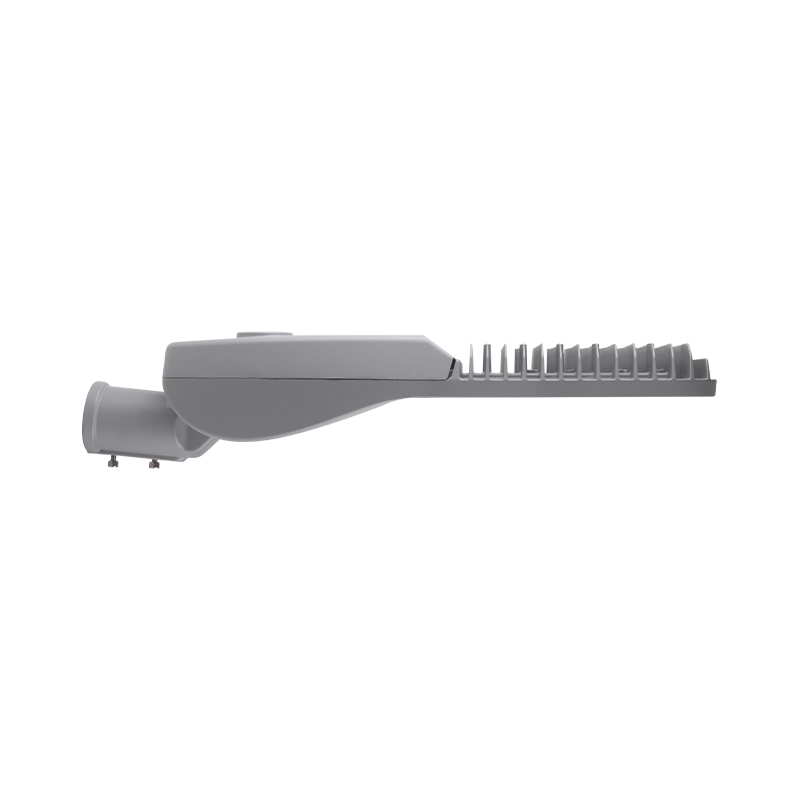

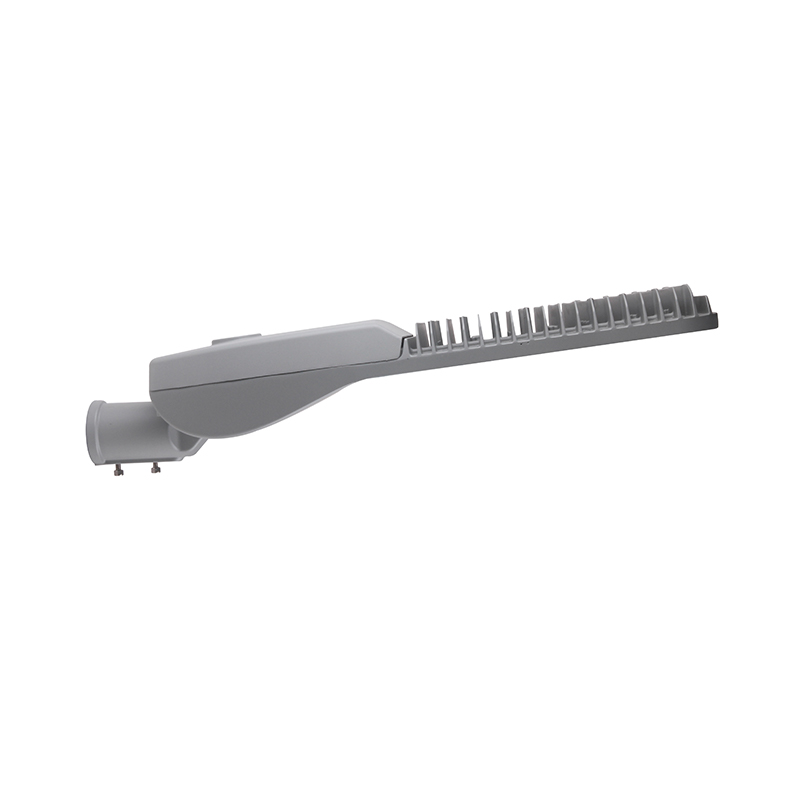

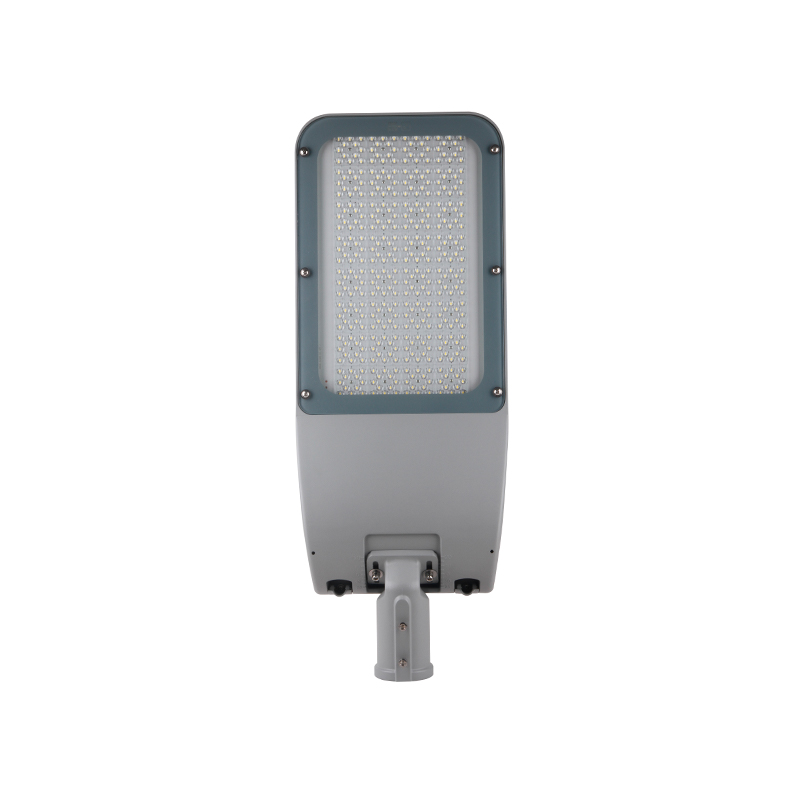

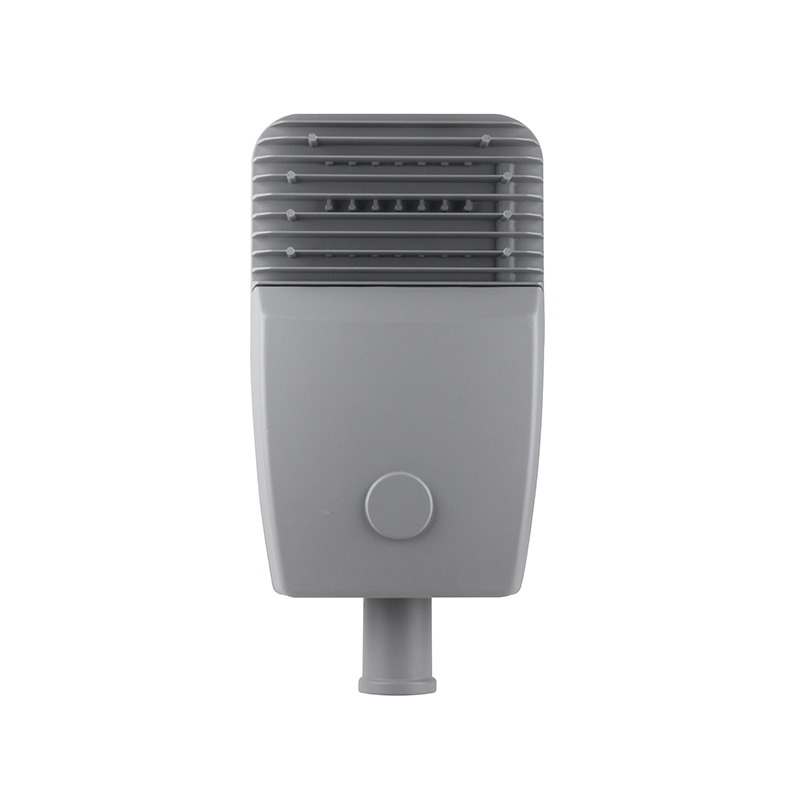

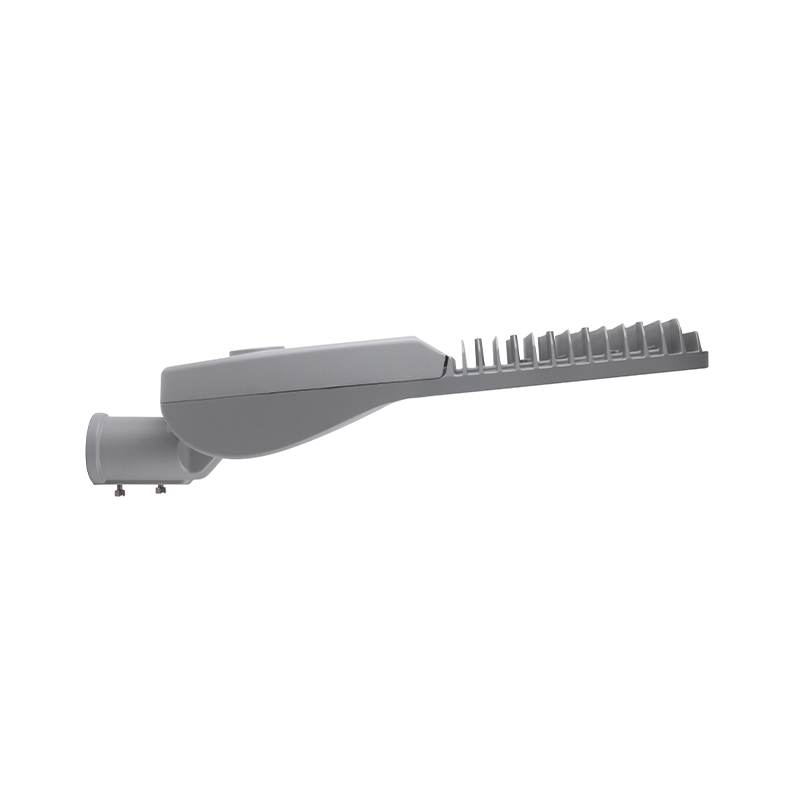

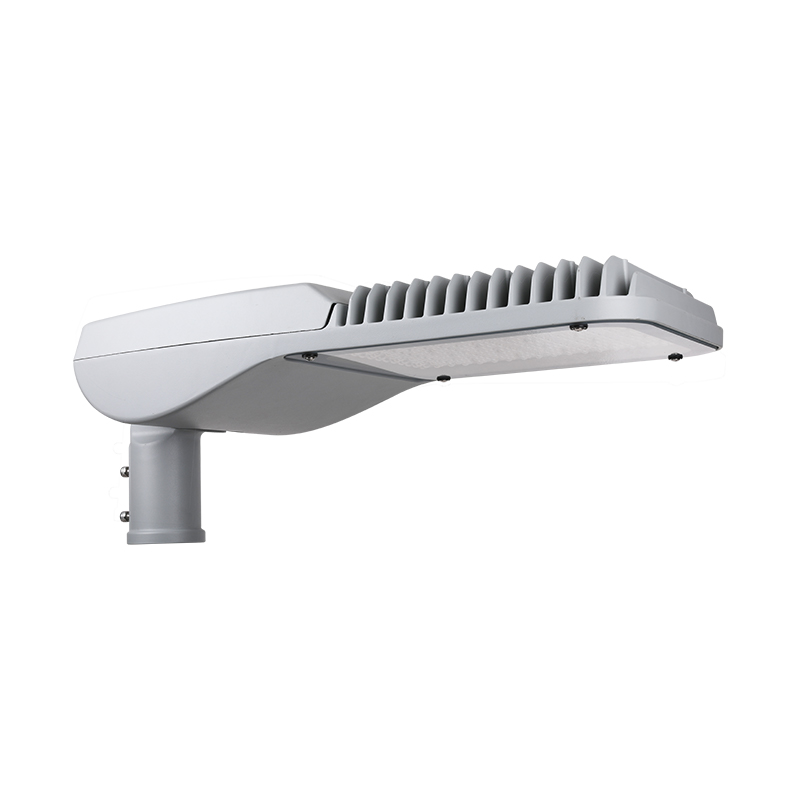

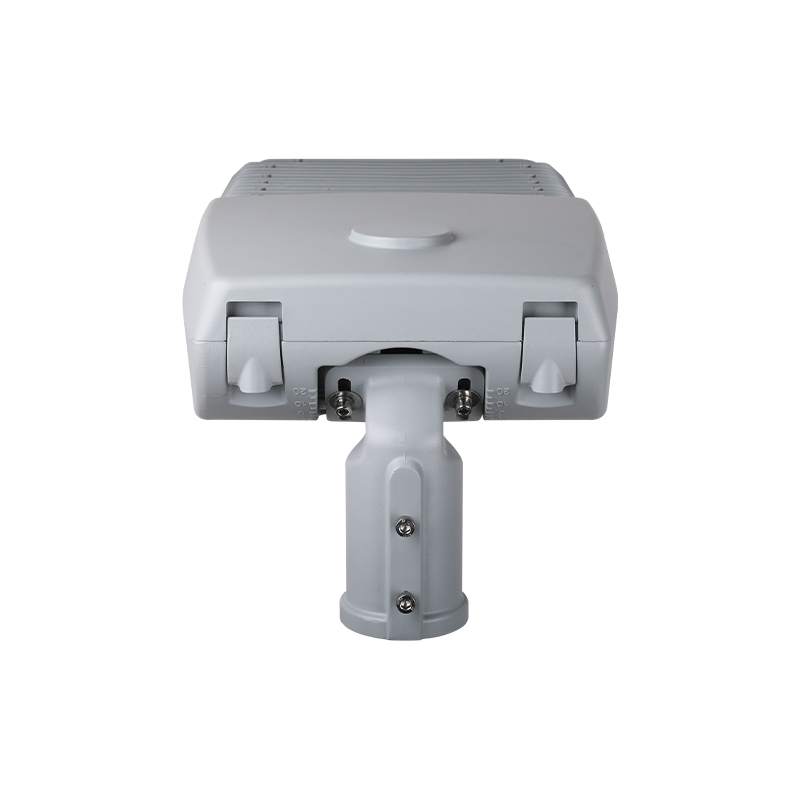

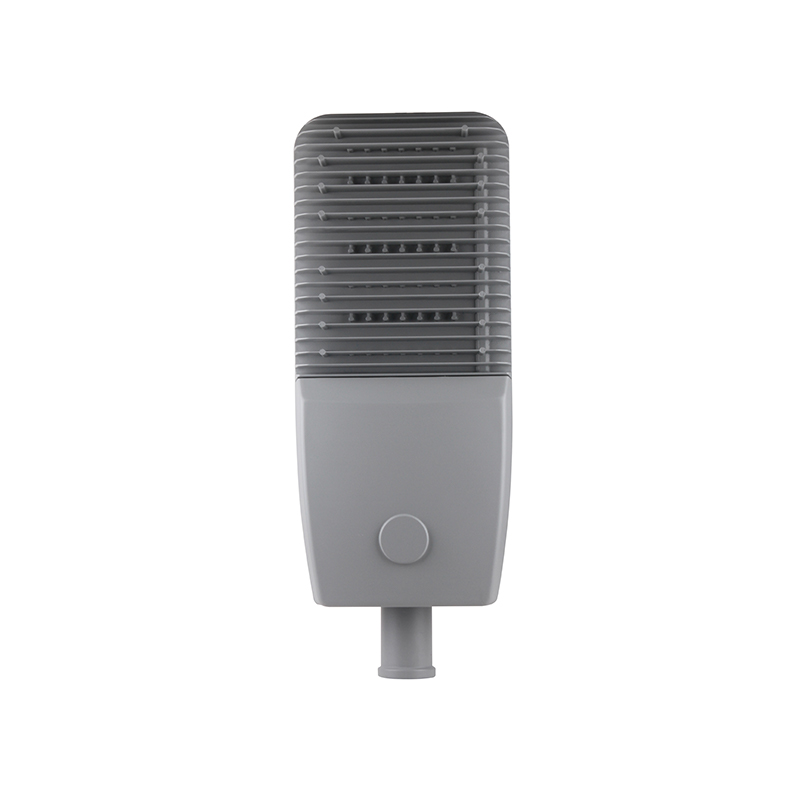

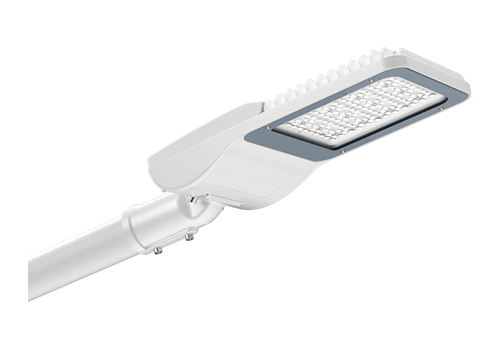

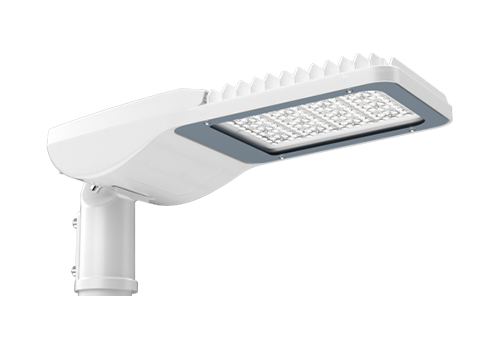

High Power IP66 100w 150w 200w 250w 300w ATLANTIC Series LED Street Light

Product Description

FEATURES
1. Full-scenario adaptation solution: Provides modular design with 3 sizes to accurately match different scales and scene requirements, taking into account flexibility and cost-effectiveness.
2. Multi-dimensional installation innovation: The original adjustable angle socket system breaks through the traditional installation limitations, supports the dual modes of lateral embedding and column top installation, and improves the engineering deployment efficiency by more than 30%.
3. Tool-free maintenance revolution: Innovative gear compartment tool-free opening structure, 5-second quick disassembly design to achieve zero-barrier maintenance of core components, reduce operation and maintenance costs by 40%, and make life cycle management more efficient.
4. Optical performance leap: Equipped with a patented asymmetric optical lens system, it achieves 180° precise light control, glare suppression ratio increased by 55%, illumination uniformity exceeds 90% of the industry standard, and visual comfort is fully upgraded.
5. Future upgrade guarantee: The modular power compartment design supports hot-swap replacement of LED engines and drive units, and 5-minute rapid upgrades, so that the product always maintains the forefront of technology.
6. Industrial-grade protection system: HPDC high-pressure die-cast aluminum one-piece body, with military-grade corrosion-resistant polyester powder coating, salt spray test over 1,000 hours, no fear of harsh environmental erosion.
7. Thermal management black technology: integrated bionic heat dissipation fin matrix, with micro-channel heat dissipation technology, thermal resistance is reduced by 28%, ensuring the LED chip to operate stably at extreme temperatures of -40℃~60℃.

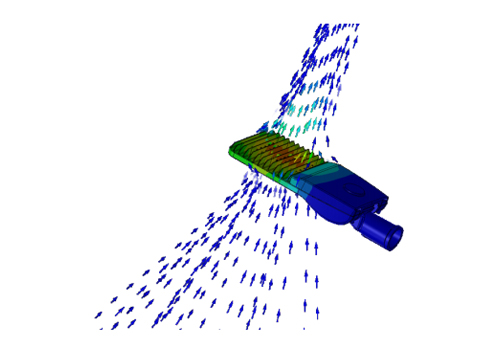

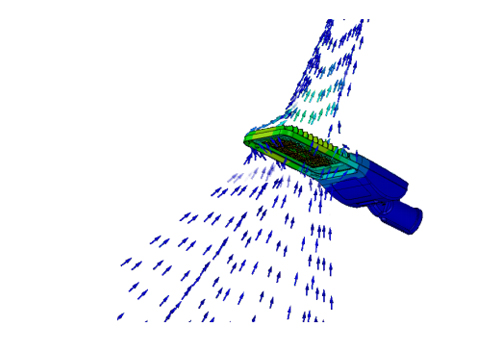

THERMAL CONTROL TECHNOLOGY
Structure optimized by advanced FEA technology to realize fast heat dissipation. Uniform heat distribution and keep high luminous flux to achieve longer lifespan.

Thermal Conductivity                         Thermal Conductivity	Thermal Air Convection	Thermal Air Convection

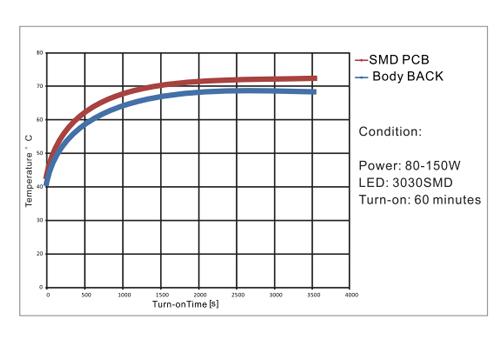

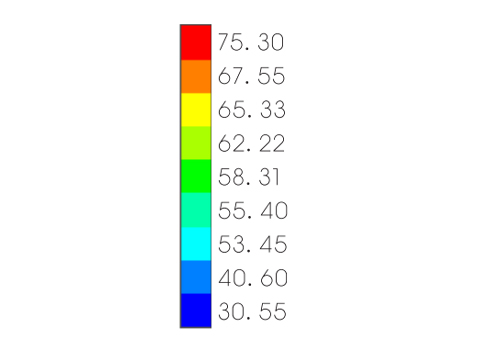

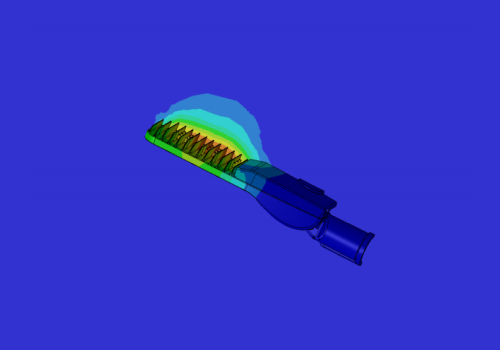

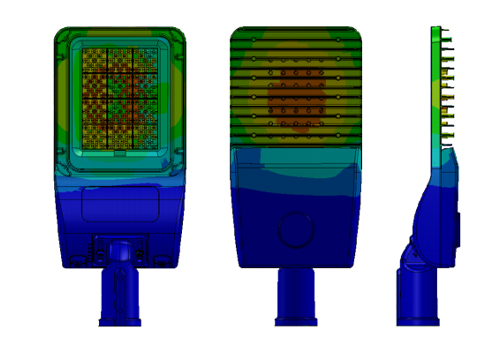

Temperature Rise Curve	Thermal Effects to Air	Unit: ℃

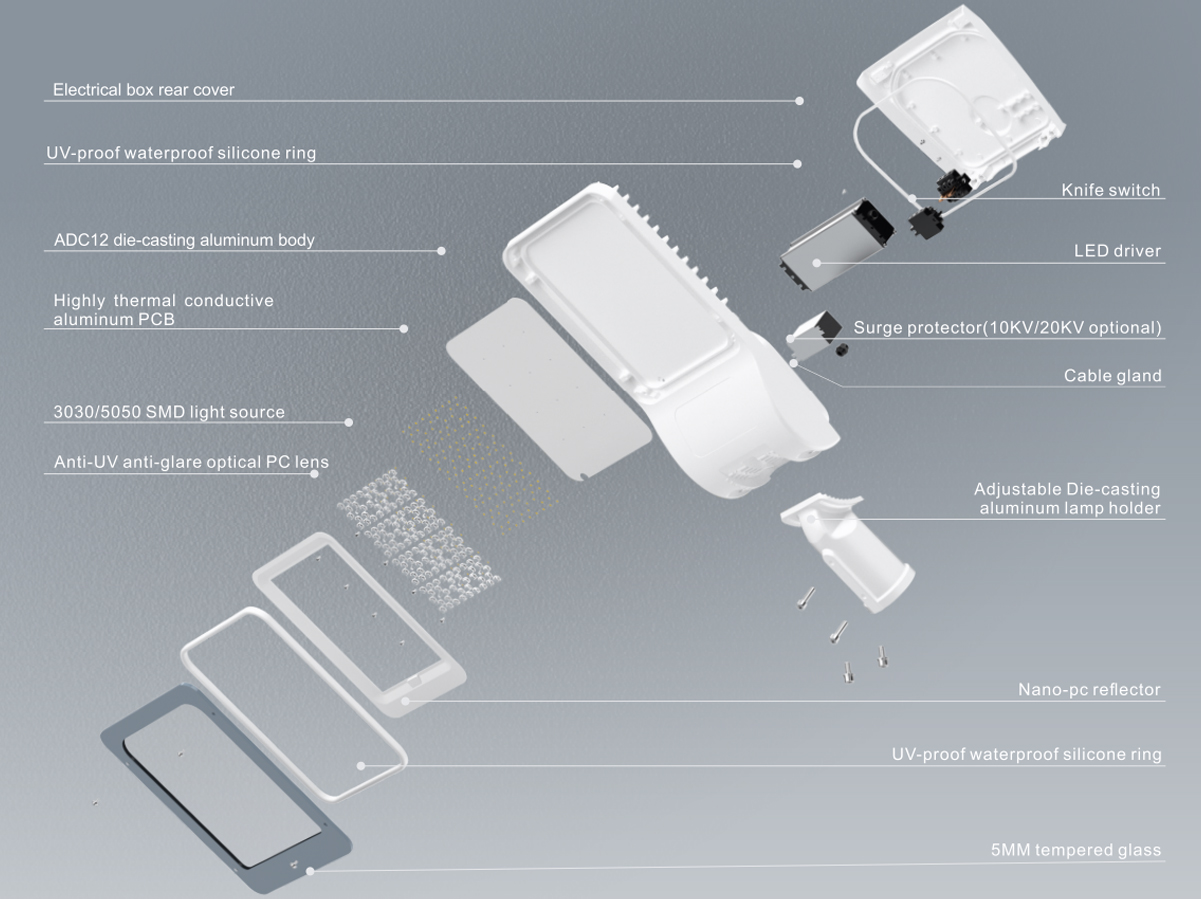

EXPLODED

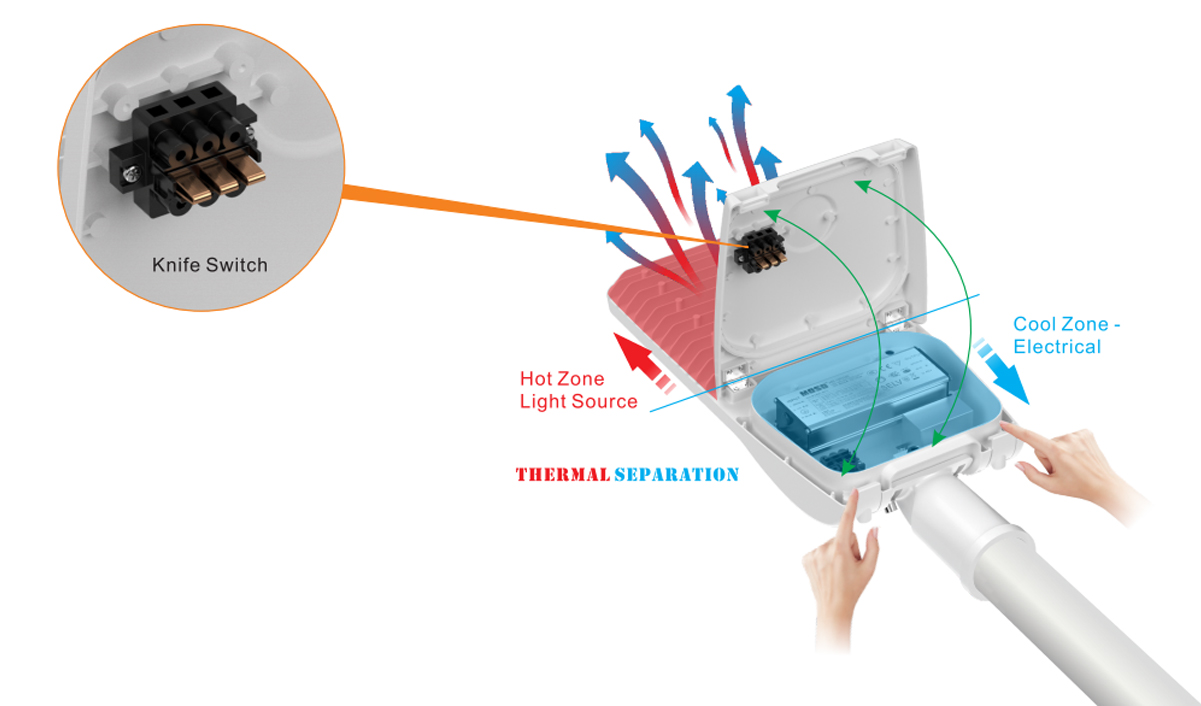

TOOL-FREE BUCKLE DESIGN
Thermal & electric compartment separate design.
Equipped with knife switch, which automatically power off when cover is opened.

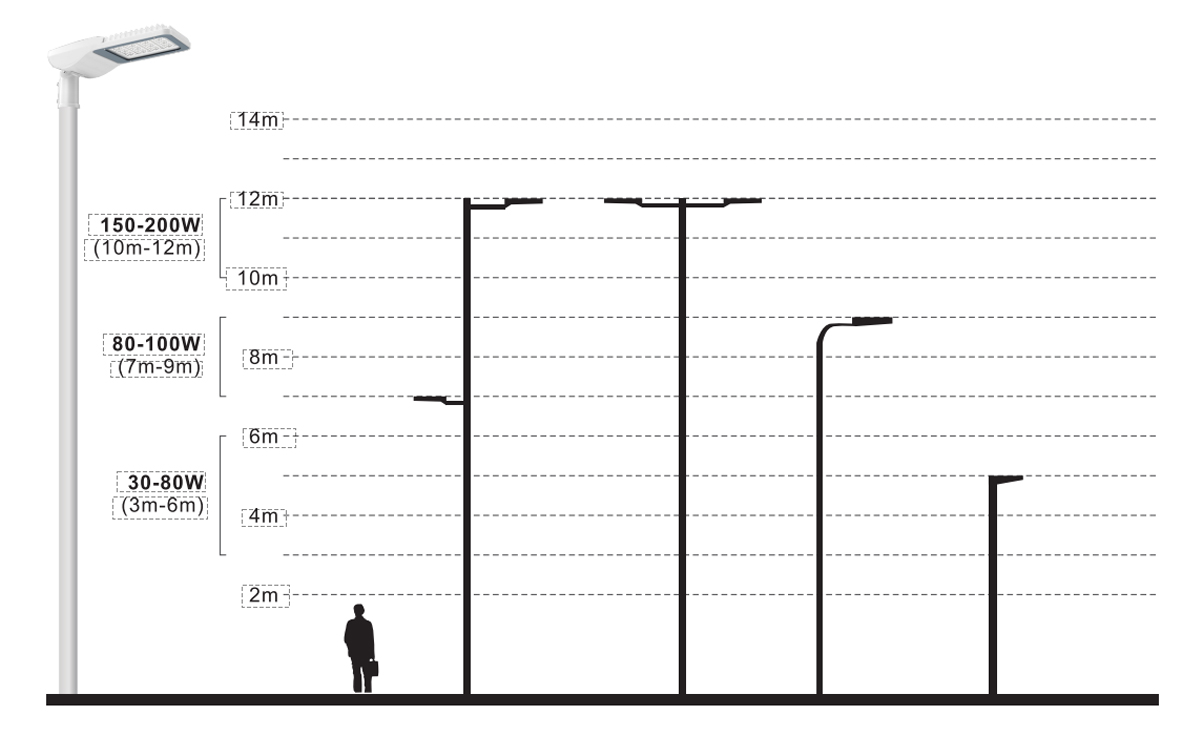

APPLICATIONS
Widely applicable for roads, alleys, streets, courtyards, parks, fences, balconies new rural construction etc.

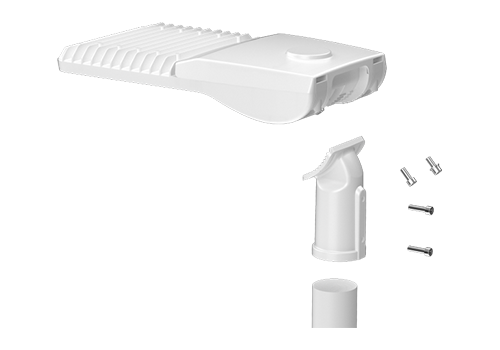

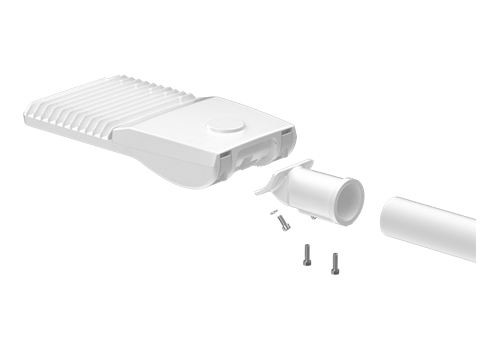

INSTALLATION GUIDE

Horizontal installation	Finished-Horizontal installation
Vertical installation	Finished-Vertical installation

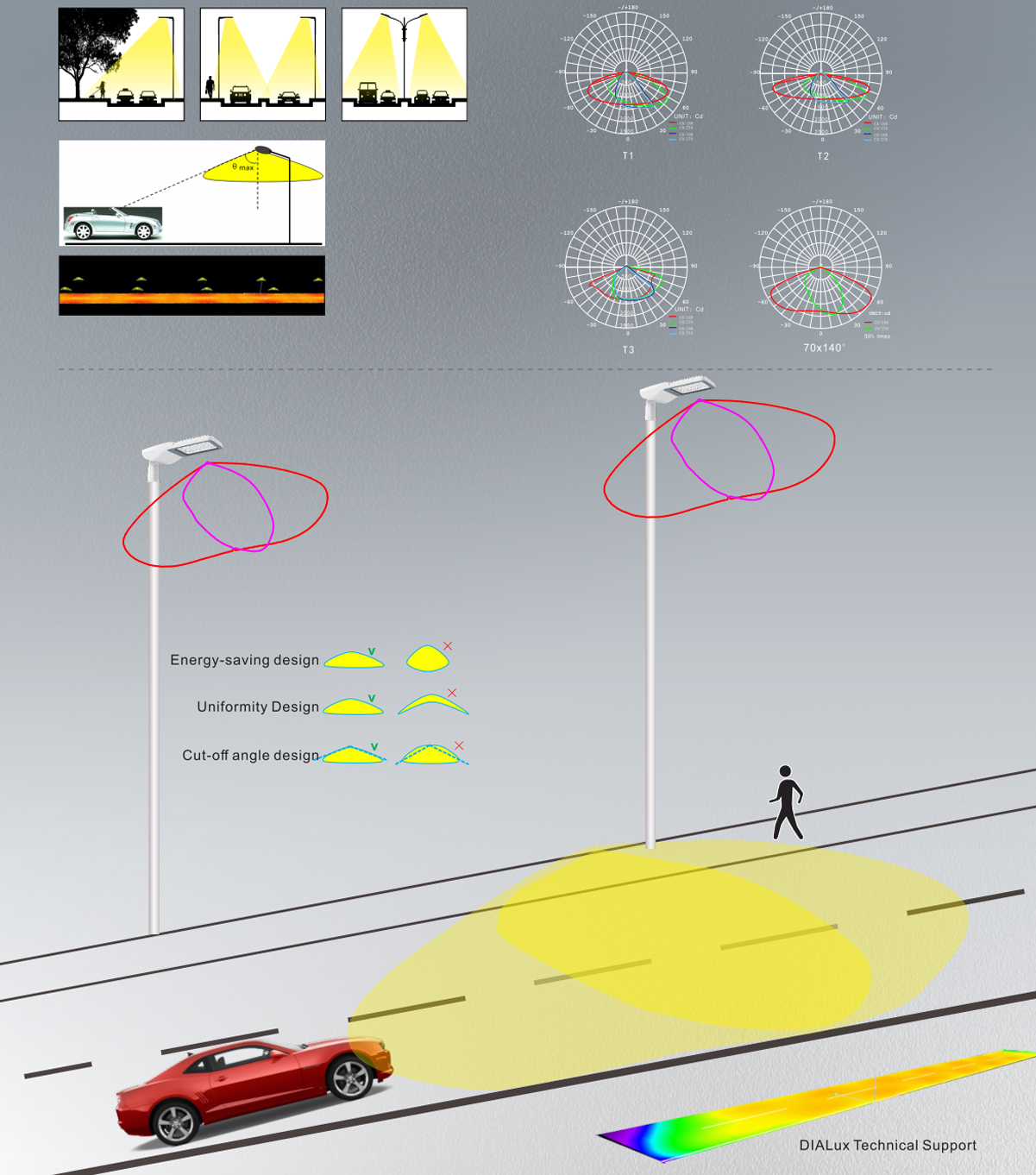

OPTICS
Tech. Support: Please provide the information of road length, width, height and application scene to us.
Our professional engineer team will proceed the lighting DlALUX simulation and evaluate the lighting quantity and effect for your project. IES files are available upon request.

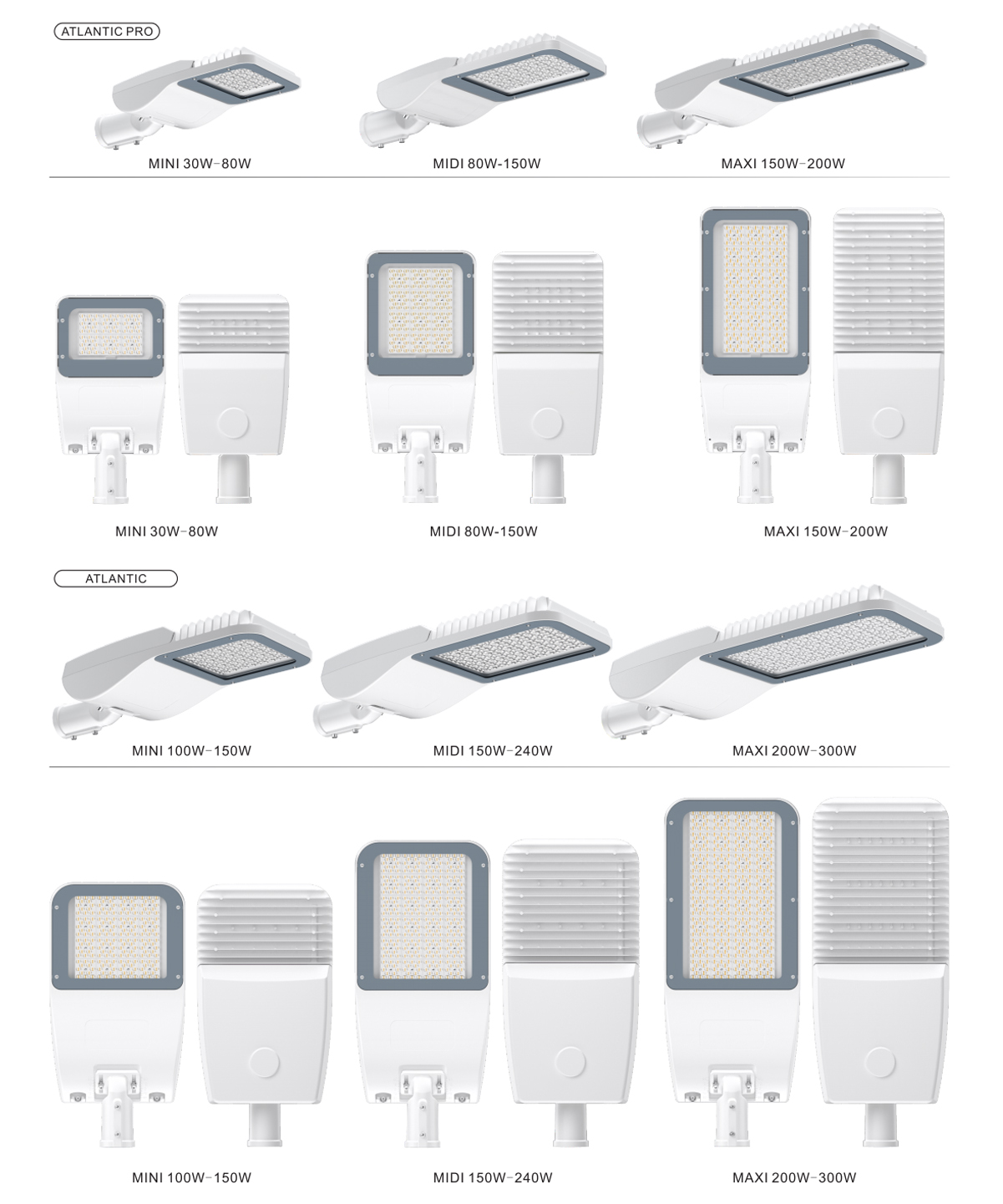

PRODUCTS

MAIN PARAMETERS

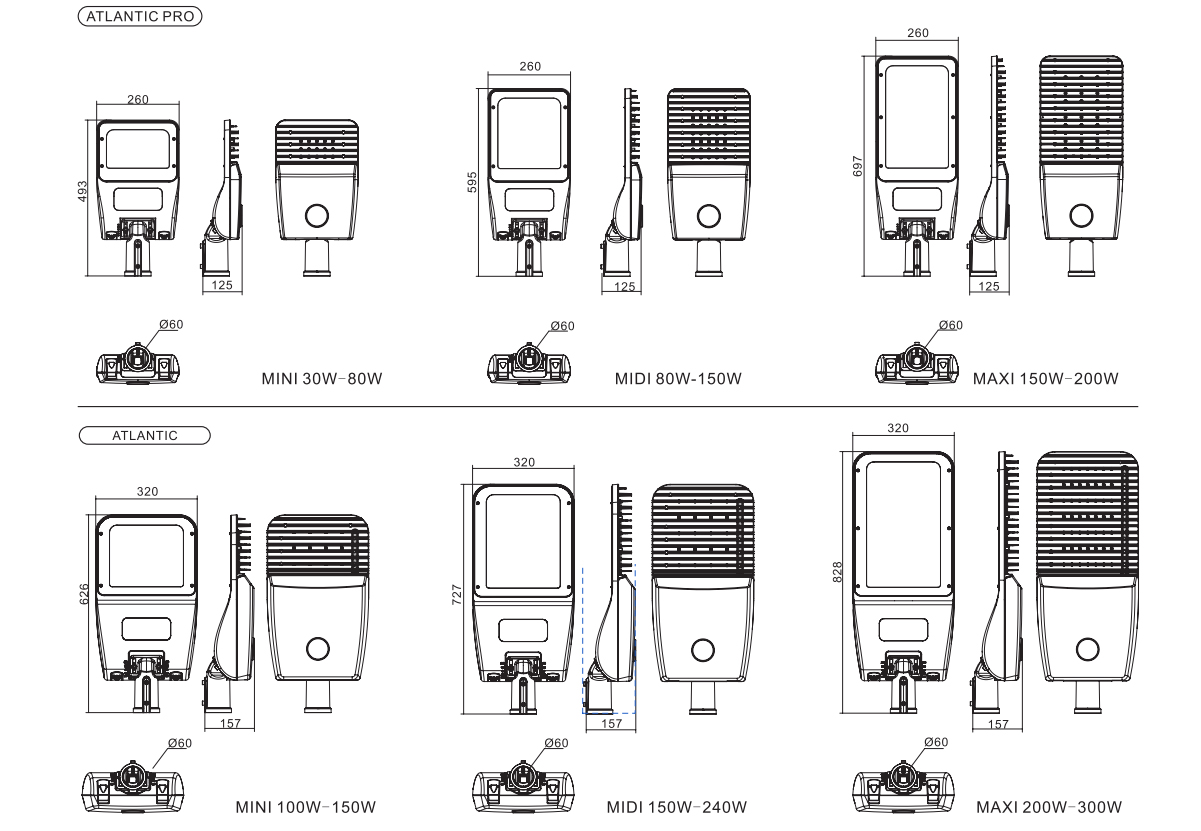

DIAGRAMS
Unit: mm

PACKING DETAILS

CAUTIONS:
1. Installation must be done by professional electricians.
2. Do NOT dismantle the product. It may be dangerous.
3. Do NOT stare at the light with naked eyes. It is harmful to eyes.
4. For outdoor lighting, waterproof measurements must be done to cable terminals.
