APPLICATION AREA

Product Description

FEATURES
1. Flexible size, multiple adaptability: three different sizes are available to accurately match the needs of various projects. Whether it is fine lighting in a small space or comprehensive coverage of a large venue, it can be easily handled, with high flexibility to bring super high cost performance, allowing users to get a high-quality experience at a more affordable cost.
2. Universal installation, convenient and efficient: The fixed parts are designed for universal side-entry installation, without complex adjustments and additional accessories. The installation process is simple and fast, which greatly saves time and manpower and improves work efficiency.

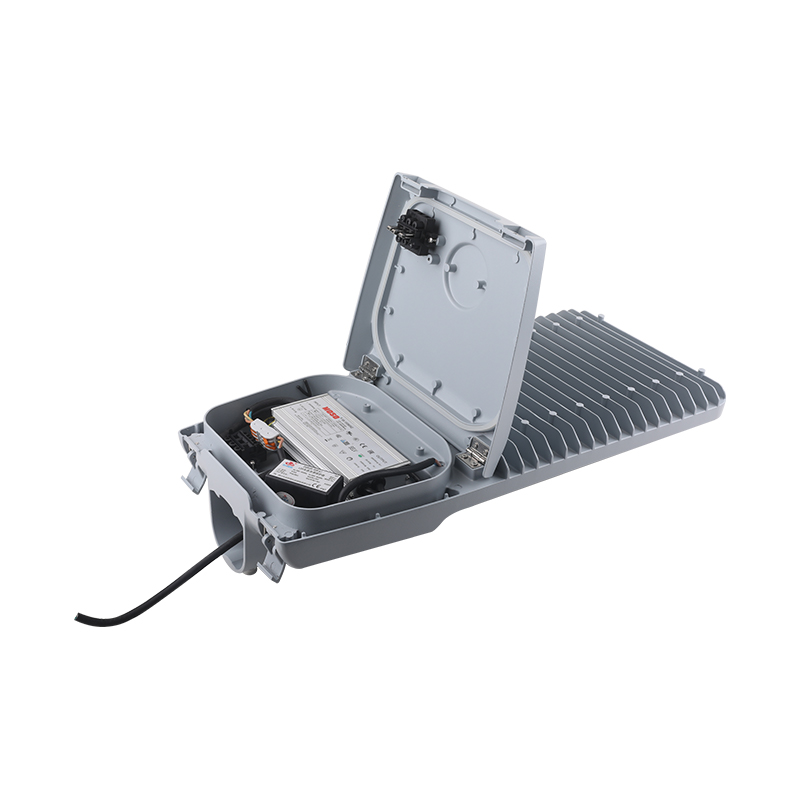

3. Tool-free maintenance, easy and worry-free: The innovative gear compartment design can be opened without tools. Daily maintenance does not require looking for tools everywhere, and the operation is simple. Even non-professionals can easily complete it, making maintenance easy and worry-free.
4. Optical lens, excellent light effect: Equipped with advanced optical lenses, it can accurately control the distribution of light, achieve asymmetric lighting, and avoid light waste. 5.Effectively reduce glare, create a highly uniform lighting environment, and bring a comfortable visual experience.
6. Sturdy and durable, quality assurance: The high-pressure die-cast aluminum body is matched with corrosion-resistant polyester powder coating, which is sturdy and stable and can withstand harsh environments. Durable heat sink and advanced thermal management technology ensure stable operation of the product.

THERMAL CONTROL TECHNOLOGY
Structure optimized by advanced FEA technology to realize fast heat dissipation.Uniform heat distribution and keep high luminous flux to achieve longer lifespan.

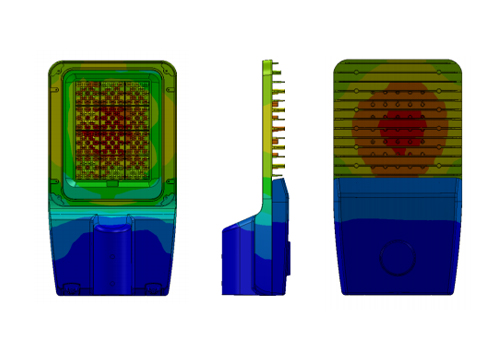

Thermal Conductivity

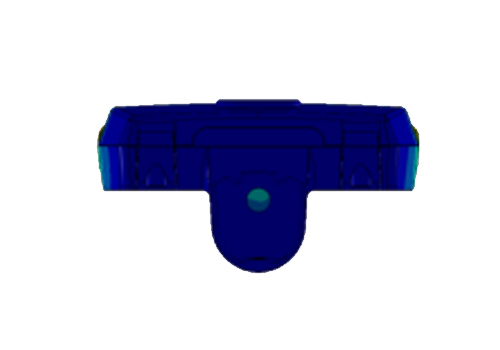

Thermal Conductivity

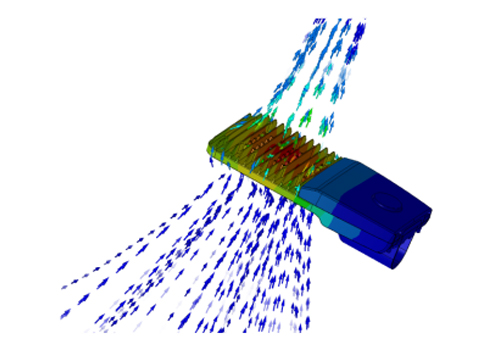

Thermal Air Convection

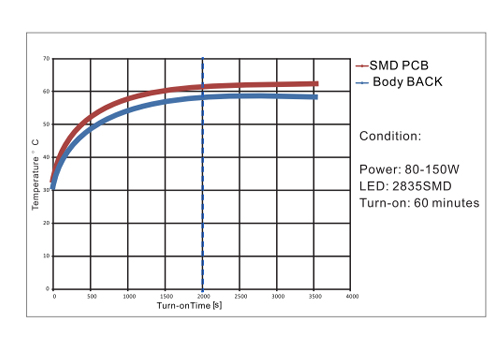

Temperature Rise Curve

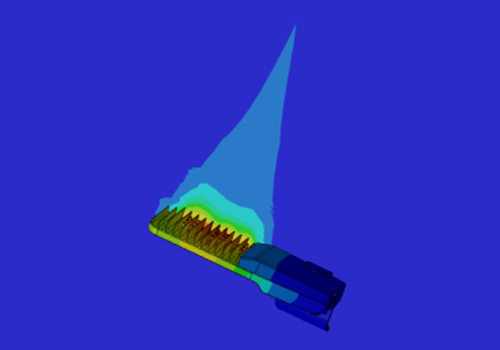

Thermal Effects to Air

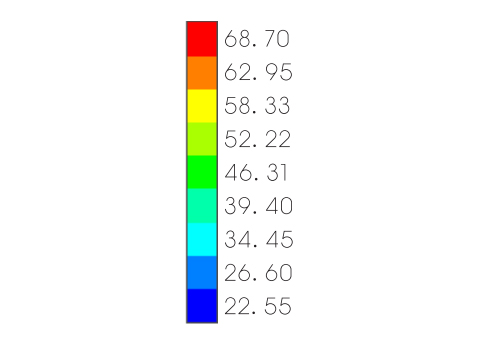

Unit:°C

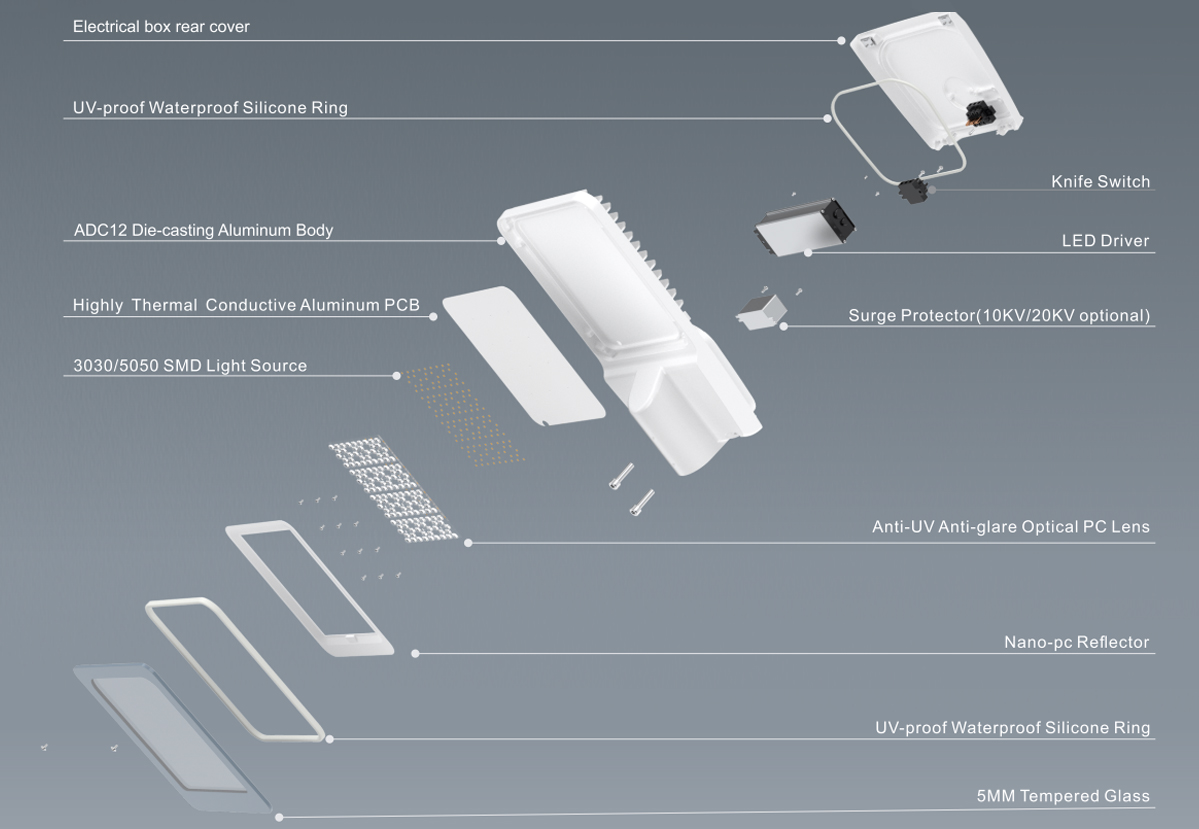

EXPLODED

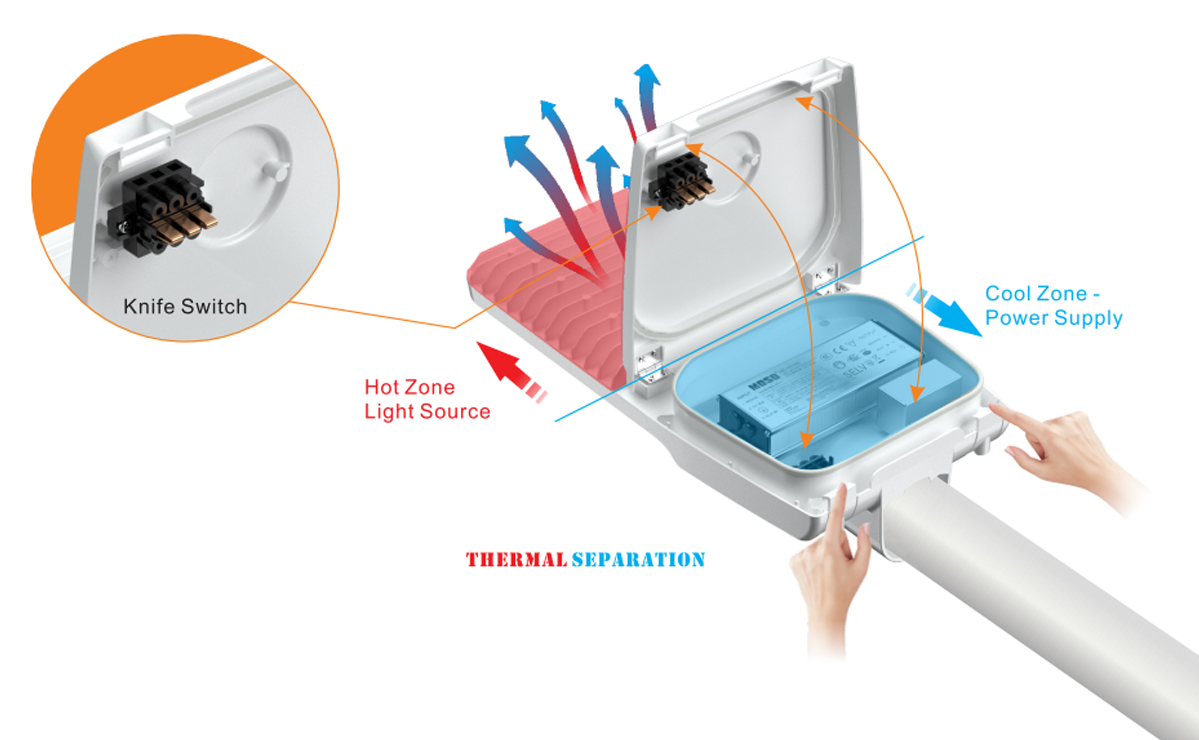

TOOL-FREEBUCKLEDESIGN
Thermal & electric compartment separate design.
Equipped with knife switch, which automatically power off when cover is opened.

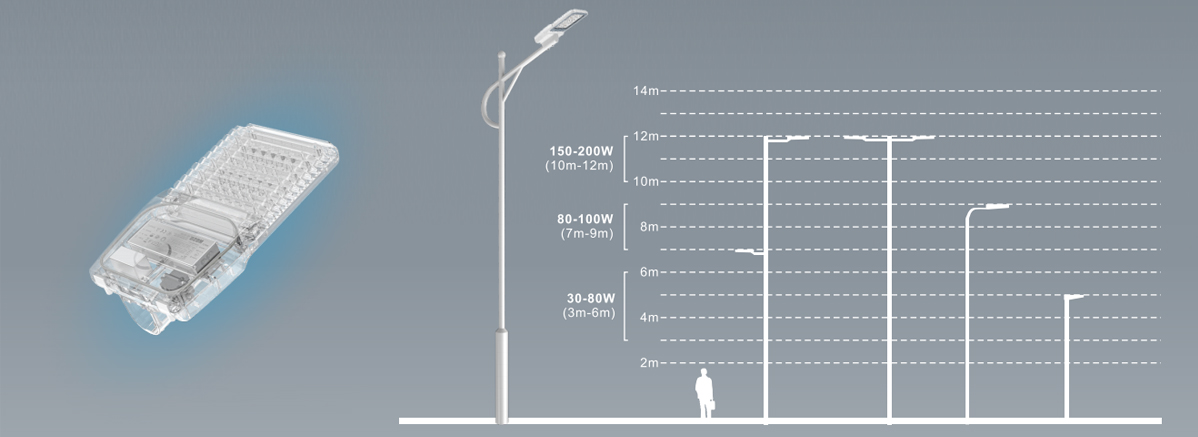

APPLICATIONS
Widely applicable for roads, alleys, streets, courtyards, parks, fences, balconies new rural construction etc.

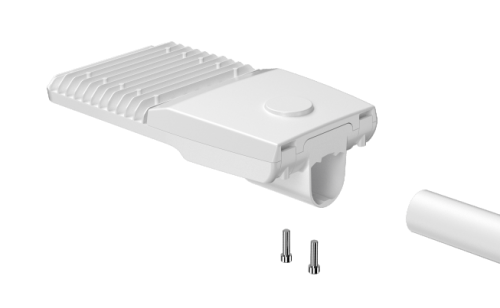

INSTALLATION GUIDE


Horizontal installation
Finished-Horizontal installation

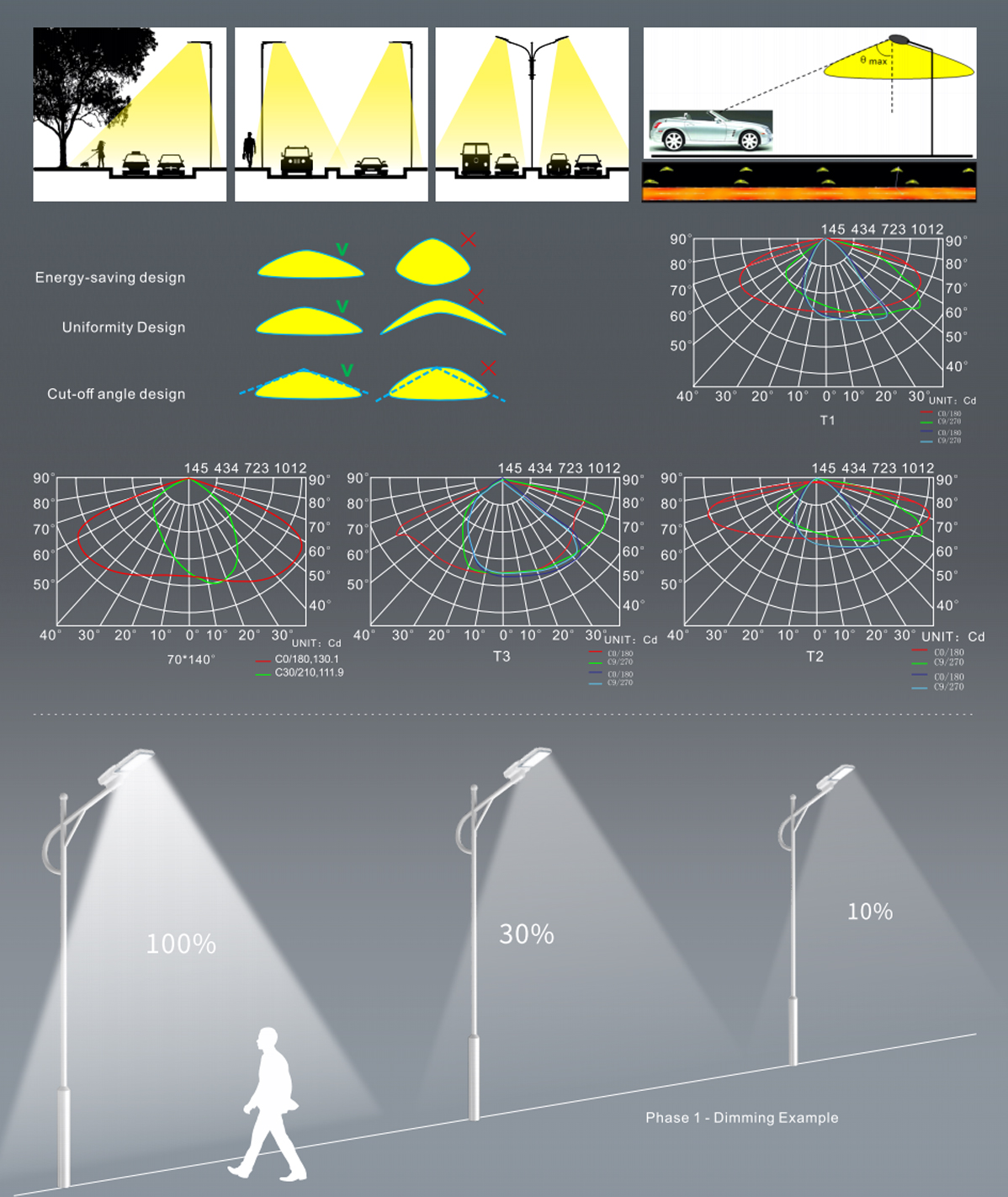

OPTICS
Tech. Support: Please provide the information of road length, width, height and application scene to us.
Our professional engineer team will proceed the lighting DlALUX simulation and evaluate the lighting quantity and effect for your project. IES files are available upon request.

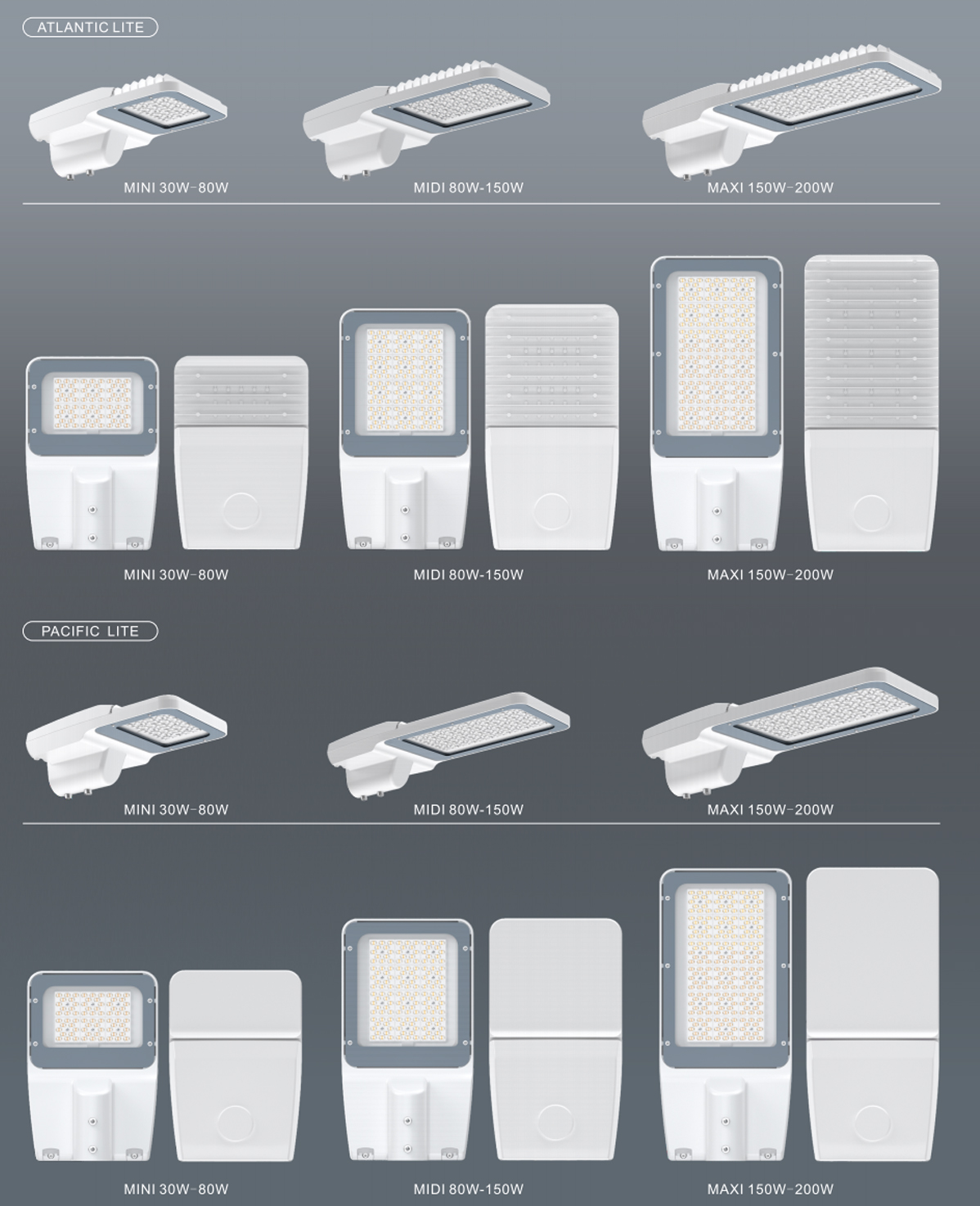

PRODUCTS

MAIN PARAMETERS

Product Name ATLANTIC    LITE PACIFIC LITE
Wattage MINI 30W-80W MIDI80W-150W MAXI 150W-200W MINI 30W-80W MIDI80W-150W MAXI 150W-200W
Weight 4.0KG 5.3KG 6.5KG 3.7KG 5.0KG 6.2KG
Spigot Diameter 60MM
IK IK08/IK09 OPTIONAL
Input Voltage 100-277V/50-60HZ
CCT 3000-6500K
CRI CRI>70
Operating Temperature -40℃~50℃
Housing Material ADC12 die-casting aluminum
IP IP66
Surge Protection 10KV/20KV
Diffuser Tempered glass
Beam Angle T1/T2/T3/70x140°
Lens Material Optical PC lens
Surge Protection 50000 hours
Diffuser 5MM Tempered glass
Installation Horizontal installation
Installation Depth >110MM
Warranty 5 Years

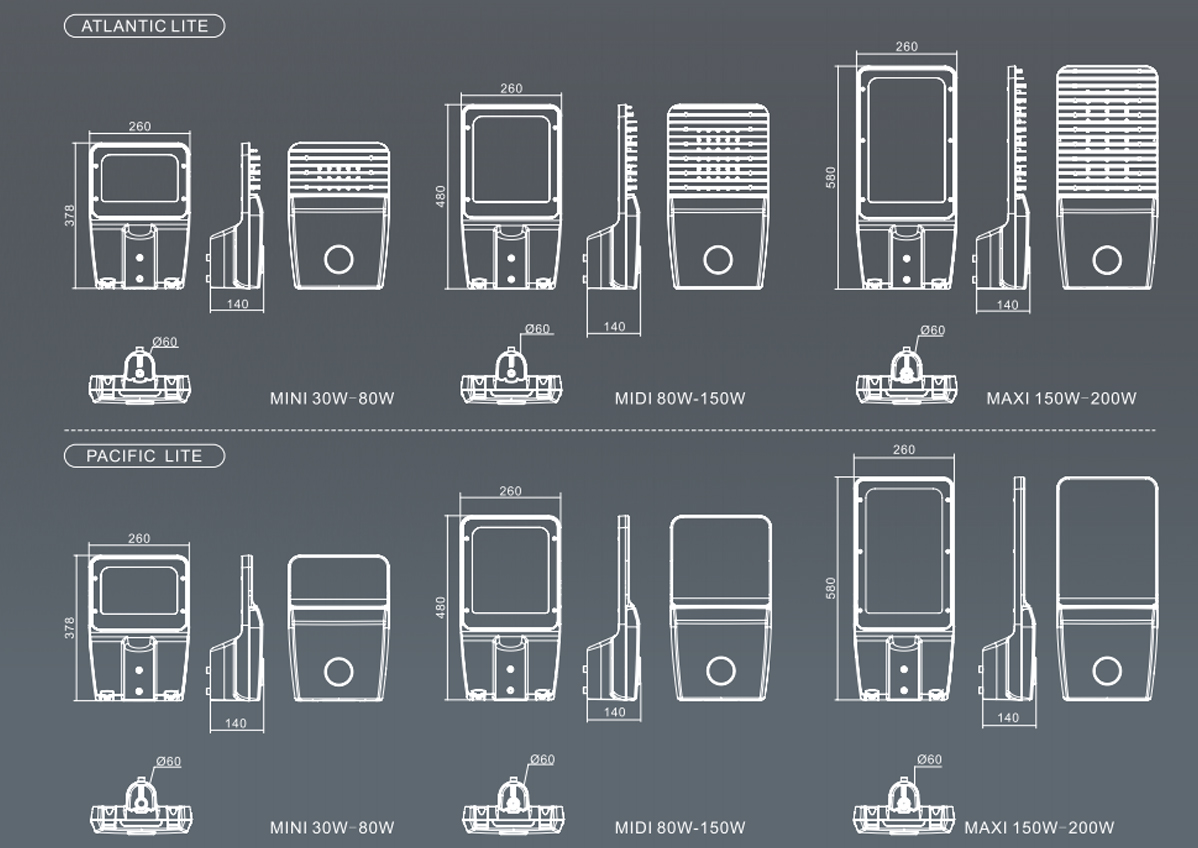

DIAGRAMS
Unit: mm

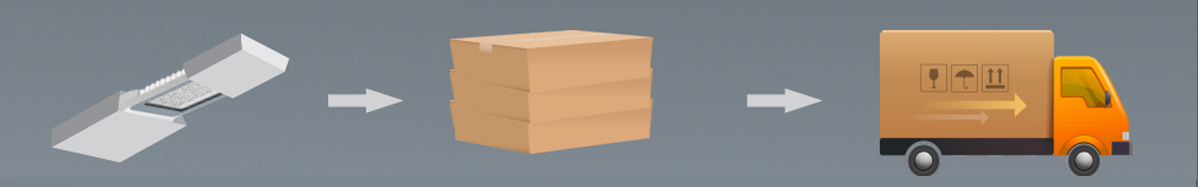

PACKING DETAILS

MODEL ATLANTIC LITE MINI ATLANTIC LITE MIDI ATLANTIC LITE MAXI PACIFIC LITE MINI PACIFIC LITE MIDI PACIFIC LITE MAXI
POWER 30W-80W 80W-150W 150W-200W 30W-80W 80W-150W 150W-200W
QTY 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS
CARTON SIZE(MM) 390*270*170mm 490*270*170mm 590*270*170mm 390*270*170mm 490*270*170mm 590*270*170mm
N.W(KG) 4.0  5.3  6.5  3.7  5.0  6.2
G.W(KG) 4.5  5.9  7.2  4.2  5.6  6.9
QTY20GP(PCS) 1564  1245  1034  1564  1245  1034
QTY40GP(PCS) 3240  2579  2142  3240  2579  2142
QTY40HQ(PCS) 3799  3023  2511  3799  3023  2511



STRUCTURAL CLEAR VIEW


CAUTIONS:
1. Installation must be done by professional electricians.
2. Do NOT dismantle the product. It may be dangerous.
3. Do NOT stare at the light with naked eyes. It is harmful to eyes.
4. For outdoor lighting, waterproof measurements must be done to cable terminals.
