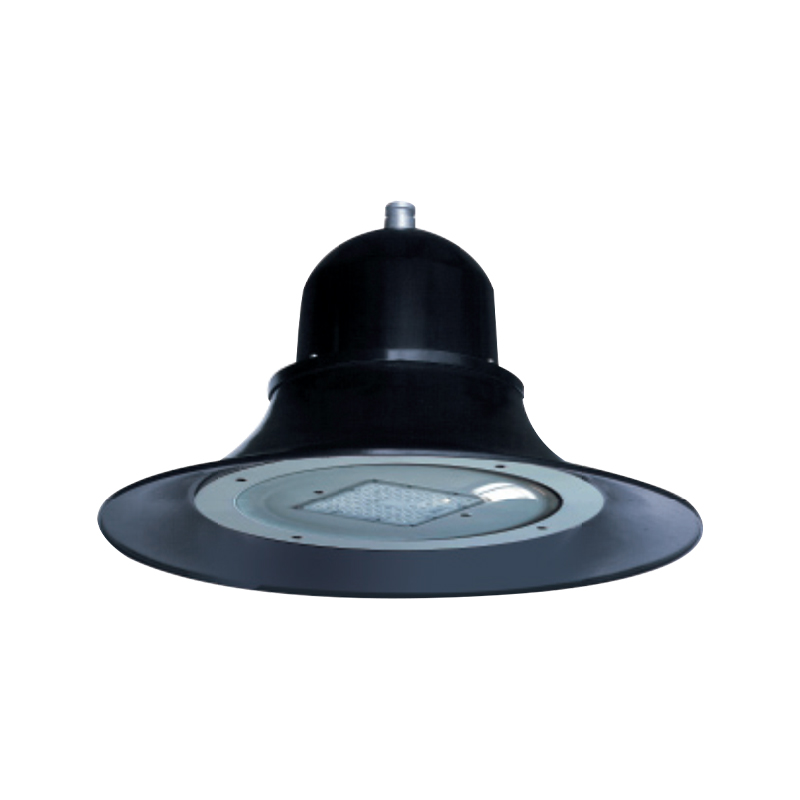

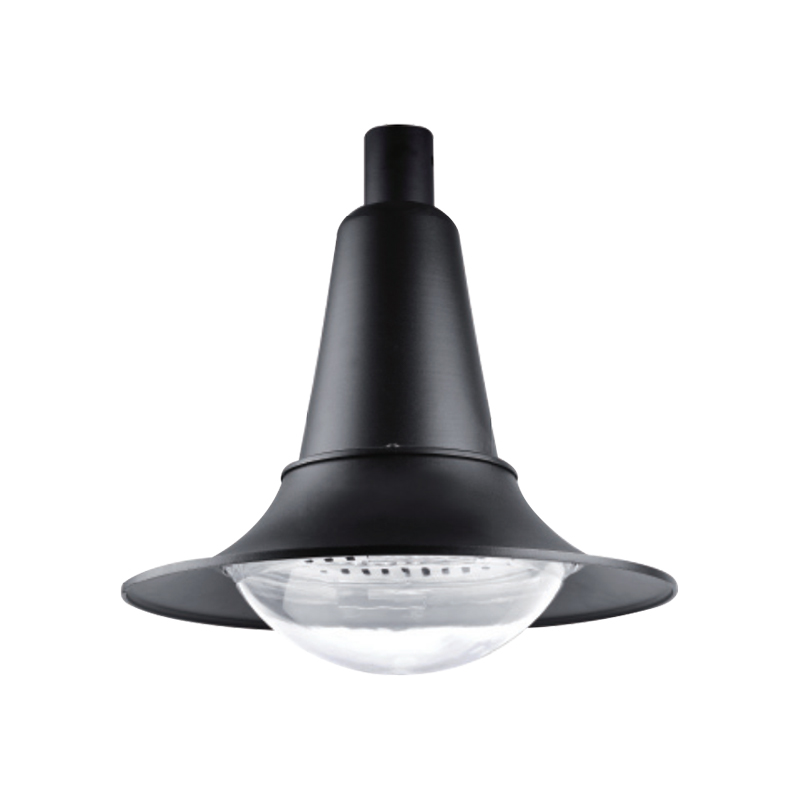

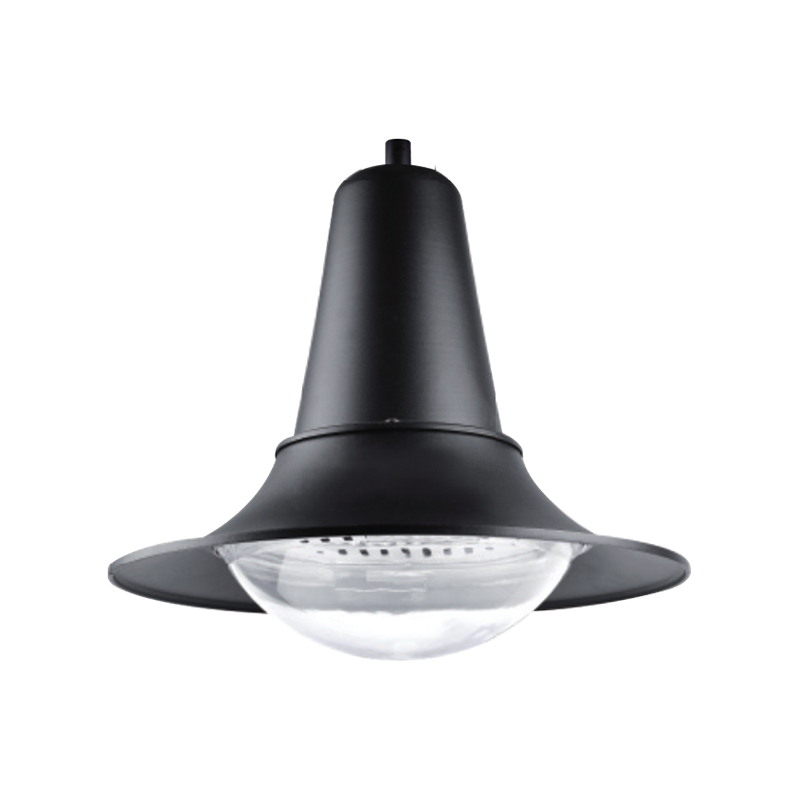

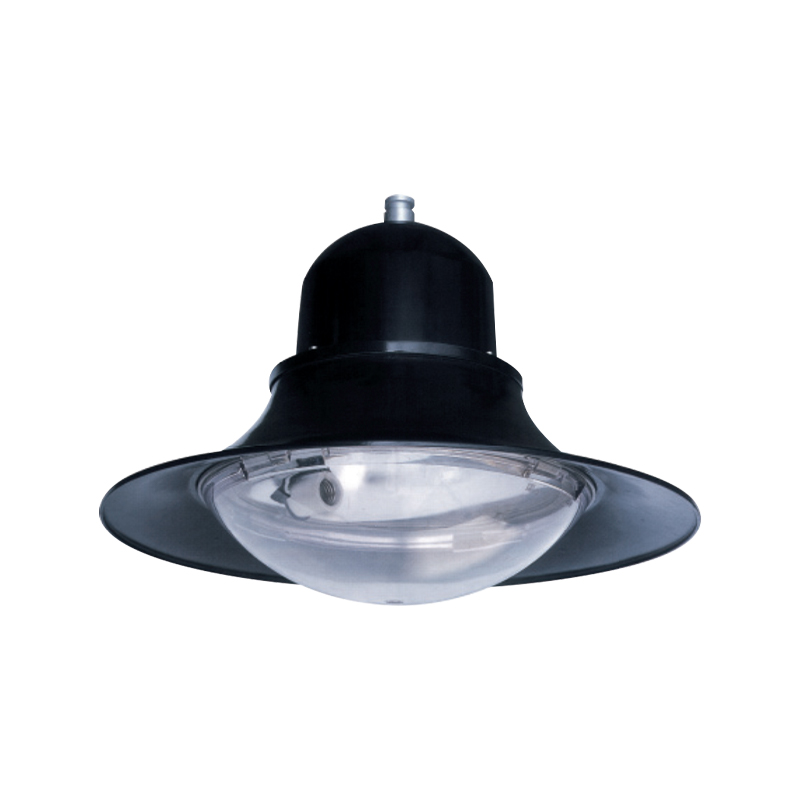

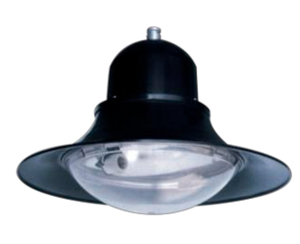

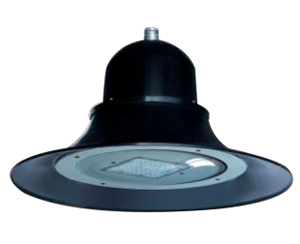

PC Diffuser Suspension 30w 50w 60w 80w HEVOS Series LED Garden Light

Product Description

HEVOS is available in three design versions to meet the needs of different environments, whether it is an open park, a dense residential area, or a spacious square. This flexibility is not only reflected in the appearance design, but also in the application of its modular LED engine. Users can replace the LED engine and gearbox according to their needs, thereby extending the service life of the equipment and reducing maintenance costs.
In terms of optical design, HEVOS uses advanced optical lens technology to achieve asymmetric light distribution and low glare effects while maintaining a high uniformity of lighting effects. This design not only improves visual comfort, but also effectively reduces the impact of glare on the surrounding environment, which is particularly suitable for places that require soft light. Its optical system is optimized to ensure a more uniform light distribution and avoid the common light spots and shadows of traditional lamps.
The body of HEVOS is made of high-pressure die-cast aluminum and coated with corrosion-resistant polyester powder coating, which enables it to maintain stability and durability in various harsh environments. The aluminum casing not only improves the heat dissipation performance of the device, but also further enhances its corrosion resistance and extends its service life. Its protection level reaches IP65, which can effectively prevent dust and water intrusion and is suitable for complex outdoor environments.
HEVOS is designed with both performance and economy in mind. Its modular design allows users to flexibly adjust the configuration according to actual needs, avoiding waste of resources. High-efficiency LED technology greatly reduces energy consumption, with an output luminous flux of up to 100lm/W per watt, significantly reducing operating costs.

MAIN APPLICATIONS

ROAD

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC
Wattage	30-100W
Input voltage	100-277V/50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI>70
Operating temperature	-40℃~+50℃
Housing material	ADC12
Ingress protection	IP65
Impact strength	IK08
Surge protection	10KV/20KV
Diffuser	PC or Glass optional
Weight	5.5kg

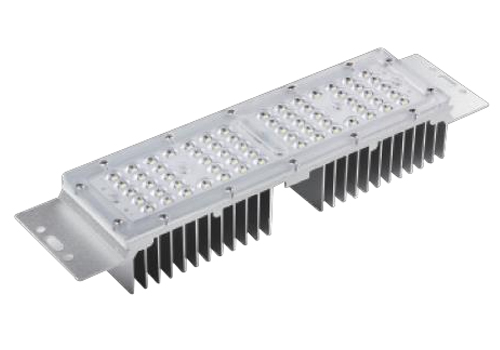

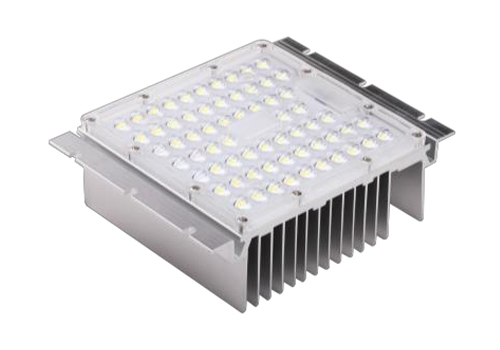

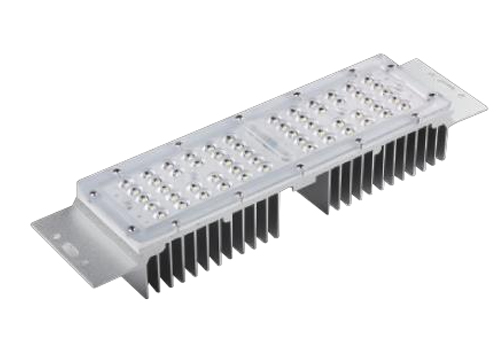

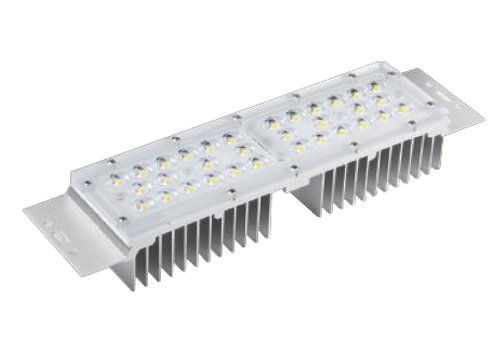

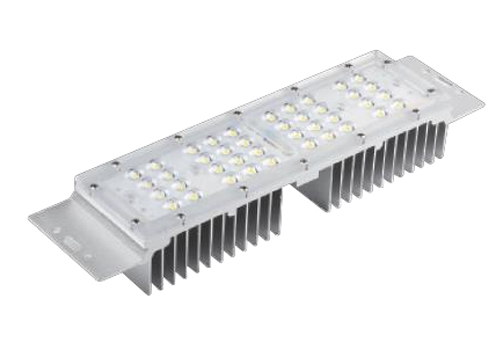

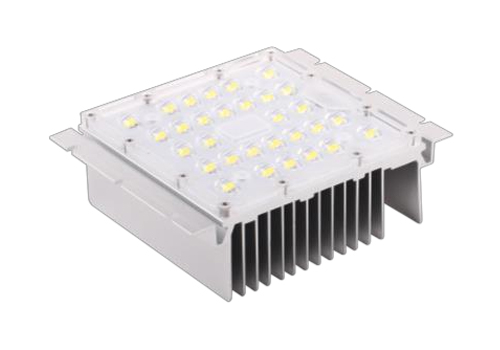

LED MODULE AVAILABLE

5050 LED MODULE LED Qty: 32pcs Wattage: 50w	3030 LED MODULE LED Qty: 40pcs Wattage: 30w	3030 LED MODULE LED Qty: 56pcs Wattage: 50w
3030 LED MODULE LED Qty: 64pcs Wattage: 60w	5050 LED MODULE LED Qty: 30pcs Wattage: 50w	3030 LED MODULE LED Qty: 64pcs Wattage: 50w/60w

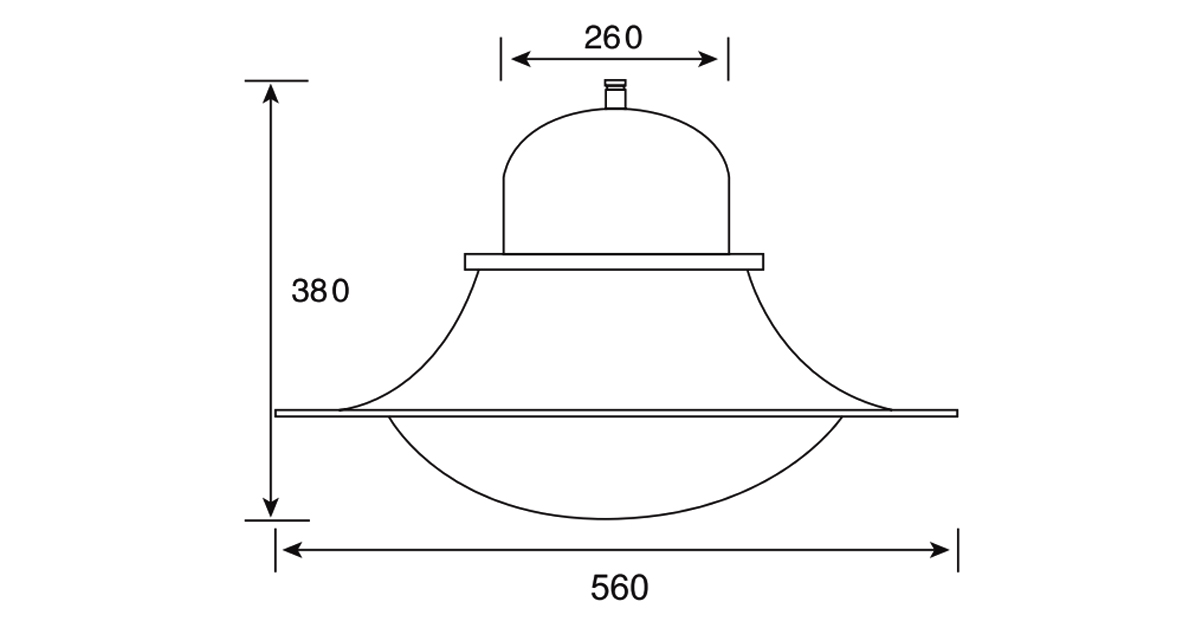

DIMENSIONS (mm)


ORDER INFORMATION
