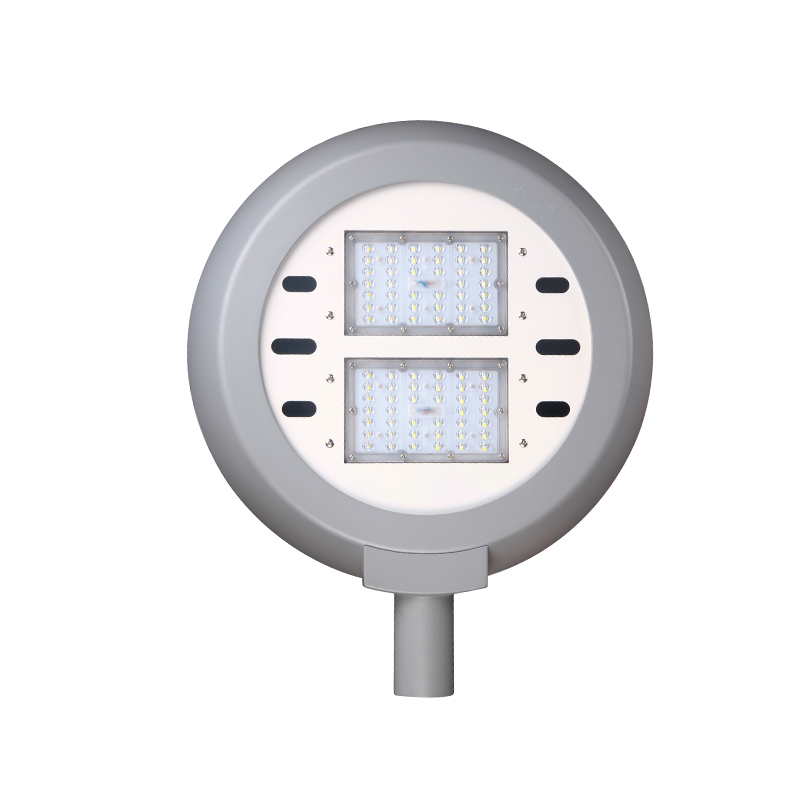

Post Top D60 ARM MEDUSA Series LED Garden Light for Park Urban Lighting

Product Description

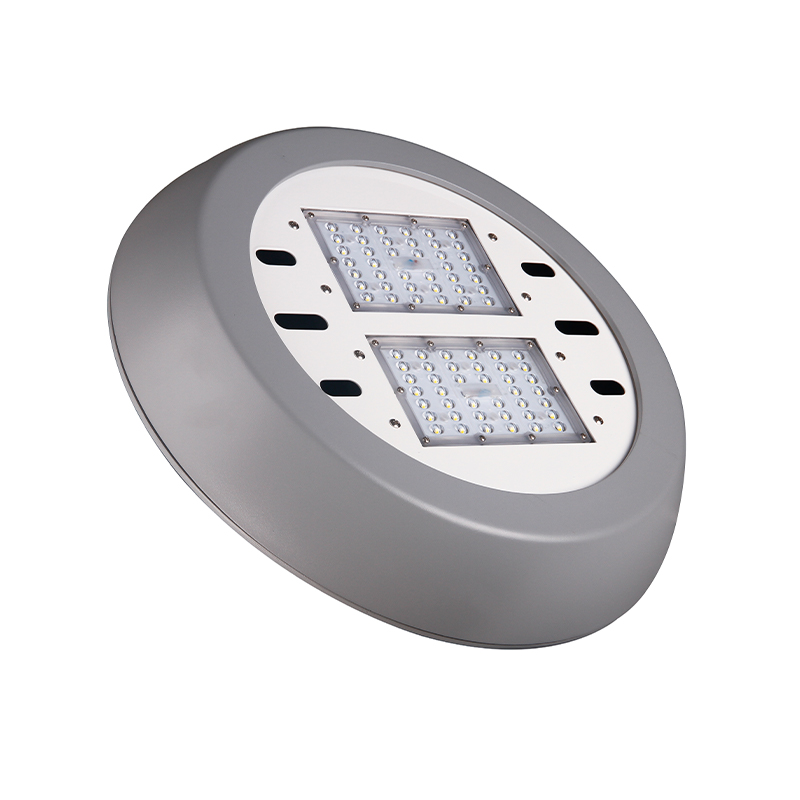

As a powerful and flexible lighting device, MEDUSA is suitable for a variety of scenarios such as parks, residential areas and squares. Its modular LED engine design not only improves flexibility, but also significantly improves cost-effectiveness. Users can easily replace LED engines and gearboxes according to needs to ensure that the equipment is always in the best condition. MEDUSA uses optical lens technology to achieve asymmetric light distribution and low glare effects, while maintaining a high uniformity of lighting effects, providing users with a more comfortable visual experience.
MEDUSA's high-pressure die-cast aluminum body is sturdy and durable, and the surface is covered with a corrosion-resistant polyester powder coating to ensure that the equipment can operate stably and long-term in various harsh environments. Its single-arm or double-arm design further enhances its applicability to meet the needs of different scenarios. MEDUSA also has the characteristics of quick installation and maintenance. It can be assembled without tools, and its removable gearbox design reduces maintenance costs.

MAIN APPLICATIONS

ROAD

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	DOUBLE ARM	SIDE ENTRY
Wattage	30-100W
Input voltage	100-277V/50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI>70
Operating temperature	-40℃~+50℃
Housing material	ADC12
Ingress protection	IP65
Impact strength	IK08
Surge protection	10KV/20KV
Spigot diameter	60mm
Weight	7.3kg	6.5kg

DESIGN IN DETAILS

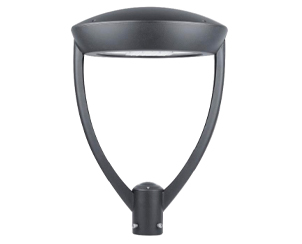

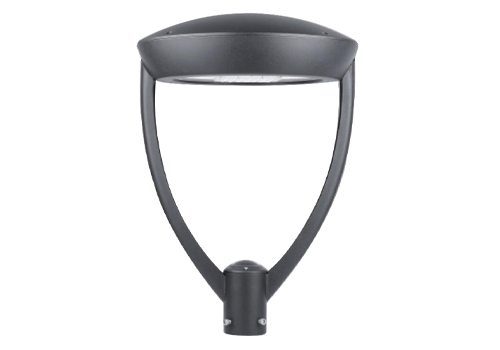

MEDUSA is available with a single-arm or double-arm for parks, residential areas and squares.

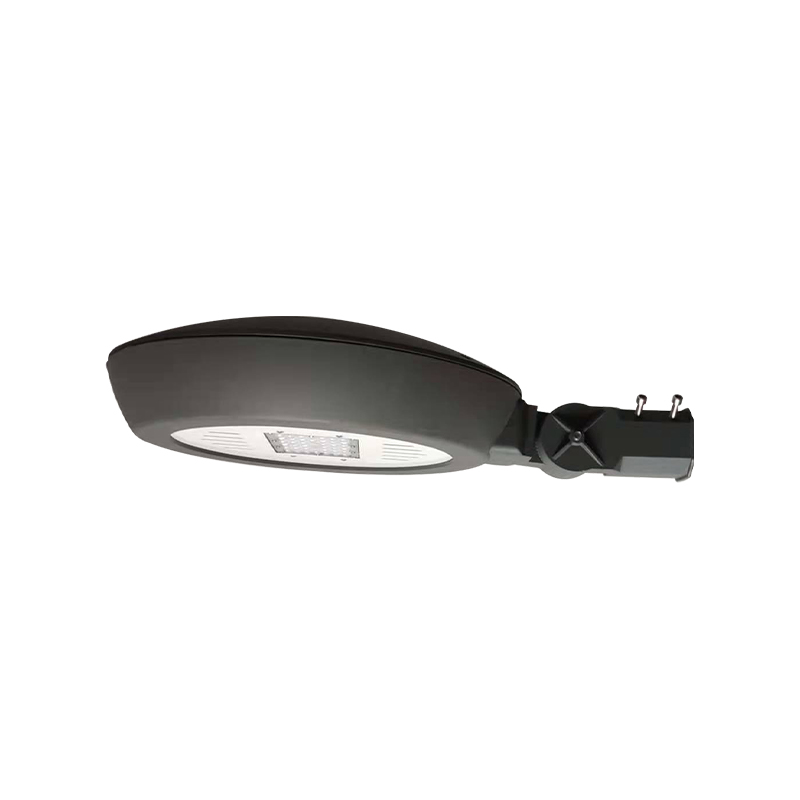

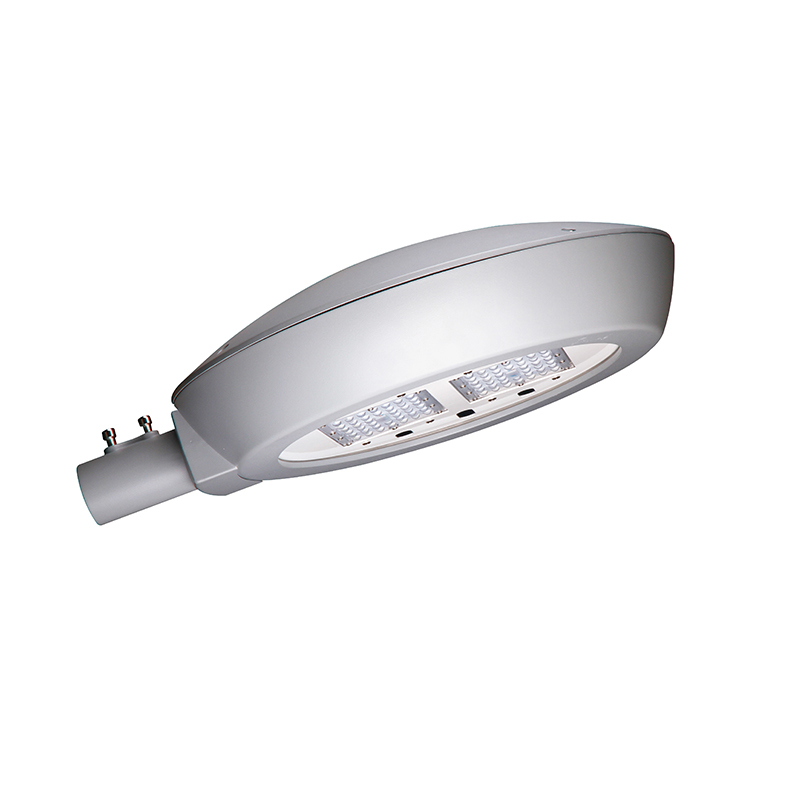

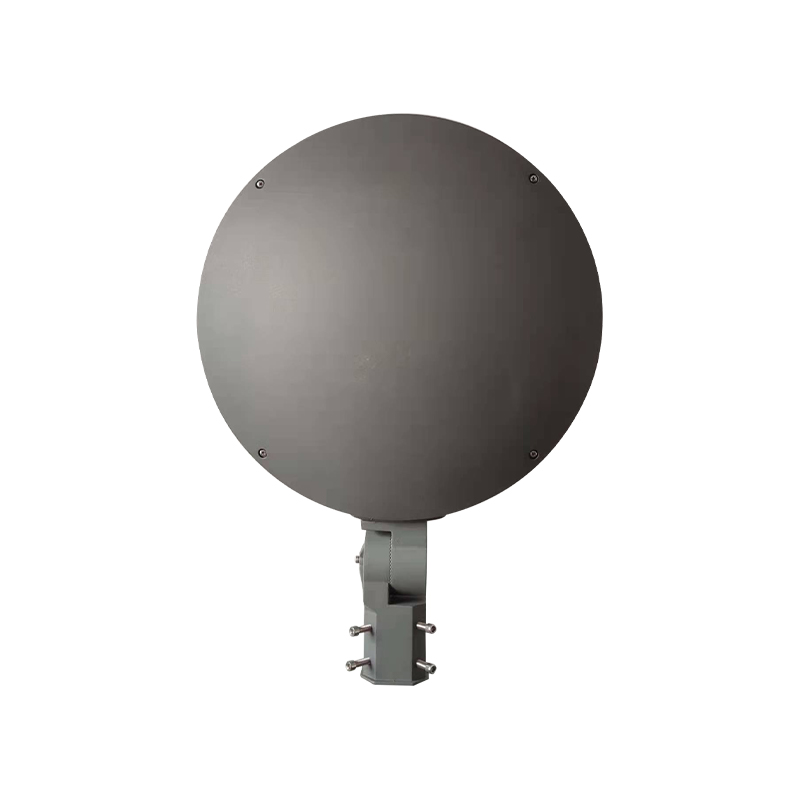

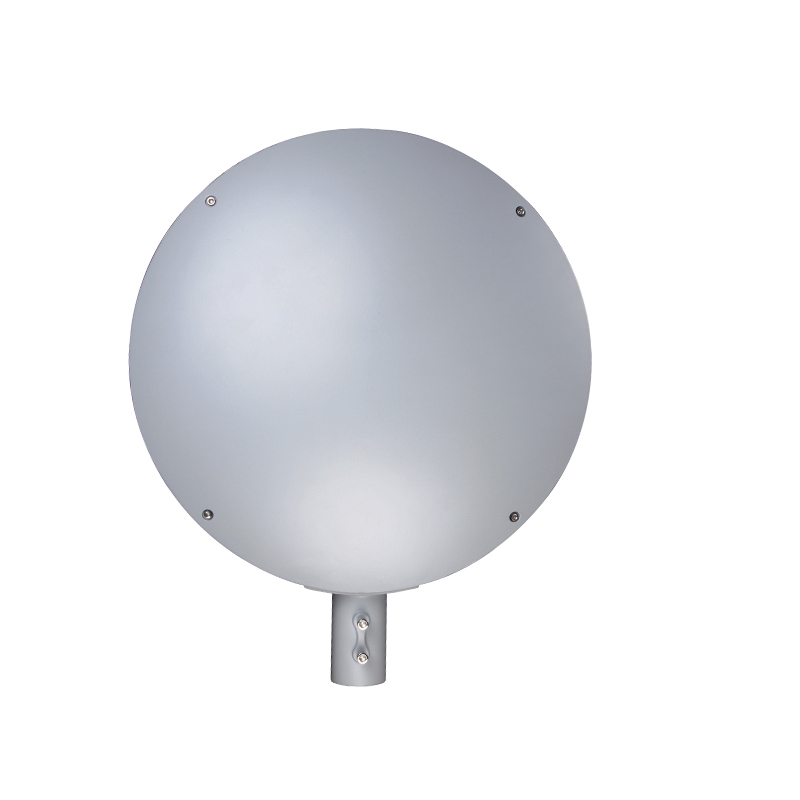

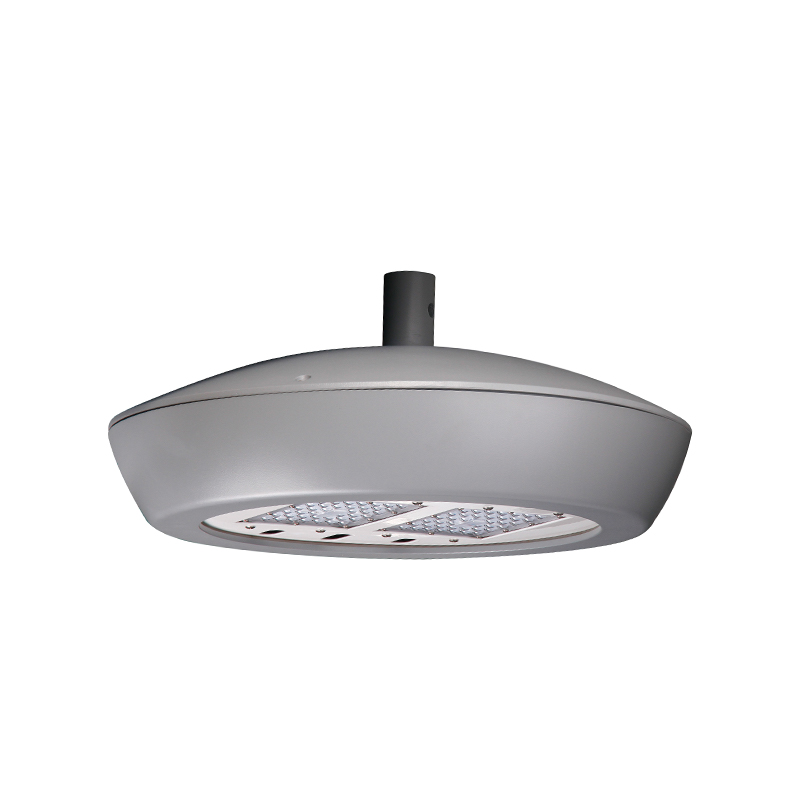

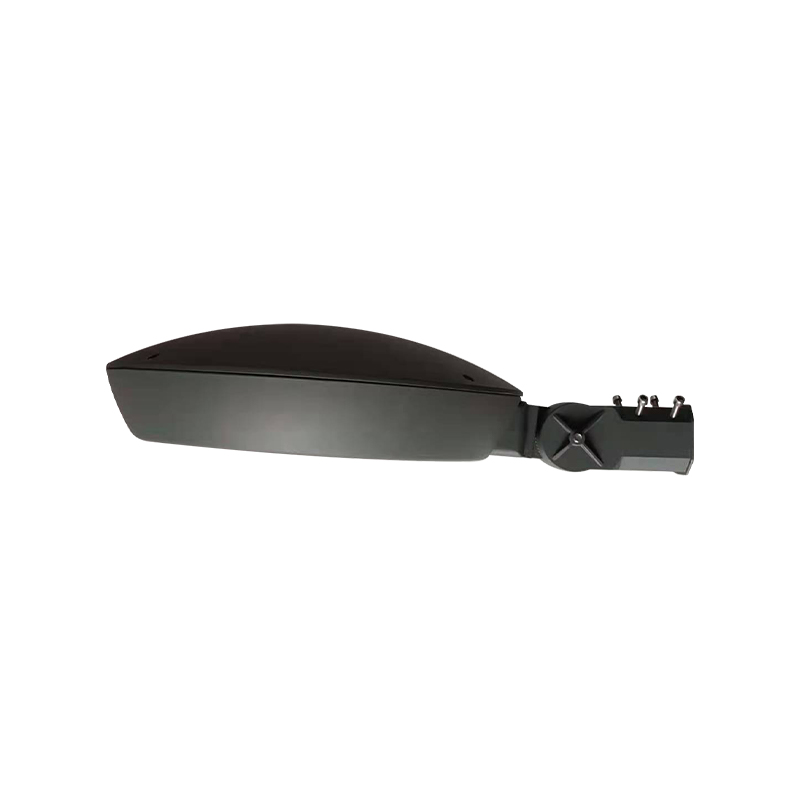

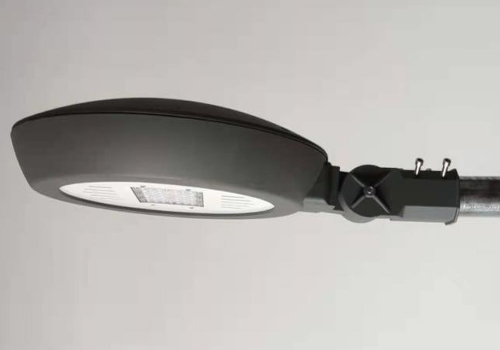

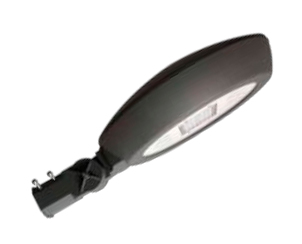

Luminaire fixed on 60mm spigot with both post-top and side-entry mounting.

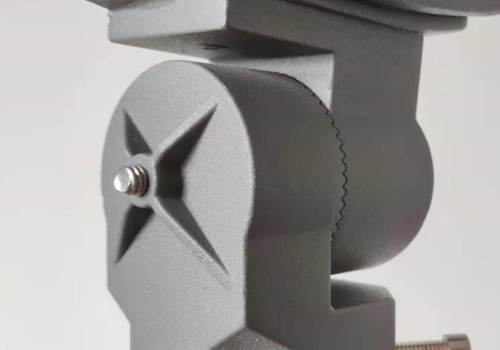

Spigot suitable for both post-top and side-entry with wide tilting angle range from -90°-+90°.

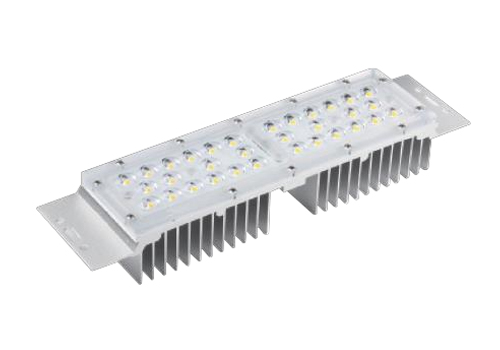

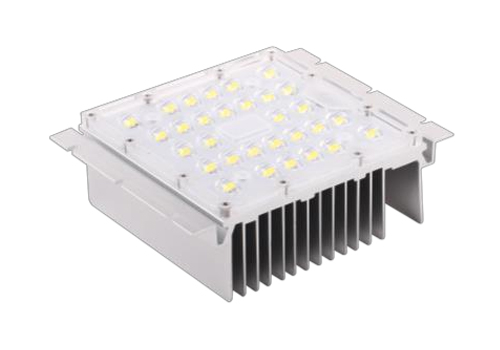

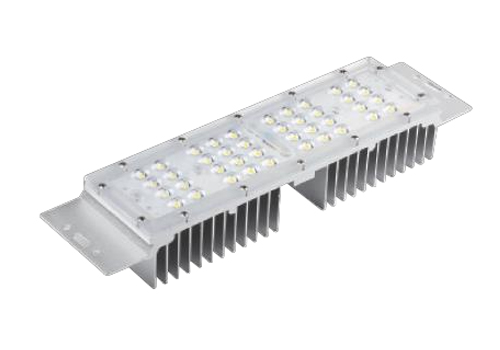

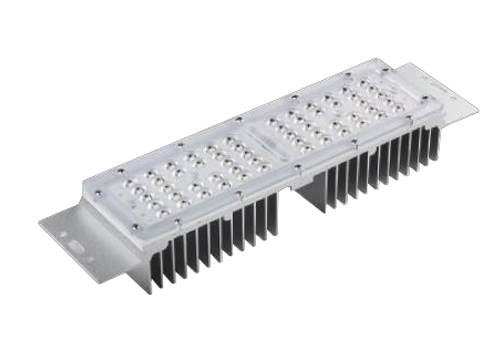

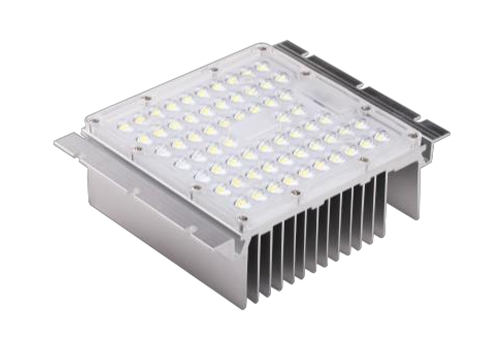

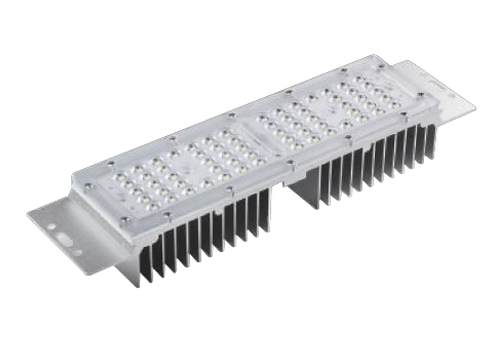

LED MODULE AVAILABLE

5050 LED MODULE LED Qty: 32pcs Wattage: 50w	3030 LED MODULE LED Qty: 40pcs Wattage: 30w	3030 LED MODULE LED Qty: 56pcs Wattage: 50w
3030 LED MODULE LED Qty: 64pcs Wattage: 60w	5050 LED MODULE LED Qty: 30pcs Wattage: 50w	3030 LED MODULE LED Qty: 64pcs Wattage: 50w/60w

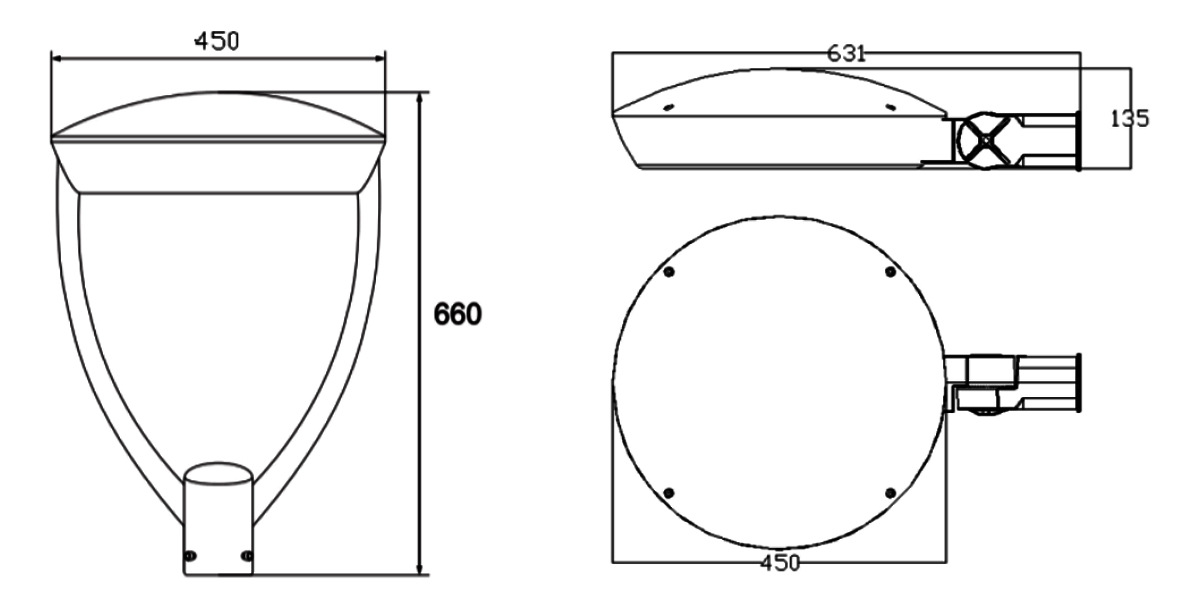

DIMENSIONS (mm)


ORDER INFORMATION
