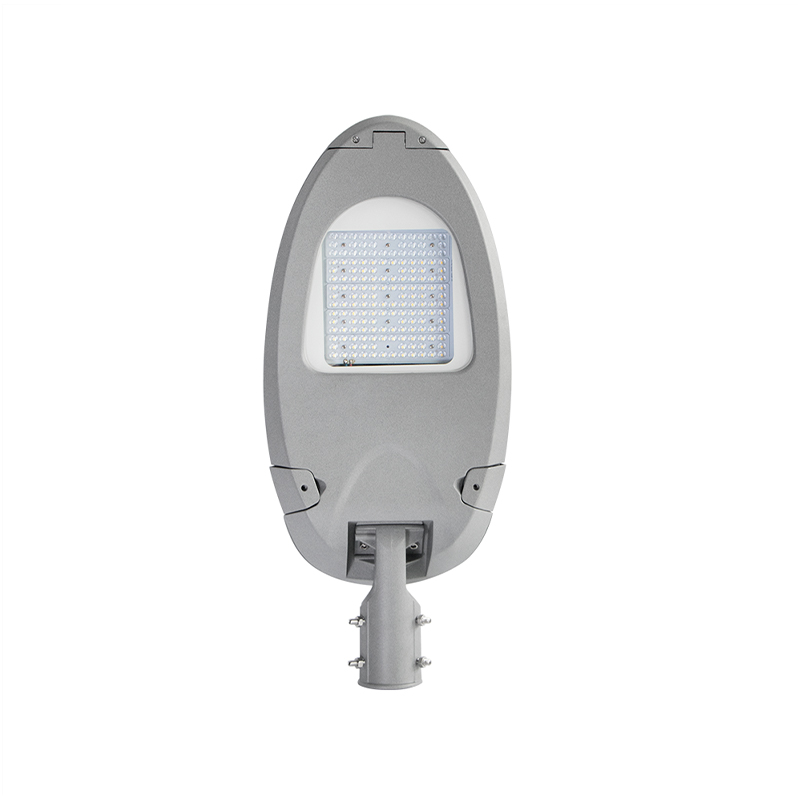

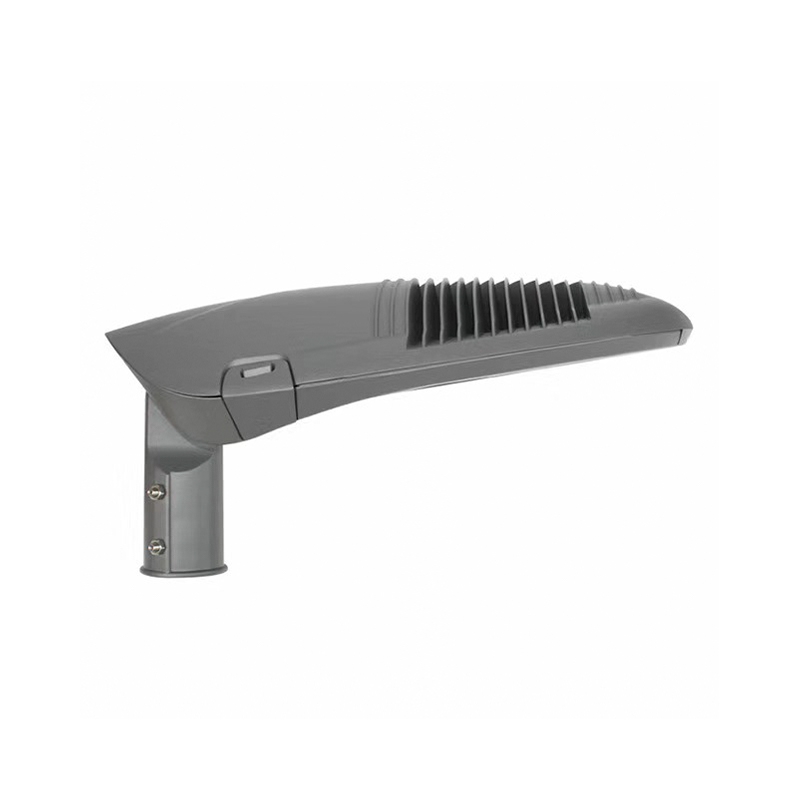

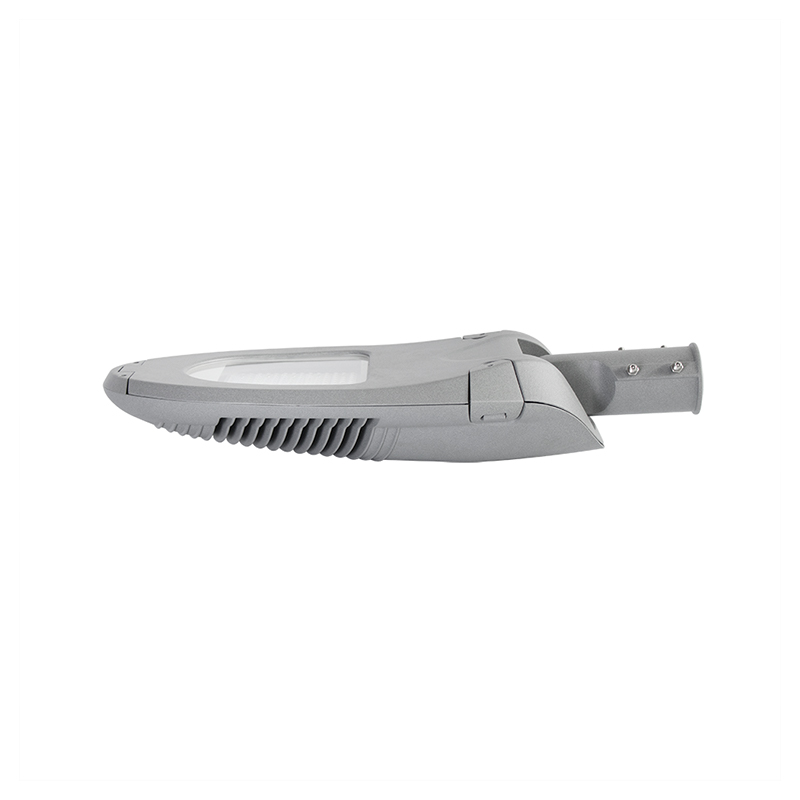

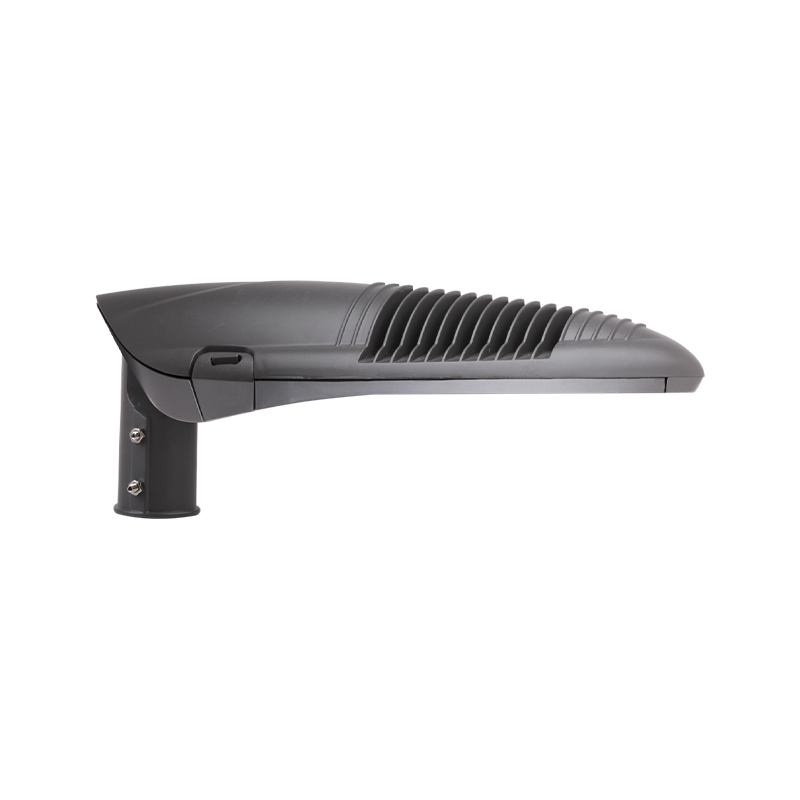

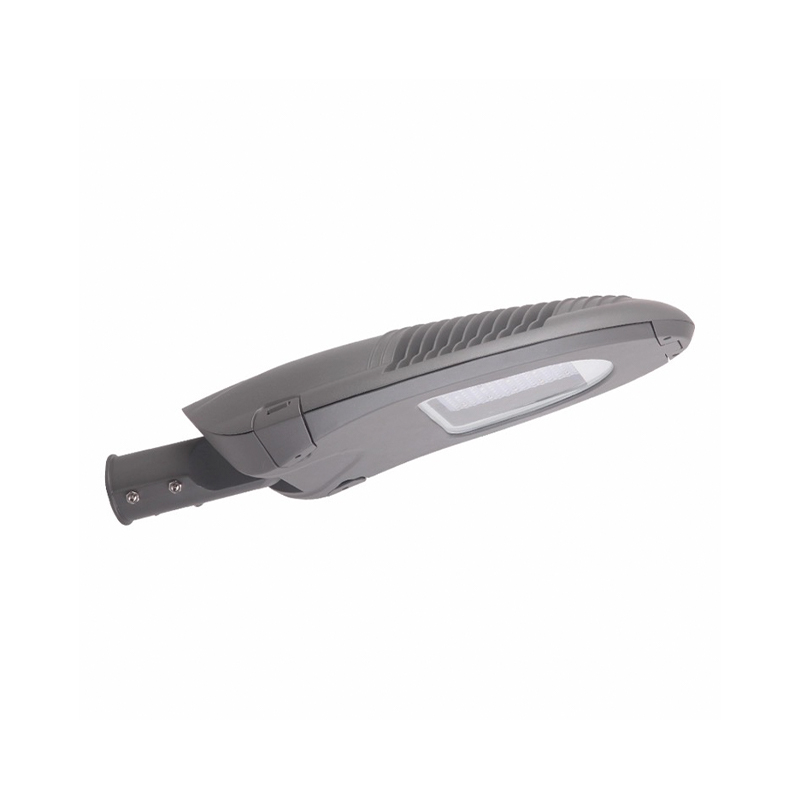

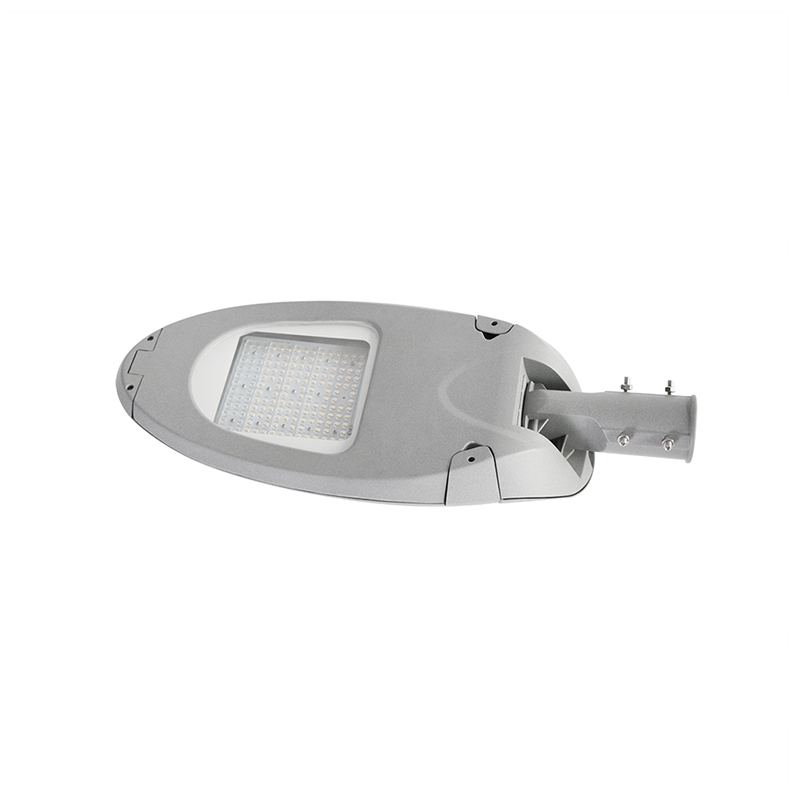

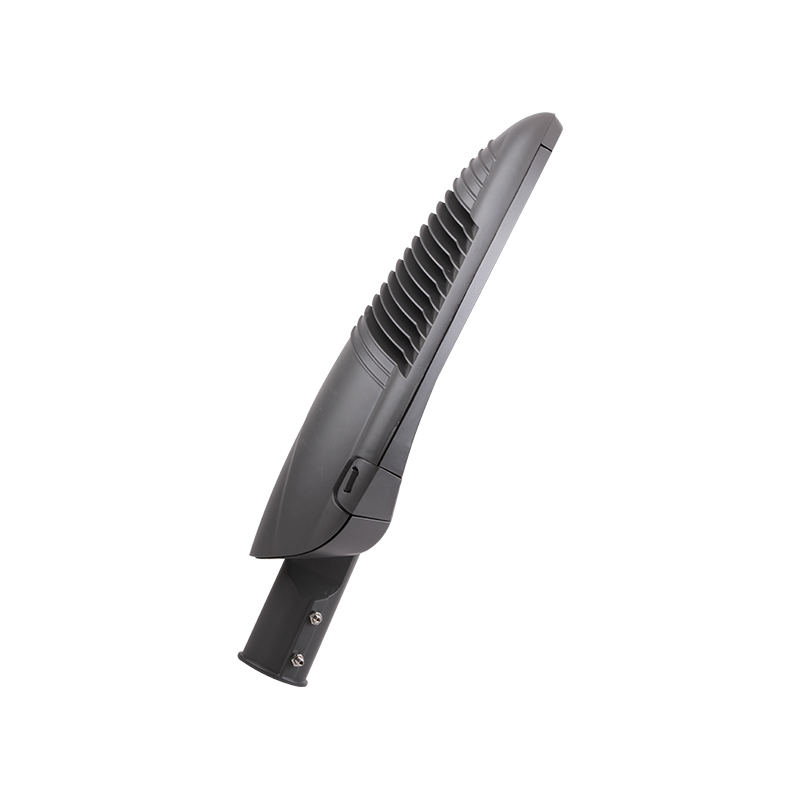

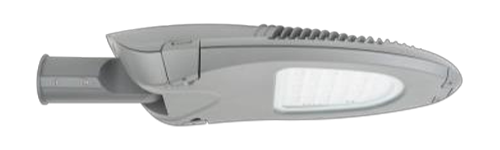

Outdoor Road Lighting SUPERLUX Series LED Street Light

Product Description

This LED street light SUPERLUX provides efficient, reliable and environmentally friendly solutions for modern lighting needs with its excellent performance and innovative design. Its main features include:

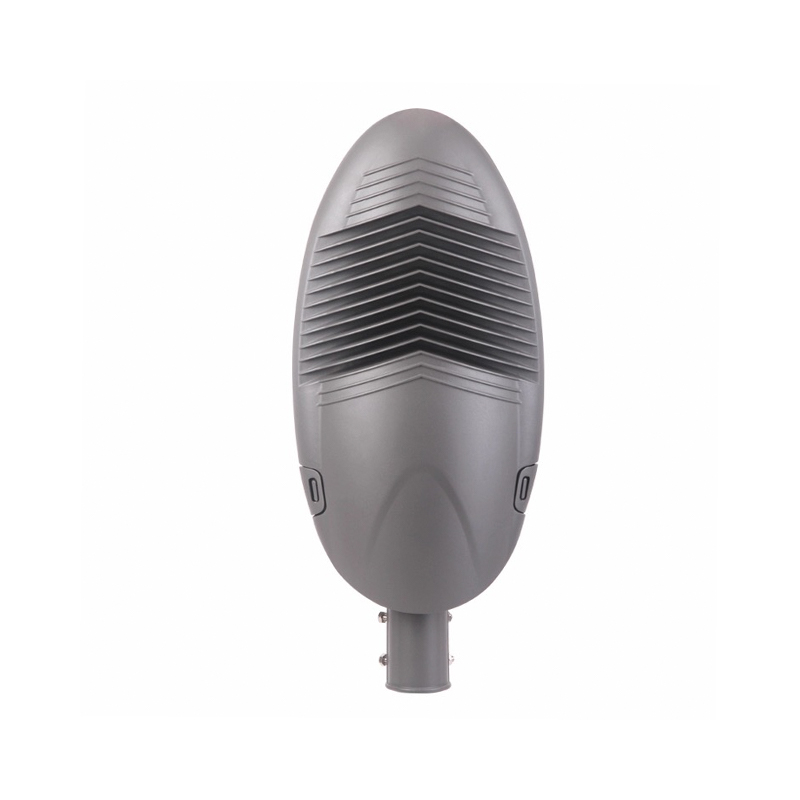

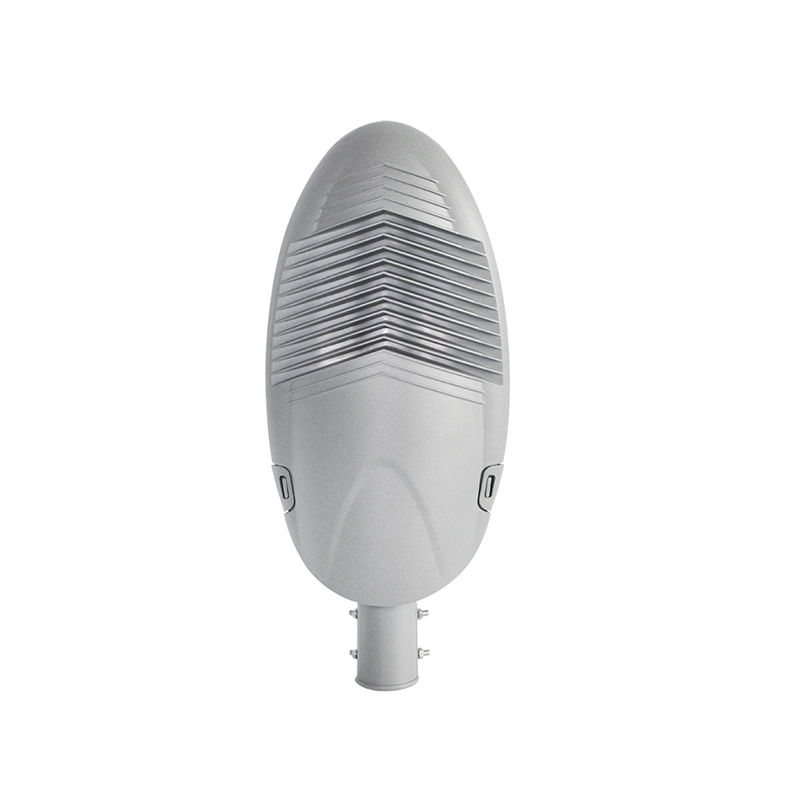

The high-pressure die-cast aluminum body combined with corrosion-resistant polyester powder coating ensures the durability and corrosion resistance of the equipment, and is suitable for various harsh environments. Its unique chimney effect heat dissipation design effectively manages heat energy and ensures the stable operation of the equipment in high temperature environments. At the same time, the optimized design of the heat sink further improves the heat dissipation efficiency.

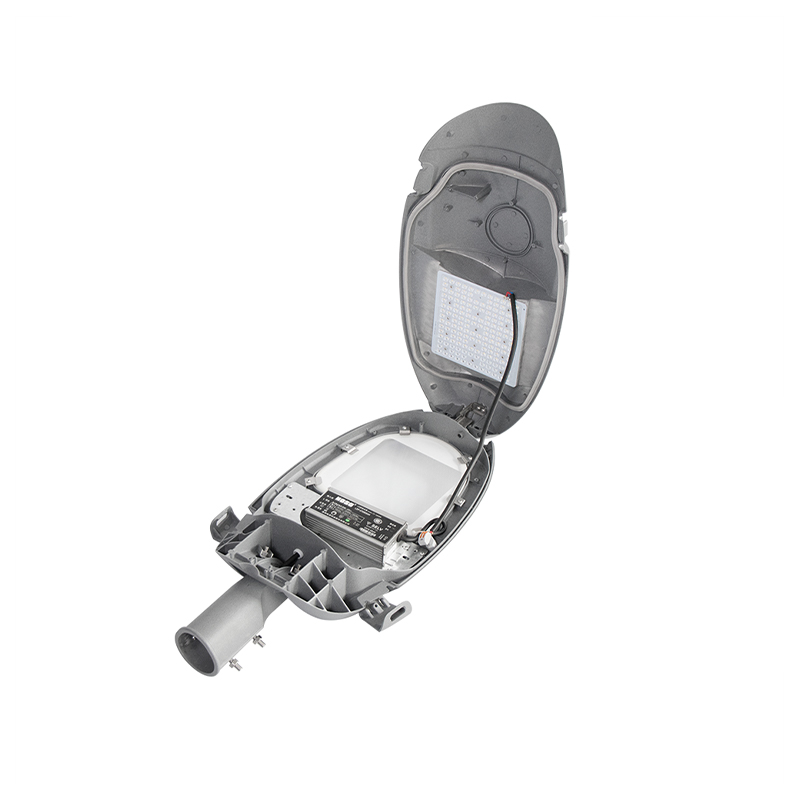

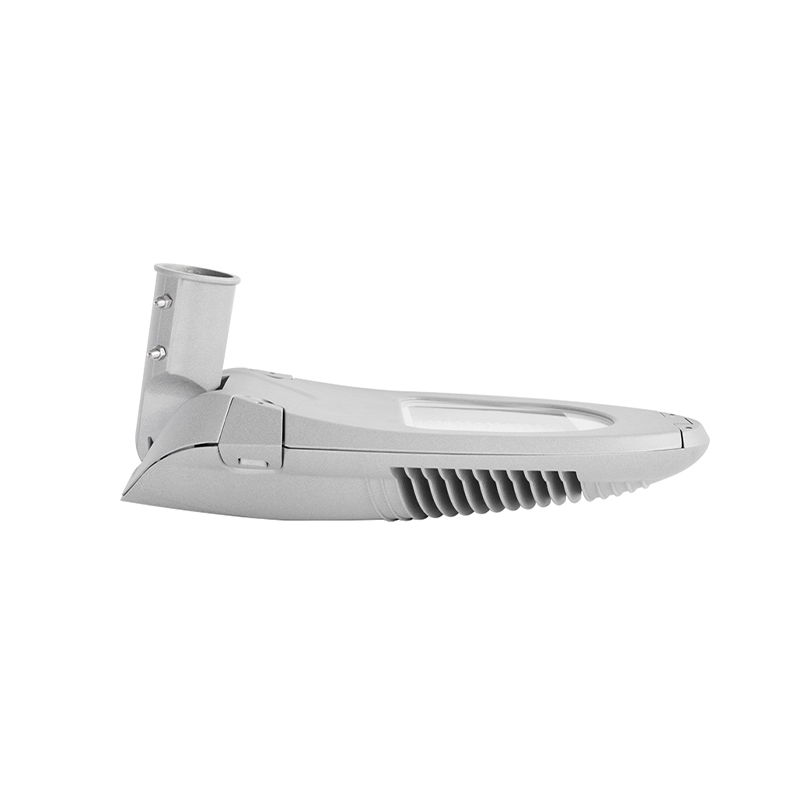

This street light has an adjustable angle socket and supports side installation and column top installation to meet the lighting needs of different scenarios. The gear compartment can be easily opened without tools, which is convenient for maintenance and upgrading, reflecting its humanized design. Its modular design allows users to easily upgrade the LED light source and gear compartment without replacing the outer shell, extending the service life and reducing maintenance costs.

The application of optical lens is a highlight of this street light. It adopts an asymmetric light distribution design to effectively reduce glare and improve light uniformity, while ensuring high light efficiency and low light decay, with a service life of more than 50,000 hours, significantly reducing maintenance costs. Its luminous efficiency is as high as 140Lm/W, which is much higher than that of traditional sodium lamps, and its color rendering index is as high as 80 or above, providing users with a better visual experience.

This street lamp also has an IP66 protection level and is suitable for various harsh environments such as humidity and salt spray. At the same time, its driving power factor is as high as 0.95, ensuring a stable power supply and further improving the reliability and energy saving of the system.


MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC
Wattage		60-150w
Input voltage		100-277V/50-60Hz
Color temperature		3000-6500K
Color rendering index		CRI>70
Operating temperature		-40℃~+50℃
Housing material		ADC12
Ingress protection		IP66
Impact strength		IK09
Surge protection		10KV/20KV
Diffuser		Tempered glass
Spigot diameter		60mm
Weight		8.5kg

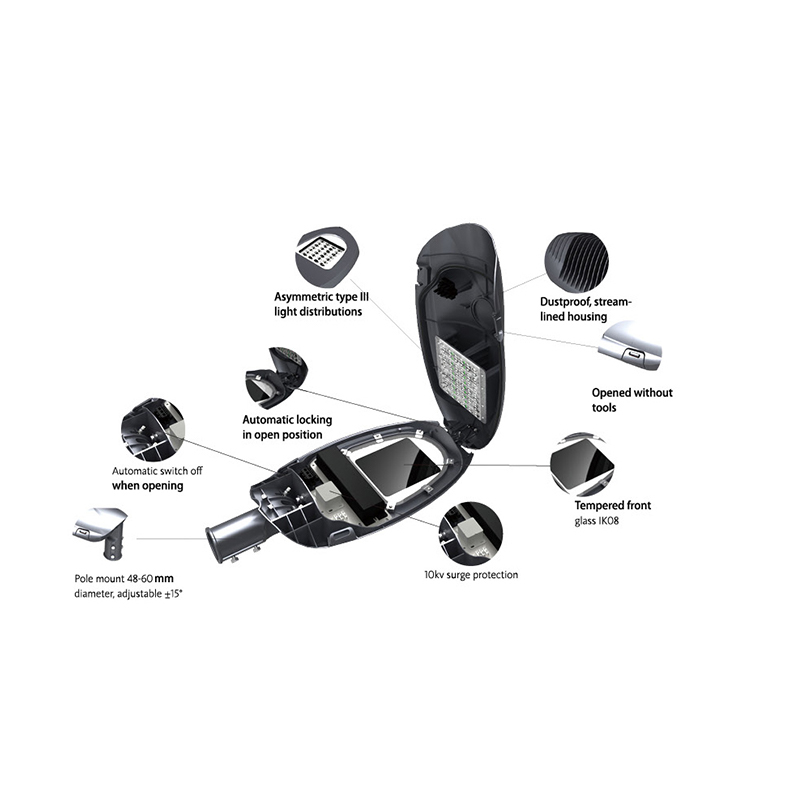

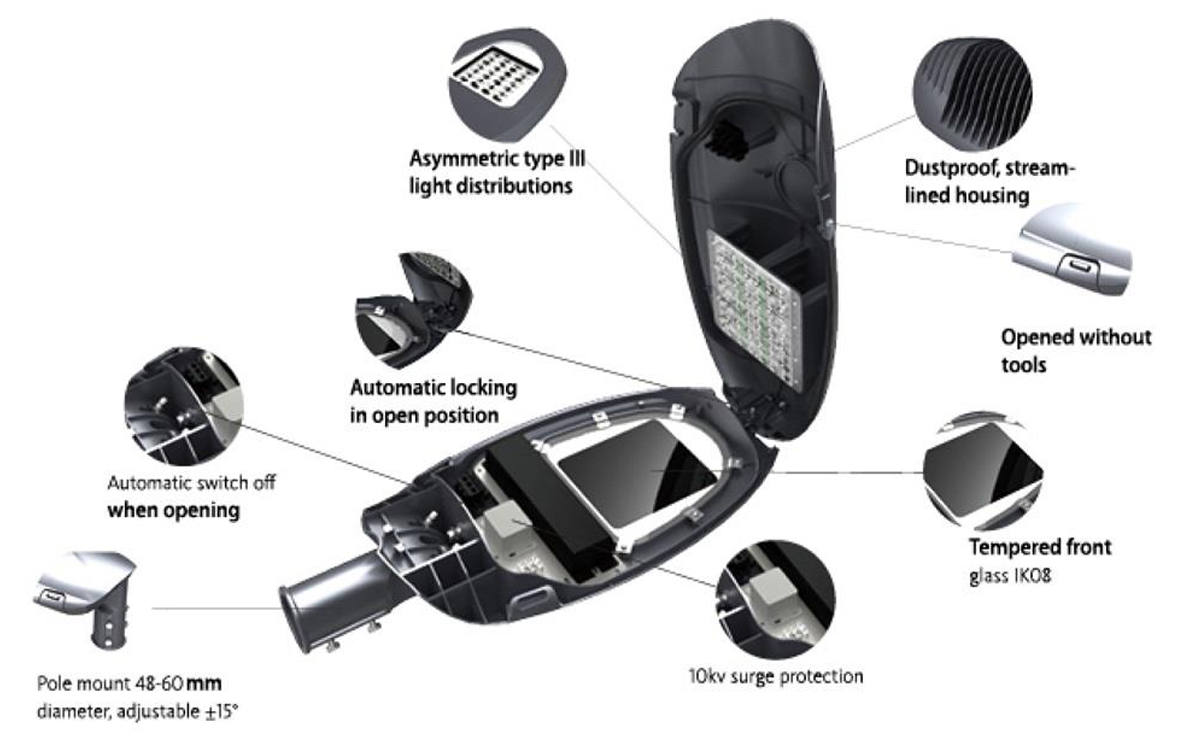

DESIGN IN DETAILS

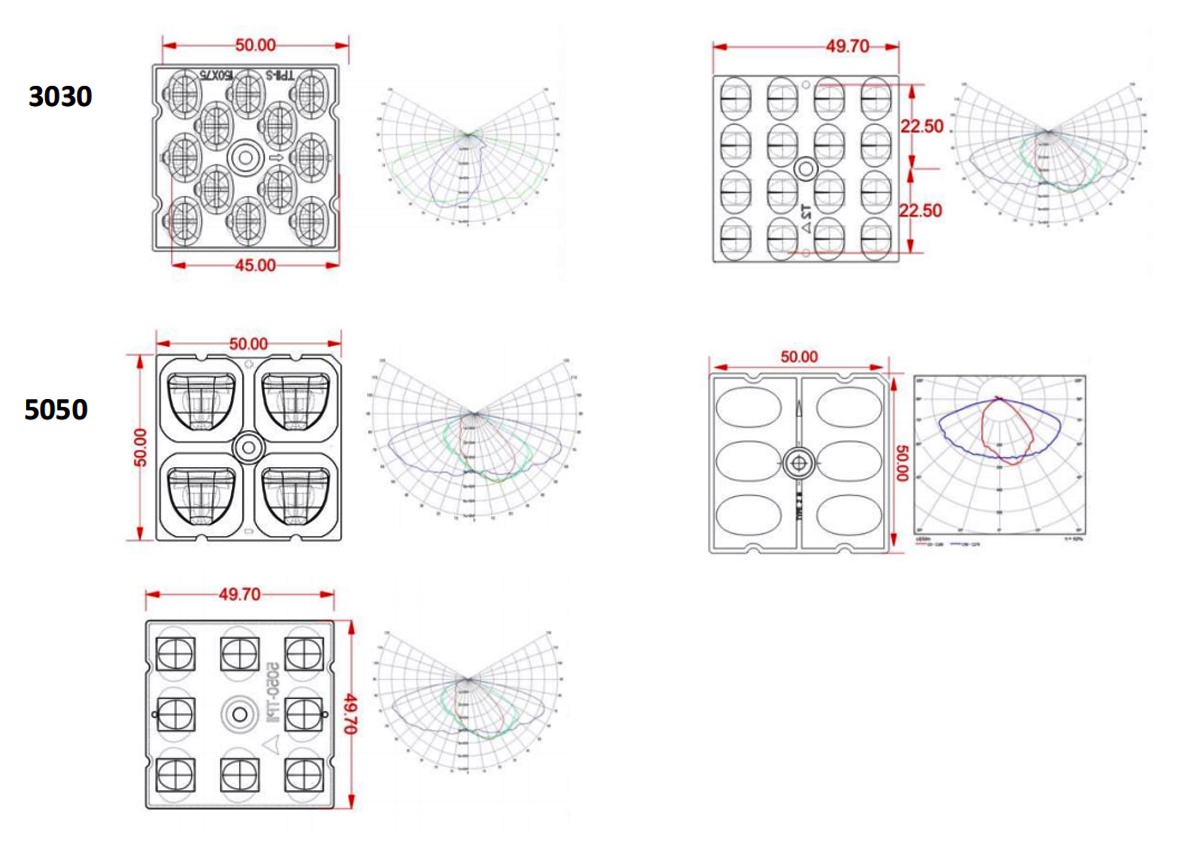

OPTICS AVAILABLE

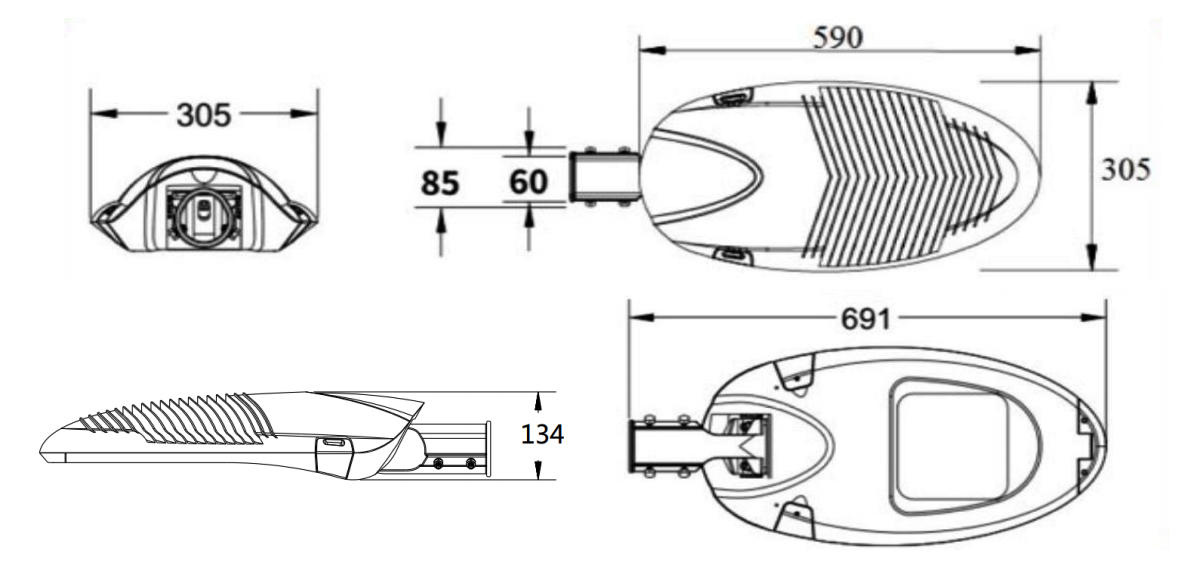

DIMENSIONS(mm)


ORDER INFORMATION

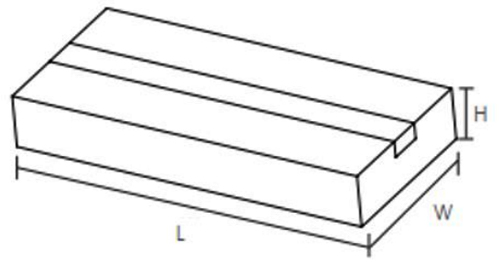

LOGISTICS DATA

MODEL	Packing unit (pcs/carton)	Carton size(mm)  (Length*Width*Height)	Net weight	Gross weight	Volume
SUPERLUX	1	740*340*180mm	8.5kg	9.5kg	45.3dm³

INSTALLATION

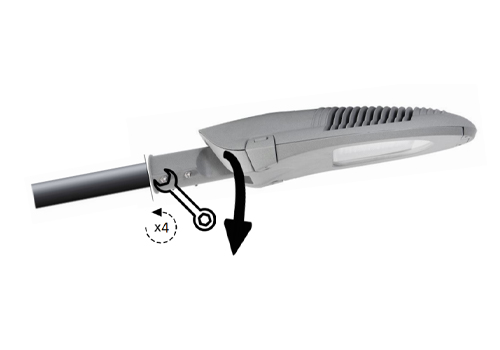

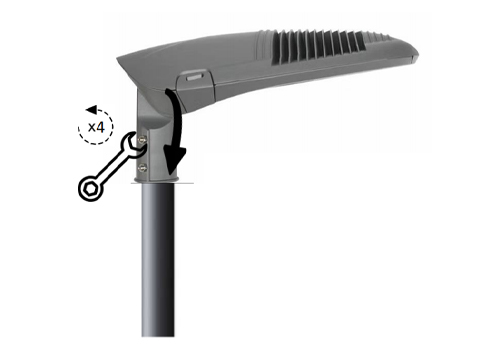

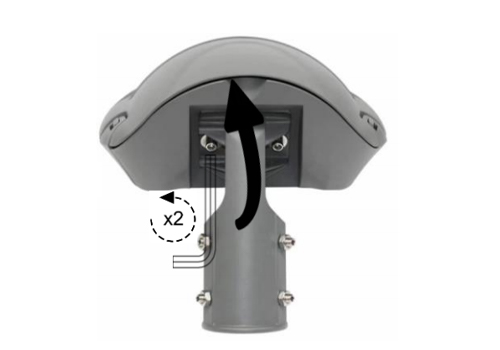

Tighten the luminaire to the pole by wrench.	Loosen the screws by allen wrench and rotate the spigot adjust to side entry position.	Only one hand tools required for installing the luminaire.

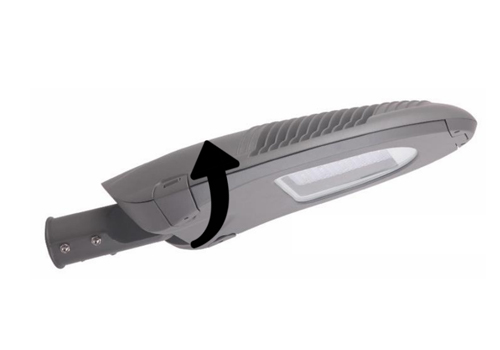

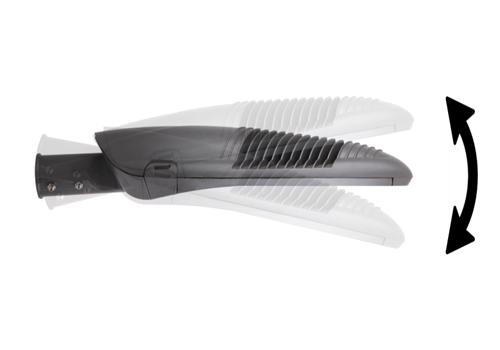

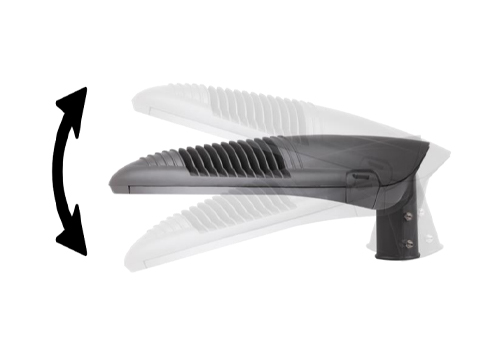

-15° to 15°.	-15° to 15°. Spigot angle can be adjusted by -15°,-10°,0°,5°, 10°,15°.	Press two buckles to open gear compartment.

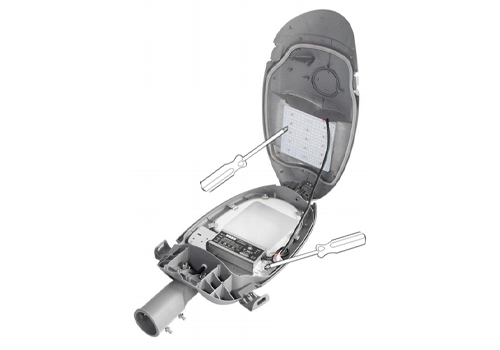

Loosen the screws locked on pcb, remove failed pcb and replace with a new one. Connect and tighten each screw back step by step.		Place the gear compartment cover to the locked position, using cross screwdriver loosen the screws and replace the failed electronic parts, then put down upper housing and lock the buckles, maintenance process finished.
