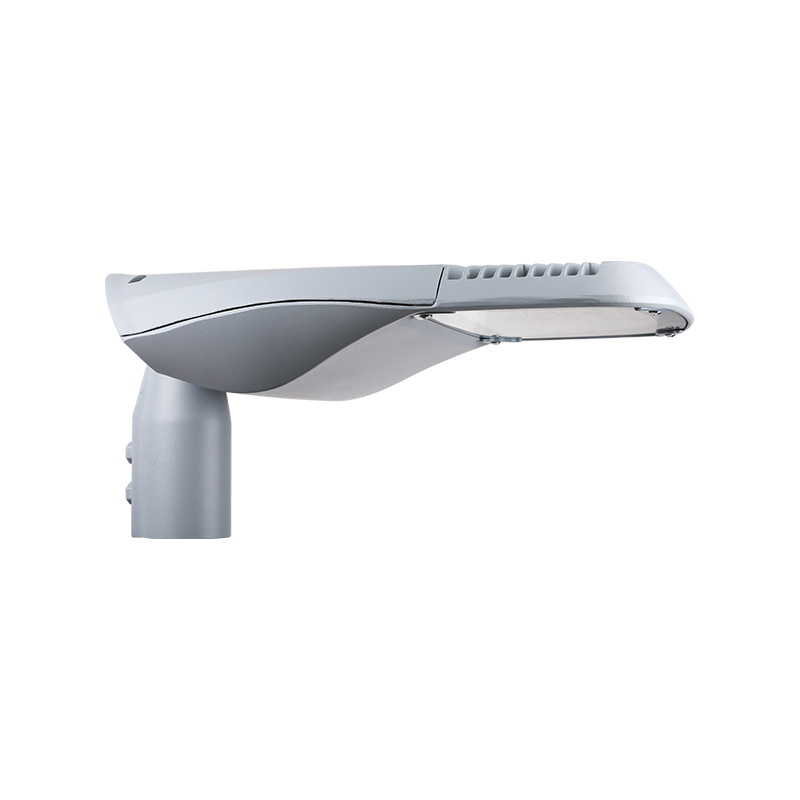

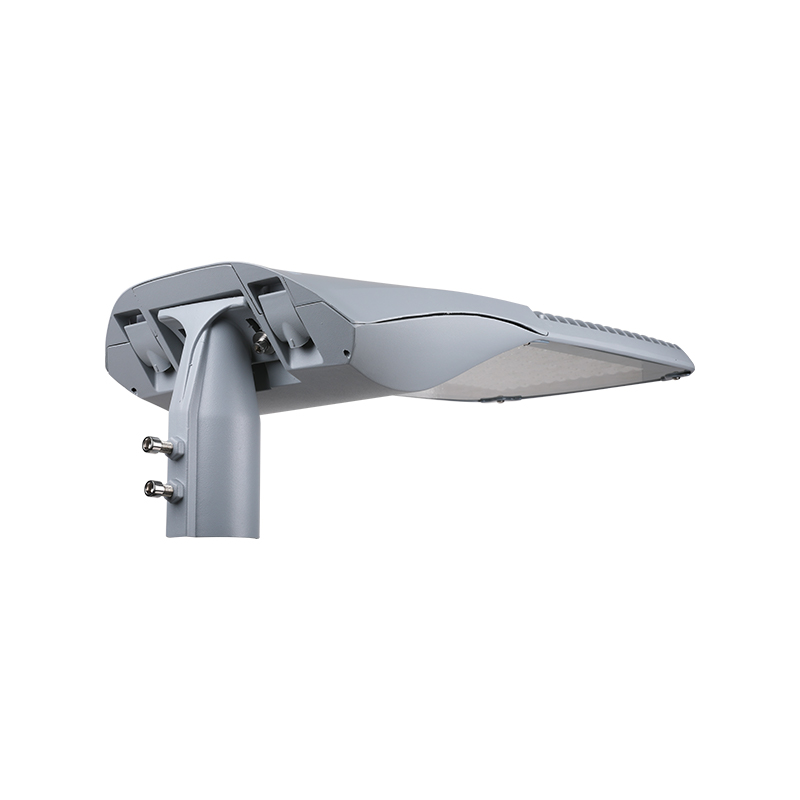

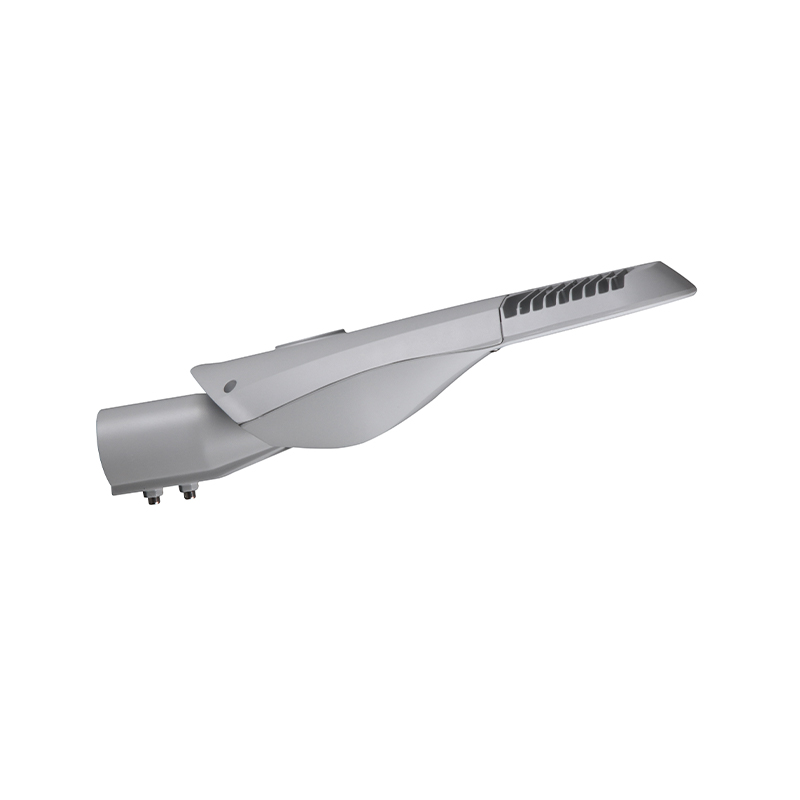

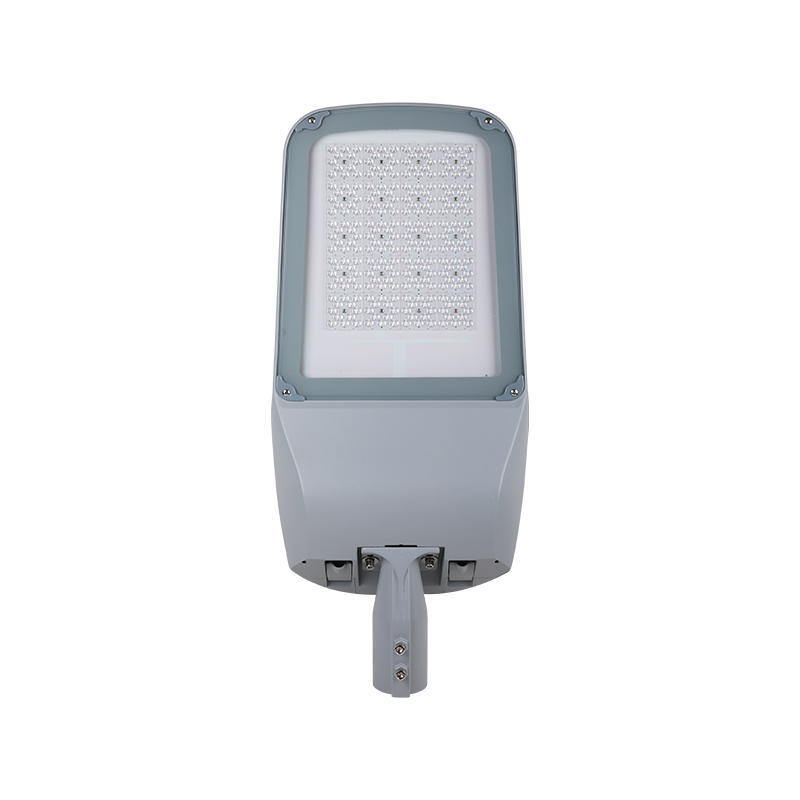

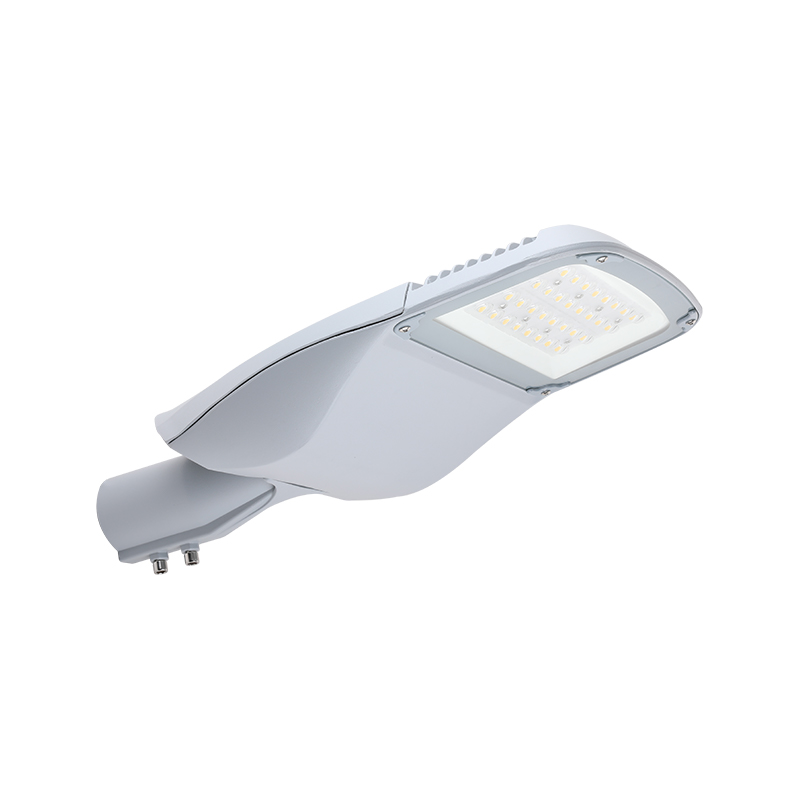

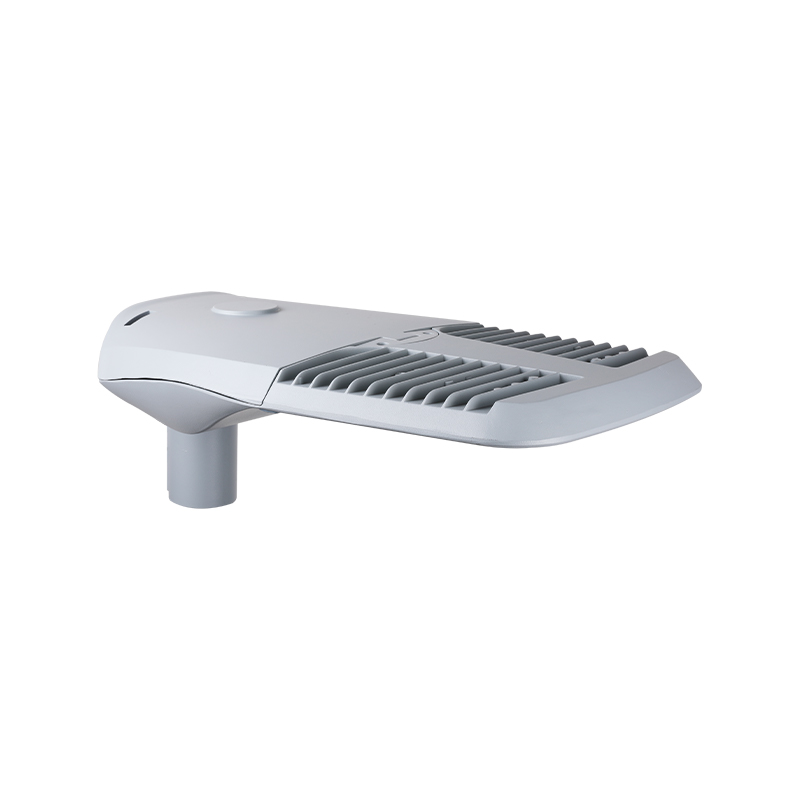

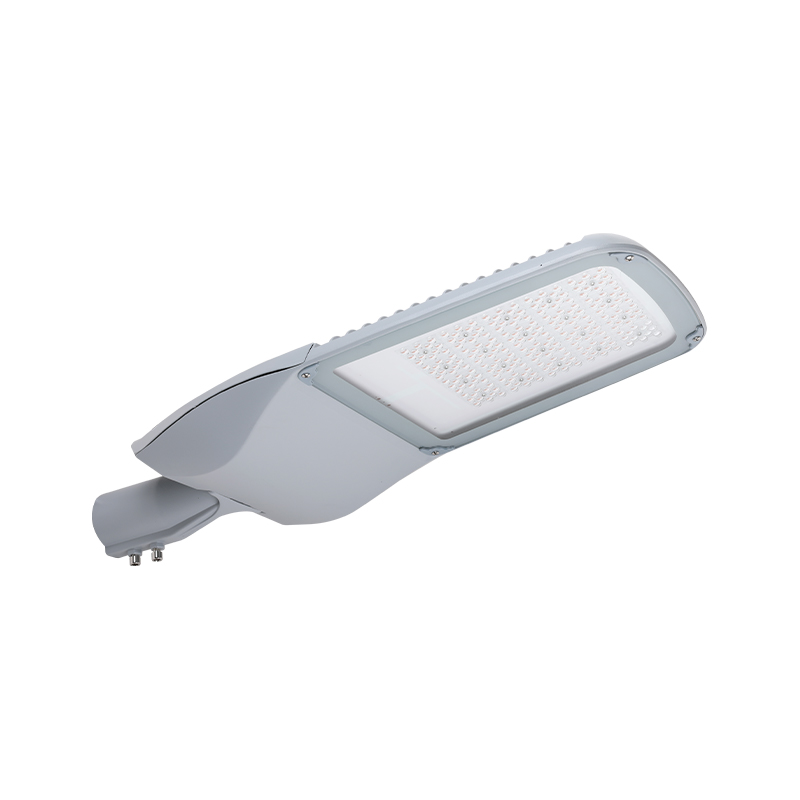

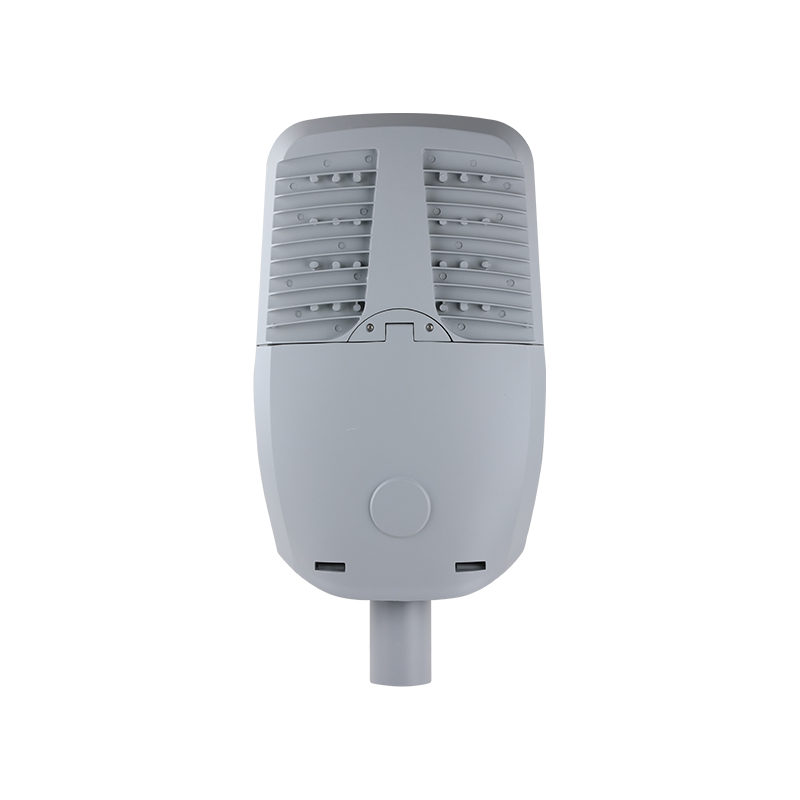

3030/5050 SMD LED Chip FORTUNE Series LED Street Light

Product Description

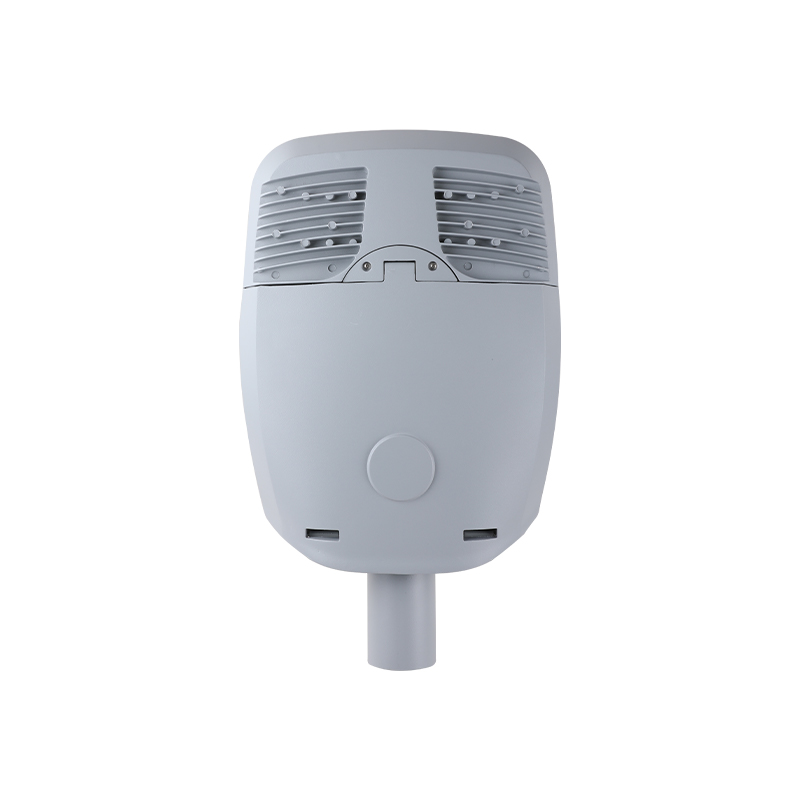

FORTUNE offers three sizes to suit different scenarios, greatly improving the flexibility and cost-effectiveness of the project. At the same time, the device supports adjustable angle sockets, which can meet the diverse needs of side entry and column top installation, providing great convenience for users.
In terms of maintenance, the device can easily open the gear box without tools, and it is also very convenient to replace the gear tray, which greatly reduces the difficulty of maintenance and extends the service life. The optical lens design adopted not only realizes asymmetric light distribution, but also effectively reduces glare, improves the uniformity of light, and provides users with a more comfortable lighting experience. The LED light source and gear box design of the equipment also have the potential for future upgrades. Users can easily replace them as needed to further improve the performance of the equipment.

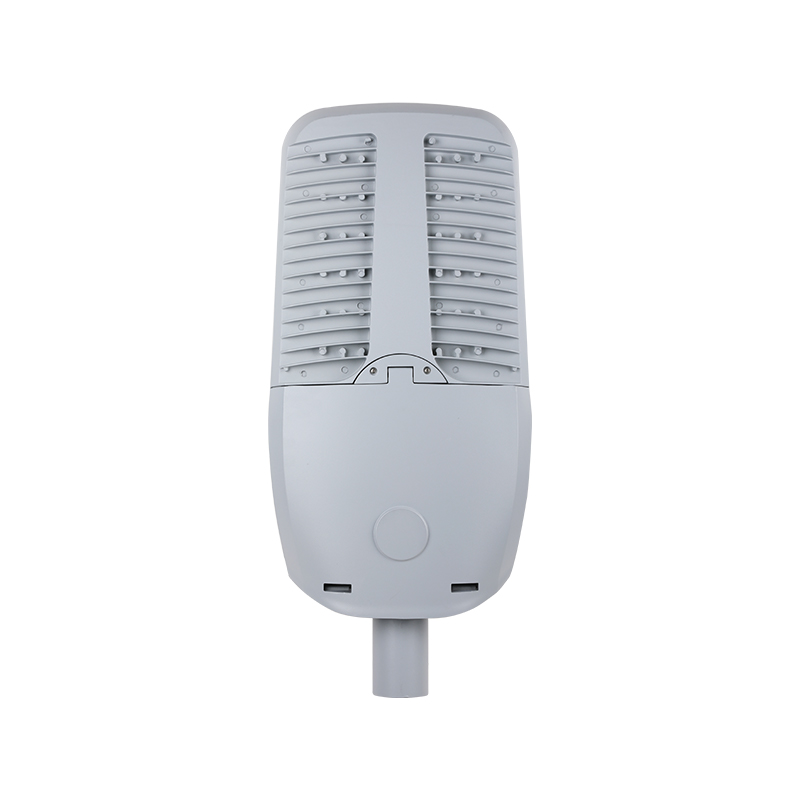

The body is made of high-pressure die-cast aluminum and the surface is covered with corrosion-resistant polyester powder coating. It is not only beautiful and durable, but also has good corrosion resistance and can adapt to various complex environments. The heat sink design adopts efficient heat dissipation technology to ensure the stability and safety of the equipment during long-term operation, effectively extending the service life of the equipment.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	MINI	MIDI	MAXI
Wattage	50-80w	80-150w	100-200w
Input voltage	100-277V/50-60Hz
Color   temperature	3000-6500K
Color  rendering  index	CRI>70
Operating   temperature	-40℃~+50℃
Housing  material	ADC12
Ingress   protection	IP66
Impact strength	IK08
Surge  protection	10KV/20KV
Diffuser	Tempered glass
Spigot diameter	60mm
Weight	5.9kg	7.5kg	8.8kg

DESIGN IN DETAILS

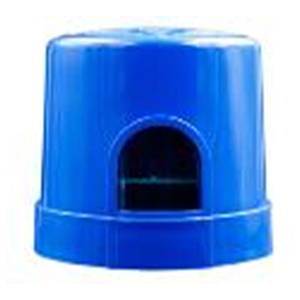

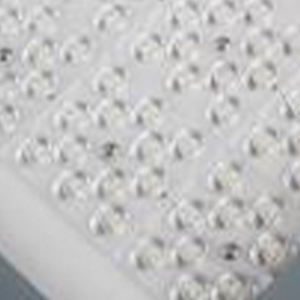

Led chips Lumileds 3030 & 5050 led chips with luminaire efficiency up to 150lm/w, long lifespan 50000 hours.	Photocontrol (optional) Optional with NEMA socket & photocell /shorting cap.

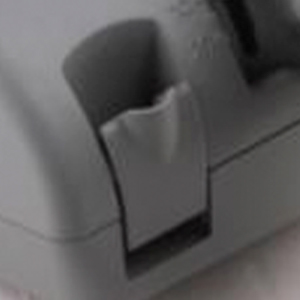

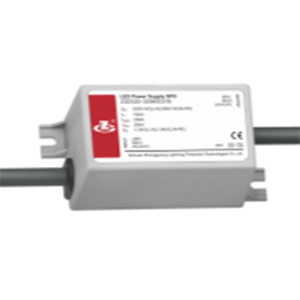

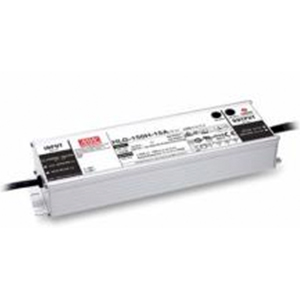

Power supply unit High performance led driver -0-10v dimming upon request -Driver brand can choose among MOSO, Meanwell, Philips, Osram.	Buckles Toolless opening of gear compartment, easy for maintenance.

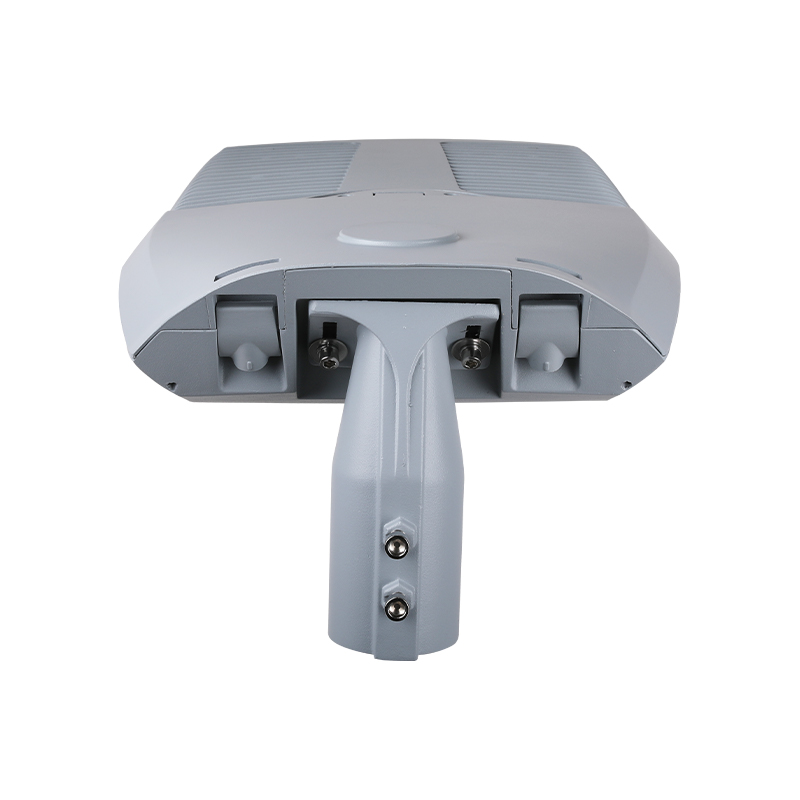

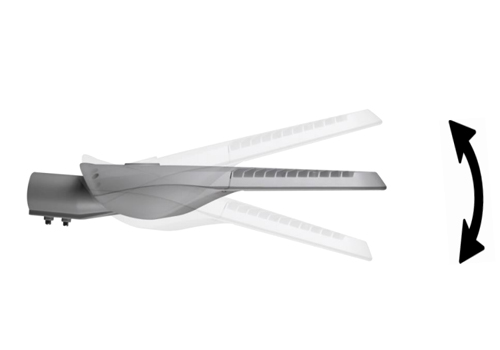

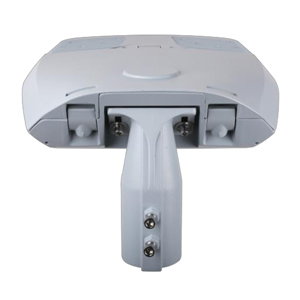

Spigot Wide adjustable angle from 0°-±15° for side entry and post top mounting.	Power disconnector Automatically off luminaire when gear compartment open and after close turn on, safety for workers when during maintenance.

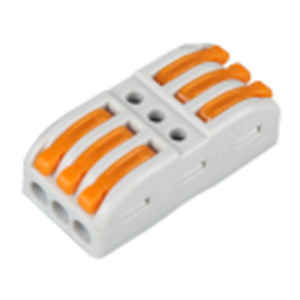

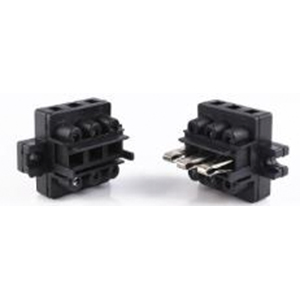

Connector Quick plug-in connector, tool-less, save time.	SPD 10kv (20kv optional) surge protection device, more reliable protection for the led powersupply unit.

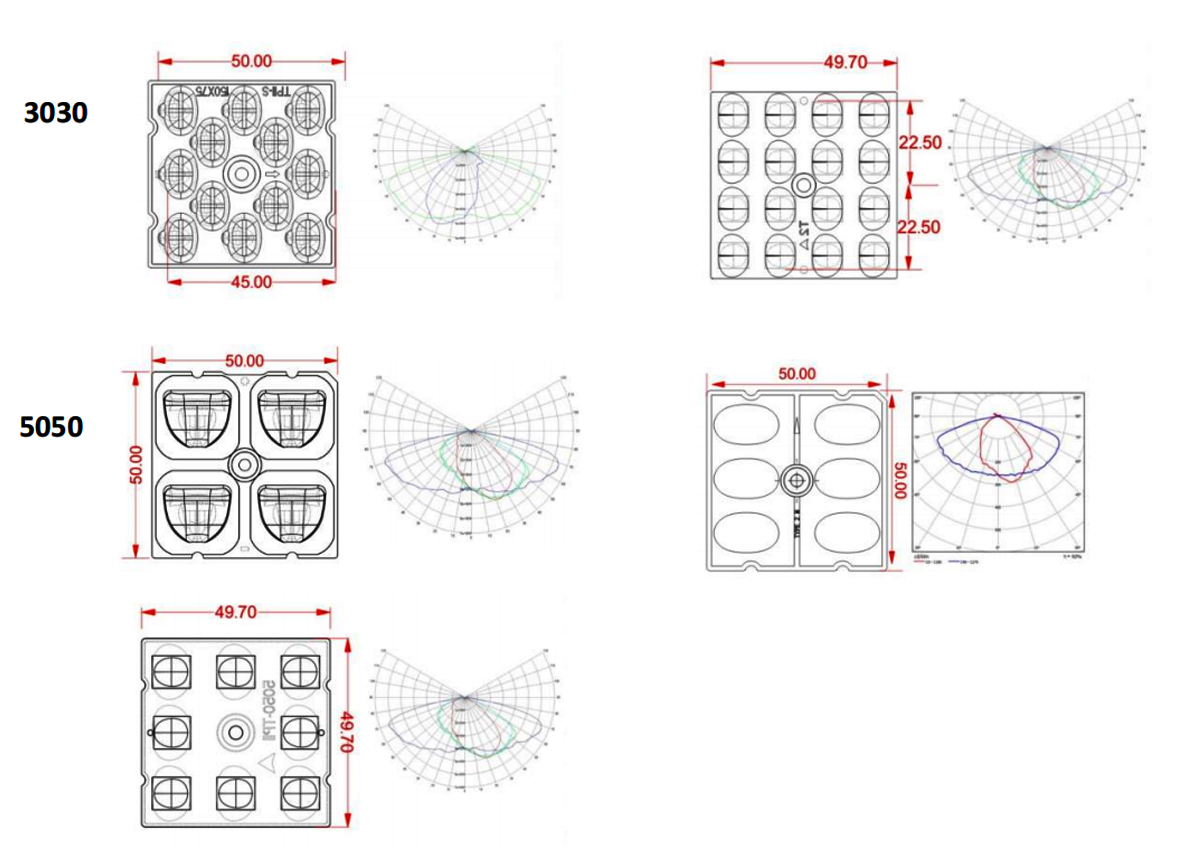

OPTICS AVAILABLE

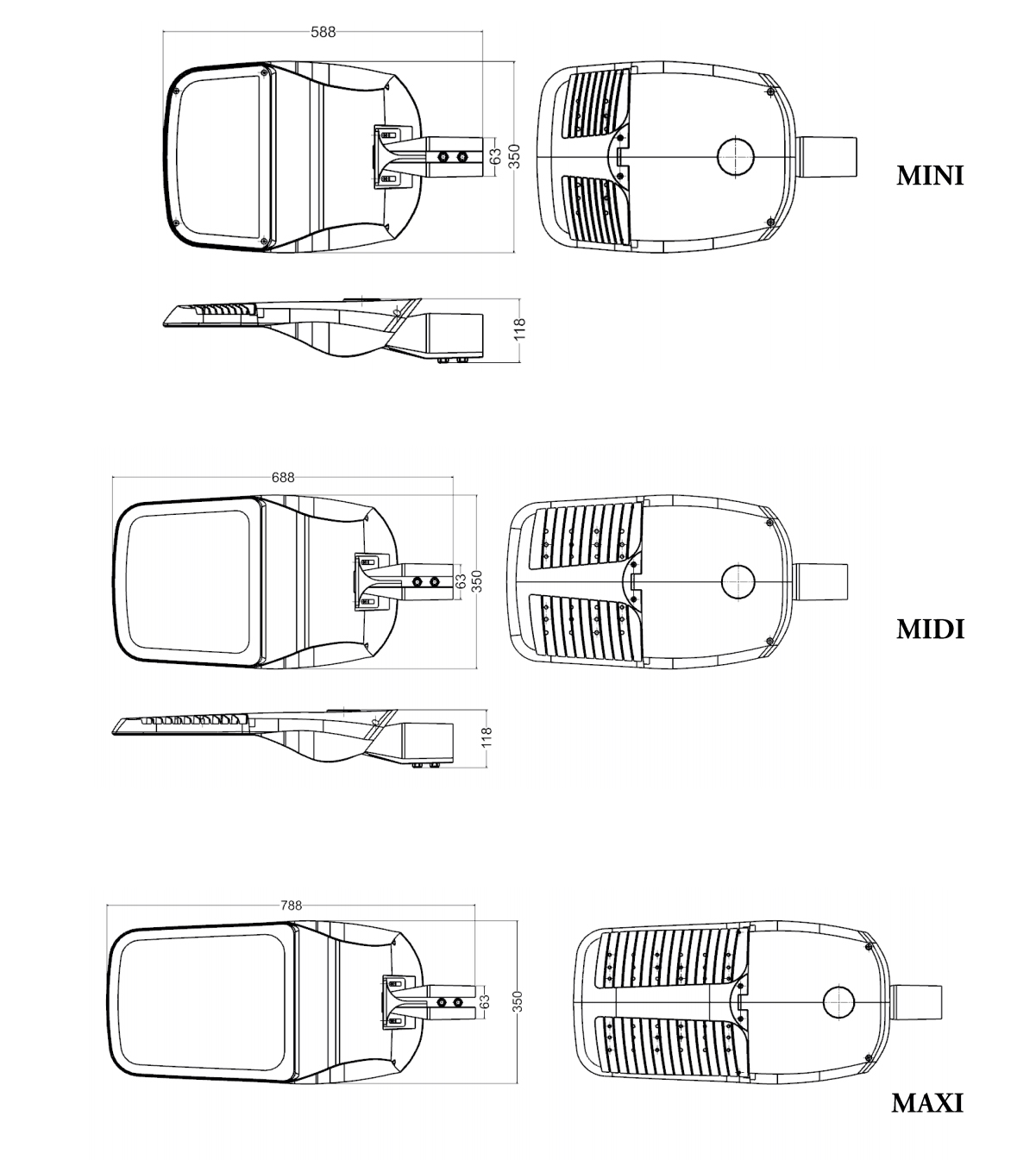

DIMENSIONS (mm)


ORDER INFORMATION

LOGISTICSDATA

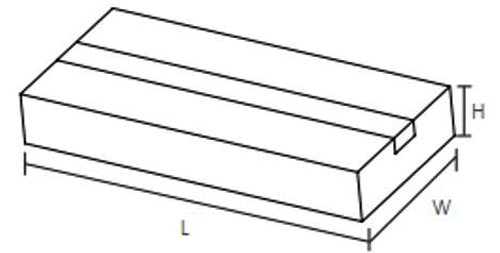

MODEL	Packing unit (pcs/carton)	Carton size(mm) (Length*Width*Height)	Net weight	Gross weight	Volume
FORTUNE MINI	1	630*390*180mm	5.9kg	6.5kg	44.2dm³
FORTUNE MIDI	1	730*390*180mm	7.5kg	8.3kg	51.2dm³
FORTUNE MAXI	1	830*390*180mm	8.8kg	9.8kg	58.3dm³

INSTALLATION

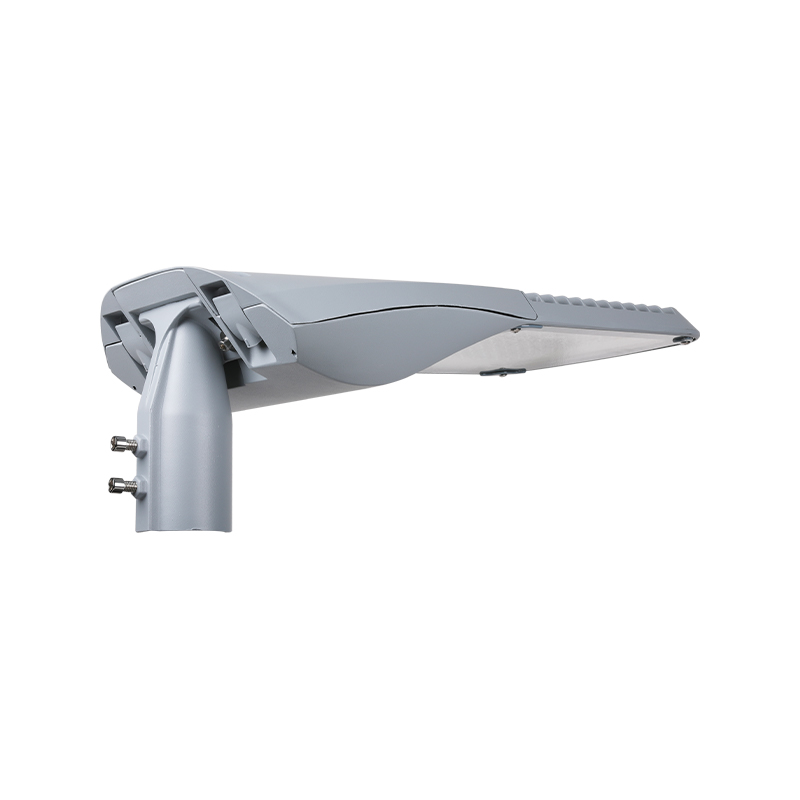

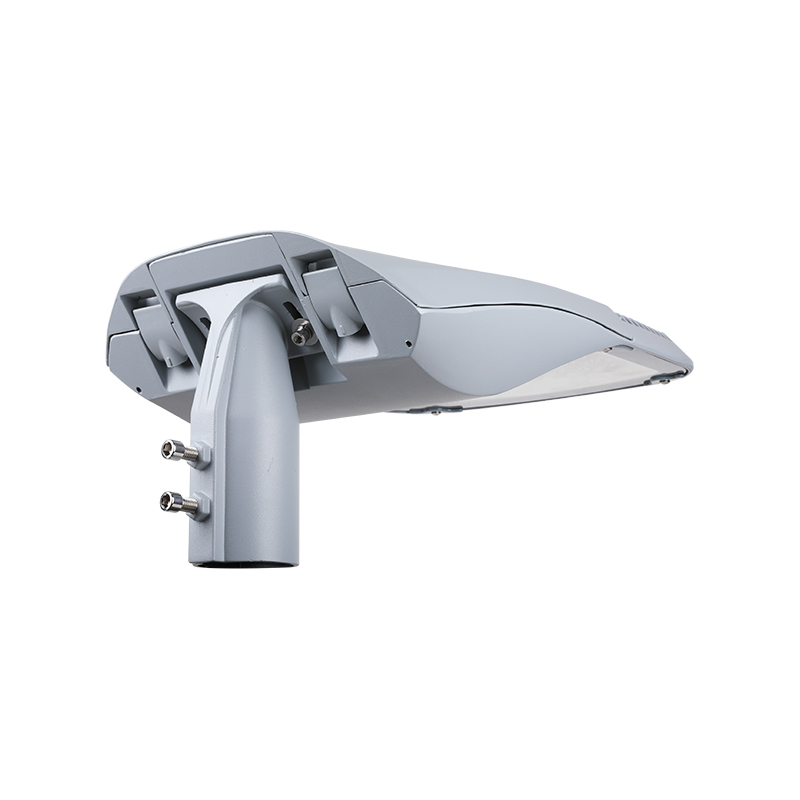

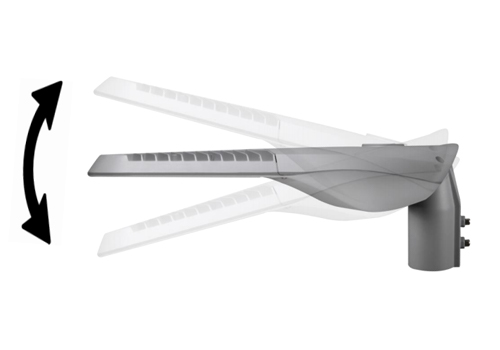

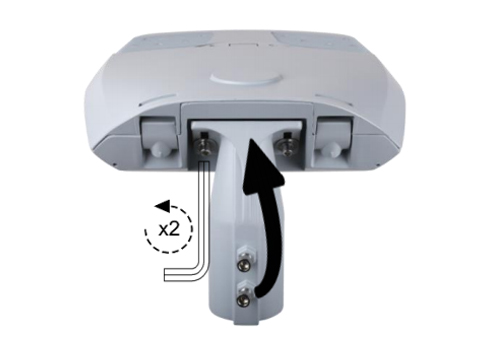

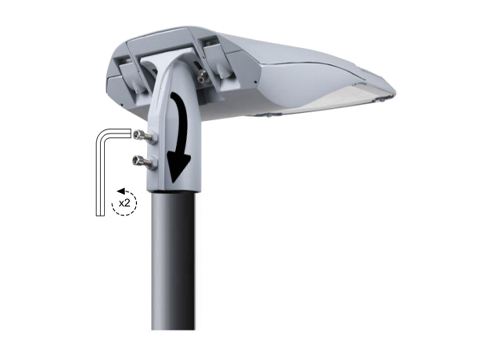

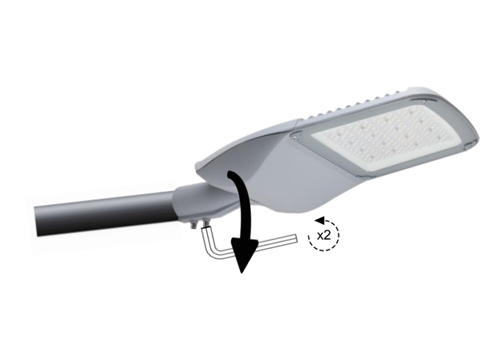

Tighten the luminaire to the pole by allen wrench.	Loosen the screws by allen wrench and rotate the spigot adjust to side entry position
Only one hand tools required for installing the luminaire.	-15° to 15°. Spigot angle can be adjusted by -15°,-10°,0°,5°,10°,15°.

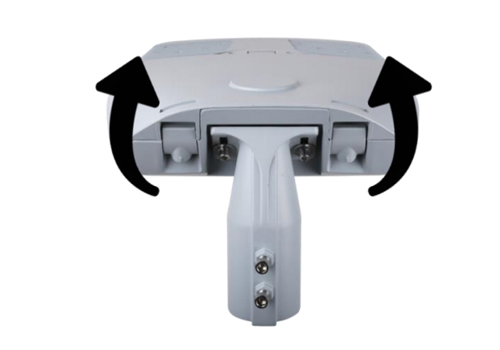

-15° to 15° Spigot angle can be adjusted by -15°,-10°,0°,5°,10°,15°.	Press two buckles to open gear compartment.

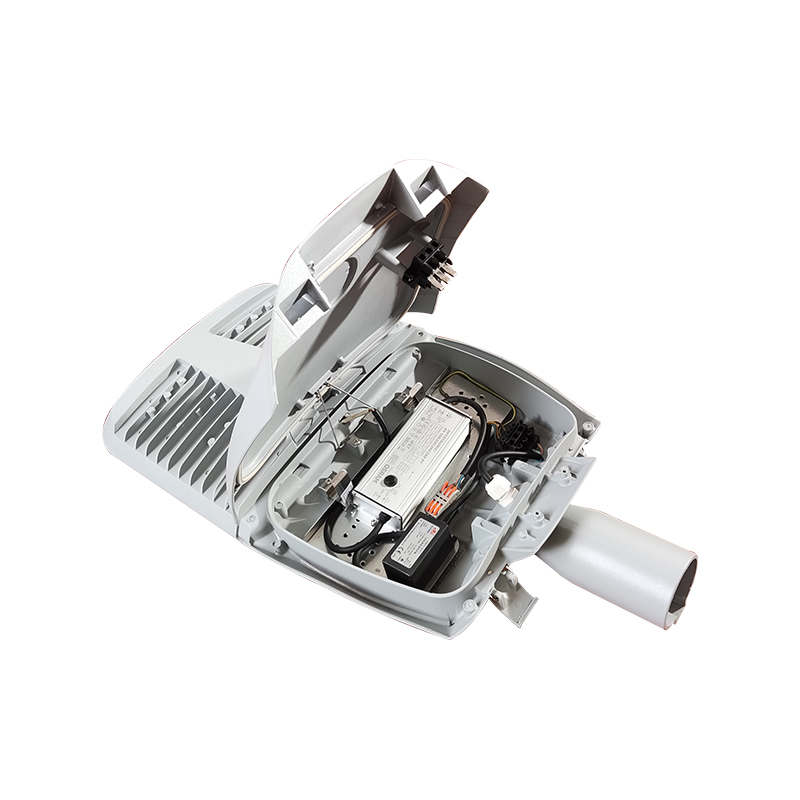

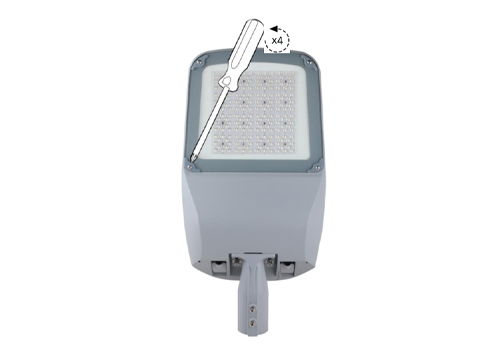

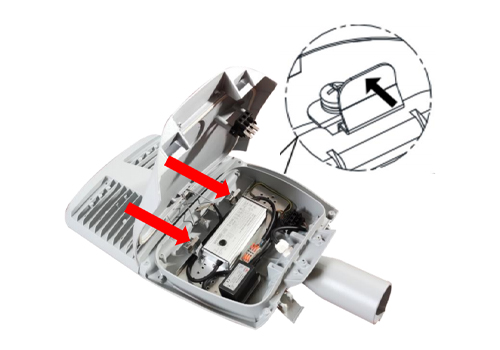

Place the gear compartment cover to the locked position, push the 2 clips by band and take out the gear plate, replace the failed electronic parts with new one, then lock the gear compartment.	Loosen the screws and remove the glass, then continue loosen the screws locked on pcb, remove failed pcb and replace with a new one. Connect and tighten each part back step by step.
