Modular engine Design FORTUNE MODULAR Series LED Street Light

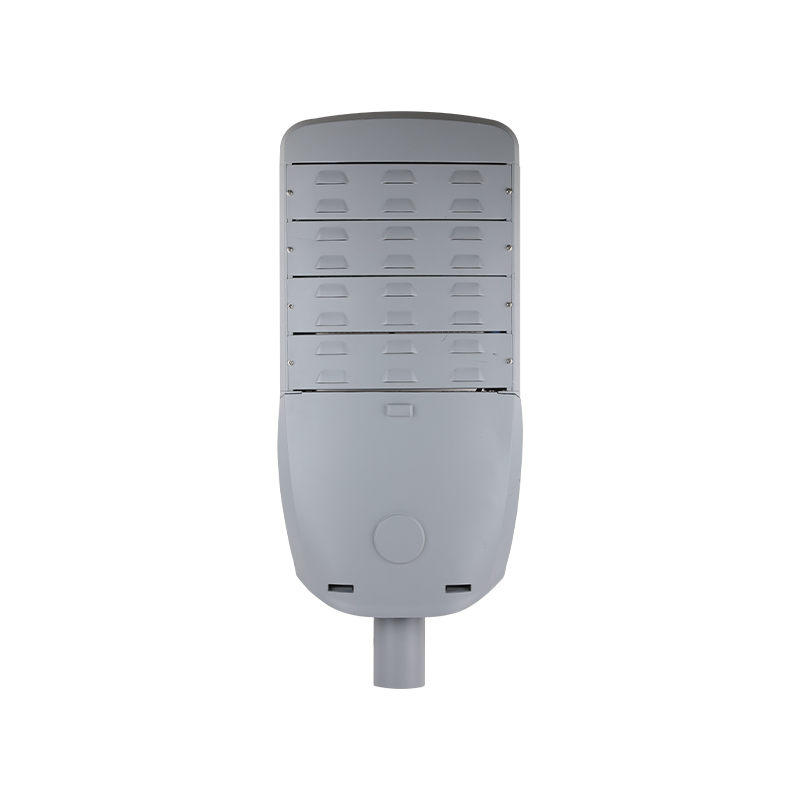

Product Description

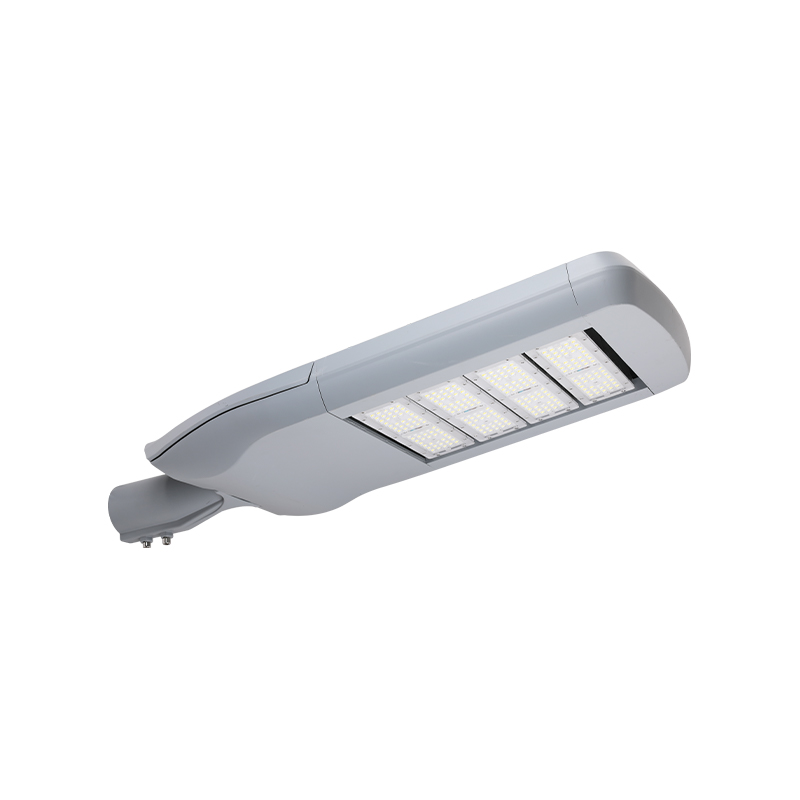

FORTUNE MODULAR has many significant advantages. Its design and functions reflect the characteristics of efficiency, flexibility and future orientation. Its gear compartment and gear tray can be easily opened and replaced without tools, which greatly simplifies the maintenance process and improves the operability and reliability of the equipment. The design of the modular LED engine can be flexibly expanded from one module to six modules, which not only meets the needs of different scenarios, but also significantly improves cost-effectiveness and provides users with higher flexibility and adaptability.

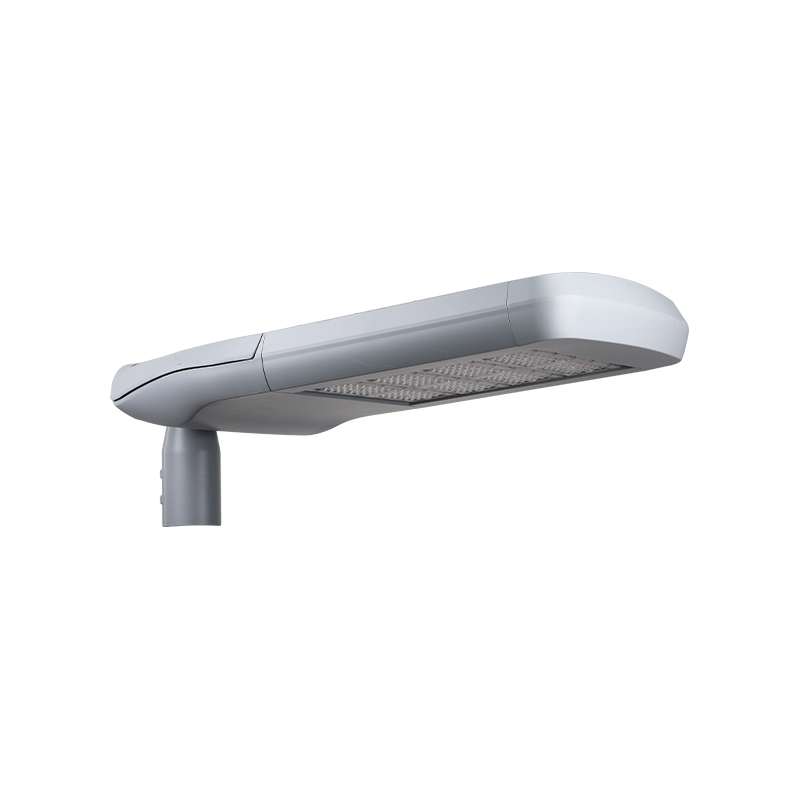

The product adopts a high-pressure die-cast aluminum body and is covered with a corrosion-resistant polyester powder coating to ensure the durability and stability of the equipment in harsh environments. Its adjustable angle socket design supports side entry and column top installation, further enhancing the convenience and applicability of installation.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	M01	M02	M03	M04	M05	M06
Wattage	30-60w	60-120w	90-180w	120-240w	150-300w	180-360w
Input voltage	100-277V / 50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI > 70
Operating temperature	-40℃ ~ +50℃
Housing material	ADC12
Ingress protection	IP66
Impact strength	IK08
Surge protection	10KV/20KV
Spigot diameter	60mm
Weight	6.0kg	7.2kg	8.4kg	9.5kg	10.8kg	12.2kg

DESIGN IN DETAILS

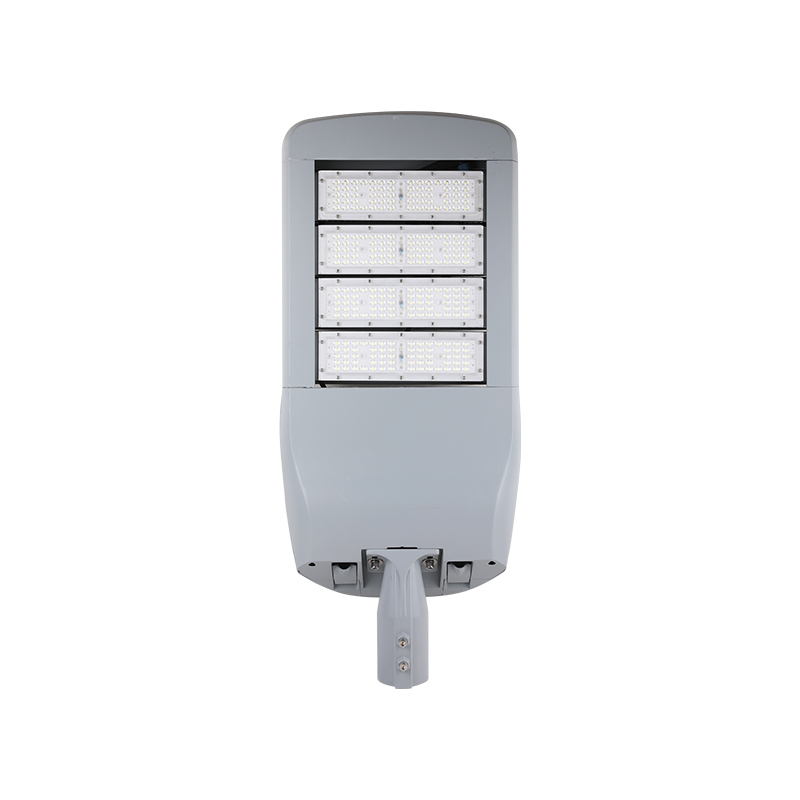

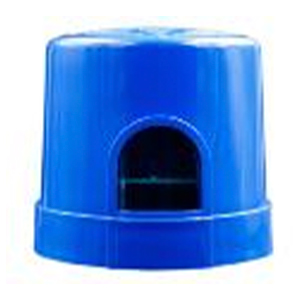

Led module Multiled module optional with luminaire efficiency up to 160lm/w, long lifespan 50000 hours.	Photocontrol (optional) Optional with NEMA socket & photocell/shorting cap.

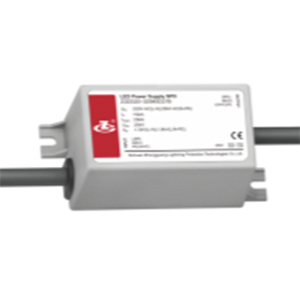

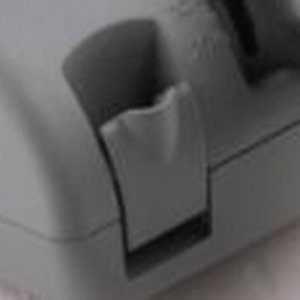

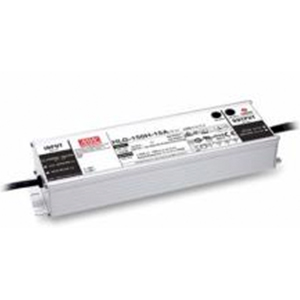

Power supply unit High performance led driver - 0-10v dimming upon request - Driver brand can choose among MOSO, Meanwell, Philips, Osram.	Buckles Toolless opening of gear compartment, easy for maintenance.

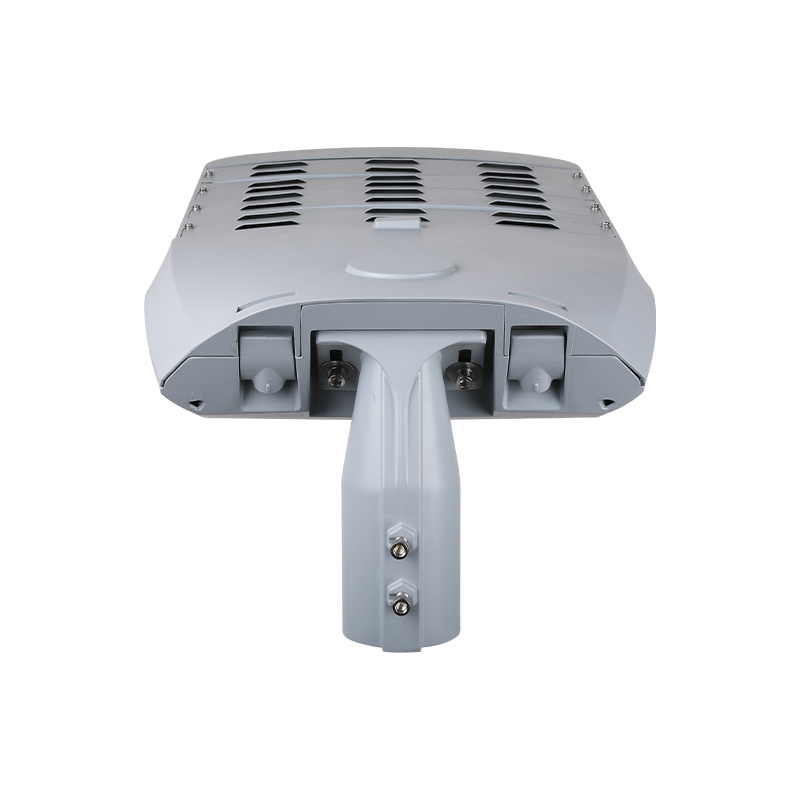

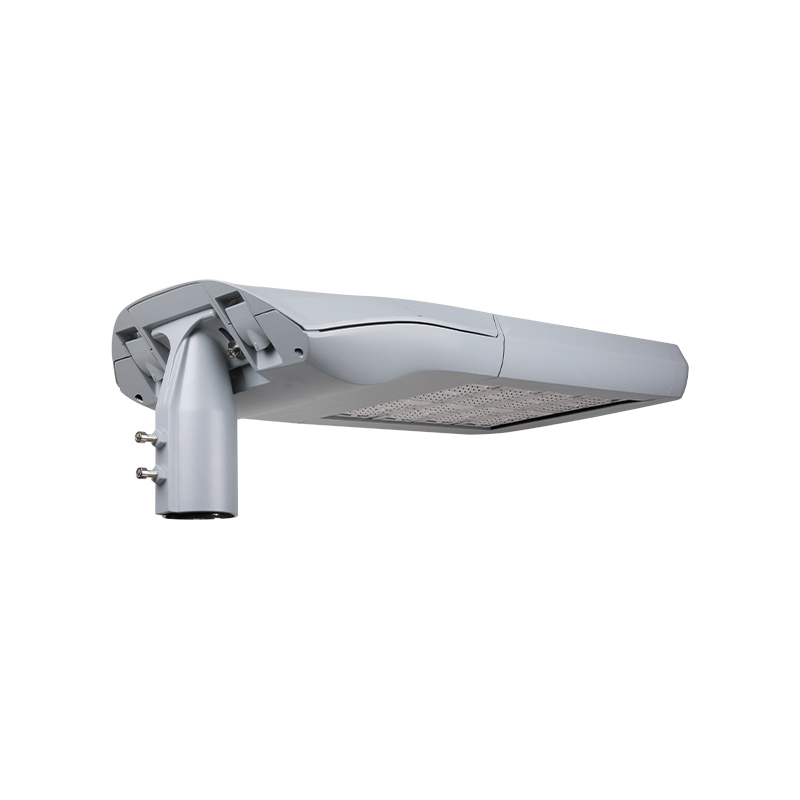

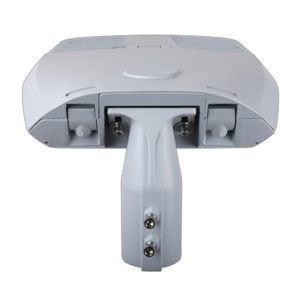

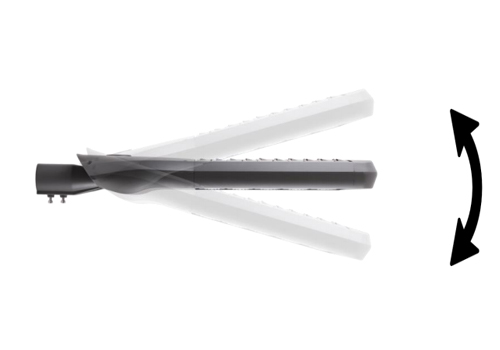

Spigot Wide adjustable angle from 0℃±15℃ for side entry and post top mounting.	Power disconnector Automatically of luminaire when gear compartment open and after close turn on, safety for workers when during maintenance.

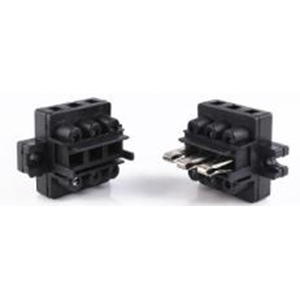

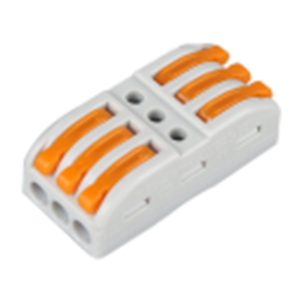

Connector Quick plug-in connector, tool-less, save time.	SPD 10kv (20kv optional)surge protection device, more reliable protection for the led power supply unit.

LED MODULE AVAILABLE

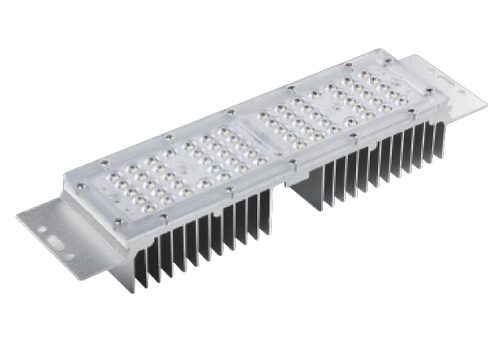

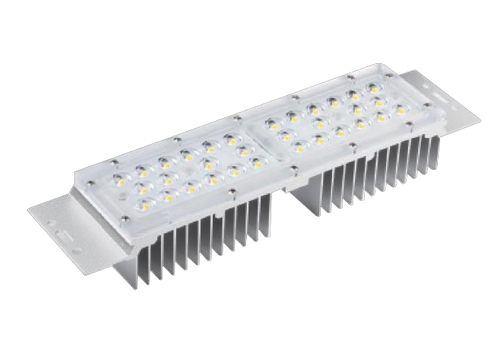

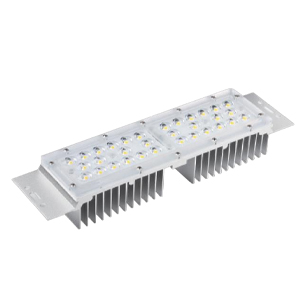

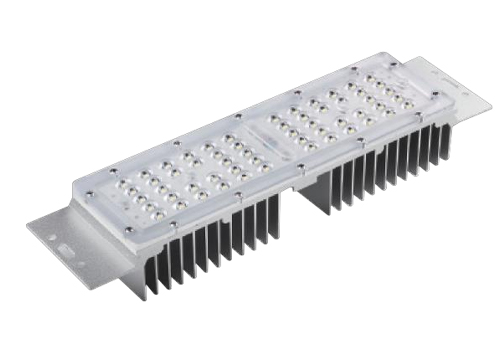

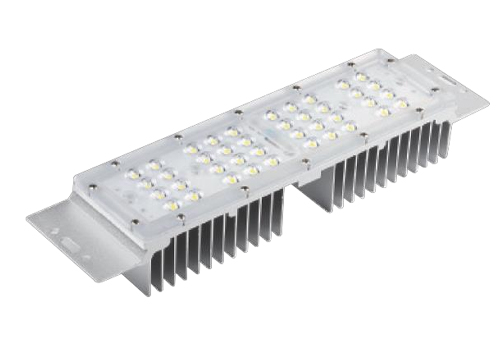

5050 LED MODULE LED Qty: 32pcs Wattage: 50w	3030 LED MODULE LED Qty: 40pcs Wattage: 30w
3030 LED MODULE LED Qty: 56pcs Wattage: 50w	3030 LED MODULE LED Qty: 64pcs Wattage: 60w

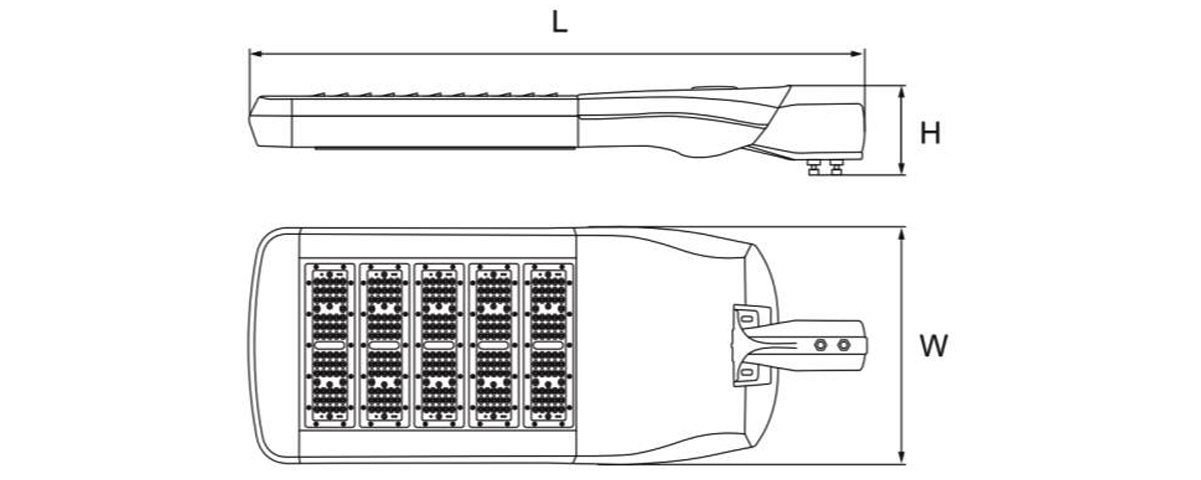

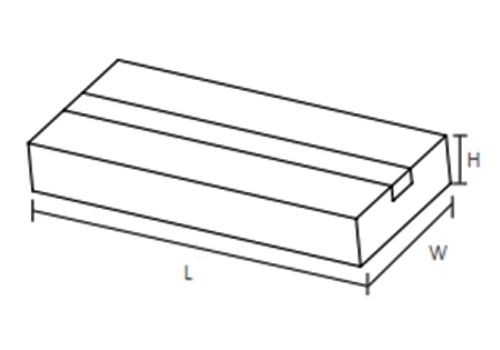

DIMENSIONS (mm)

ORDER INFORMATION

LOGISTICS DATA

INSTALLATION

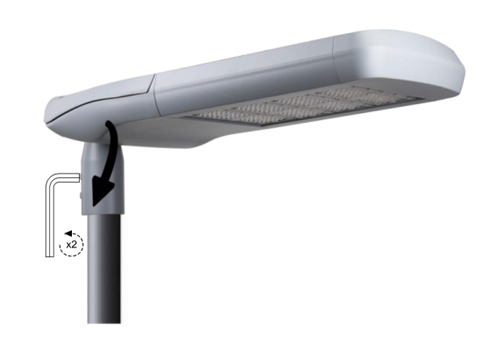

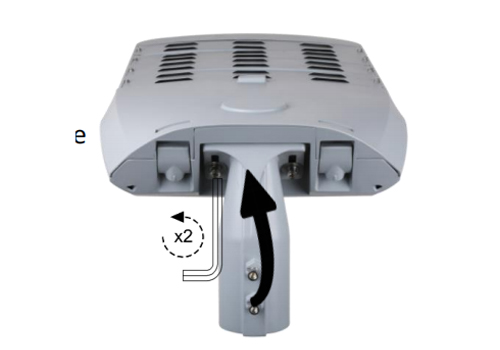

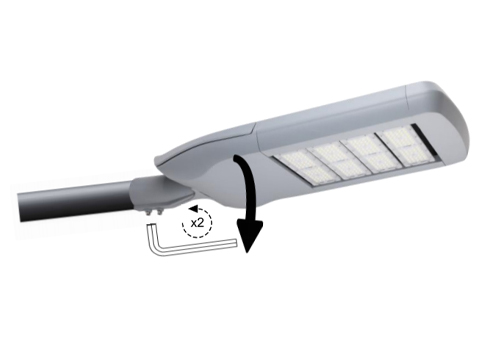

Tighten the luminaire to the pole by allen wrench.	Loosen the screws by allen wrench and rotate the spigot adjust to side entry position.

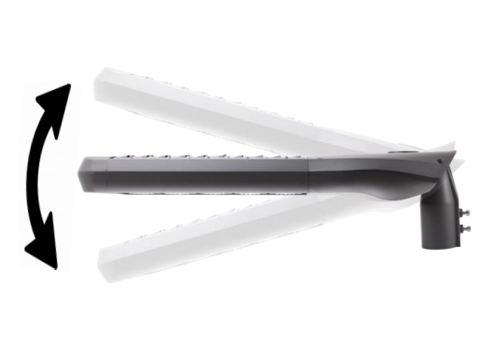

Only one hand tools required for installing the luminaire.	Spigot angle can be adjusted by -15°,-10°,0°,5°, 10°,15°.

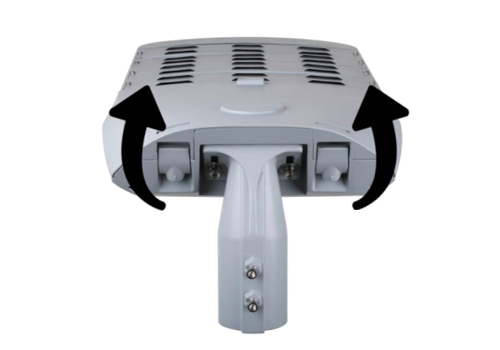

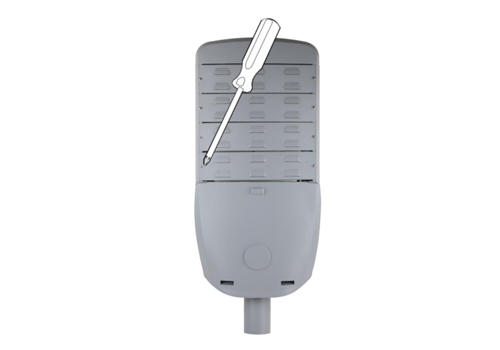

Spigot angle can be adjusted by -15°,-10°,0°,5°, 10°,15°.	Press two buckles to open gear compartment.

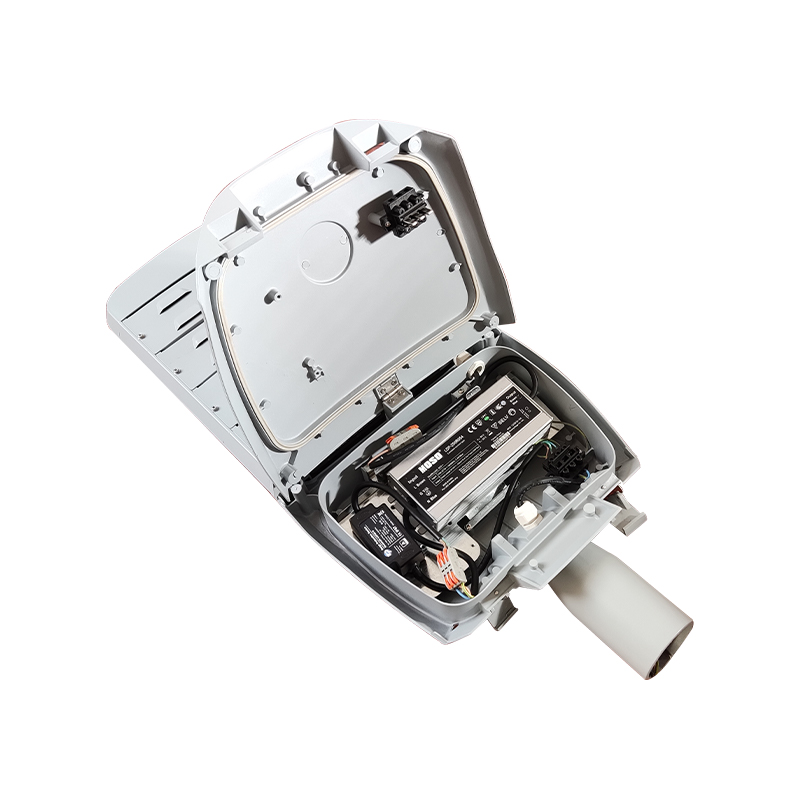

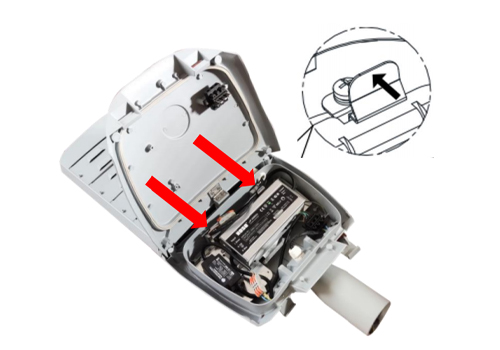

Place the gear compartment cover to the locked position, push the 2 clips by band and take out the gear plate, replace the failed electronic parts with new one, then lock the gear compartment.	Loosen the back cover sheet and remove it, then continue loosen the screws locked on profile, remove failed led module and replace with a new one. Connect and tighten each part back step by step.
