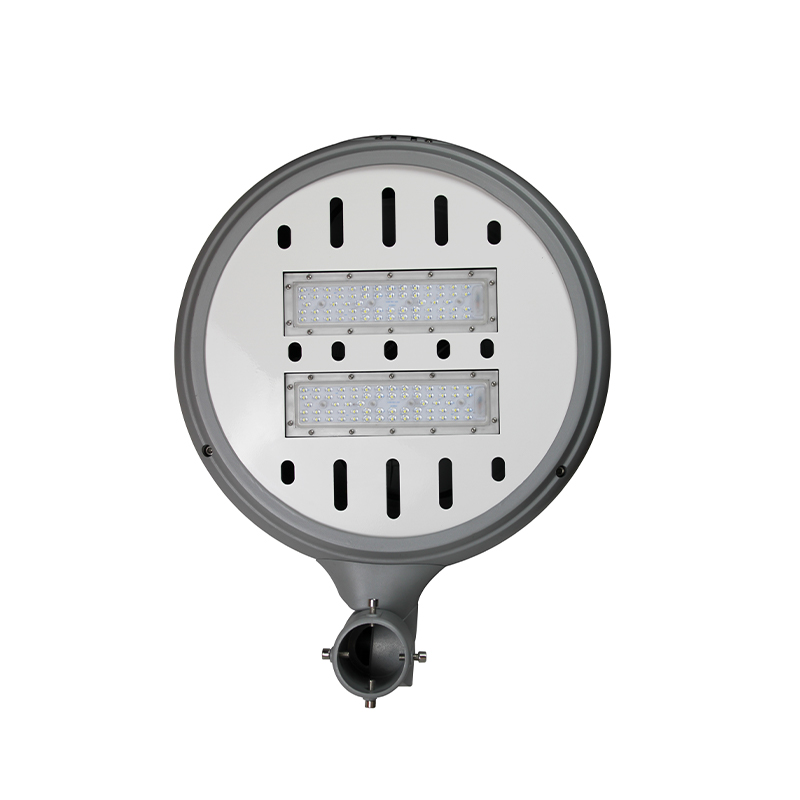

Modular Post Top and Side-Entry SKYLINE Series LED Garden Light

Product Description

As a flexible and high-performance LED lighting solution, SKYLINE's design and functional features make it an ideal choice for scenes such as parks, residential areas and squares. Its modular LED engine supports flexible combinations of multiple LED modules, which not only improves the product's cost-effectiveness, but also provides users with greater design freedom. This design allows SKYLINE to easily adapt to the needs of different projects, whether indoors or outdoors, to meet lighting needs.

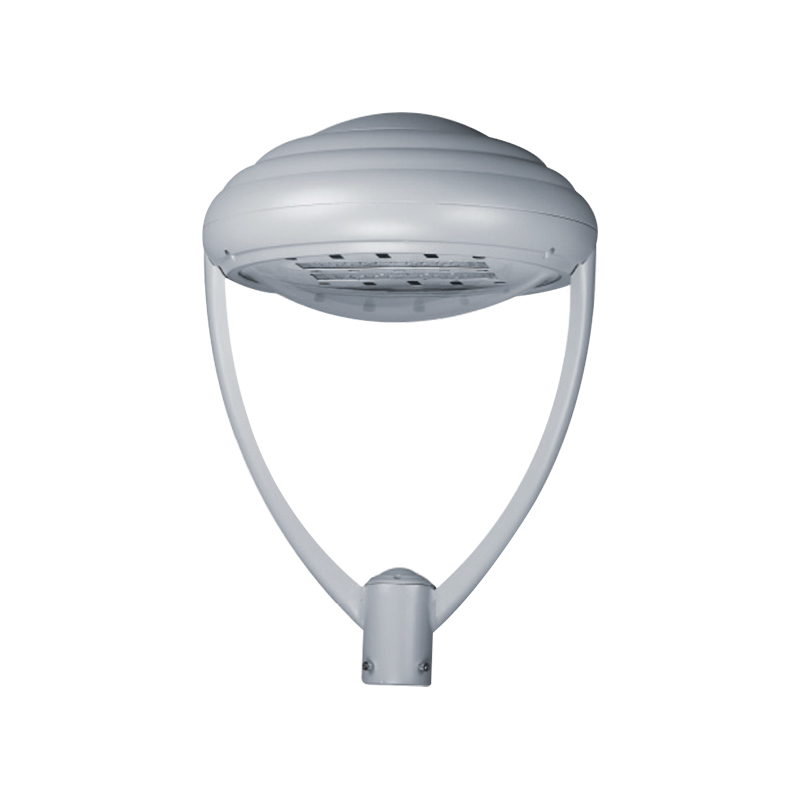

SKYLINE's body is made of high-pressure die-cast aluminum and is treated with corrosion-resistant polyester powder coating to ensure its durability and stability in harsh environments. Its dual-arm design further enhances its applicability, allowing it to be flexibly installed in a variety of scenes such as parks, squares and residential areas. This design not only improves the product's aesthetics, but also enhances its adaptability in complex environments.
SKYLINE's LED driver modular design also supports future upgrades, allowing users to easily replace LED engines and gearboxes to extend the life of the equipment. This forward-looking design not only reduces maintenance costs, but also provides users with more efficient energy utilization efficiency.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	SKYLINE - SIDE ENTRY
Wattage	30-240w
Input voltage	100-277V/50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI> 70
Operating temperature	-40°C~+50°C
Housing material	ADC12
Ingress protection	IP65
Impact strength	IKO8
Surge protection	10KV/20KV
Diffuser	Tempered glass optional
Spigot diameter	60mm
Weight	9.8kg

DESIGN IN DETAILS

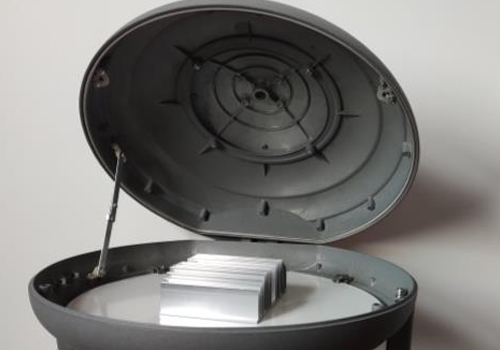

Wide top opening angle provide access to gear compartment for maintenance and cabling.

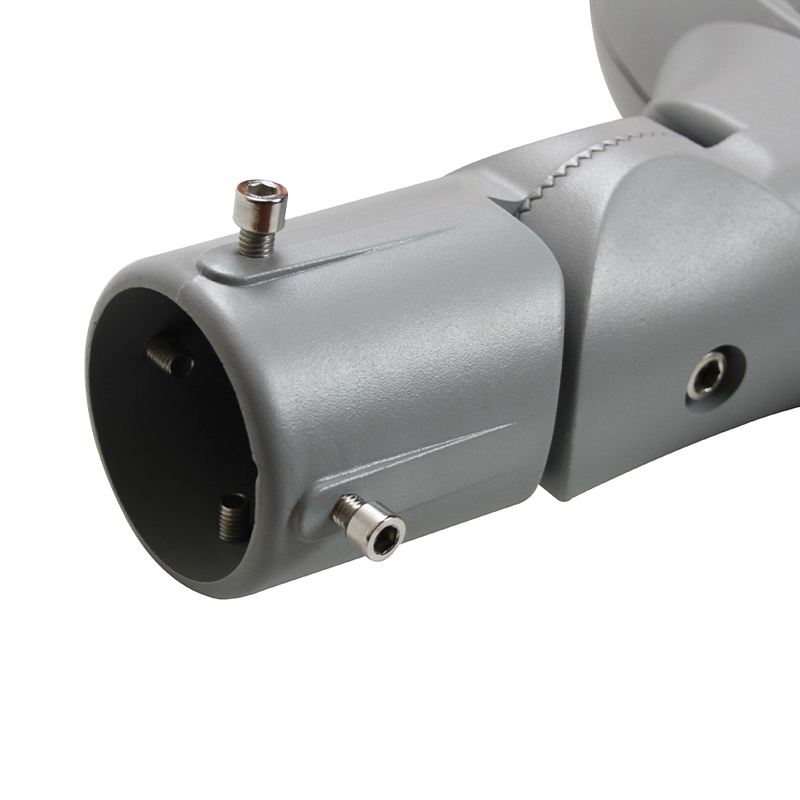

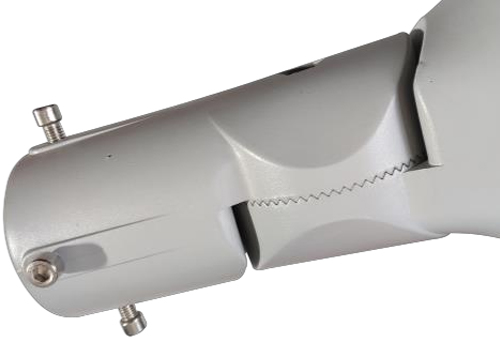

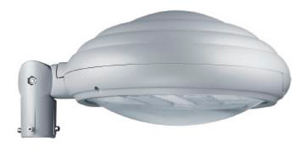

Luminaire fixed on φ60mm spigot for both post top and side entry mounting.

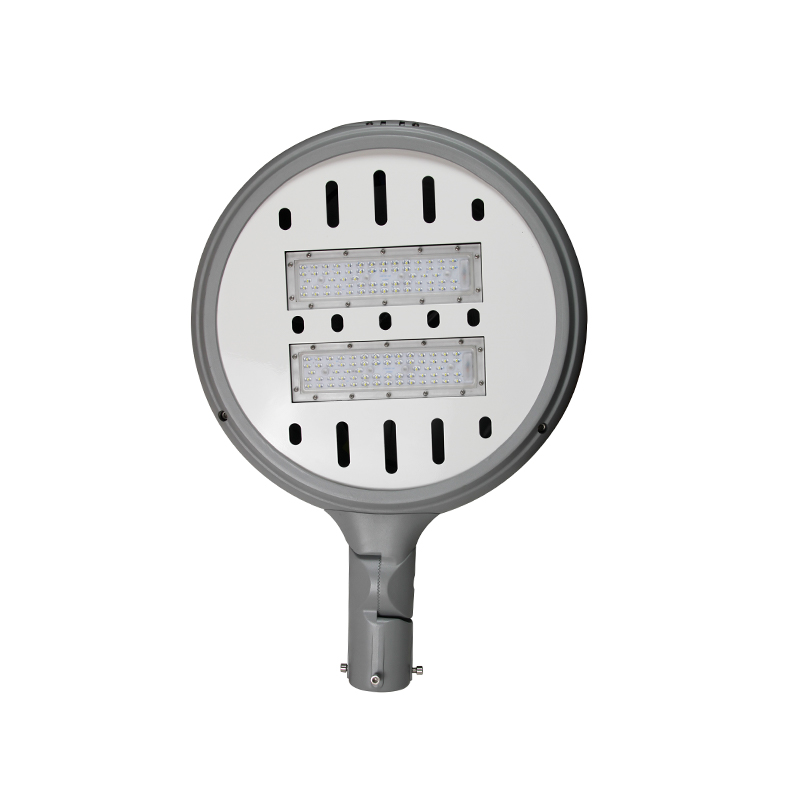

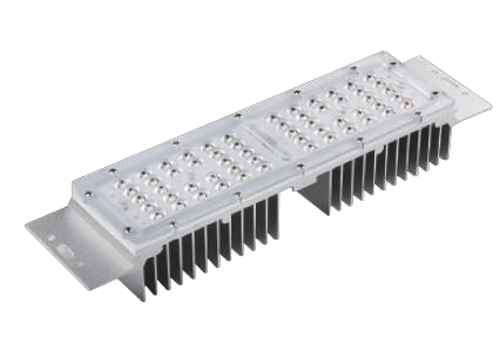

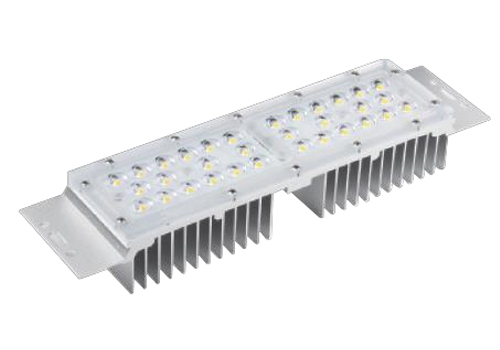

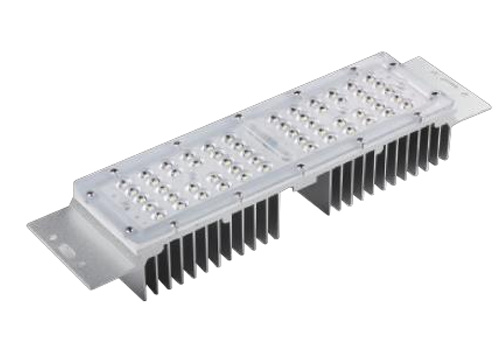

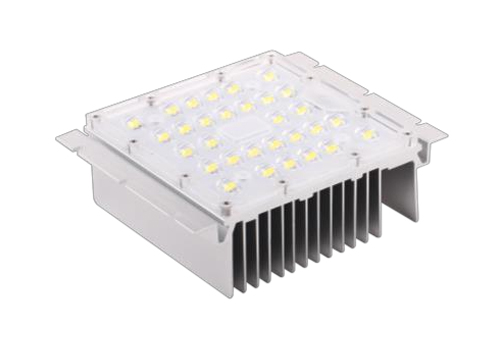

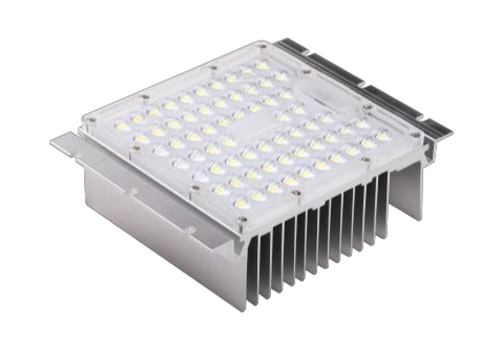

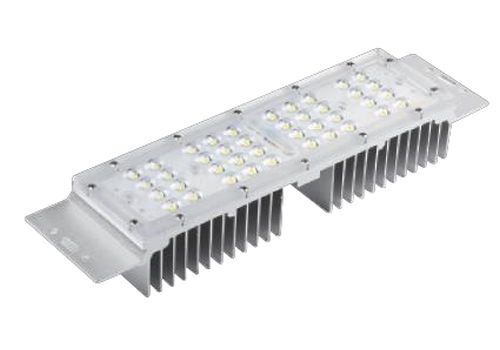

LED MODULE AVAILABLE

5050 LED MODULE LED Qty: 32pcs Wattage: 50w	3030 LED MODULE LED Qty: 40pcs Wattage: 30w	3030 LED MODULE LED Qty: 56pcs Wattage: 50w
3030 LED MODULE LED Qty: 64pcs Wattage: 60w	5050 LED MODULE LED Qty: 30pcs Wattage: 50w	3030 LED MODULE LED Qty: 64pcs Wattage: 50w/60w

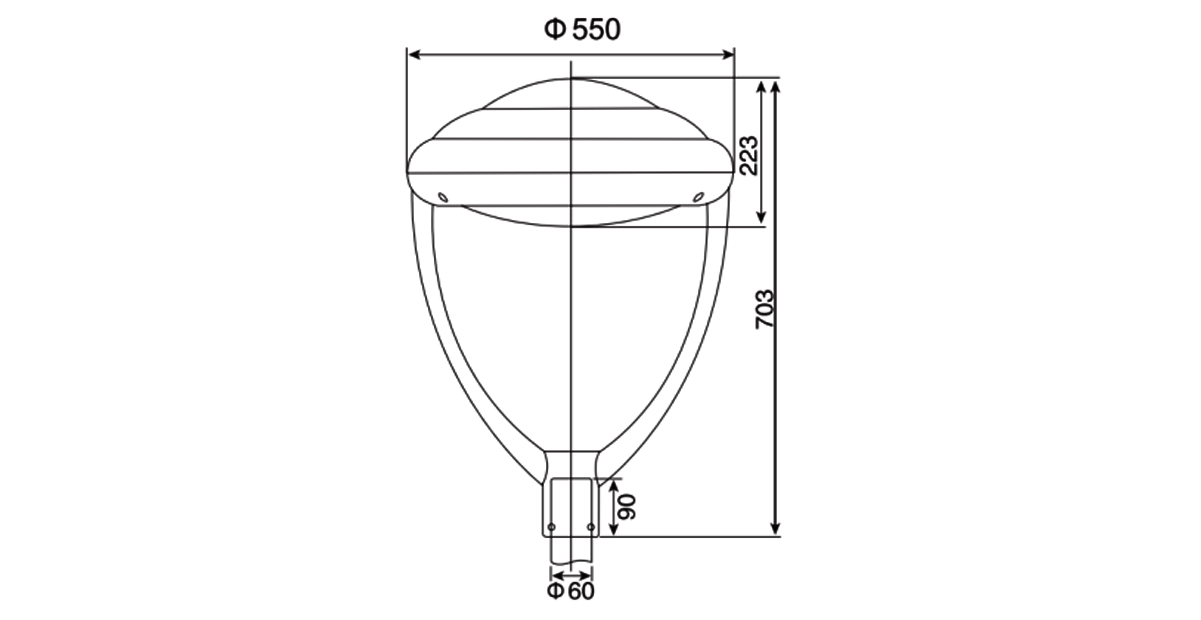

DIMENSIONS (mm)


ORDER INFORMATION

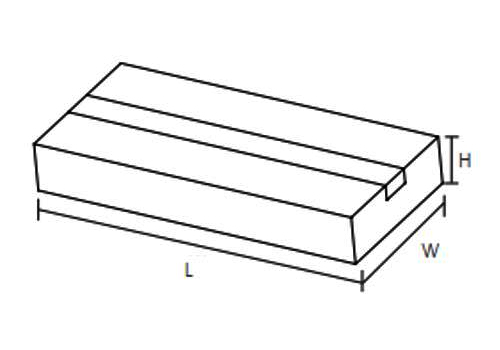

LOGISTICSDATA
