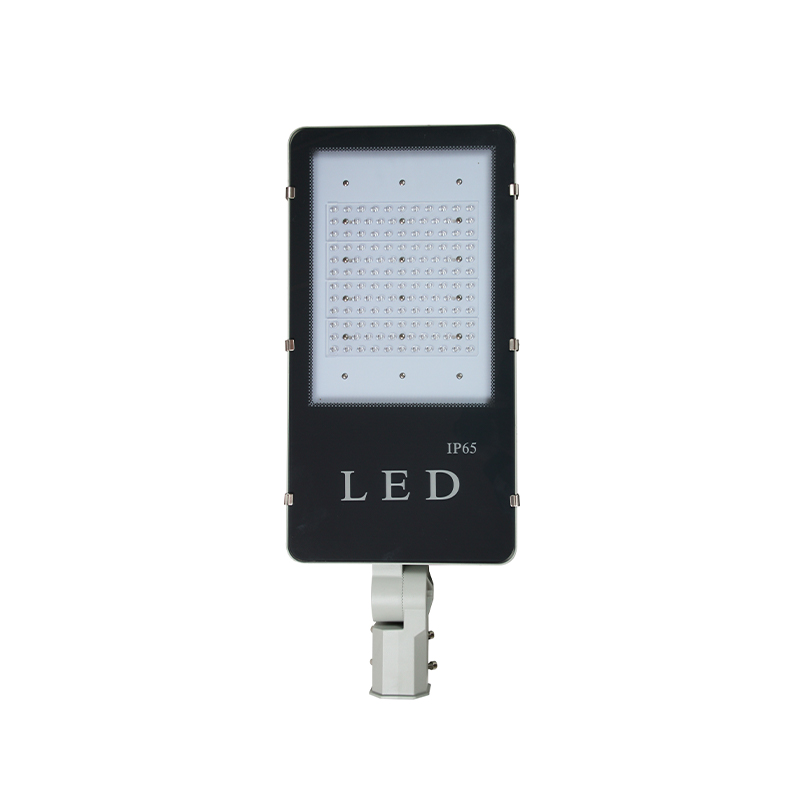

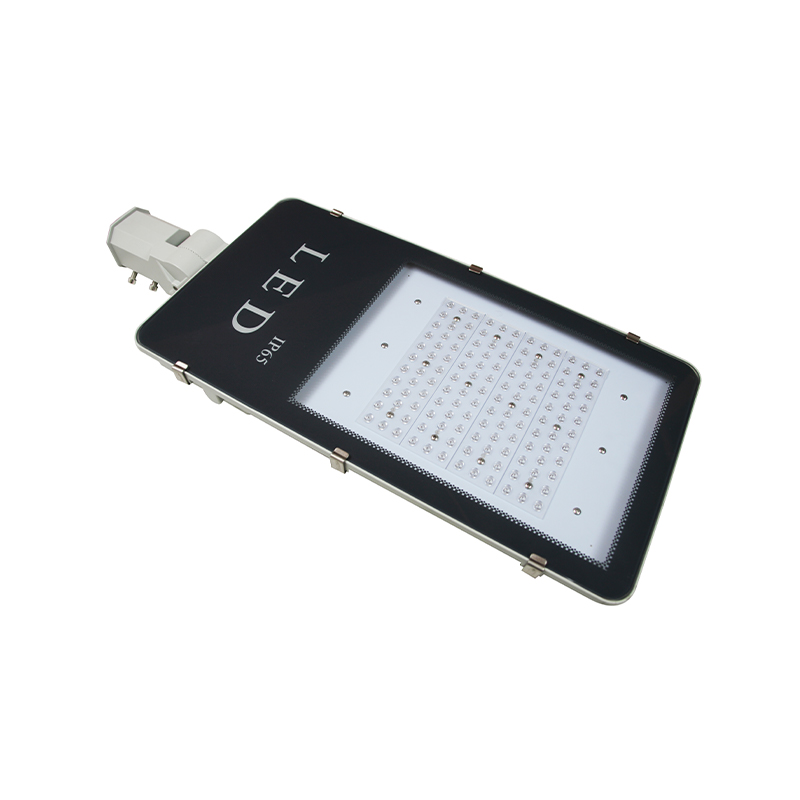

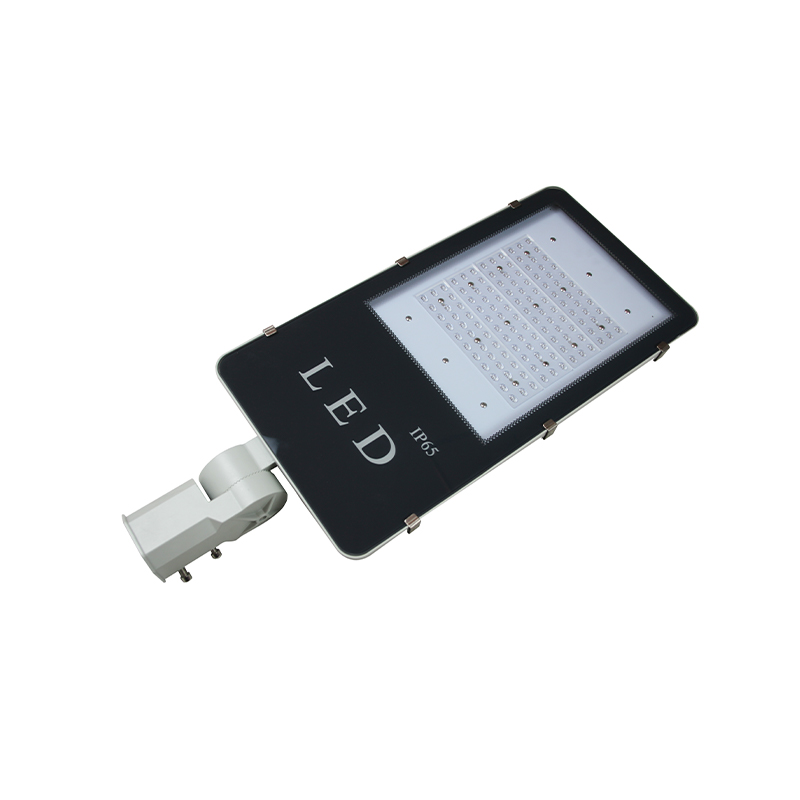

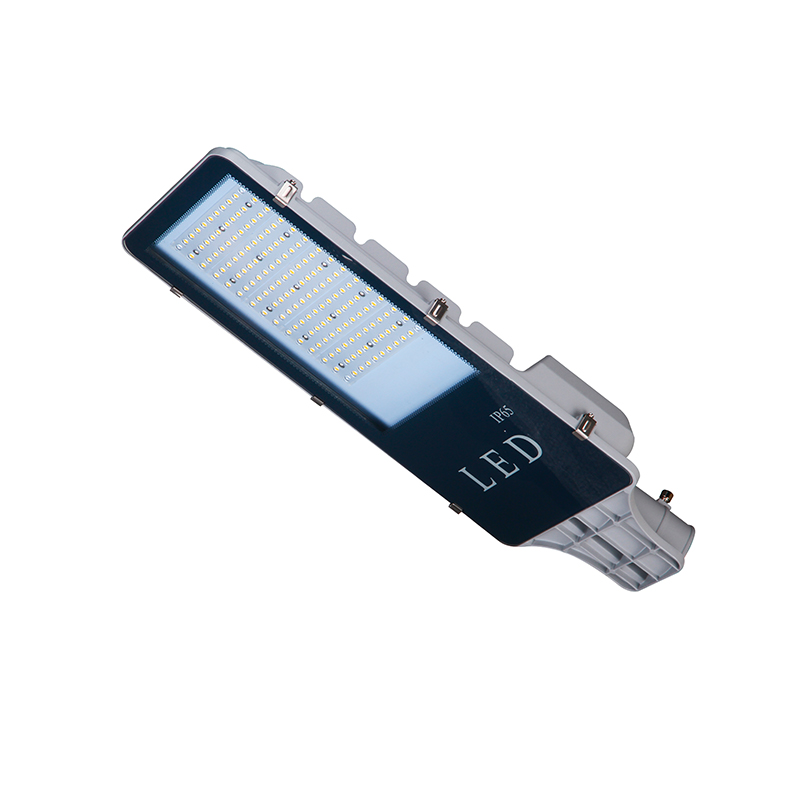

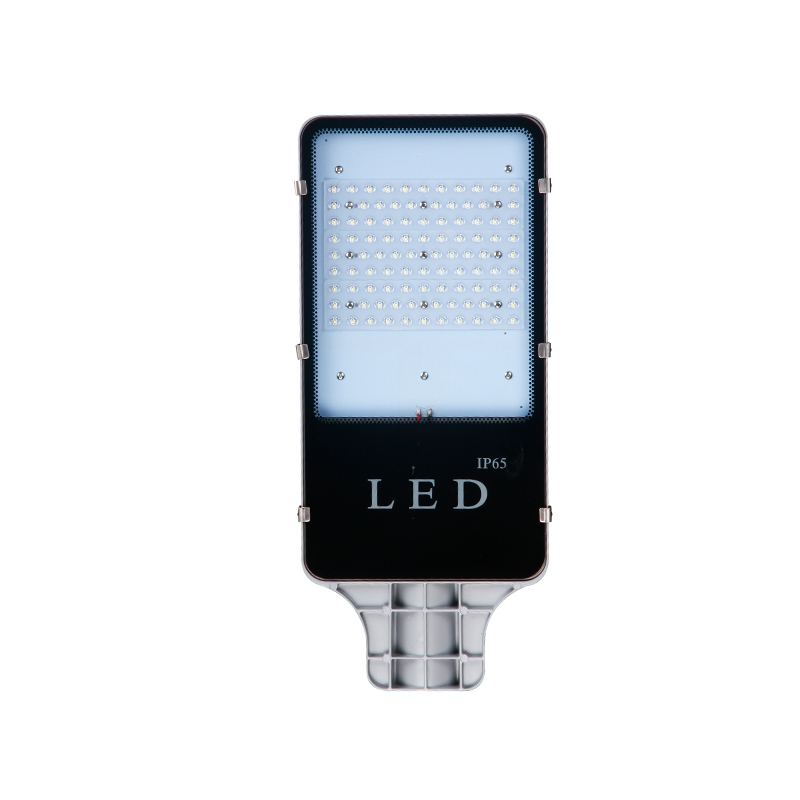

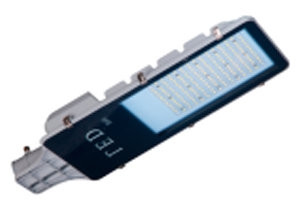

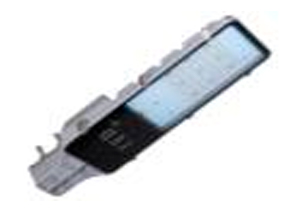

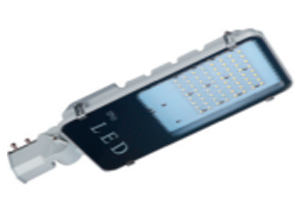

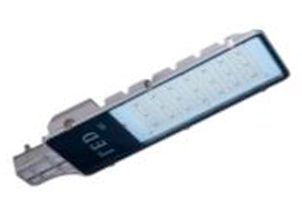

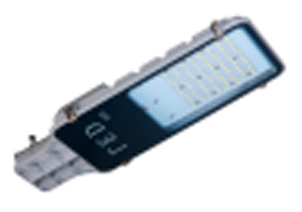

Simple Design IP65 Waterproof ECO Series LED Street Light

Product Description

The Eco series not only meets the user's demand for high quality by adopting advanced design and manufacturing processes, but also has significant advantages in price, providing users with cost-effective solutions.

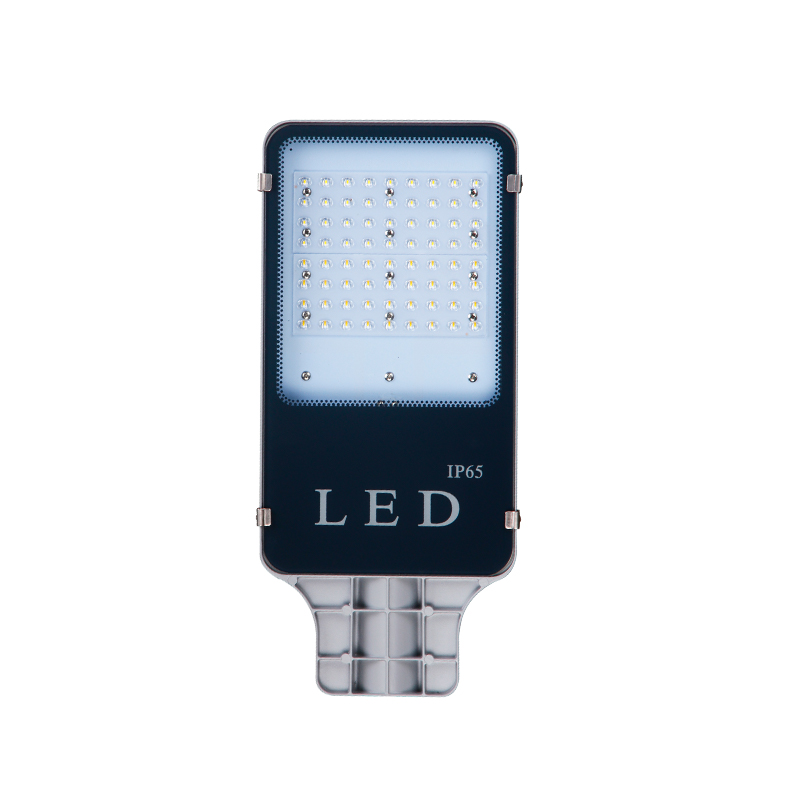

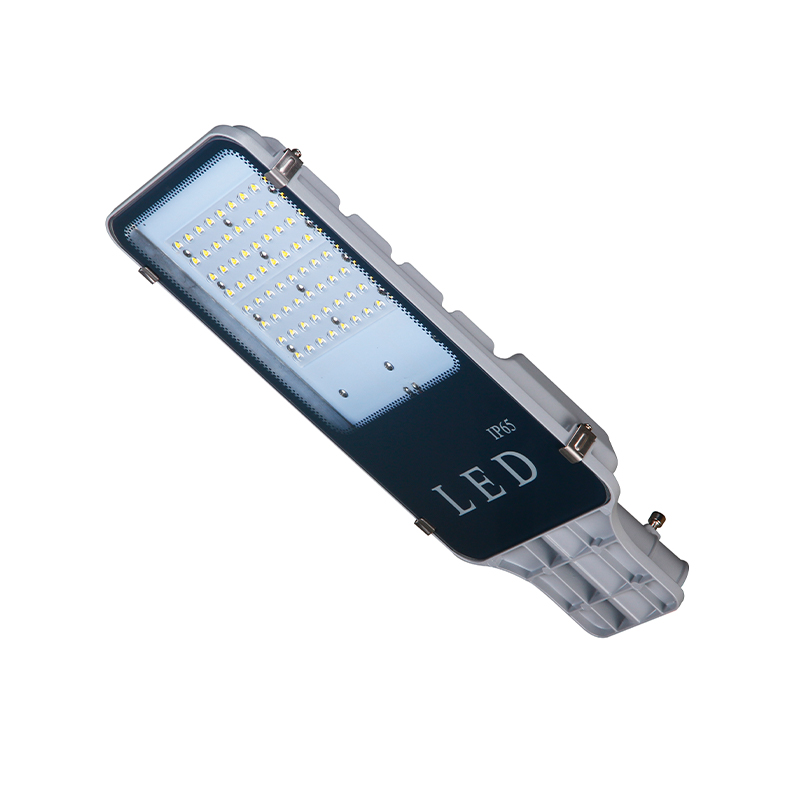

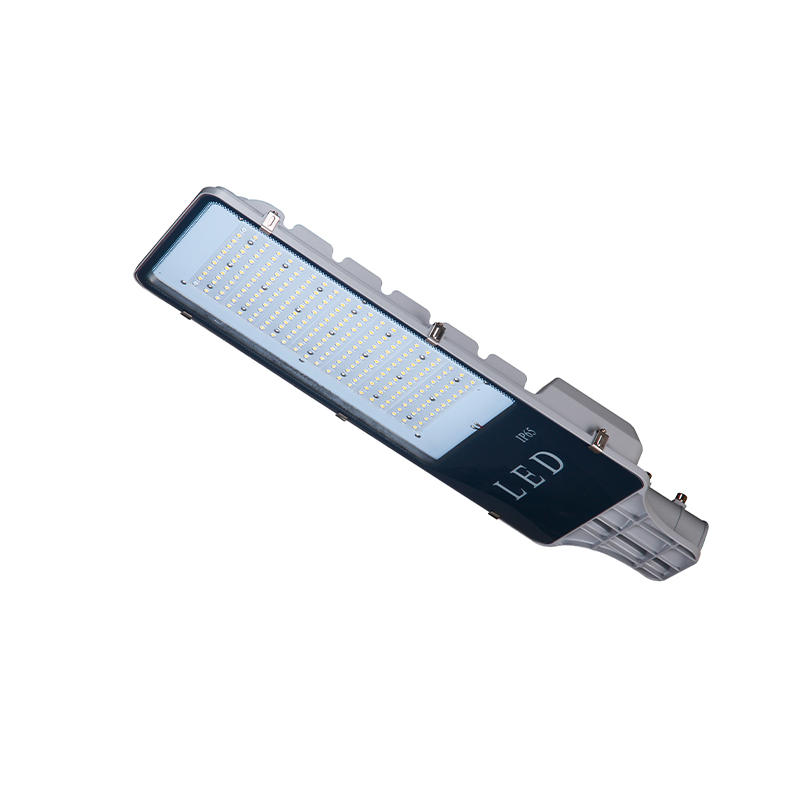

The design of the optical lens brings asymmetric light distribution and low glare effects, while achieving a highly uniform lighting effect. This unique optical design ensures soft and evenly distributed light, avoiding the common glare problem of traditional lamps and providing users with a more comfortable visual experience.
The body is made of high-pressure die-cast aluminum and covered with corrosion-resistant polyester powder coating, which gives it excellent corrosion resistance and durability. This material not only improves the service life of the product, but also ensures its stable performance in harsh environments.

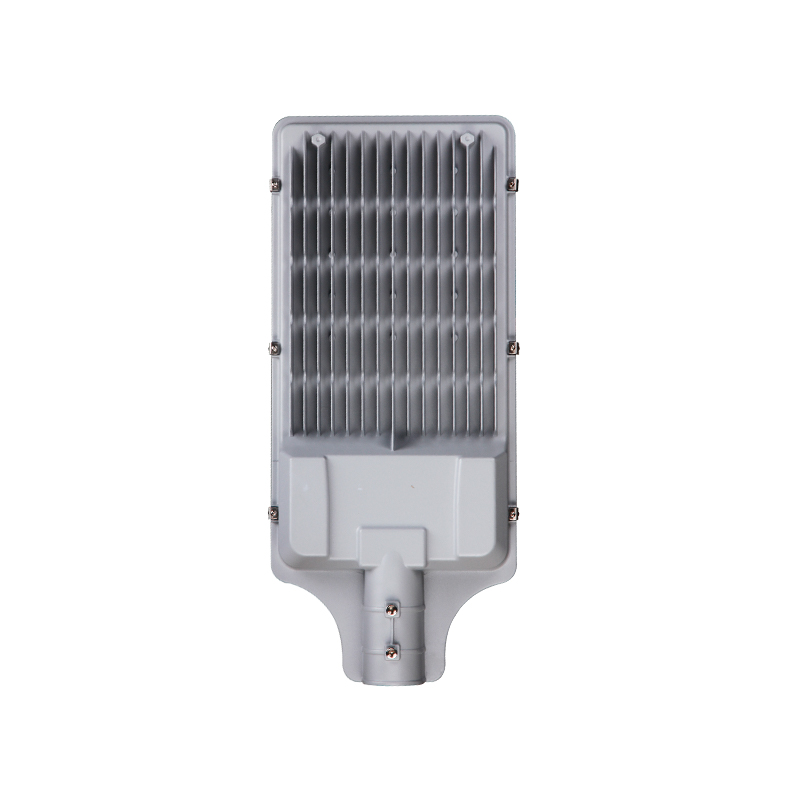

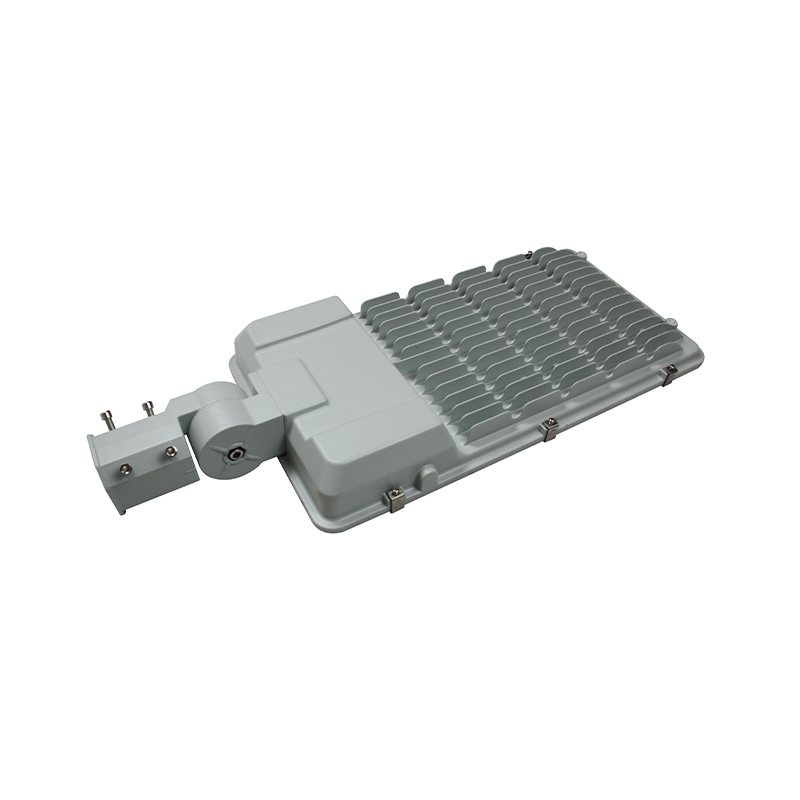

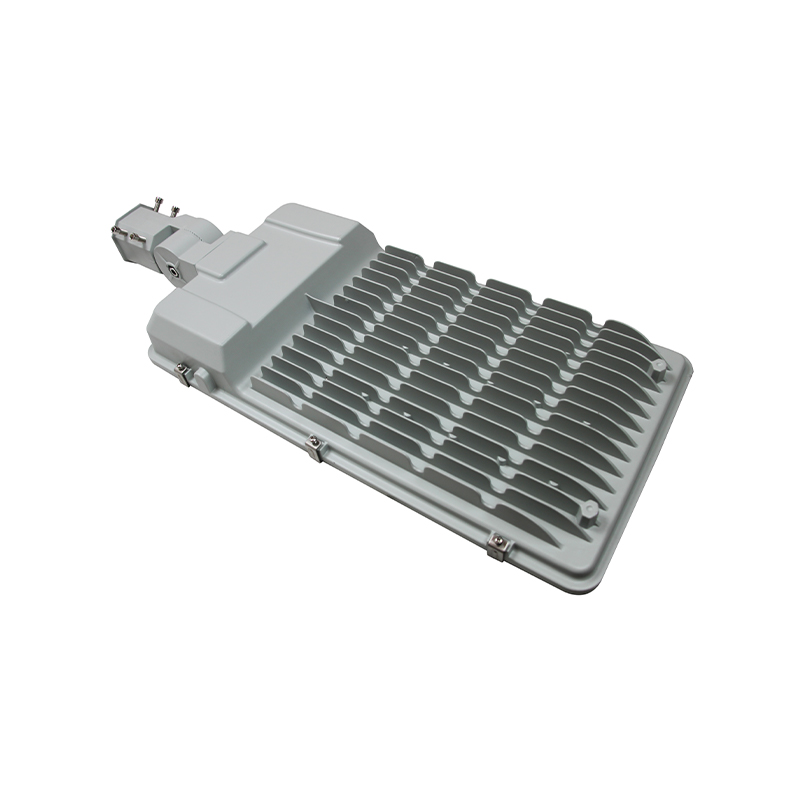

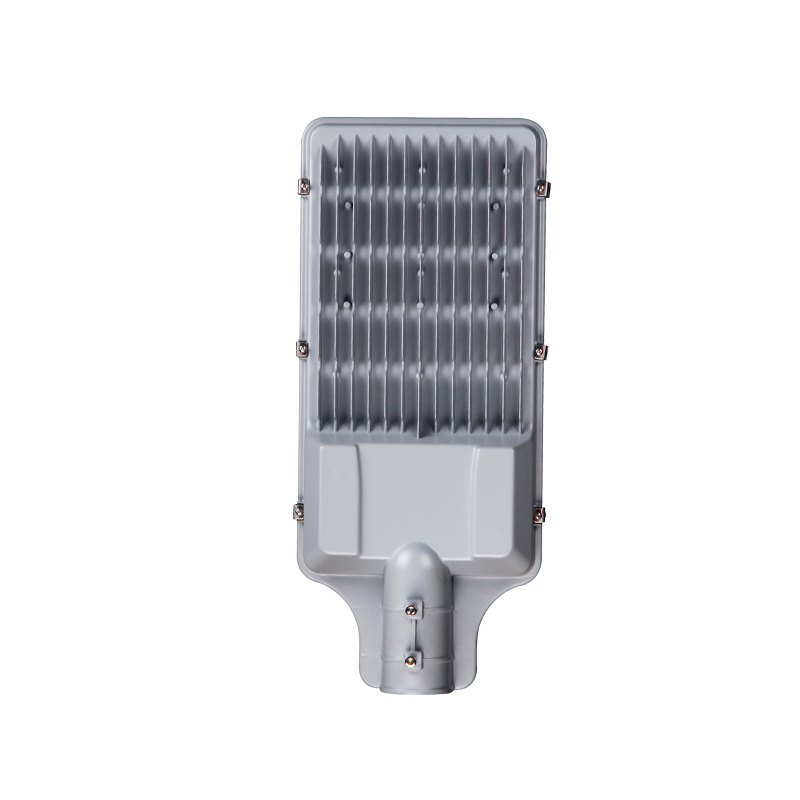

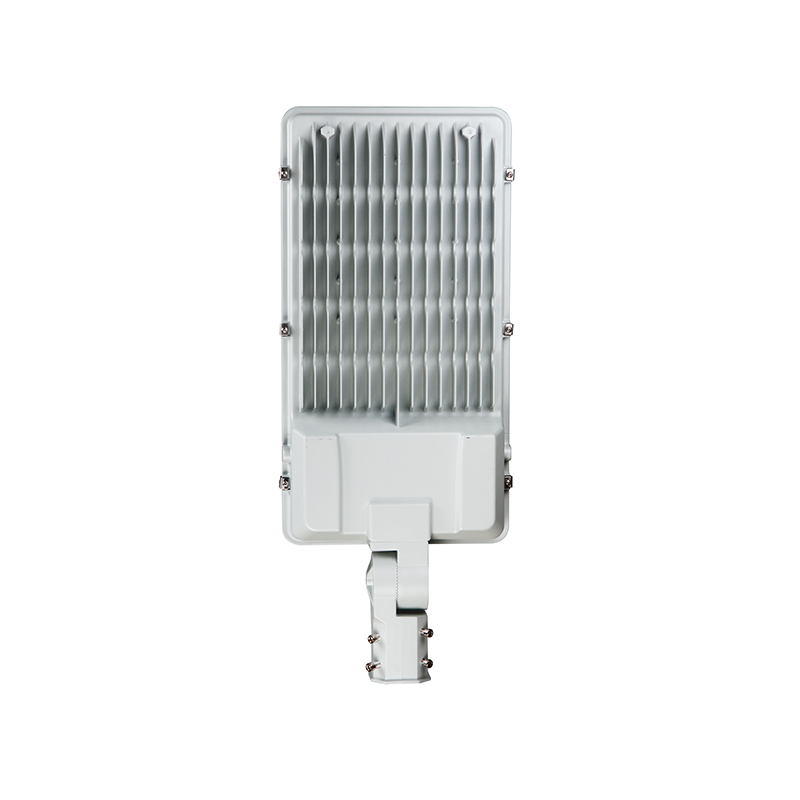

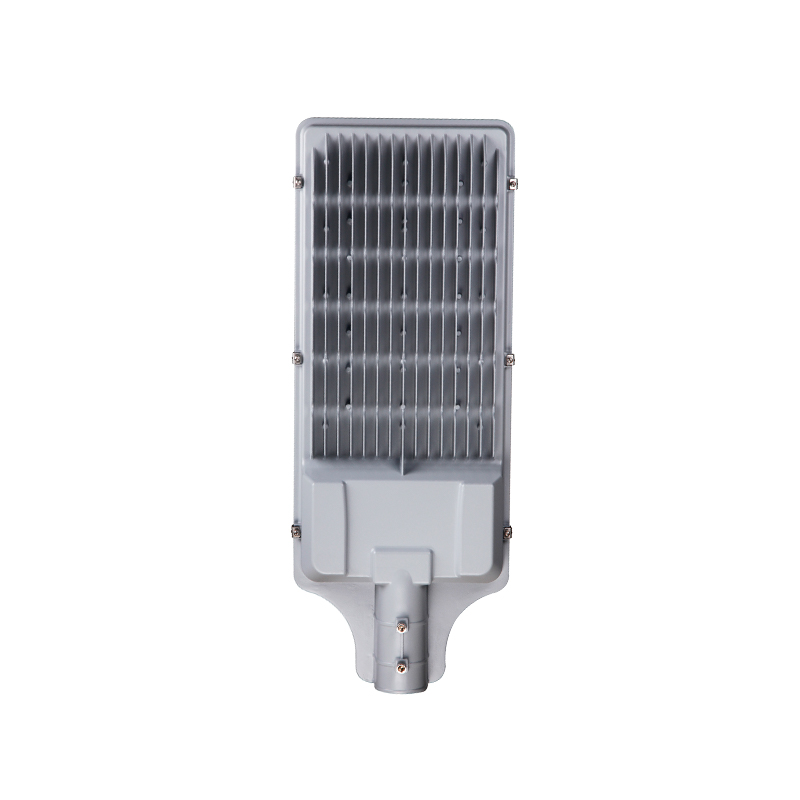

The design of the heat sink is also excellent, using materials with high thermal conductivity to effectively improve the heat dissipation efficiency, thereby extending the service life of the product. This design is particularly suitable for scenes that require long-term operation

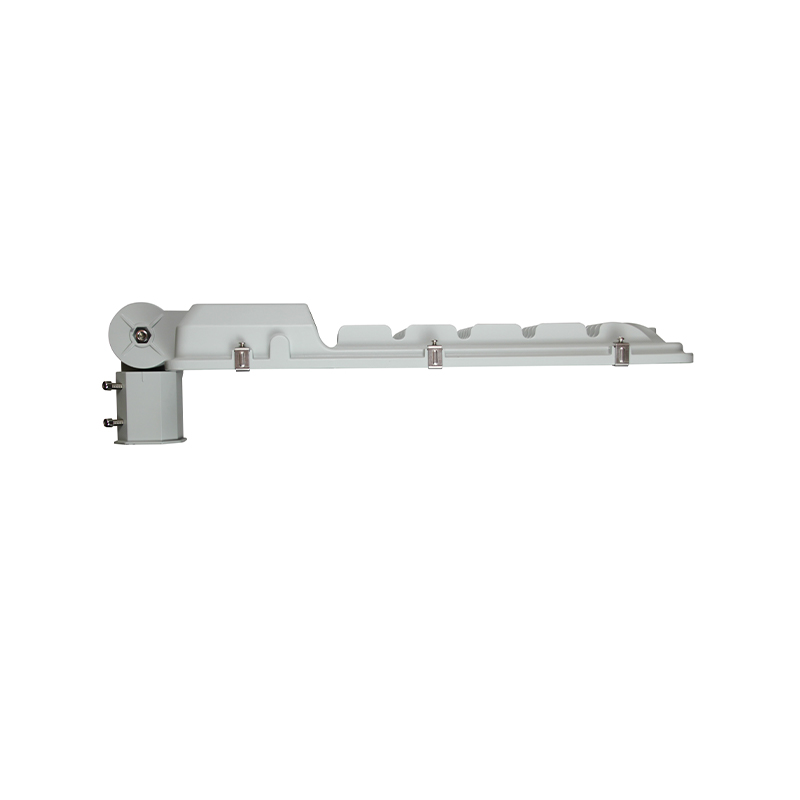

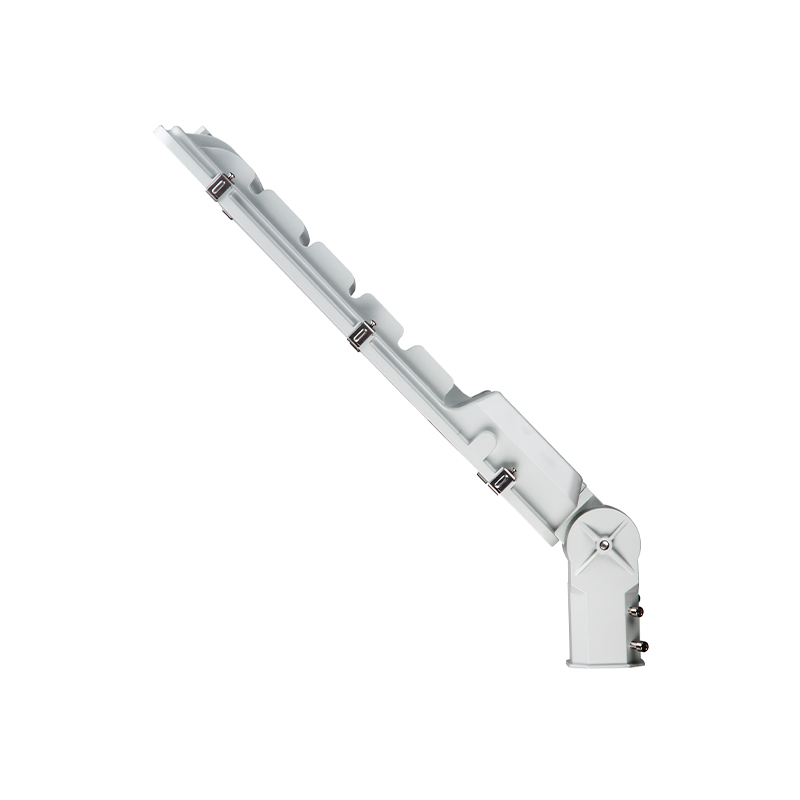

The fixed parts support side-entry installation with a universal diameter of ф42-60mm, providing great flexibility for installation. Users can also choose to equip NEMA sockets and photoelectric tubes/short-circuit caps according to their needs, further enhancing the applicability and functionality of the product.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	S	M	L	L+	XL
Wattage	30-60w	60-100w	100-150w	100-150w	150-200w
Input voltage	100-277V / 50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI > 70
Operating temperature	-40℃ ~ +50℃
Housing material	ADC12
Ingress protection	IP65
Impact strength	IK08
Surge protection	10KV/20KV
Diffuser	Tempered glass
Spigot diameter	60mm
Weight	2.3kg	3.4kg	6.1kg	6.5kg	7.3kg

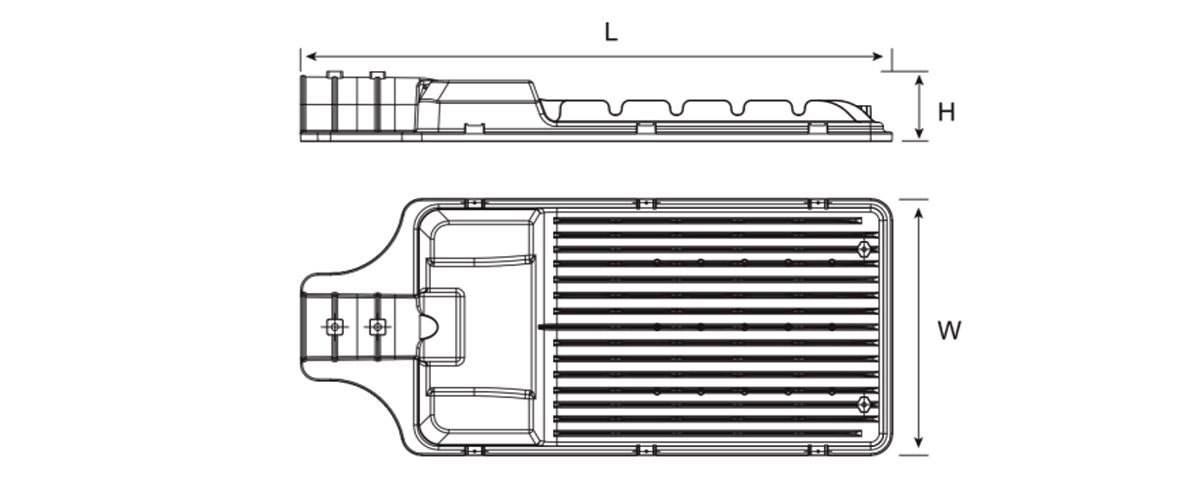

DIMENSIONS (mm)

ORDER INFORMATION

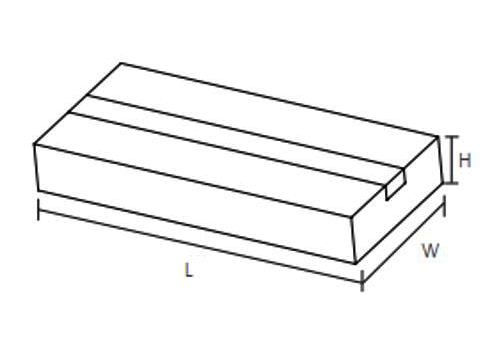

LOGISTICS DATA
