LED Street Light

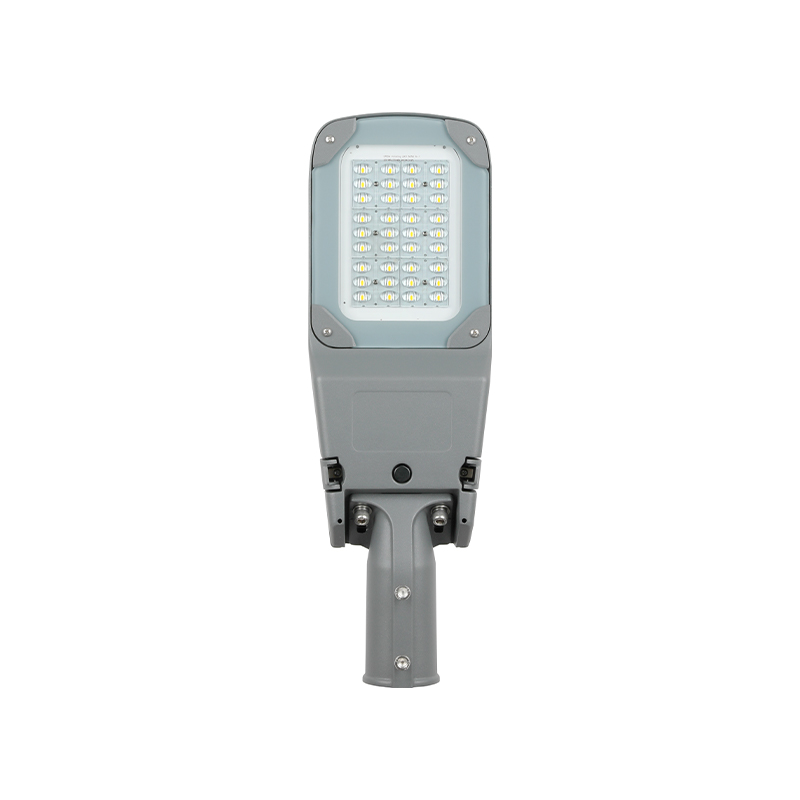

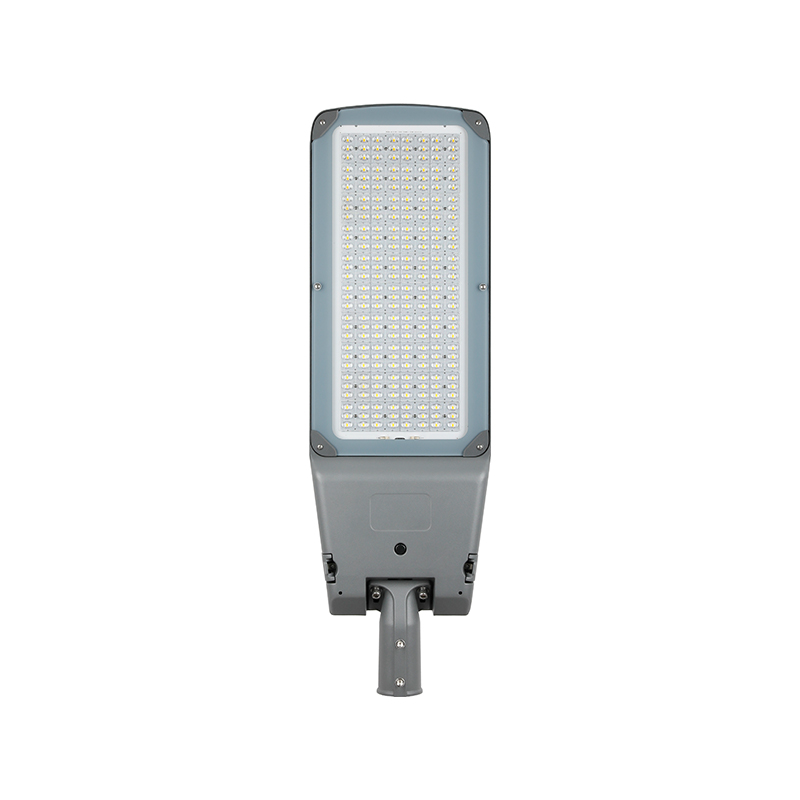

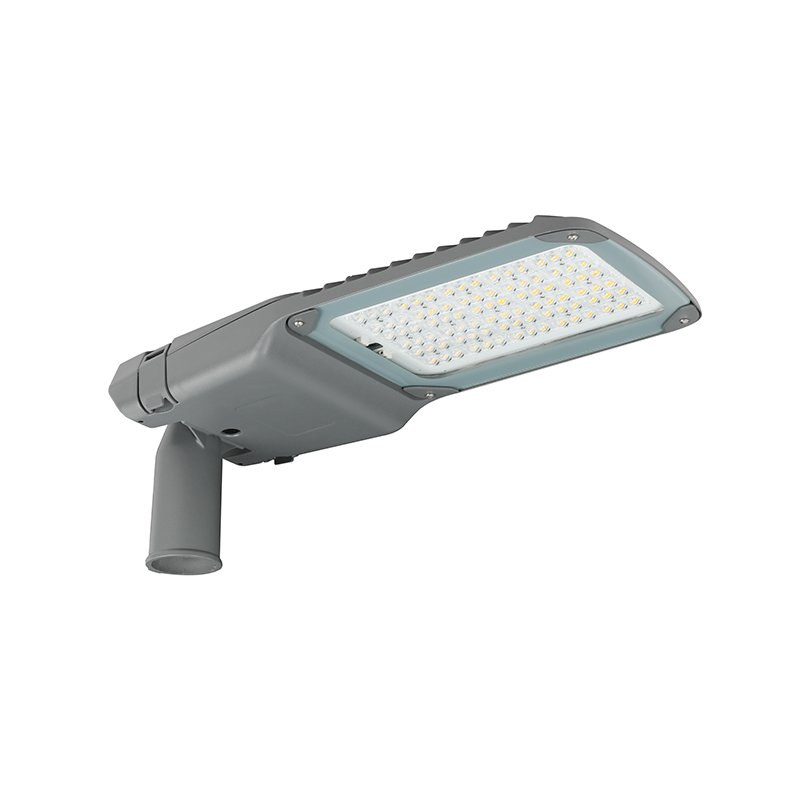

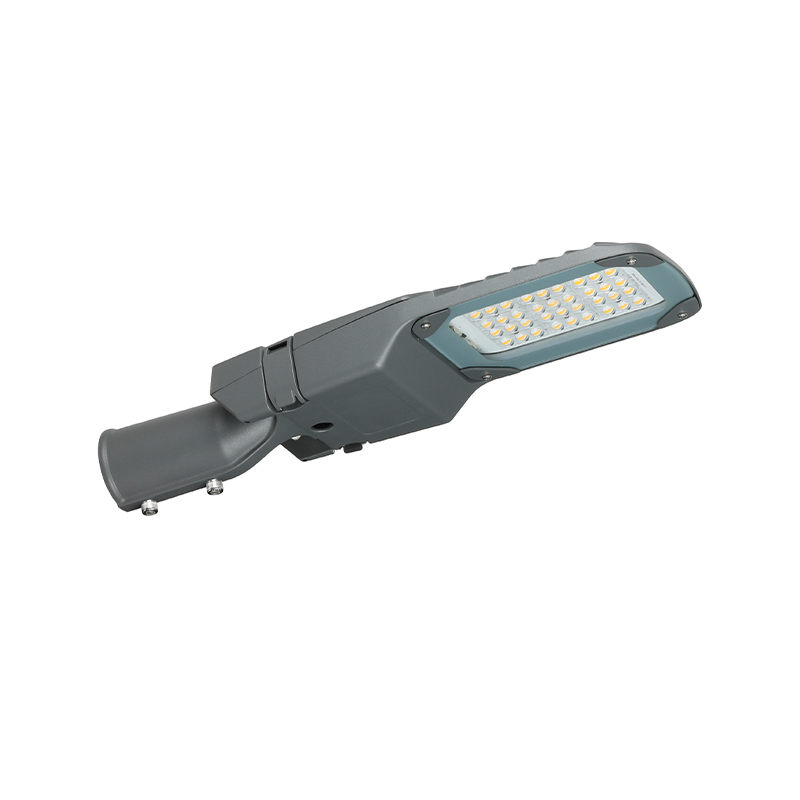

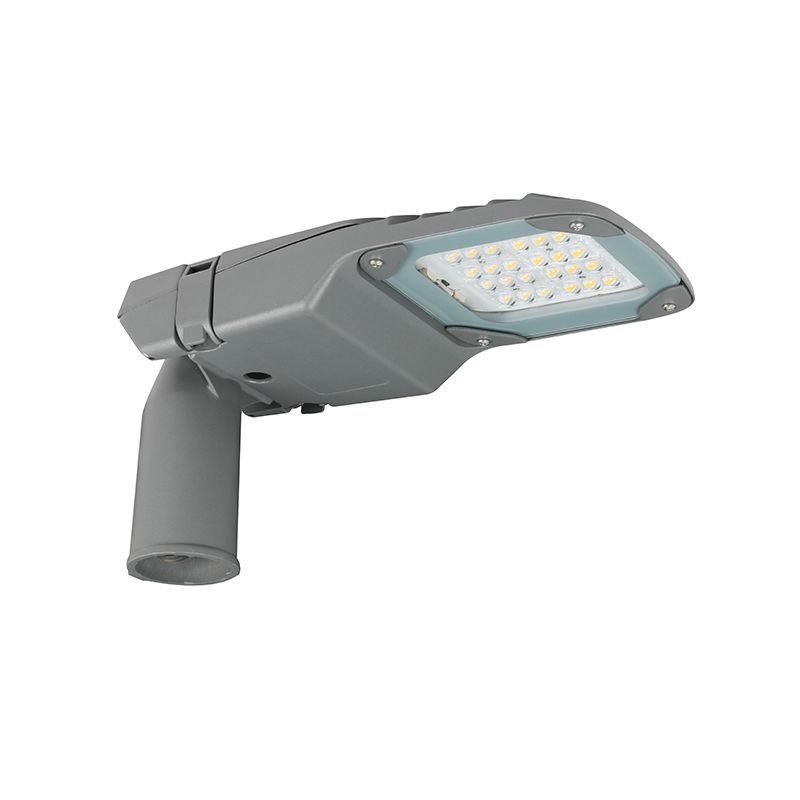

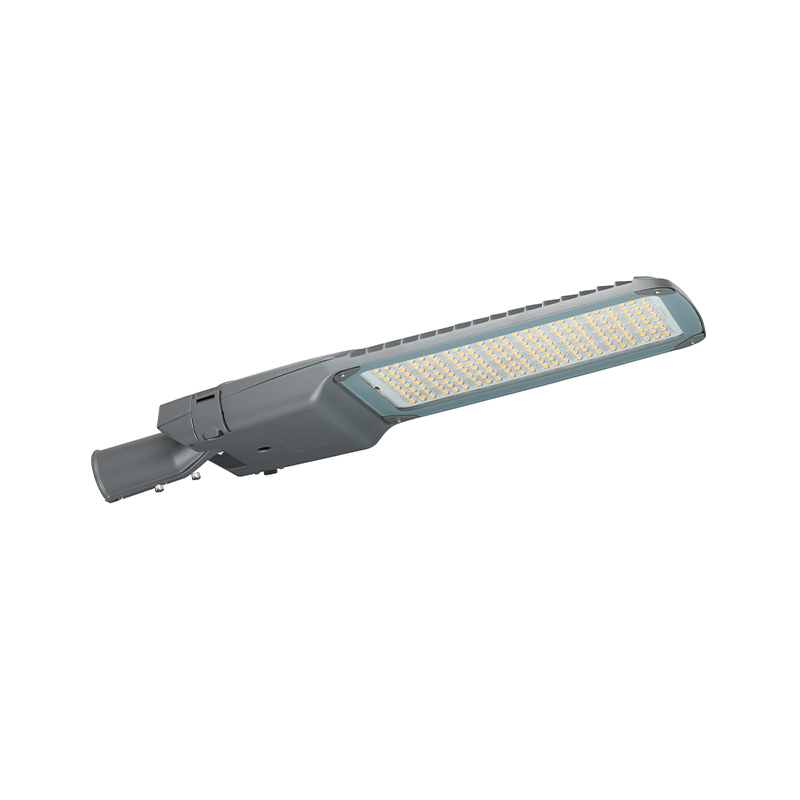

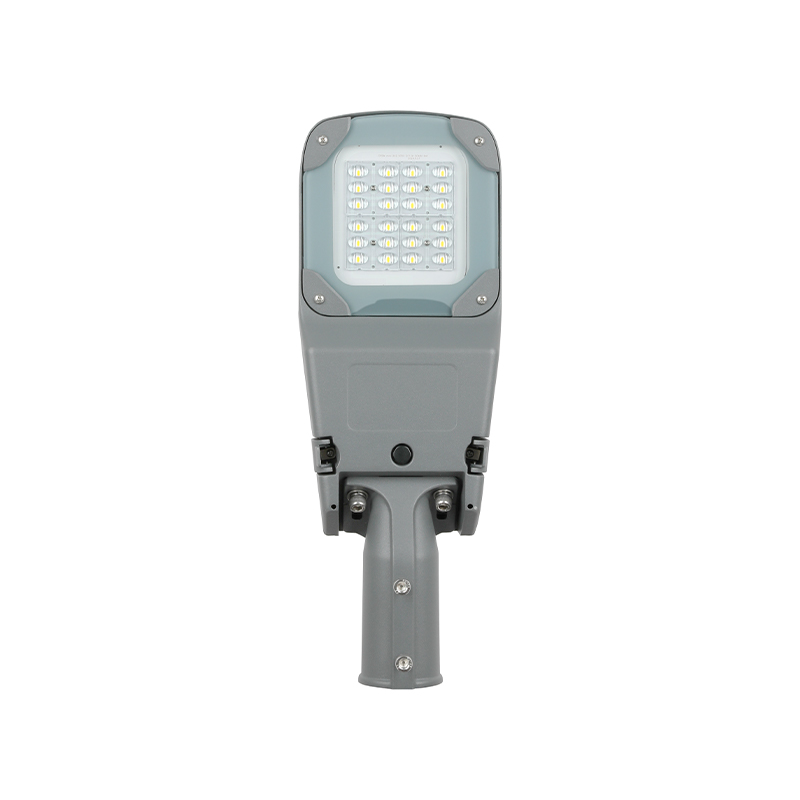

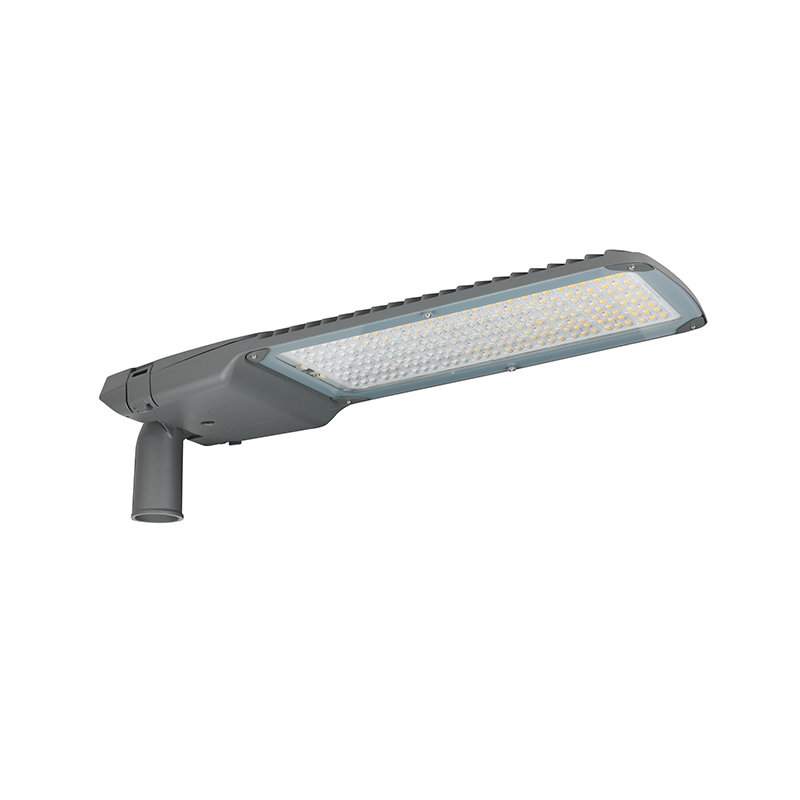

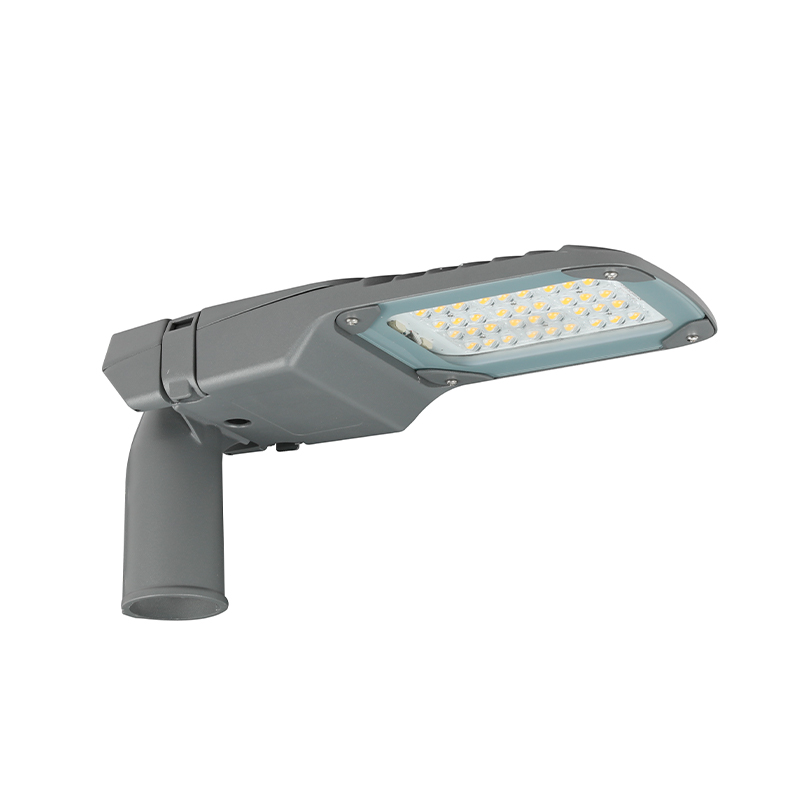

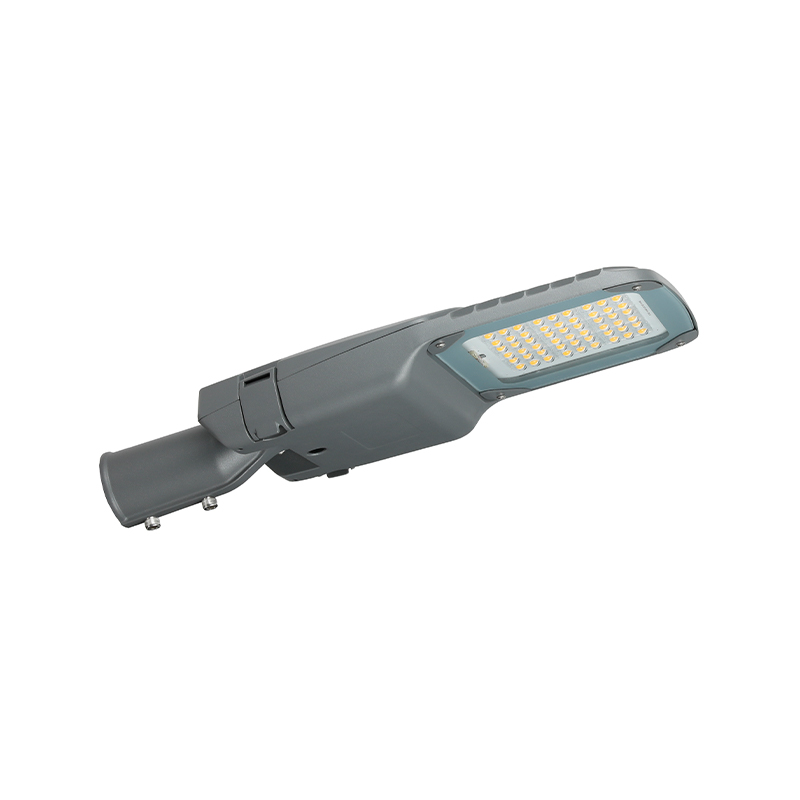

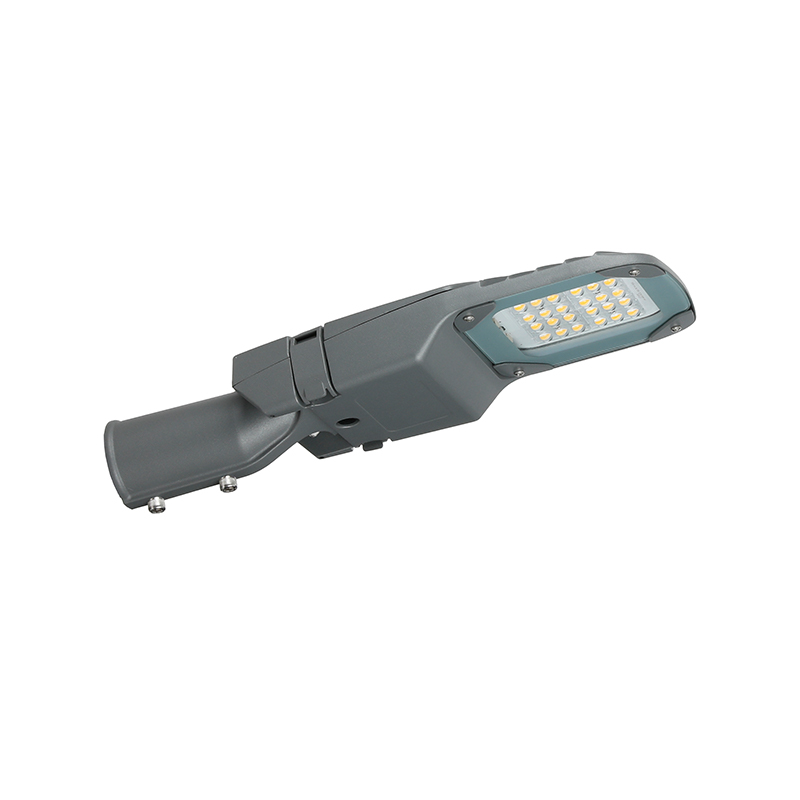

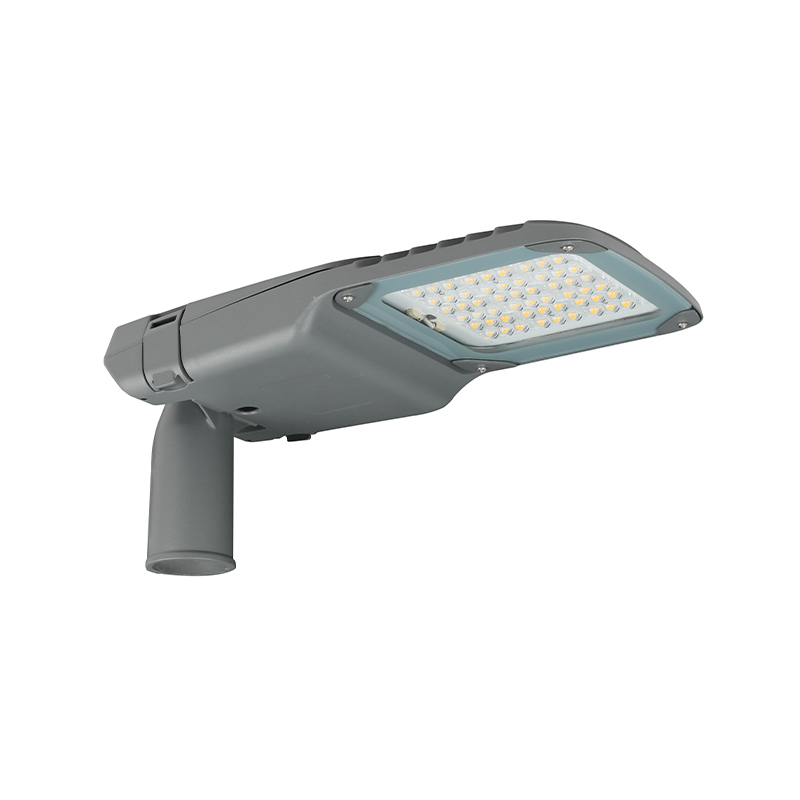

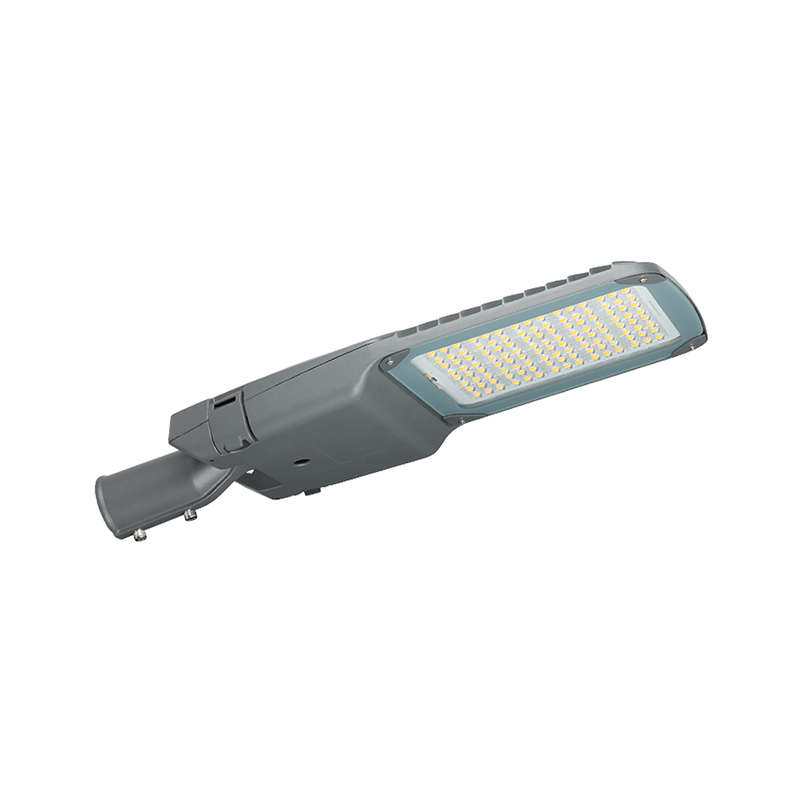

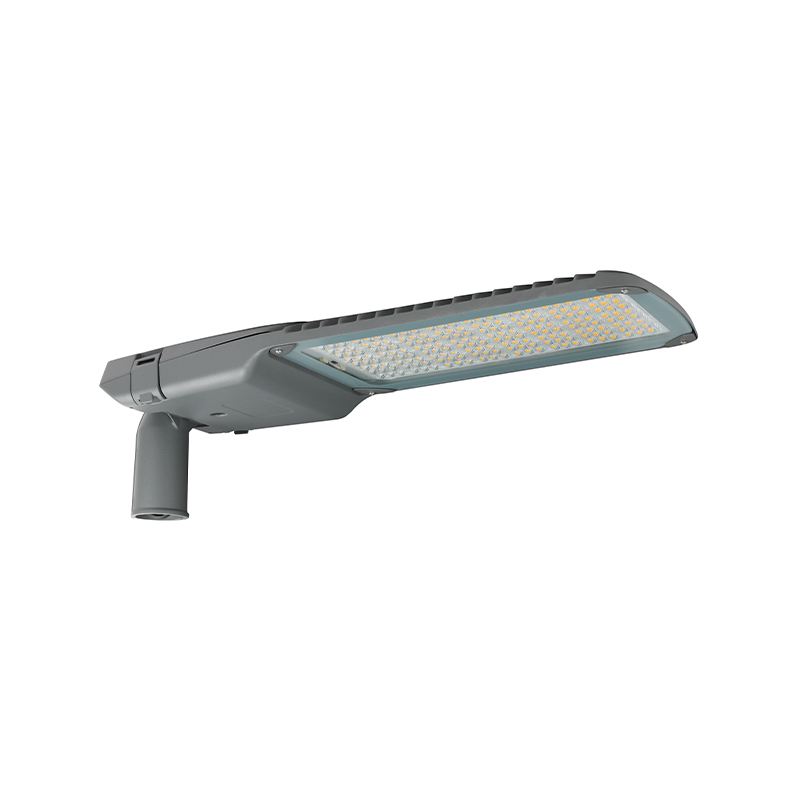

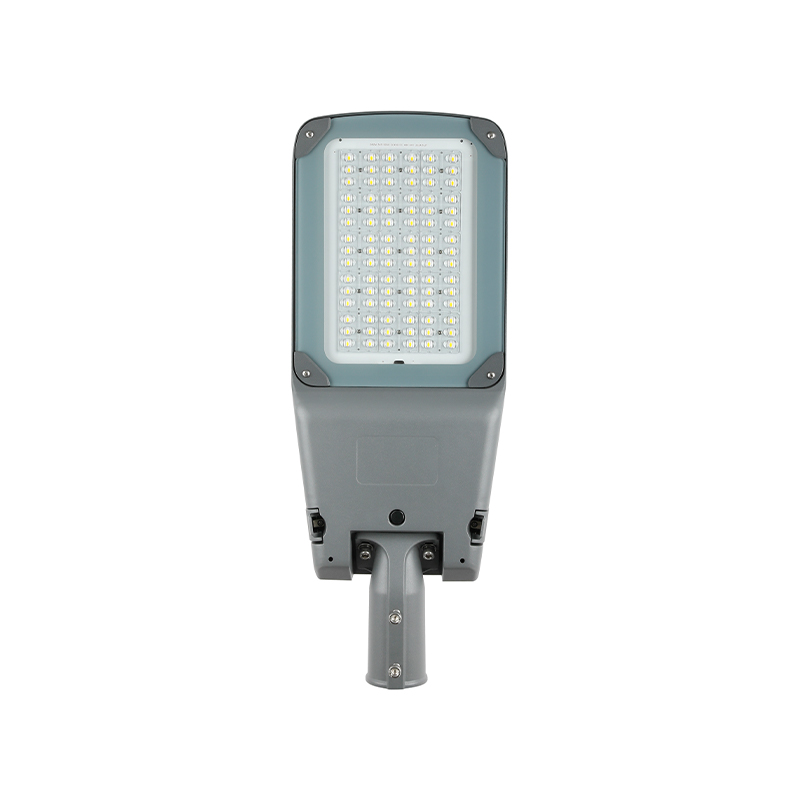

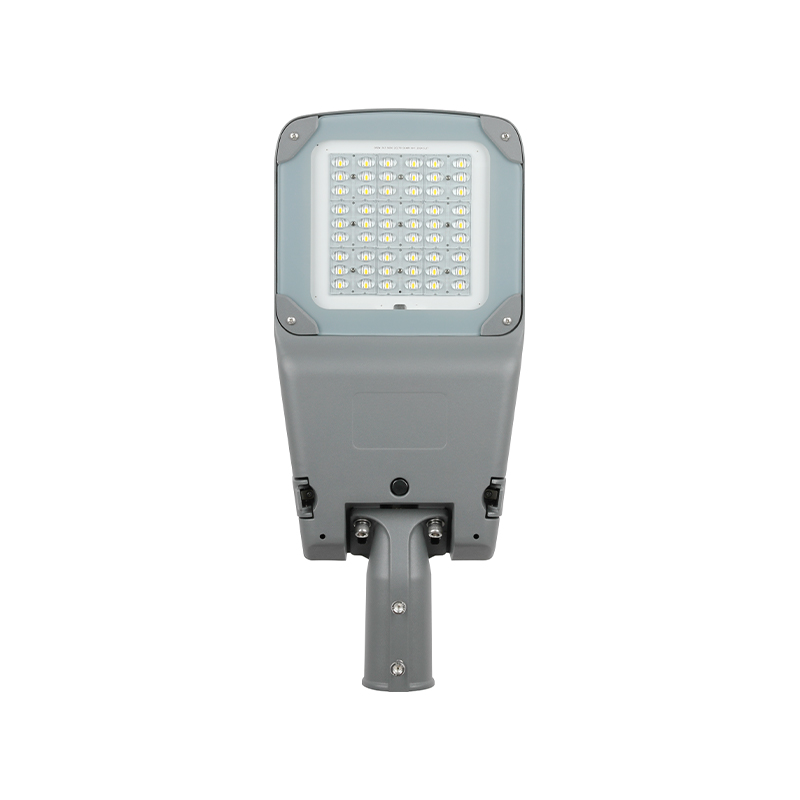

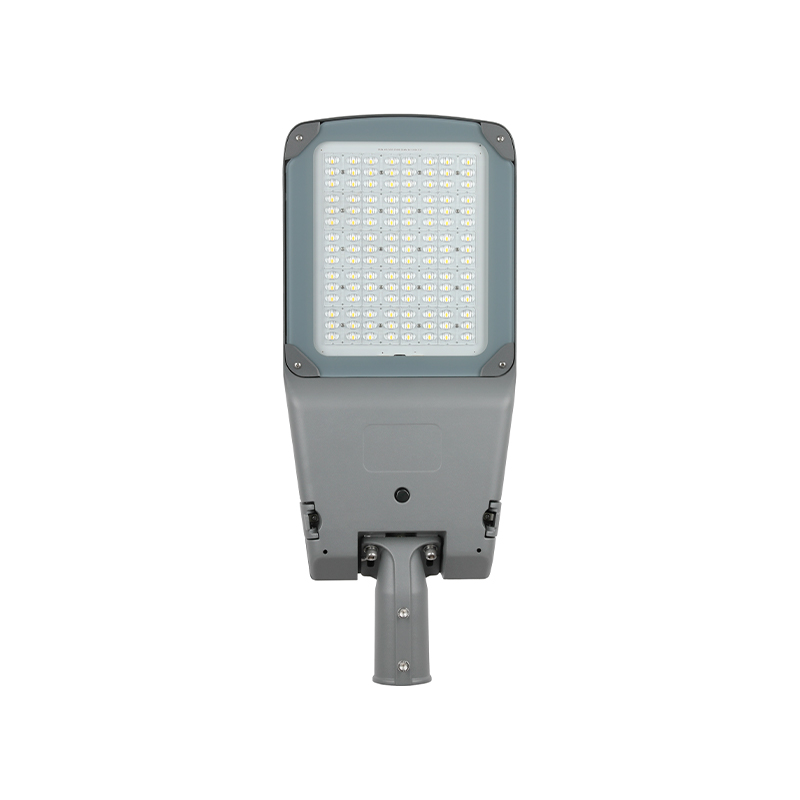

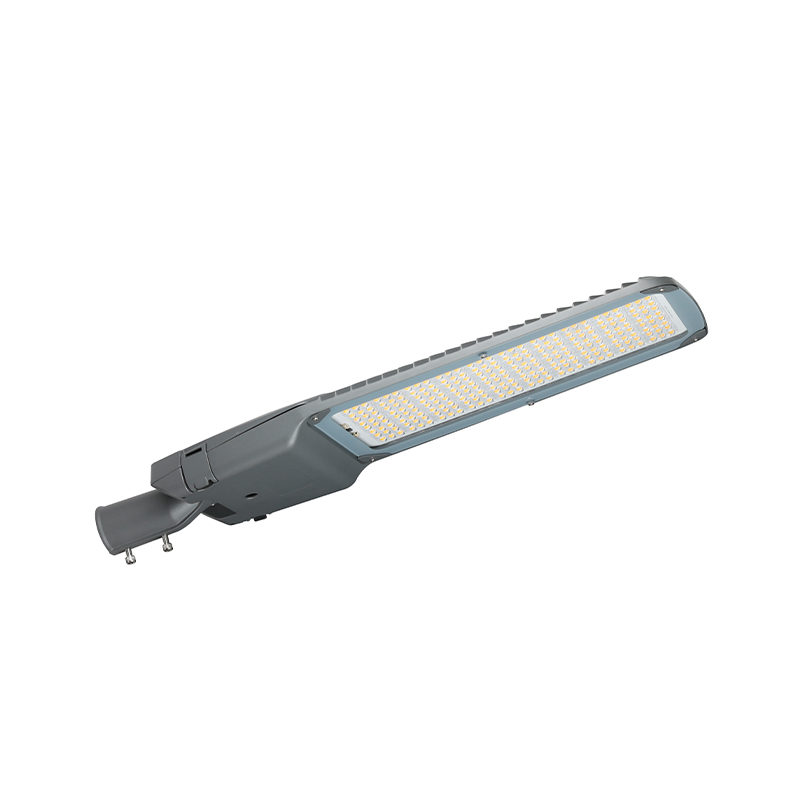

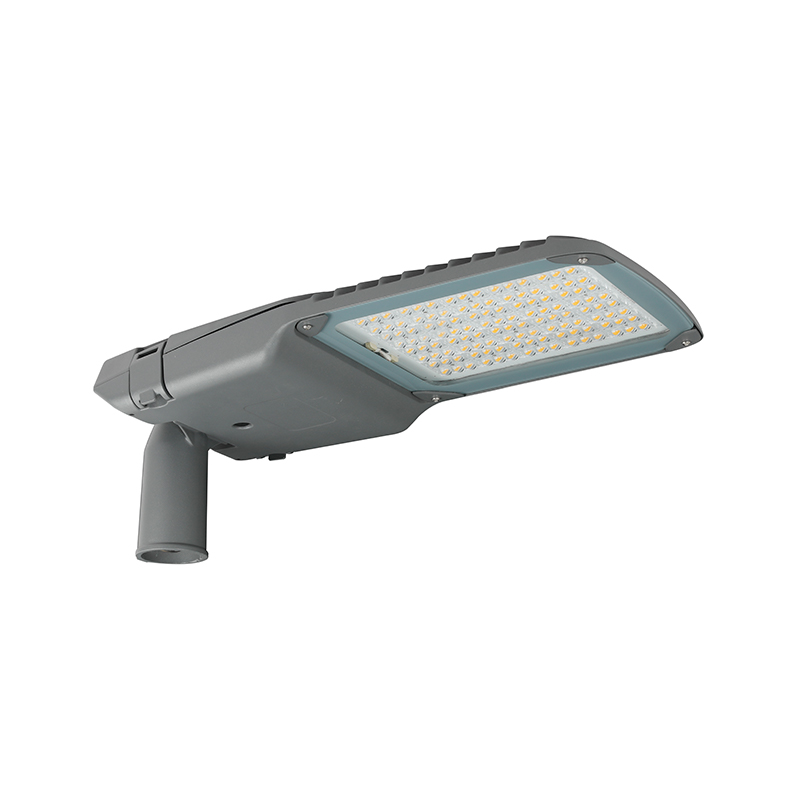

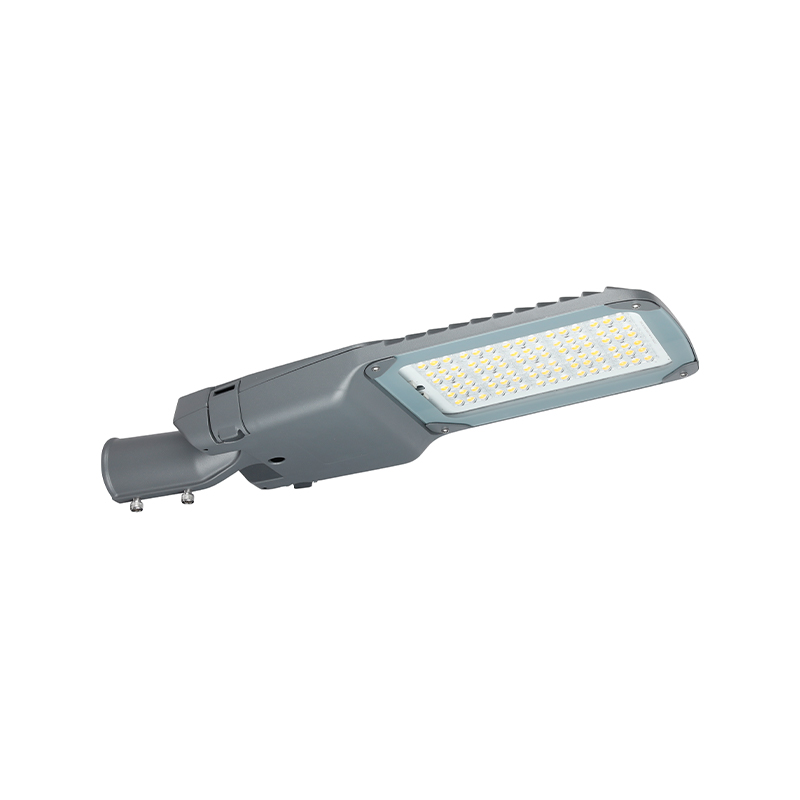

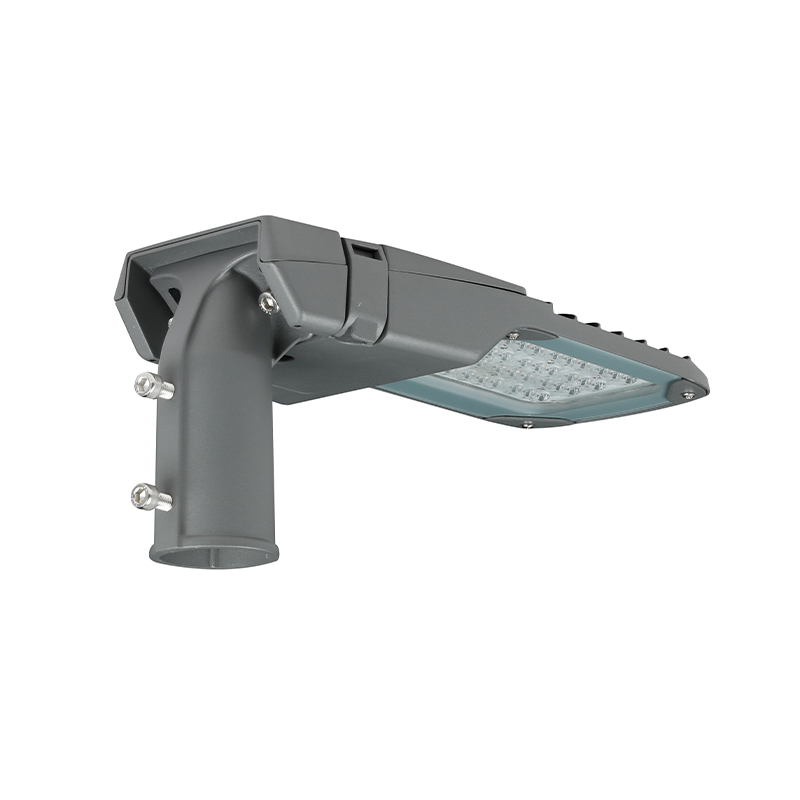

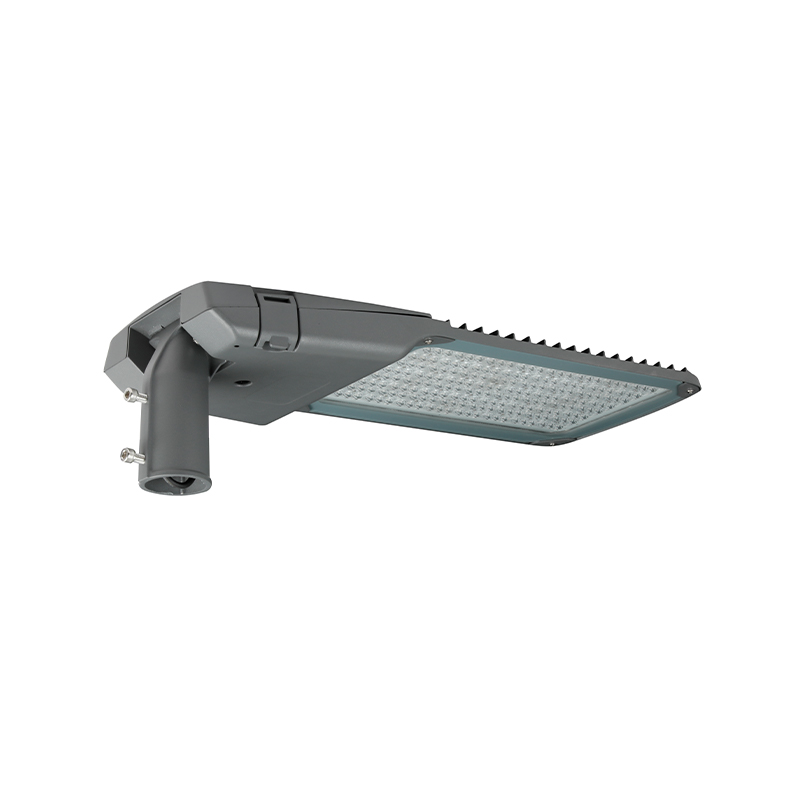

New Design IK09 IP66 Waterproof SAVANNA Series LED Street Lights
APPLICATION AREA
Product Description
FEATURES
1. Tool-free buckle design makes installation and maintenance easy.
2. Housing made of ADC12 die-casting aluminum material and finished with corrosion resistant polyester powder coating.

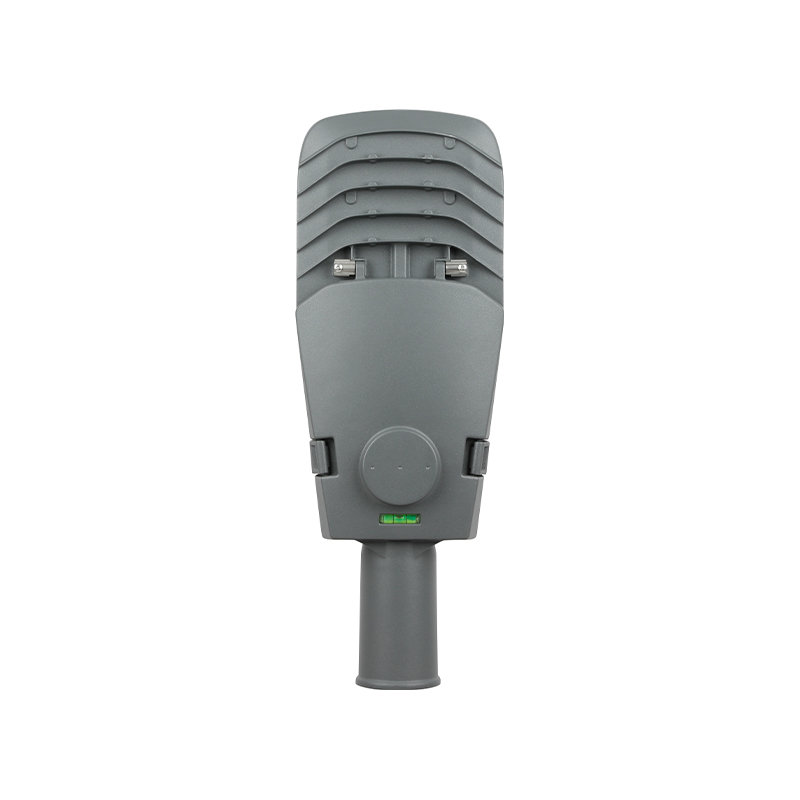

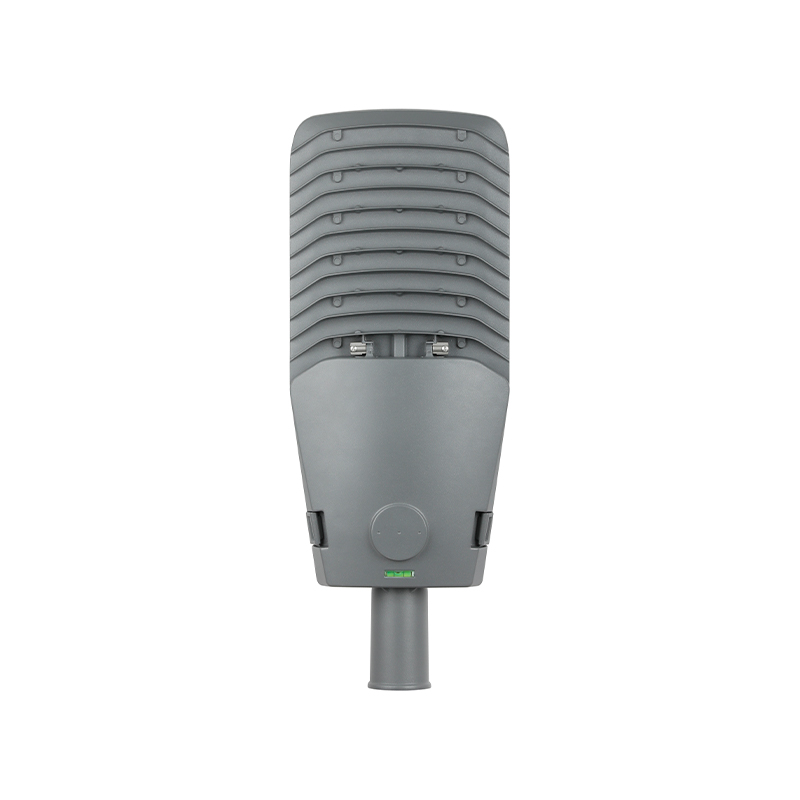

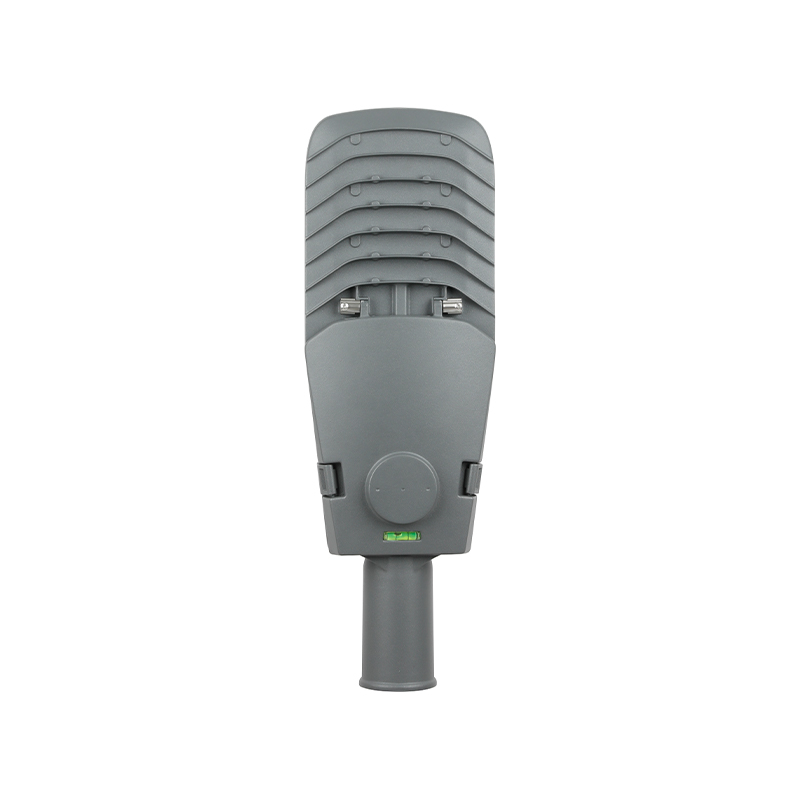

3. Equipped with tubular spirit level ensures that the luminaire always in the right installation position.
4. Spigot angle can be adjusted by +15°
5. Available in two installation methods: vertical installation/horizontal installation.
6.IP66 outdoor structural waterproof.
7.Photocell/Shorting cap/Smart sensor optional upon request.
8. Suitable for outdoor road lighting applications such as city road, highway,residential road,etc.

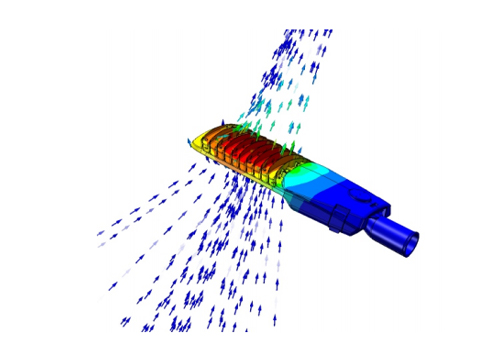

THERMALMANAGEMENT
Optimize the luminaire cooling system and structure by advanced FEA technology to reach the most cost-effective solutions. Well managed temperature rise between internal and external parts brings light source more higher lumen maintenance rate.
 |
 |

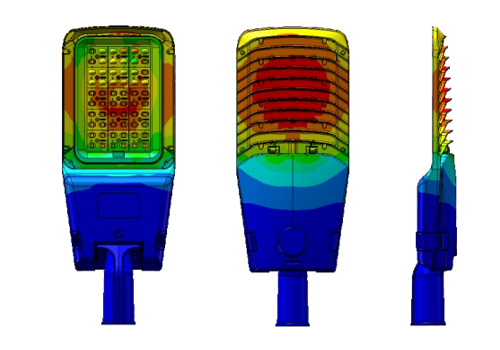

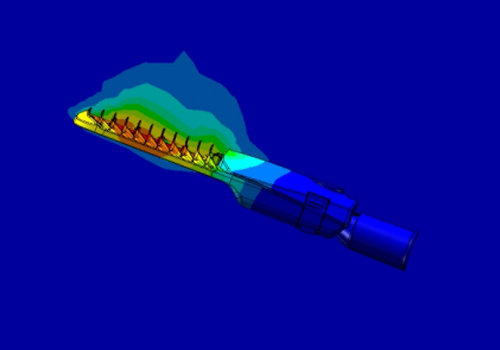

| Thermal Conductivity | Thermal Air Convection |
 |
 |

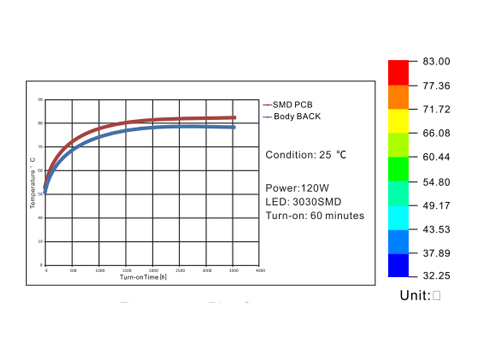

| Thermal Effects Environment | Temperature Rise Curve |

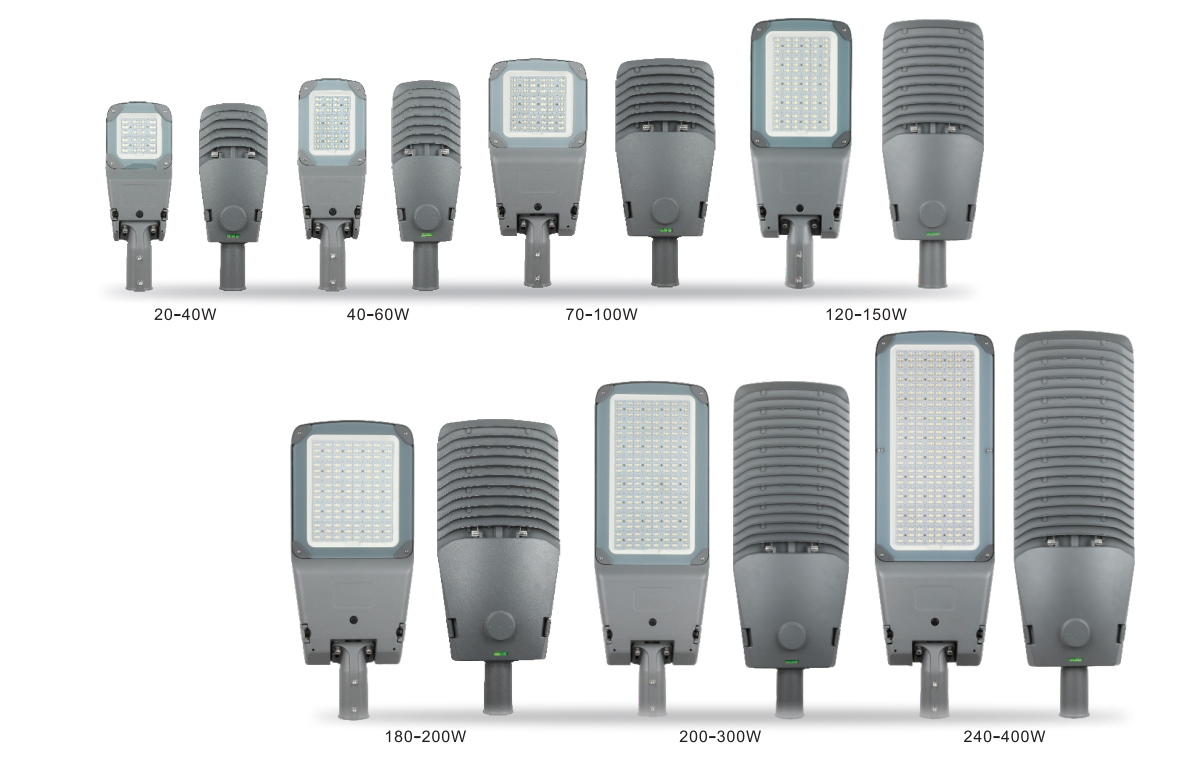

| Model | SAVANNA-M2*2 | SAVANNA-M2*3 | SAVANNA-M3*3 | SAVANNA-M3*5 | SAVANNA-M4*5 | SAVANNAM4*8 | SAVANNAMM4*10 |
| Power | 20-40W | 40-60W | 70W-100W | 120-150W | 180-200W | 200-300W | 240-400W |
| Product Size(MM) | 529*190*102 | 580*190*102 | 617*270*107 | 718*270*107 | 746*310*115 | 897*310*115 | 998*310*115 |
| Luminaire Efficacy | 120-170LM/W |
||||||
| Input Voltage | 100-277V/50-60HZ | ||||||
| Power Factor | >0.95 | ||||||
| CCT | 2700-6500K | ||||||
| CRI | >70 | ||||||
| Operating Temperature |
-40℃~+50℃ | ||||||
| Beam Angle | T1/T2/T3/70X140° | ||||||
| Housing Material | ADC12 die-casting aluminum | ||||||
| Lens Material | Optical PC lens | ||||||
| IP | IP66 | ||||||
| IK | IK09 | ||||||
| Surge Protection | 10KV/20KV(Optional) | ||||||
| Lifespan | 50000 hours | ||||||
| Diffuser | 5MM tempered glass | ||||||
| Pole Diameter | 50MM/60MM/76MM optional | ||||||
| Installation | Vertical installation/Horizontal installation | ||||||
| Installation Depth | >120MM | ||||||
| Warranty | 5 years | ||||||

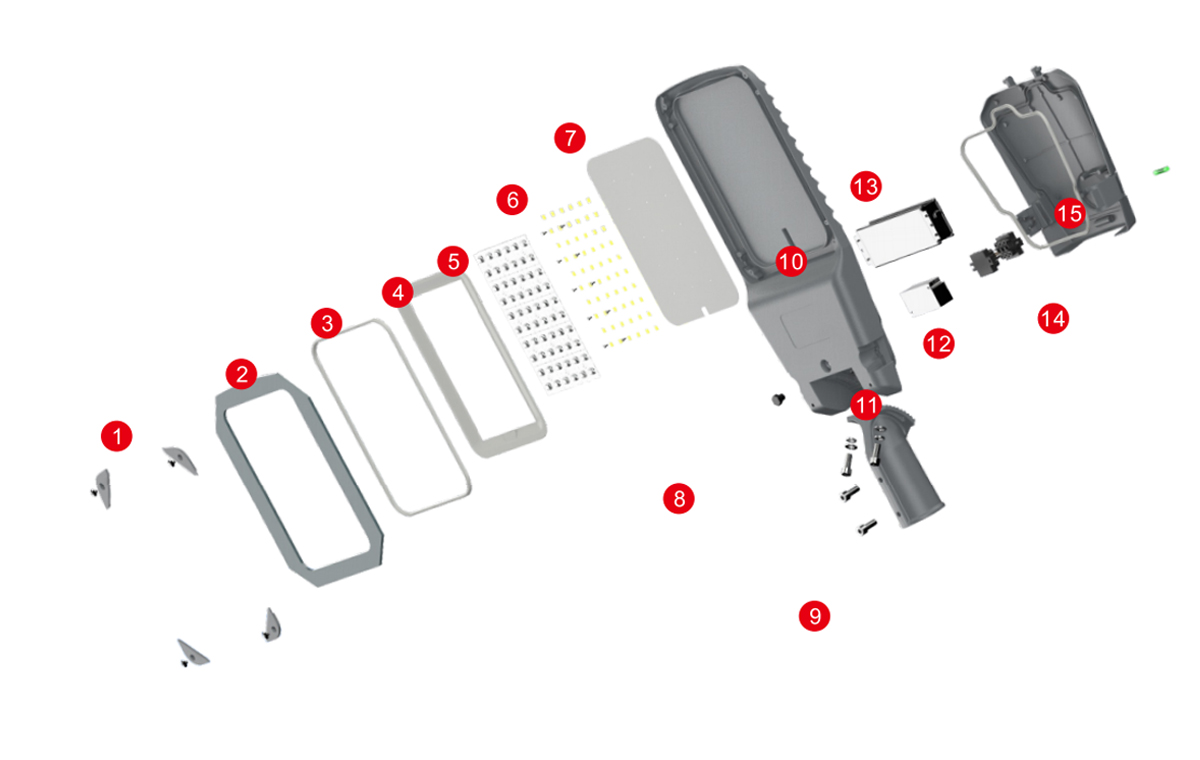

| 1.5MM tempered glass | 6. High efficiency aluminum PCB | 11.Surge protector(10KV/20KV optional) |
| 2. Waterproof silicone ring | 7.ADC12 die-casting aluminum body | 12. Power disconnector |
| 3. Nano-pc reflector | 8. Breathing valve | 13. Waterproof silicone ring |
| 4. TIR optical PC lens | 9. Adjustable spigot ±15° | 14. ADC12 die-casting aluminum power supply cover |
| 5. High lemen LED chip | 10. LED power supply | 15. Tubular spirit level |

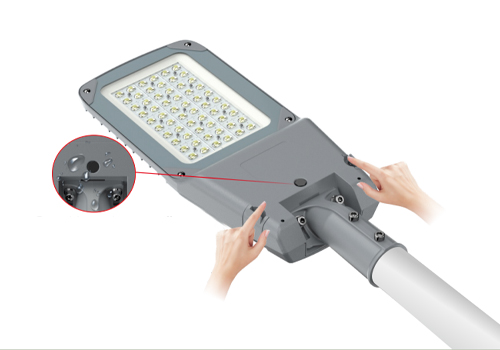

TOOL-FREEBUCKLEDESIGN
 |

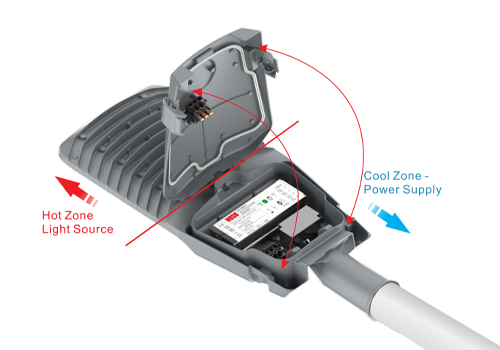

·Thermal & electric compartment separate design. ·Equipped with power disconnector, will automatically power off when cover open. ·Photocell/Shorting cap/Smart sensor optional upon request. |
| Breathing valve can effectively reduce condensation and contamination, provides rapid pressure balancing and release. |
 |

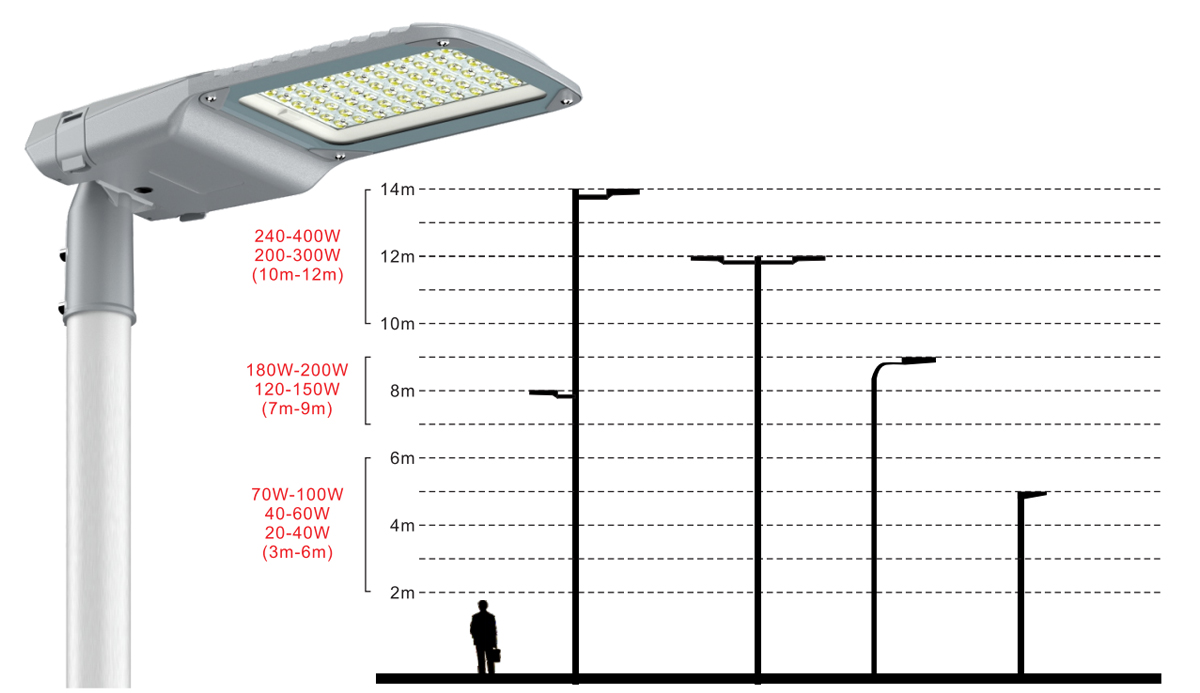

APPLICATIONS
Suitable for outdoor road lighting scenarios such as city road, Highway, Residential road, etc.

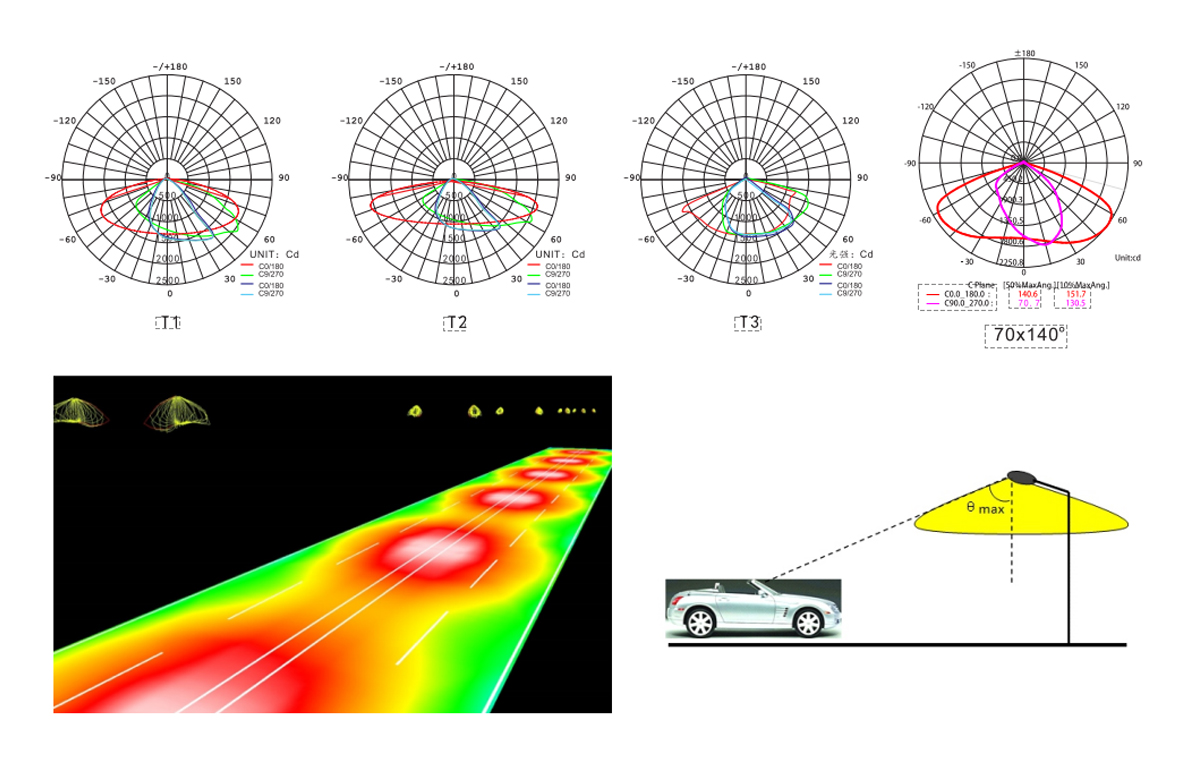

OPTICS
·Tech support: Tell us the space length, width, height and the usage application.
·We have an engineer team to make the DlALUX simulations and calculate the luminaire quantities for your project.
·IES files are available upon request.

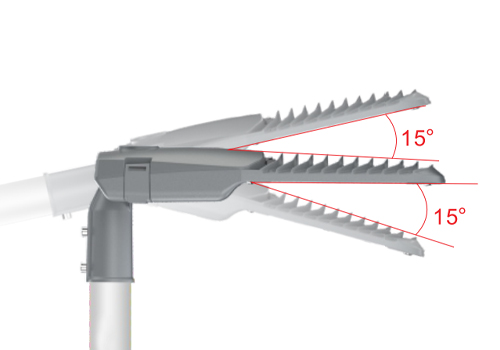

ADJUSTABLE ANGLE

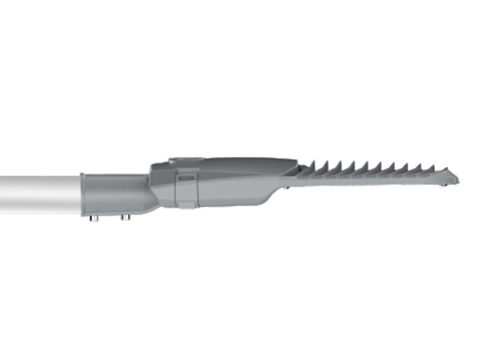

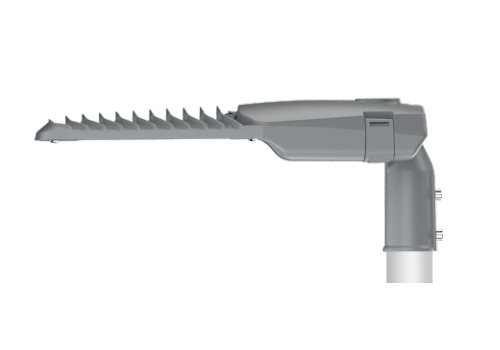

 Horizontal |

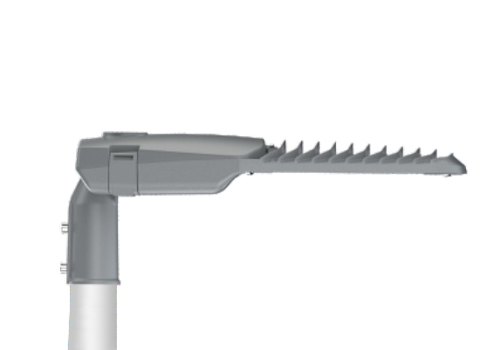

 Vertical |
 |
INSTALLATION

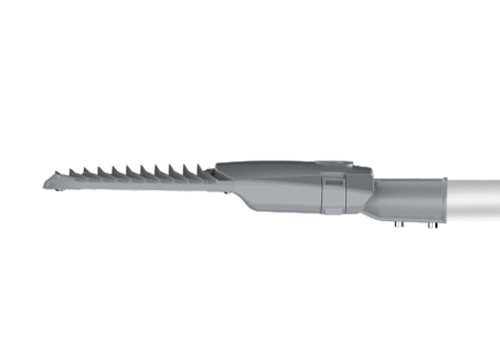

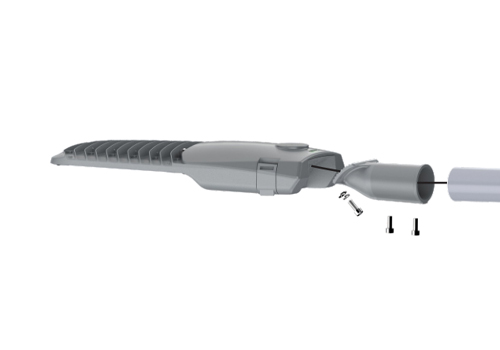

 Horizontal installation |

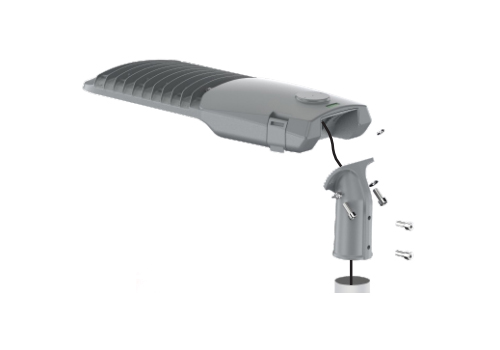

 Vertical installation |
 Finished-Horizontal installation |
 Finished-Vertical installation |

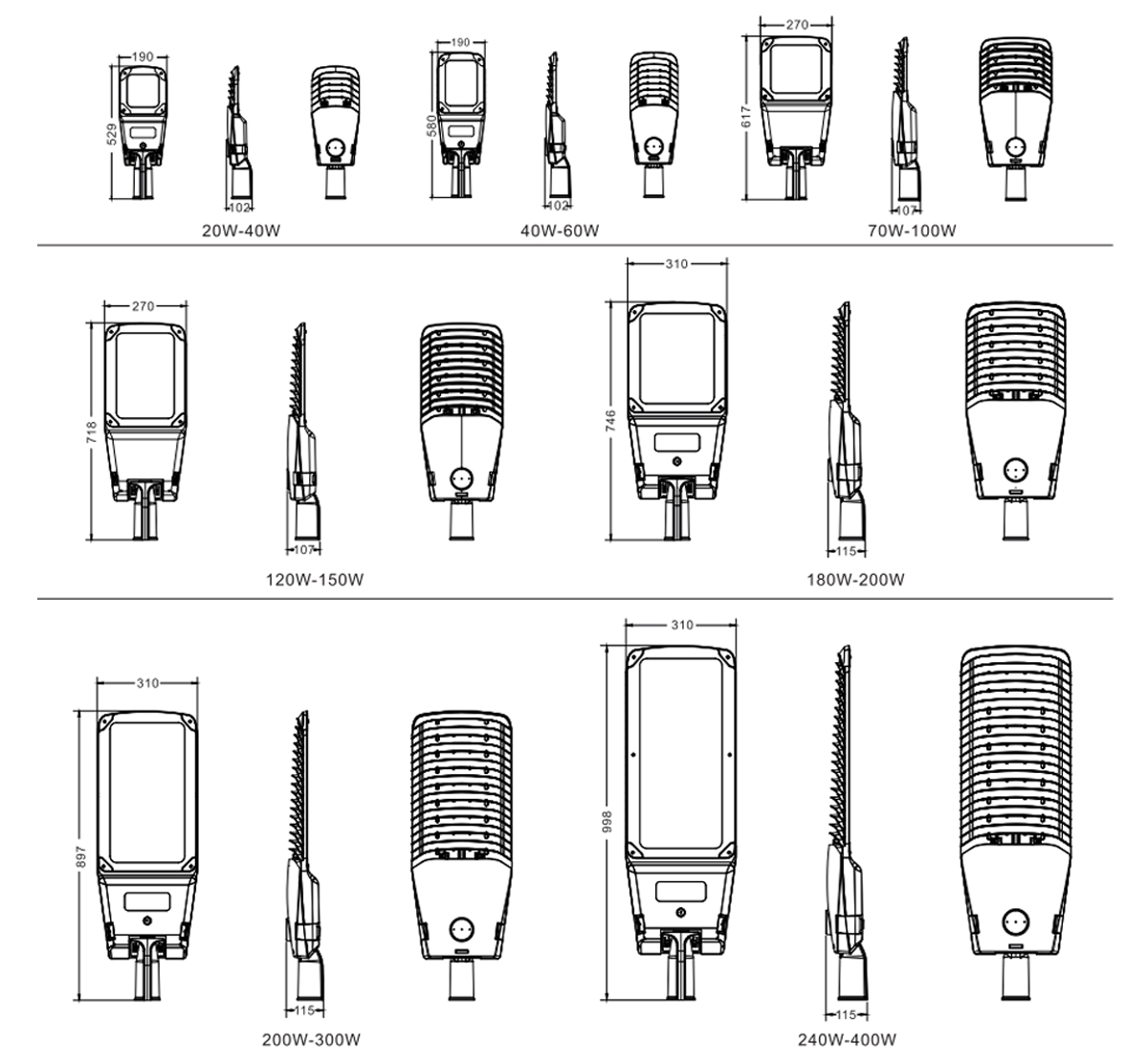

OVERALL DIMENSION DRAWING
Unit:MM
PACKAGING PARAMETERS
| Model | SAVANNA-M2*2 | SAVANNA-M2*3 | SAVANNA-M3*3 | SAVANNA-M3*5 | SAVANNA-M4*5 | SAVANNA-M4*8 | SAVANNA-M4*10 |
| Power | 20-40W | 40-60W | 70W-100W | 120-150W | 180-200W | 200-300W | 240-400W |
| QTY | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
| Carton size(MM) | 540*200*140 |
590*200*140 |
630*280*140 |
730*280*140 |
760*315*140 |
910*315*140 | 1010*315*140 |
| N.W(KG) | 3 |
3.3 |
4.6 |
5.4 |
6.3 |
7.7 | 8.7 |
| G.W(KG) | 3.3 | 3.6 | 5 | 5.9 | 6.9 | 8.4 | 9.5 |
| 20GP | 1852PCS | 1695PCS | 1134PCS | 978PCS | 835PCS | 698PCS | 629PCS |
| 40GP | 3836PCS | 3511PCS | 2349PCS | 2027PCS | 1731PCS | 1445PCS | 1302PCS |
| 40HQ | 4497PCS | 4116PCS | 2753PCS | 2376PCS | 2029PCS | 1694PCS | 1527PCS |
INSTALLATION SUGGESTIONS
CAUTIONS:
1. Installation must be done by professional electricians.
2. Do not dismantle the product. It may be dangerous.
3. Do not stare directly to the luminaire when the power is turned on to avoid hurting eyes.
4. The cable must be waterproofed when connected to electric for outdoor using.
