LED Street Light

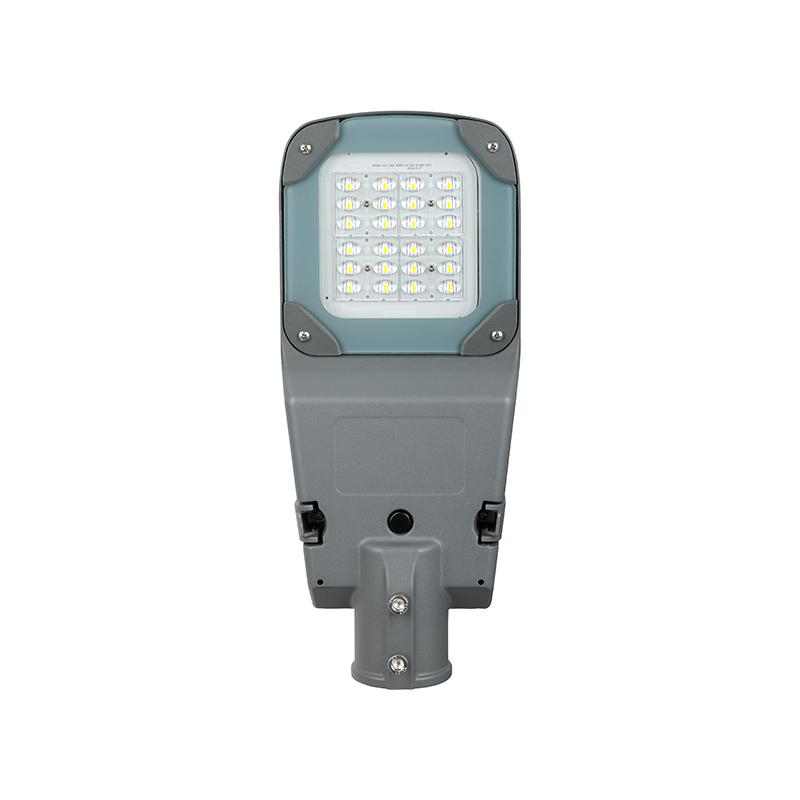

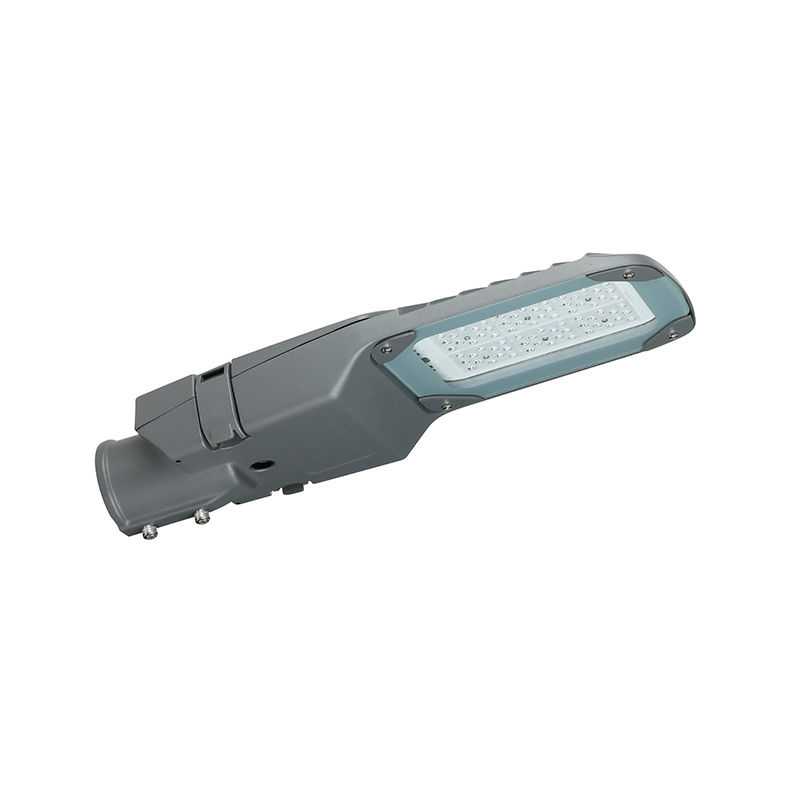

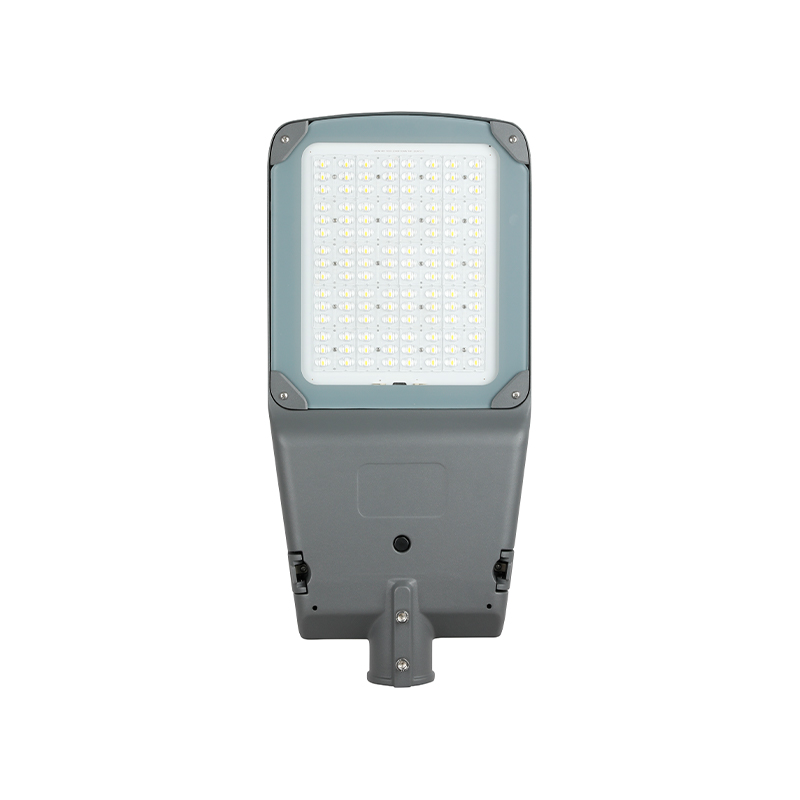

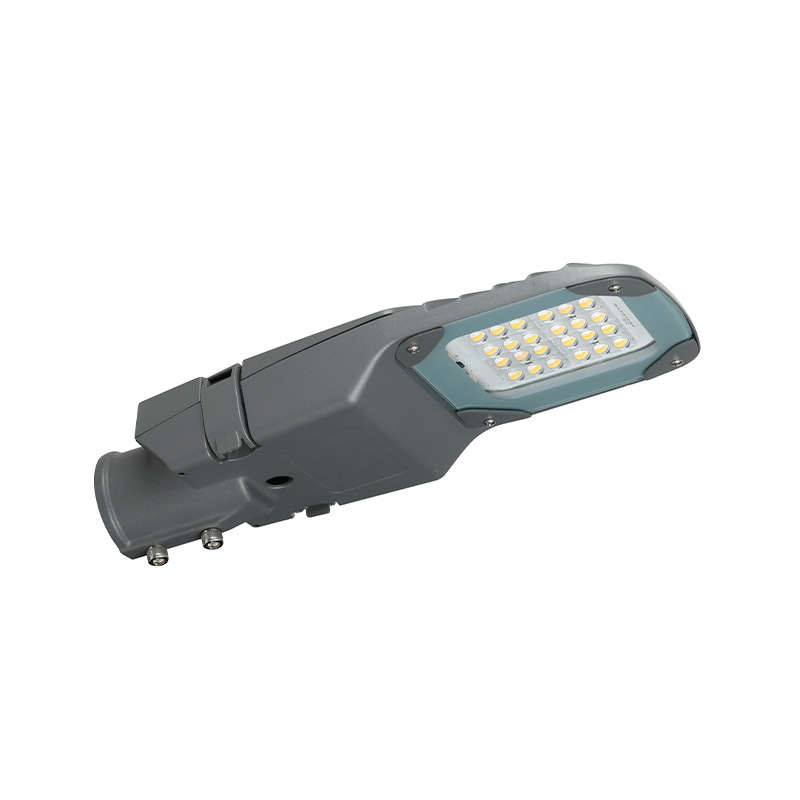

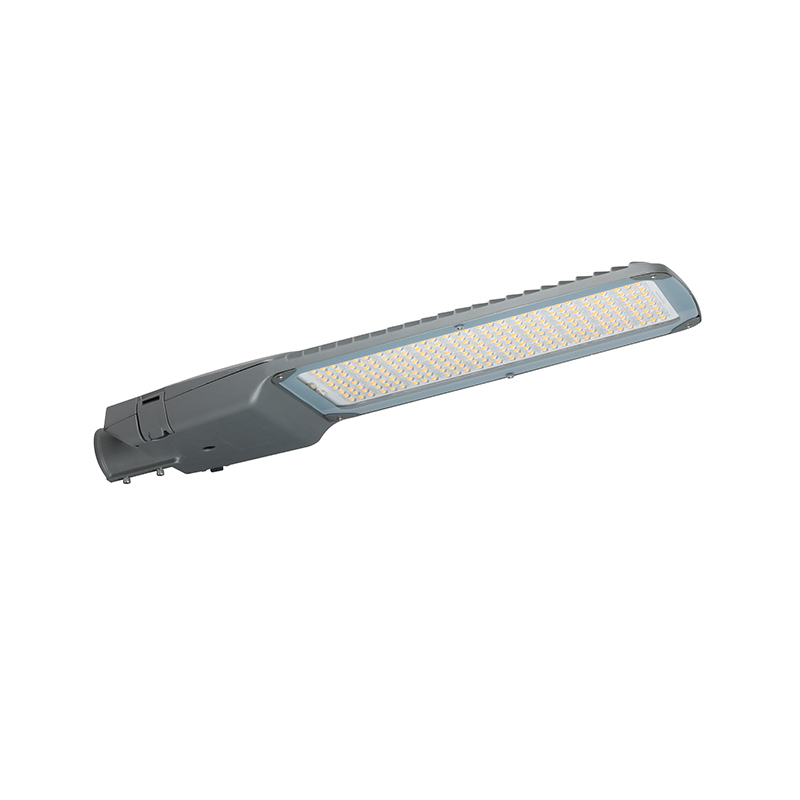

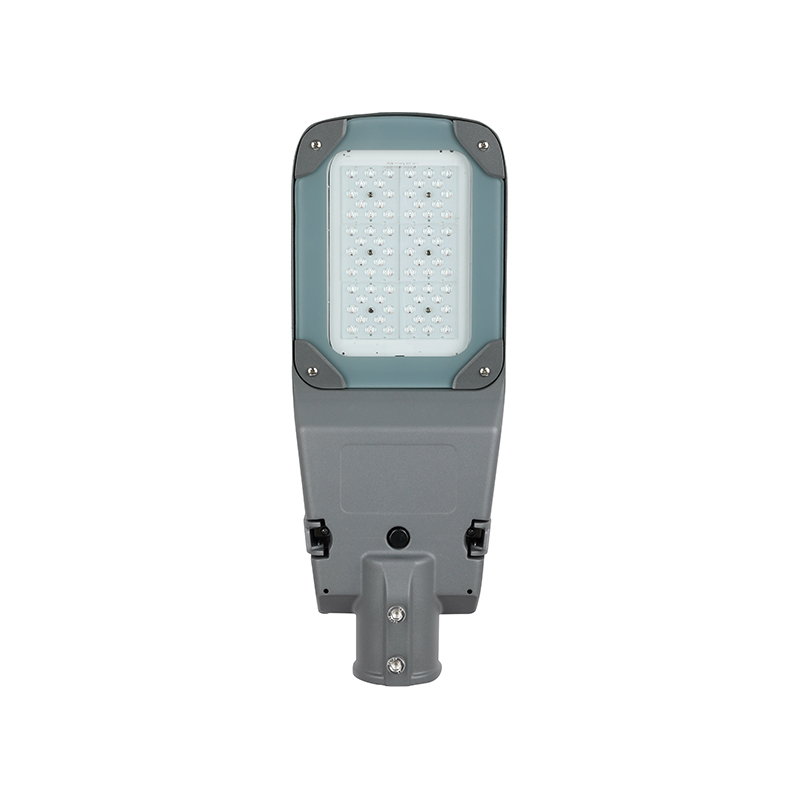

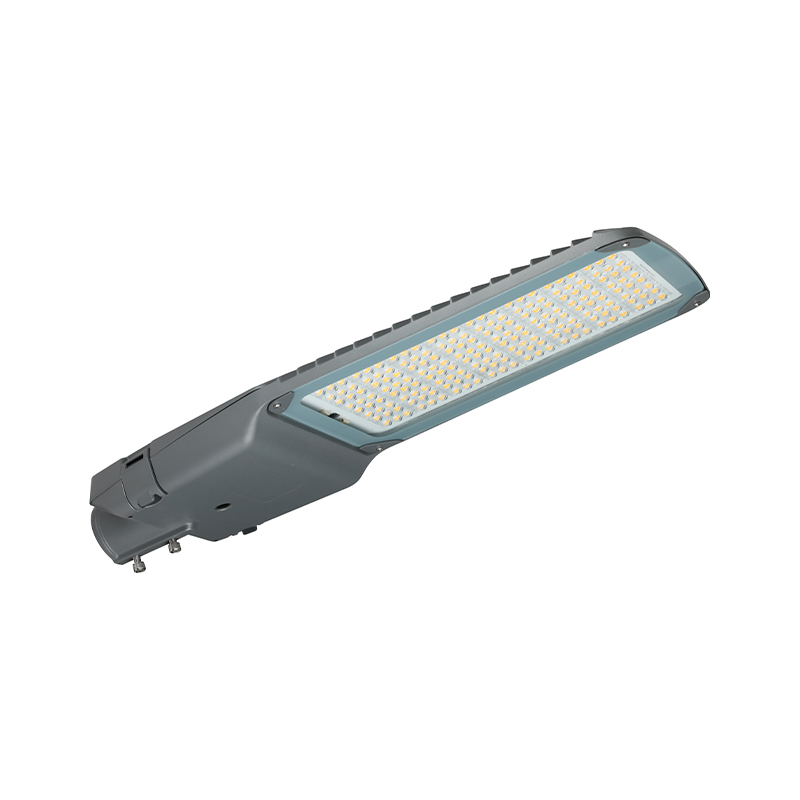

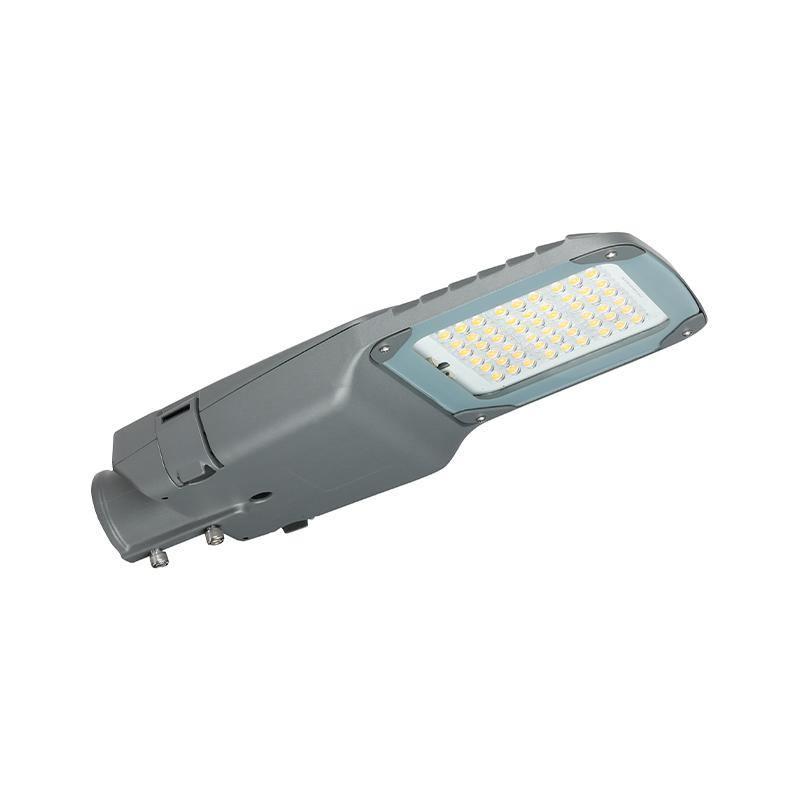

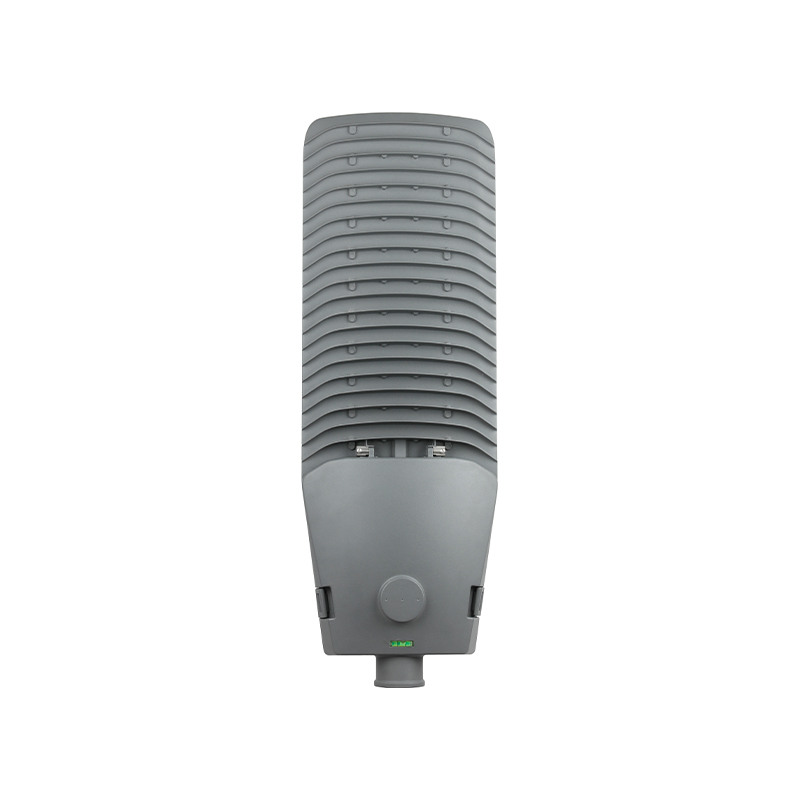

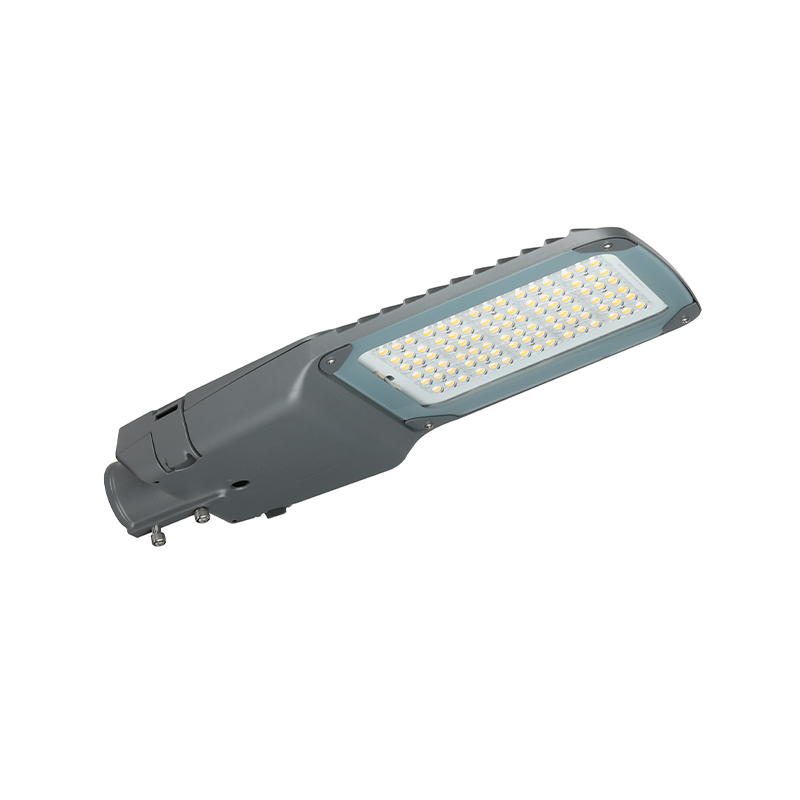

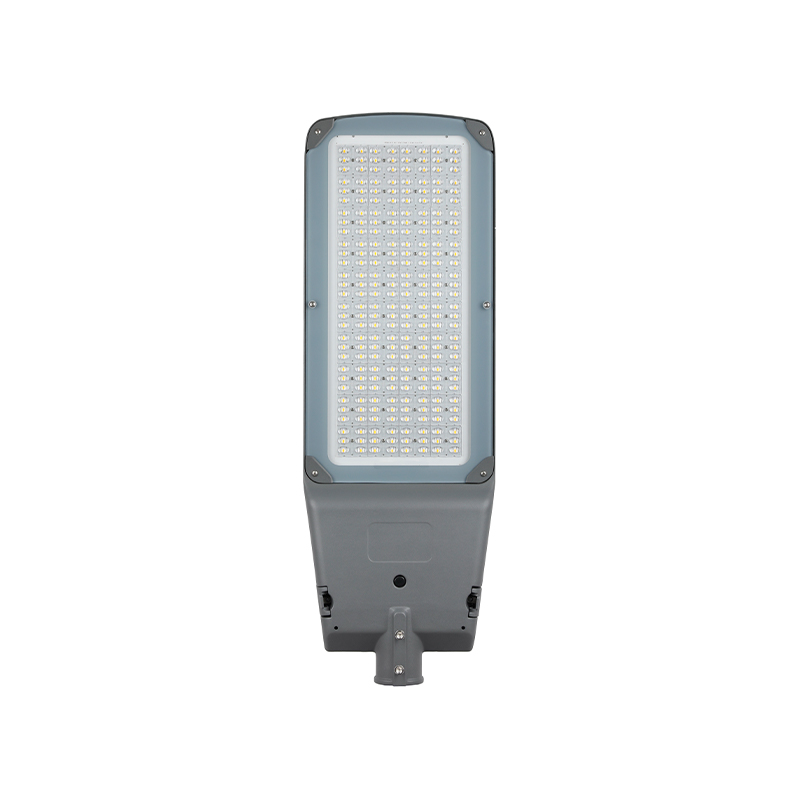

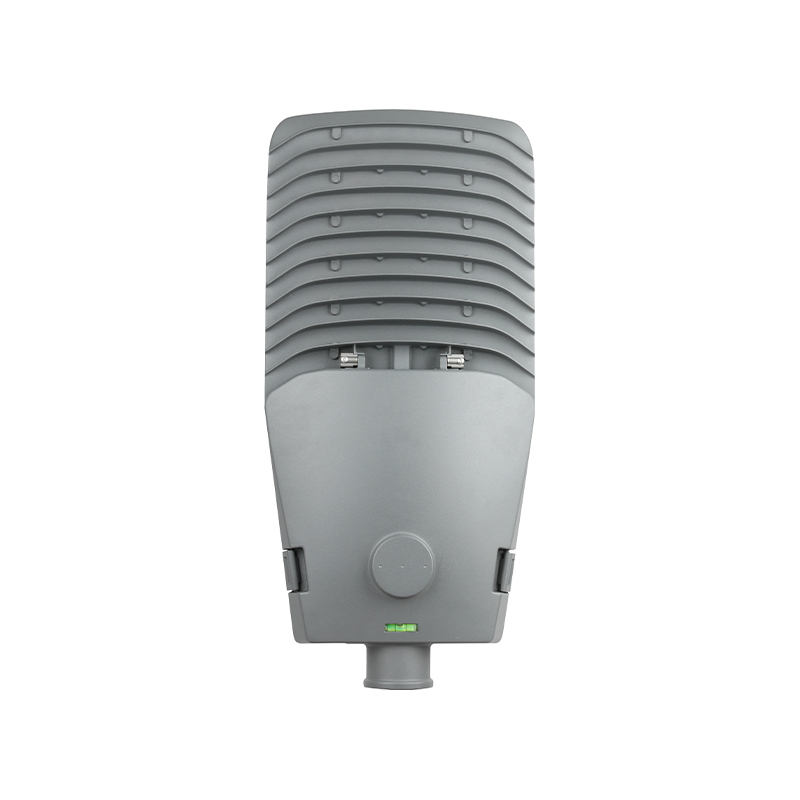

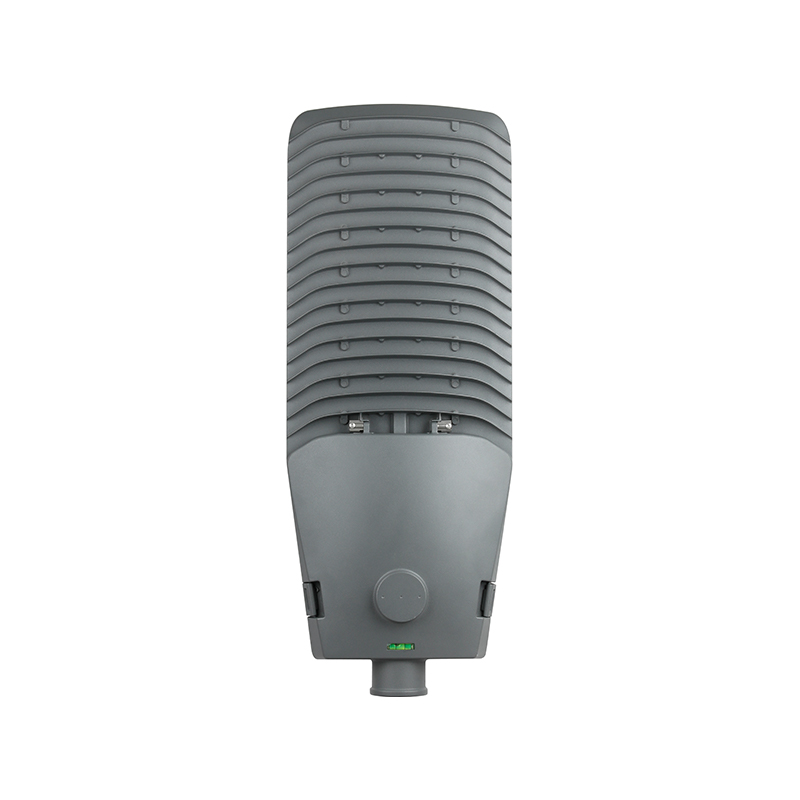

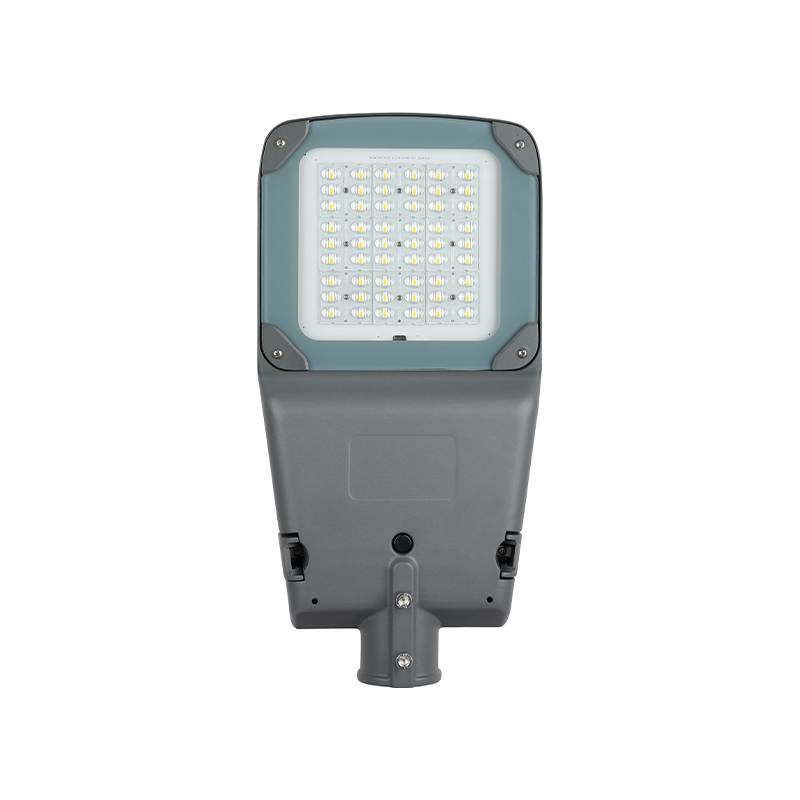

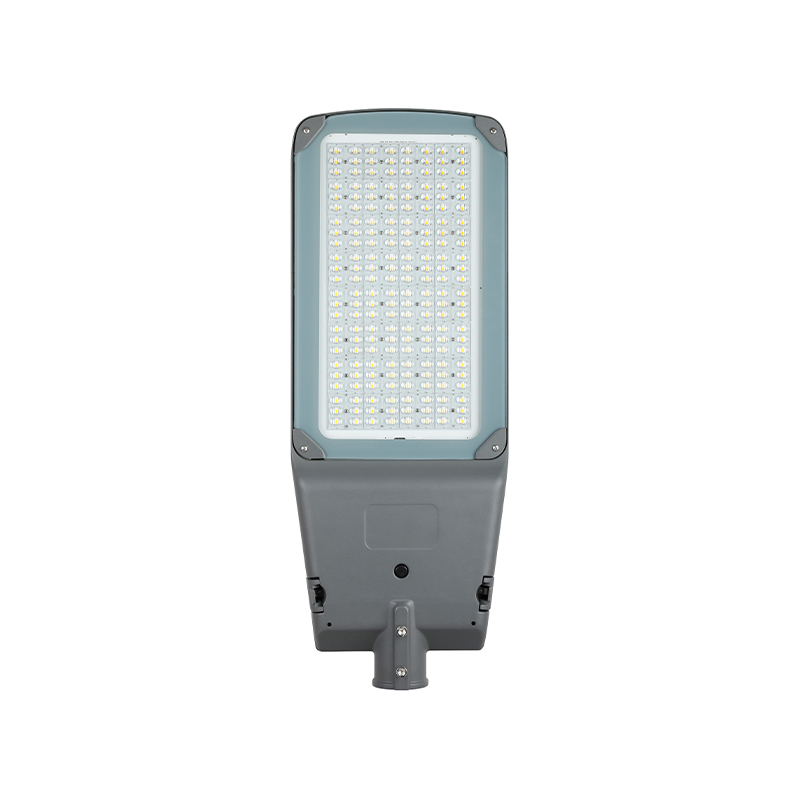

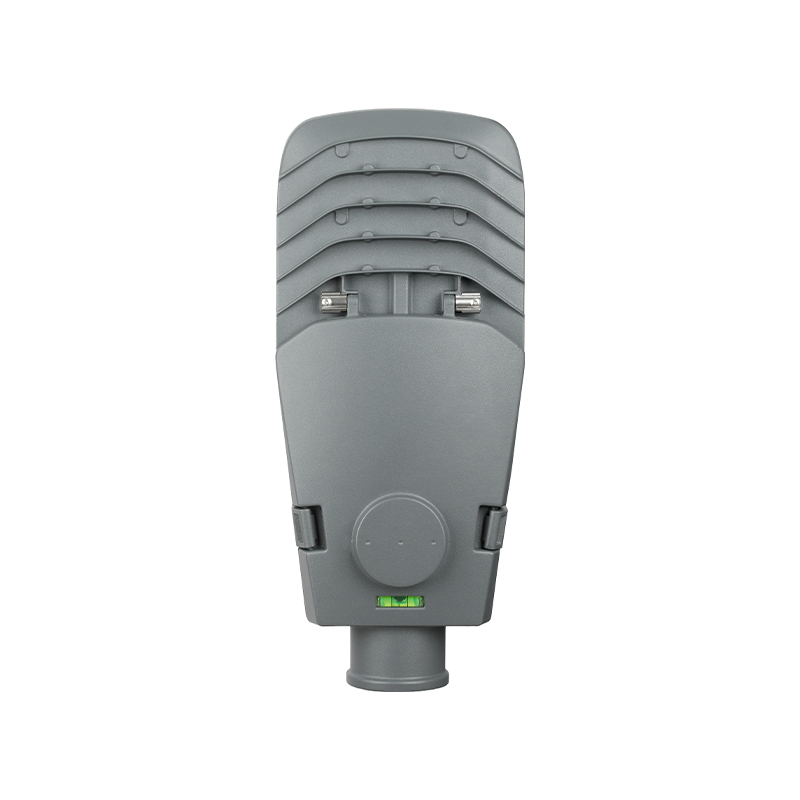

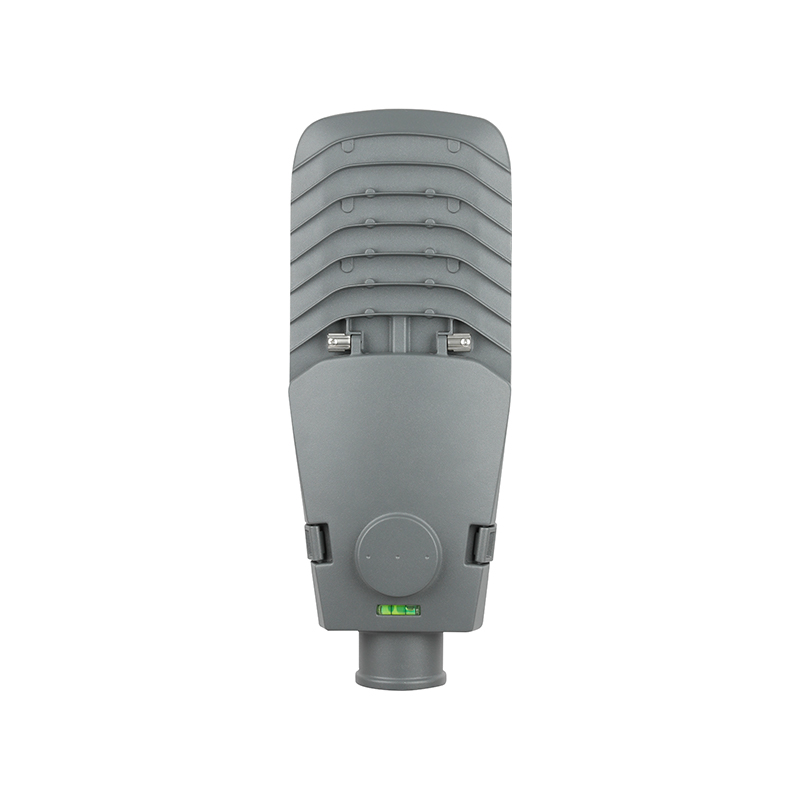

30w 50w 100w 150w 200w 240w SAVANNA LITE Series LED Street Light
APPLICATION AREA
Product Description
FEATURES

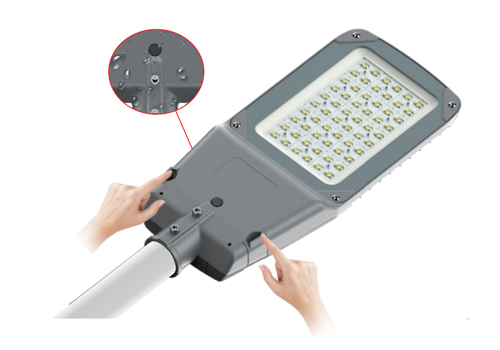

1.Tool-free buckle design makes installation and maintenance easy.
2.Housing made of ADC12 die-casting aluminum material and finished with corrosion resistant polyester powder coating.
3.Equipped with tubular spirit level ensures that the luminairealways in the right installation position.
4.Streamlined luminaire body design and low wind resistance。
5.Fixation spigot for 60mm side entry mounting.
6.IP66 outdoor structural waterproof.
7.Photocell/Shorting cap/Smart sensor optional upon request.
8.Suitable for outdoor road lighting applications such as city road, highway, residential road, etc.
THERMAL MANAGEMENT

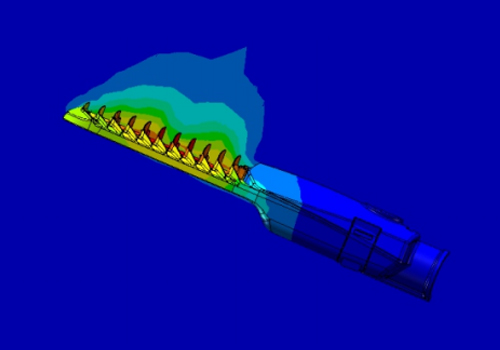

Optimize the luminaire cooling system and structure by advanced FEA technology to reach the most cost-effective solutions.
Well managed temperature rise between internal and external parts brings light source more higher lumen maintenance rate.

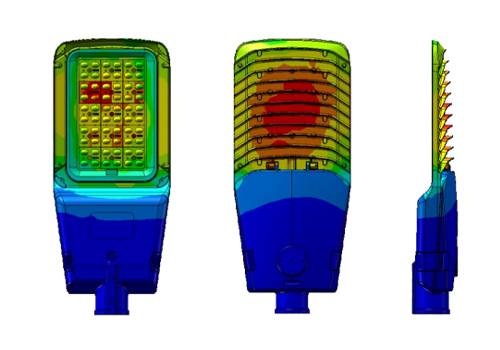

 Thermal Conductivity |

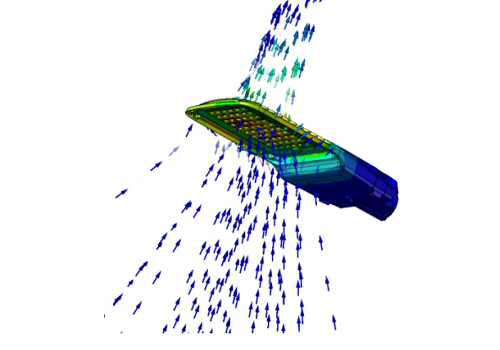

 Thermal Air Convection |
 Thermal Effects Environment |

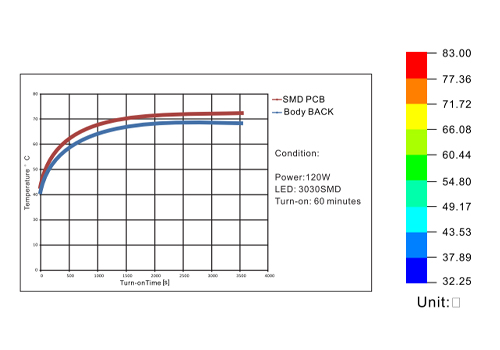

 Temperature Rise Curve |
THE MAIN PARAMETERS

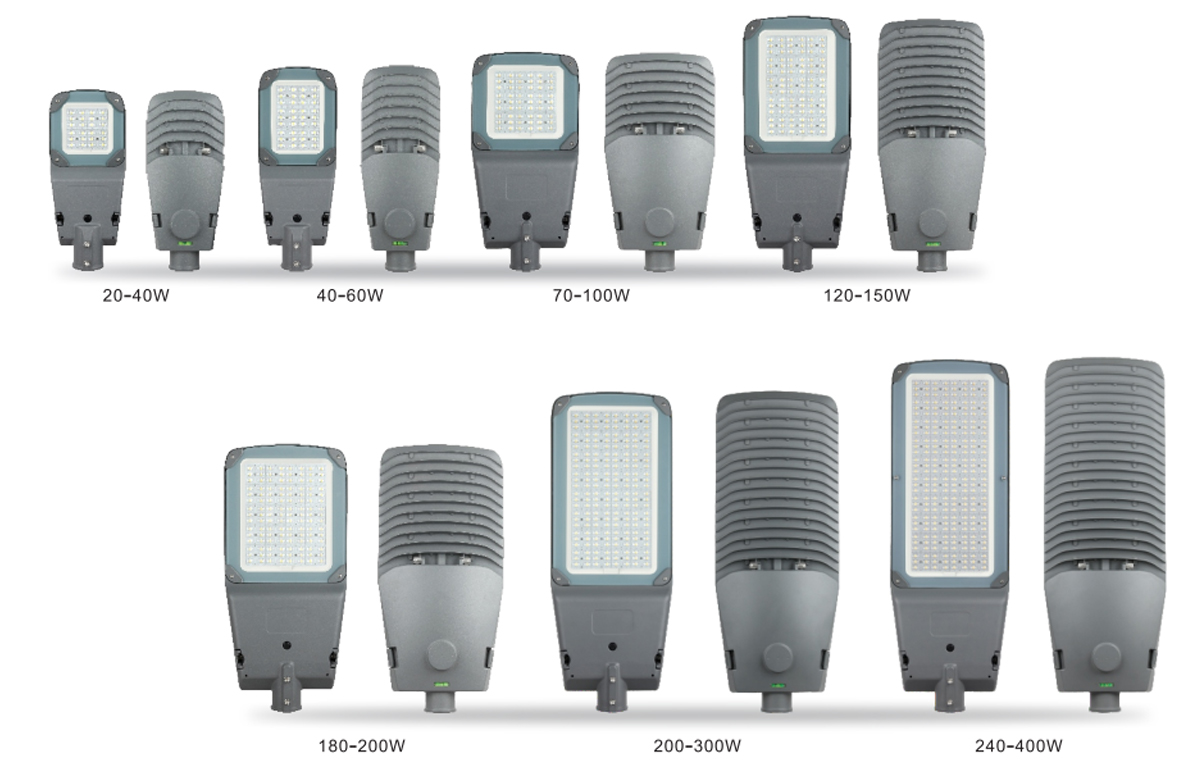

| Model | SAVANNALITE-M2*2 | SAVANNALITE-M2*3 | SAVANNALITE-M3*3 | SAVANNALITE-M3*5 | SAVANNALITE-M4*5 | SAVANNALITE-M4*8 | SAVANNALITE-M4*10 |
| Power | 20-40W | 40-60W | 70W-100W | 120-150W | 180-200W | 200-300W | 240-400W |
| Product Size(MM) | 445*190*102 | 495*190*102 | 536*270*102 | 637*270*102 | 665*310*112 | 816*310*112 | 918*310*112 |
| Luminaire Efficacy | 120-170LM/W | ||||||
| Input Voltage | 100-277V/50-60HZ | ||||||
| Power Factor | >0.95 | ||||||
| CCT | 2700-6500K | ||||||
| CRI | >70 | ||||||
| Operating Tempeaatufe | -40℃~+50℃ | ||||||
| Beam Angle | T1/T2/T3/70X140° | ||||||
| Housing Material | ADC12 die-casting aluminum | ||||||
| Lens Material | Optical PC lens | ||||||
| IP | IP66 | ||||||
| IK | IK09 | ||||||
| Surge Protection | 10KV/20KV(Optional) | ||||||
| Lifespan | 50000 hours | ||||||
| Diffuser | 5MM tempered glass | ||||||
| Pole Diameter | 60MM | ||||||
| Installation | Horizontal installation | ||||||
| Installation Depth | >110MM | ||||||
| Warranty | 5 years | ||||||

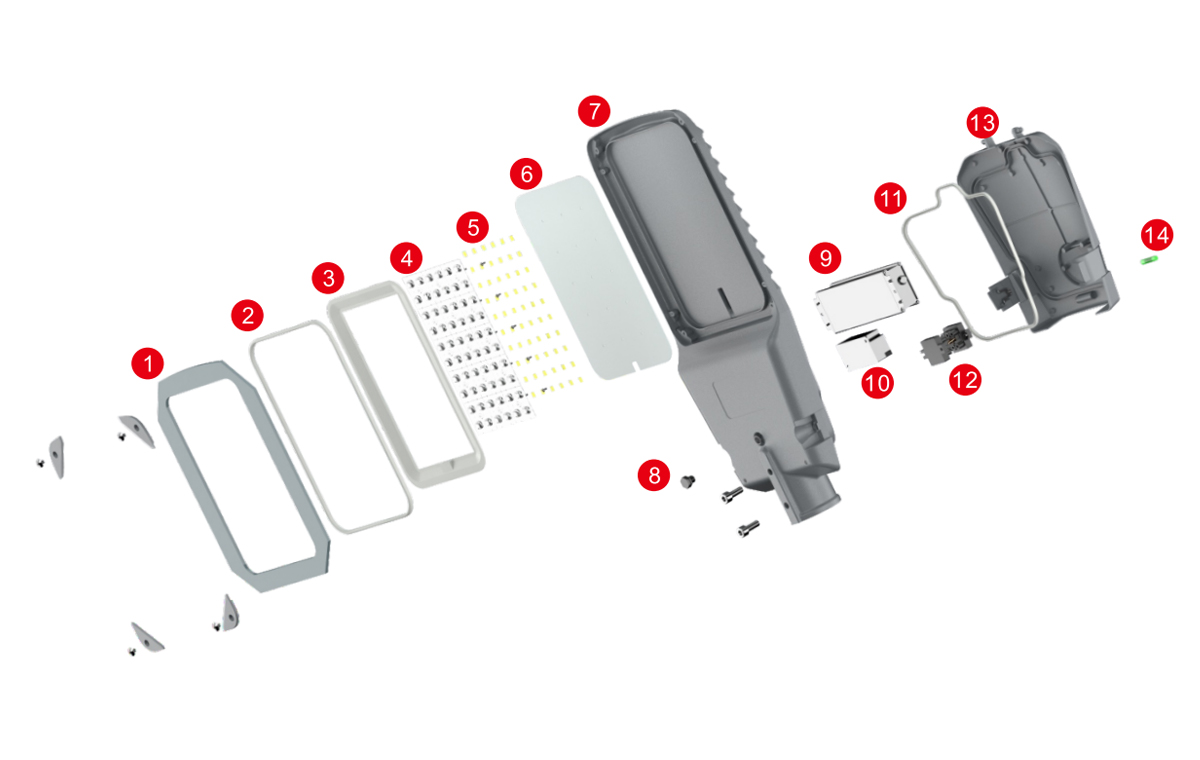

EXPLODED VIEW
| 1. 5MM tempered glass | 6. High efficiency aluminum PCB | 11. Waterproof silicone ring |
| 2. Waterproof silicone ring | 7. ADC12 die-casting aluminum body | 12. Power disconnector |
| 3. Nano-pc reflector | 8. Breathing valve | 13. ADC12 die-casting aluminum power supply cover |
| 4. TIR optical PC lens | 9. LED power supply | 14. Tubular spirit level |
| 5. High lemen LED chip | 10. Surge protector (10KV/20KV optional) |
 |
Breathing valve can effectively reduce condensation and contamination, provides rapid pressure balancing and release. |

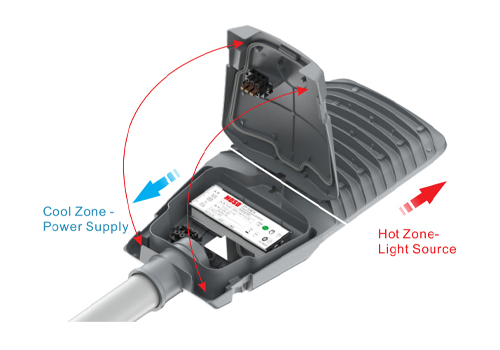

| TOOL-FREE BUCKLE DESIGN ·Thermal & electric compartment separate design. ·Equipped with power disconnector, will automatically power off when cover open. ·Photocell/Shorting cap/Smart sensor optional upon request. |
 |
APPLICATIONS
Suitable for outdoor road lighting scenarios such as City road, Highway, Residential road, etc.

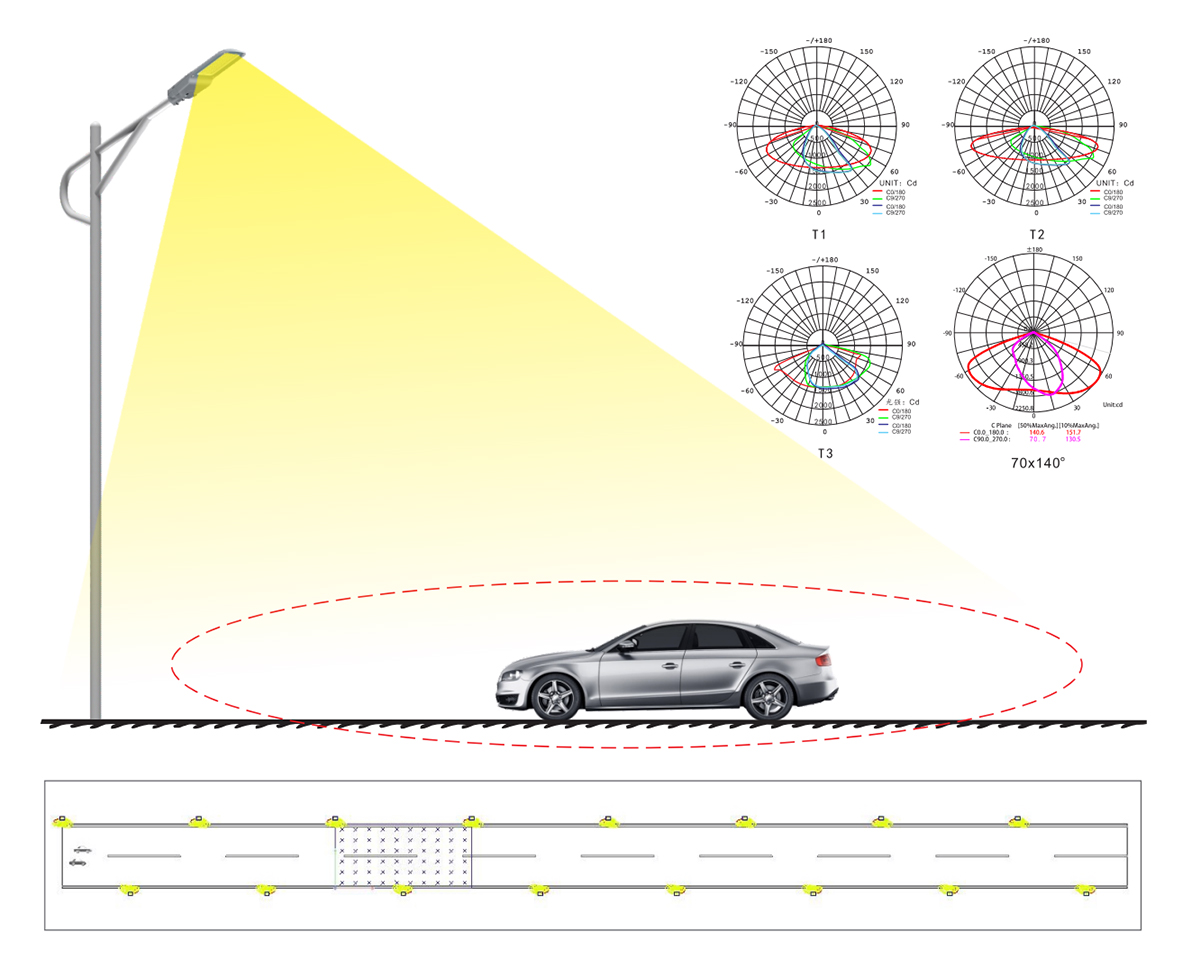

OPTICS
Tech support: Tell us the space length, width, height and the usage application.
We have an engineer team to make the DlALUX simulations and calculate the luminaire quantities for your project.
IES files are available upon request.
INSTALLATION

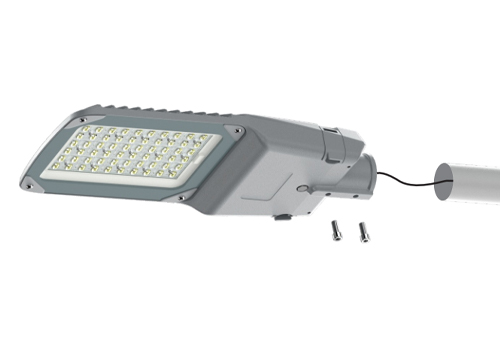

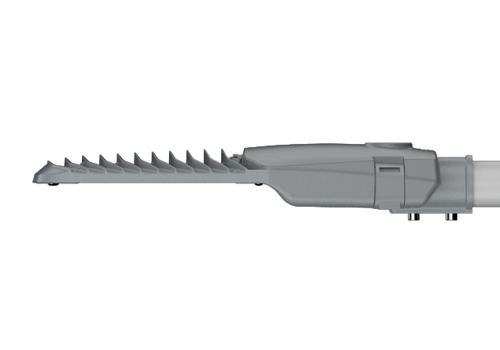

 Horizontal installation |
 Finished-Horizontal installation |

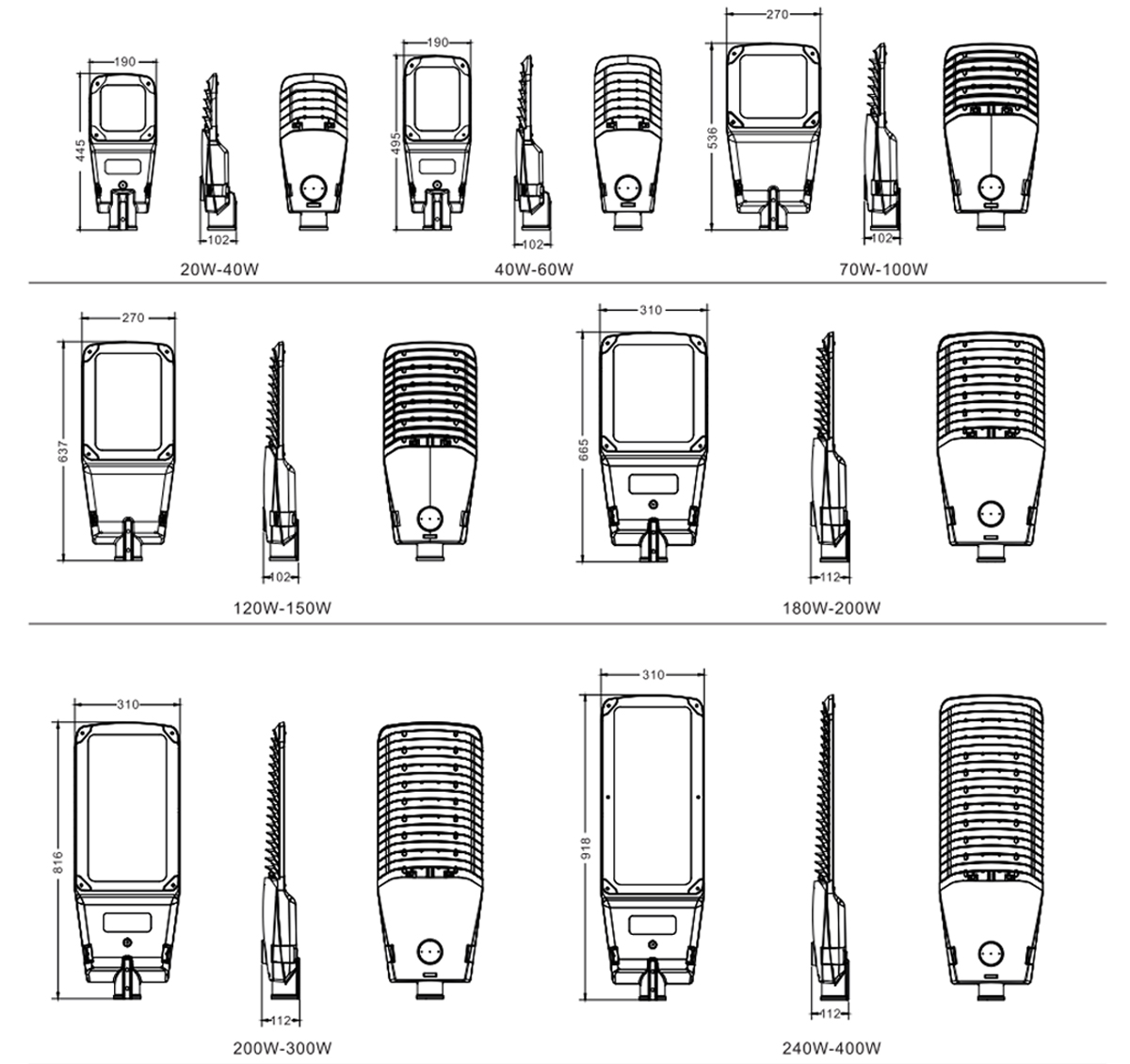

OVERALL DIMENSION DRAWING
Unit: MM
PACKAGING PARAMETERS
| Model | SAVANNALITE-M2*2 | SAVANNALITE-M2*3 | SAVANNALITE-M3*3 | SAVANNALITE-M3*5 | SAVANNALITE-M4*5 | SAVANNALITE-M4*8 | SAVANNALITE -M4*10 |
| Power | 20-40W | 40-60W | 70W-100W | 120-150W | 180-200W | 200-300W | 240-400W |
| QTY | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
| Carton size(MM) | 460*200*140 | 510*200*140 | 550*280*140 | 650*280*140 | 680*315*140 | 830*315*140 | 930*315*140 |
| N.W(KG) | 2.7 | 3 | 4.3 | 5.1 | 6 | 7.4 | 8.4 |
| G.W(KG) | 3 | 3.3 | 4.7 | 5.6 | 6.6 | 8.1 | 9.2 |
| 20GP | 2174PCS | 1961PCS | 1299PCS | 1099PCS | 934PCS | 765PCS | 683PCS |
| 40GP | 4503PCS | 4062PCS | 2690PCS | 2276PCS | 1934PCS | 1585PCS | 1414PCS |
| 40HQ | 5280PCS | 4762PCS | 3154PCS | 2669PCS | 2268PCS | 1858PCS | 1658PCS |

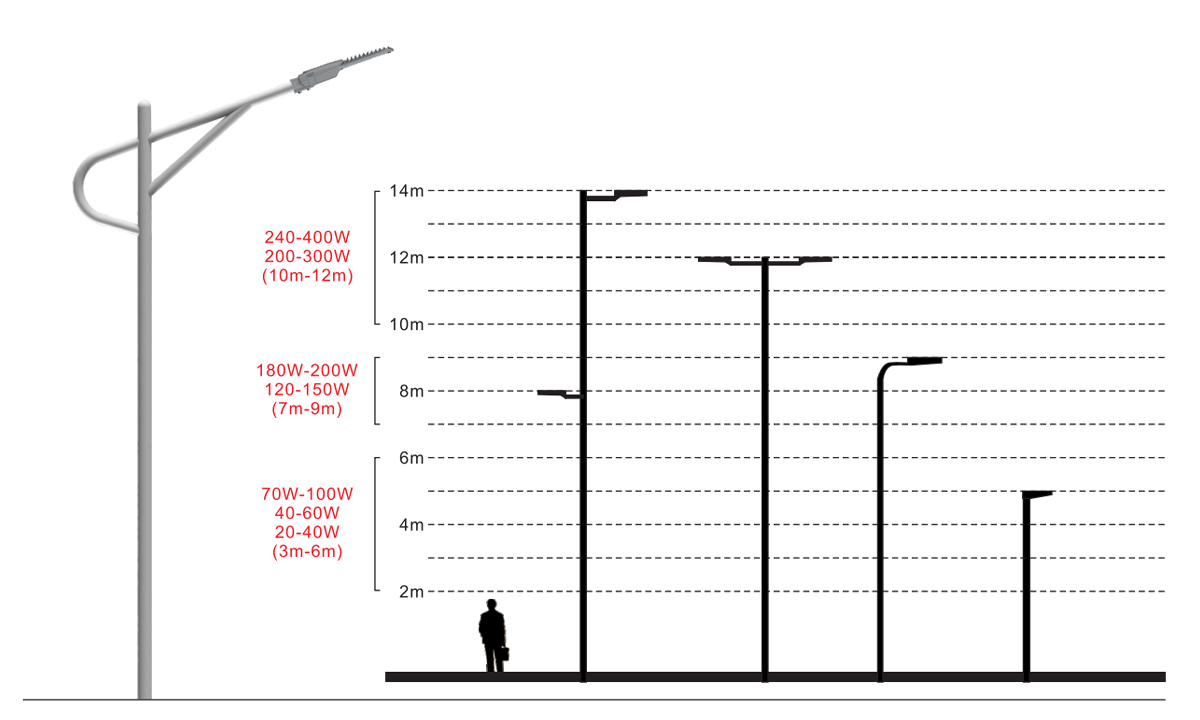

INSTALLATION SUGGESTIONS
CAUTIONS
1. Installation must be done by professional electricians.
2. Do not dismantle the product. It may be dangerous.
3. Do not stare directly to the luminaire when the power is turned on to avoid hurting eyes.
4. The cable must be waterproofed when connected to electric for outdoor using.
