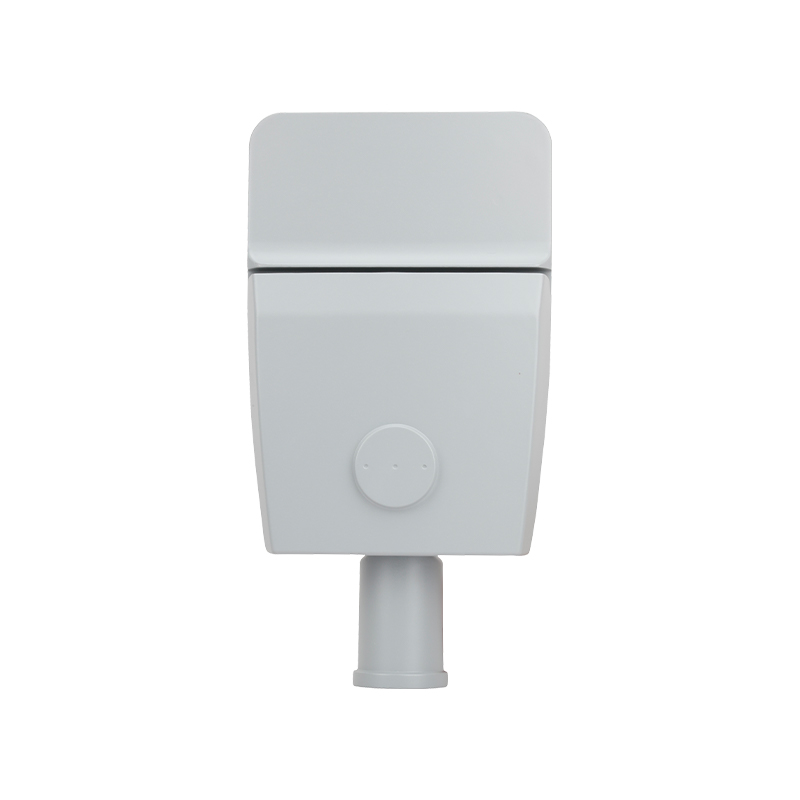

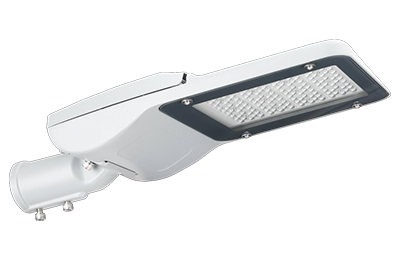

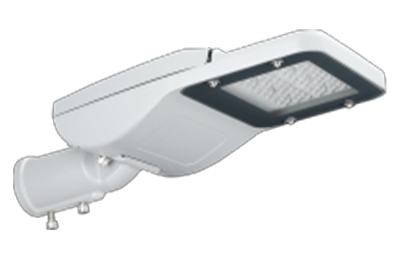

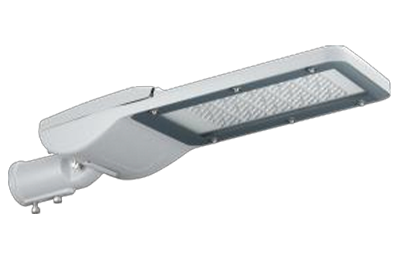

Adjustable PACIFIC PRO Series LED Street Light for Public Lighting

Product Description

FEATURES
1. Multiple sizes, flexible adaptation: three different sizes, accurately matching the needs of various projects. Whether it is a large commercial space, an industrial site, or a small home environment, it can be flexibly selected.
2. Adjustable angle, installation at will: the innovative design of the adjustable angle socket breaks through the limitations of traditional installation. Whether it is a narrow space that requires side access or a special position for column top installation, it can be easily handled, bringing unprecedented convenience and efficiency to the installation work, making the installation of lamps more arbitrary.

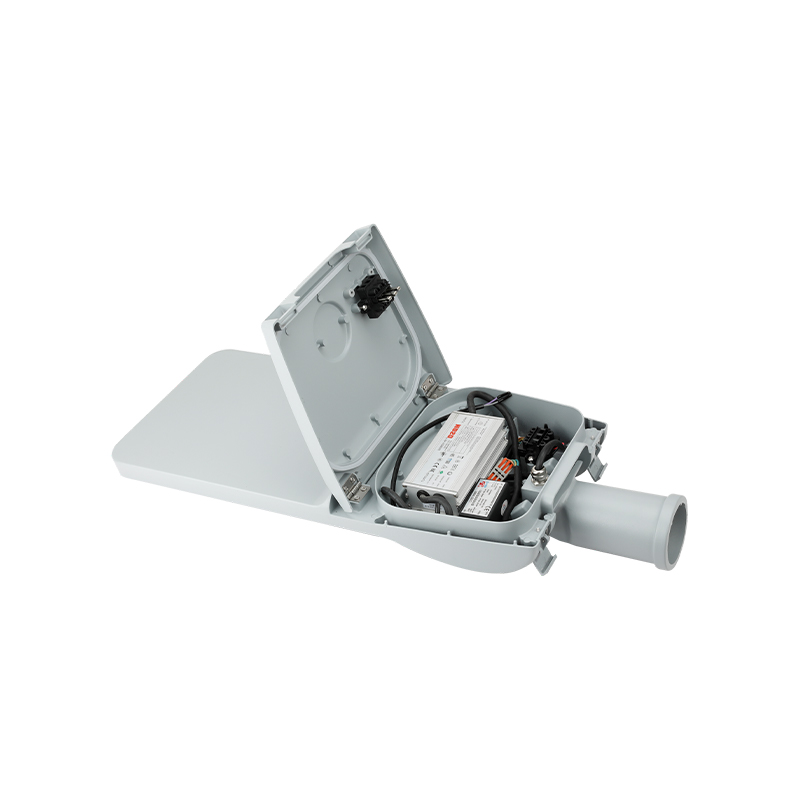

3. Tool-free maintenance, convenient and efficient: the unique gear compartment design that can be opened without tools is a boon for maintenance work. There is no need to find tools or professional skills. Users can quickly open the gear compartment and easily perform daily maintenance and repairs, which greatly reduces the difficulty and time cost of maintenance and ensures that the lamps always maintain the best operating state.
4. Optical lens, excellent light effect: equipped with advanced optical lenses, through precise optical design, asymmetric light distribution is achieved. Effectively reduce glare interference and create a comfortable and soft lighting environment; the light uniformity is extremely high, so that there is no difference in light and dark in the lighting area, providing a uniform and bright lighting experience for work and life.
5. Sturdy and durable, with upgraded protection: The high-pressure die-cast aluminum body has high strength and excellent heat dissipation performance, ensuring that the lamp is stable and reliable during long-term use. The surface of the body is treated with corrosion-resistant polyester powder coating to effectively resist erosion in various harsh environments, such as moisture, salt spray, etc.
6. Self-cleaning design, worry-free and labor-saving: The smooth surface design is not only beautiful and generous, but also has a self-cleaning function. Dust and dirt are not easy to adhere, and can be easily removed by rain or natural wind, always keeping the surface of the lamp clean.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	MINI	MIDI	MAXI
Wattage	30-75w	80-150w	150-200w
Input voltage	100-277V/50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI>70
Operating temperature	-40℃~+50℃
Housing material	ADC12
Ingress protection	IP66
Impact strength	IK08/IK09 optional
Surge protection	10KV/20KV
Diffuser	Tempered glass
Spigot diameter	50mm/60mm
Weight	4.0kg	5.3kg	6.5kg

DESIGN IN DETAILS

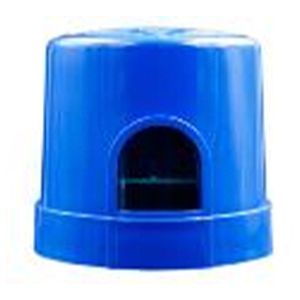

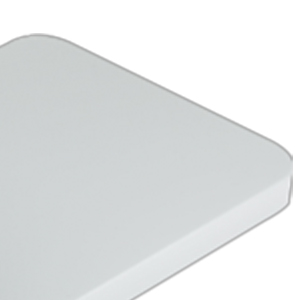

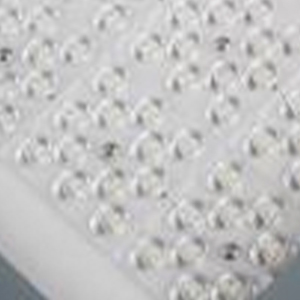

Body Flat surface with self-clean,rainy days can swash dust and bird droppings efficiency.	Photocontrol (optional) Optional with NEMA socket & photocell/shorting cap.	Led chips Lumileds 3030 & 5050 led chips with luminaire effciency up to 15olm/w, long lifespan 50000 hours.

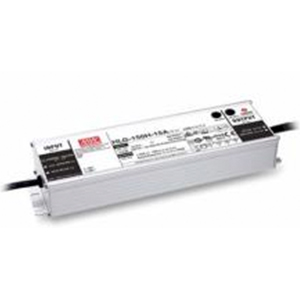

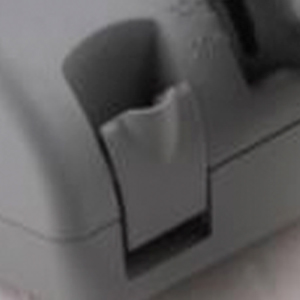

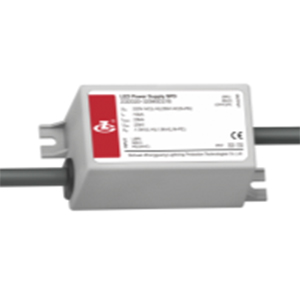

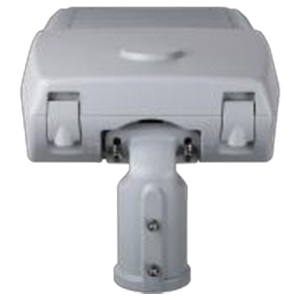

Power supply unit High performance led driver -0-10v dimming upon request -Driver brand can choose among MOSO, Meanwell, Philips, Osram	Buckles Toolless opening of gear compartment, easy for maintenance.	Spigot Wide adjustable angle from 0°-±15° for side entry and post top mounting.

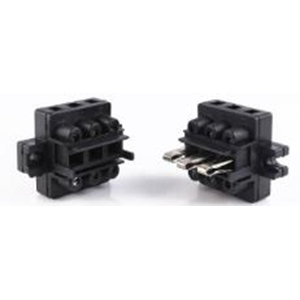

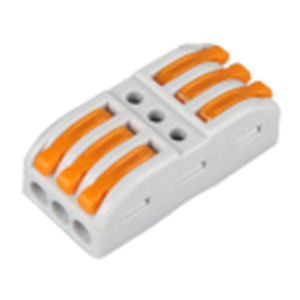

Power disconnector Automatically off luminaire when gear compartment open and after close turnon,safetyforworkers when during maintenance	Connector Quick plug-in connector, tool-less, save time.	SPD 10kv (20kv optional) surge protection device, more reliable protection for the led power supply unit.

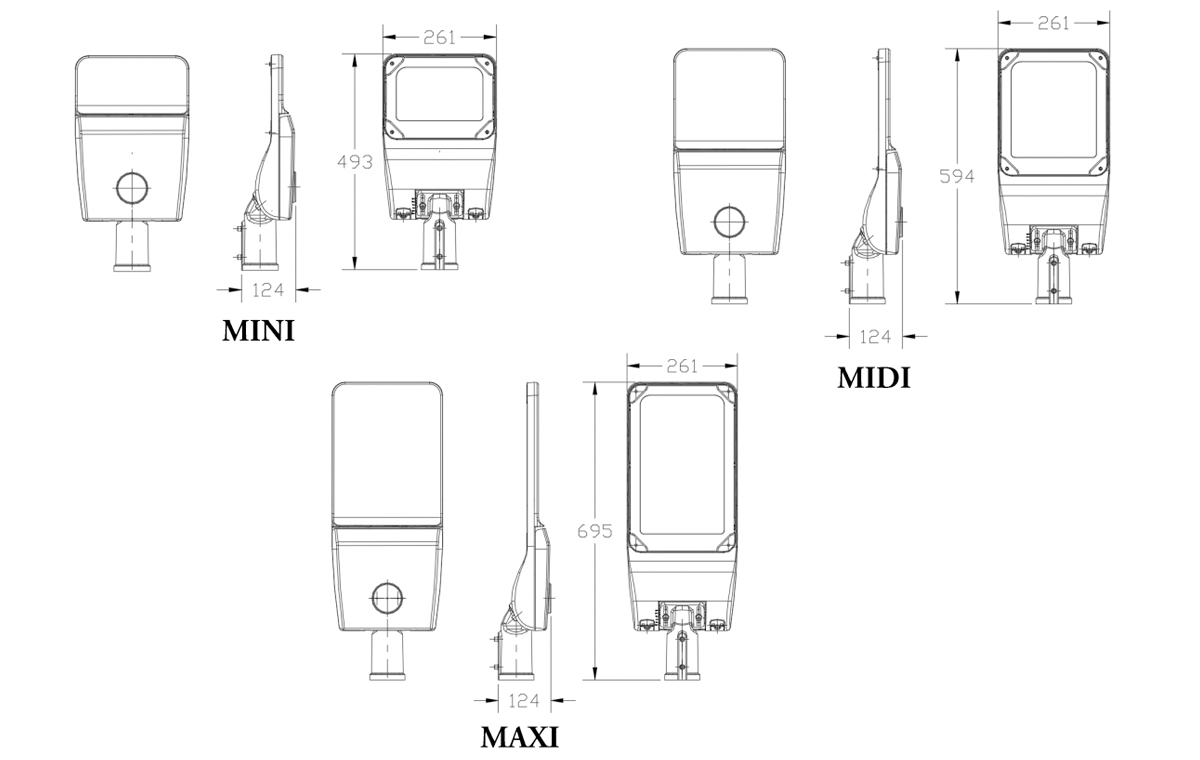

DIMENSIONS (mm)
