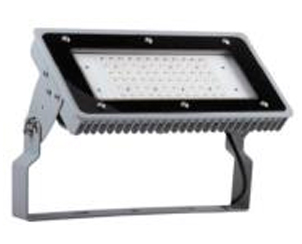

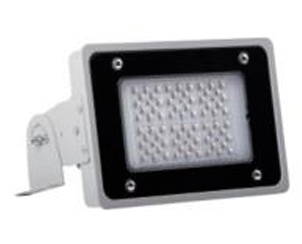

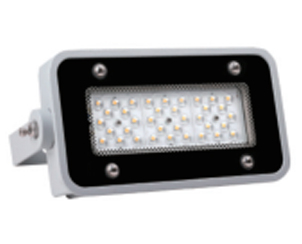

IP66 IK08 30w-120w SPARK Series LED Tunnel Light

Product Description

SPARK offers three sizes to meet the needs of different projects, thus improving flexibility and cost-effectiveness. This design is not only suitable for small projects, but also for large projects, ensuring that users can choose the most suitable specifications according to their specific needs.
The product is equipped with a variety of optical lenses, including symmetrical and asymmetrical light distribution, which can meet the lighting needs in different scenarios. Whether it is uniform light distribution or concentrated lighting in a specific area, precise light control can be achieved to improve the use effect.
The body is made of high-pressure die-cast aluminum, electrostatically sprayed, and covered with corrosion-resistant polyester powder coating on the surface to ensure the durability and anti-corrosion performance of the product. This design not only extends the service life of the equipment, but also improves its reliability in harsh environments.
In terms of heat dissipation, the product is equipped with an efficient and durable heat sink, which ensures the stability and reliability of the equipment during long-term work through optimized thermal management design. This design effectively avoids performance degradation caused by overheating, thereby ensuring the efficient operation of the equipment.
SPARK supports universal brackets, suitable for T/Bar brackets and wall-mounted installations, and has flexible and diverse installation methods. This design not only simplifies the installation process, but also improves the applicability of the equipment, allowing it to be easily integrated into a variety of environments.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	MINI	MIDI	MAXI
Wattage	10-30W	40-80W	80-150W
Input voltage	100-277V / 50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI > 70
Operating temperature	-40℃ ~ +50℃
Housing material	ADC12
Ingress protection	IP66
Impact strength	IK08
Surge protection	10KV/20KV
Diffuser	Tempered glass
Weight	2.0kg	4.4kg	5.8kg

DESIGN IN DETAILS

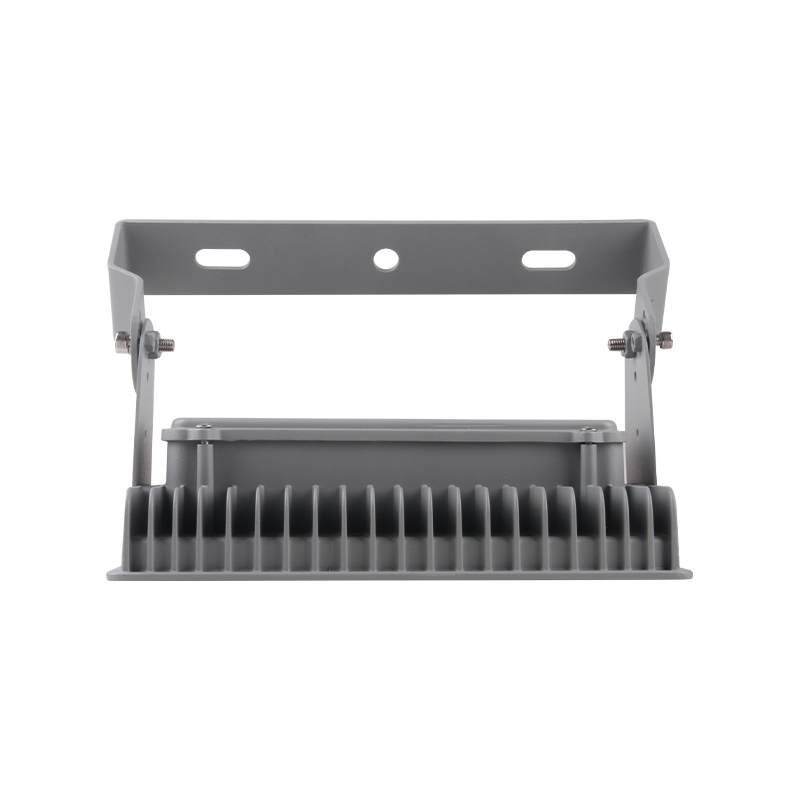

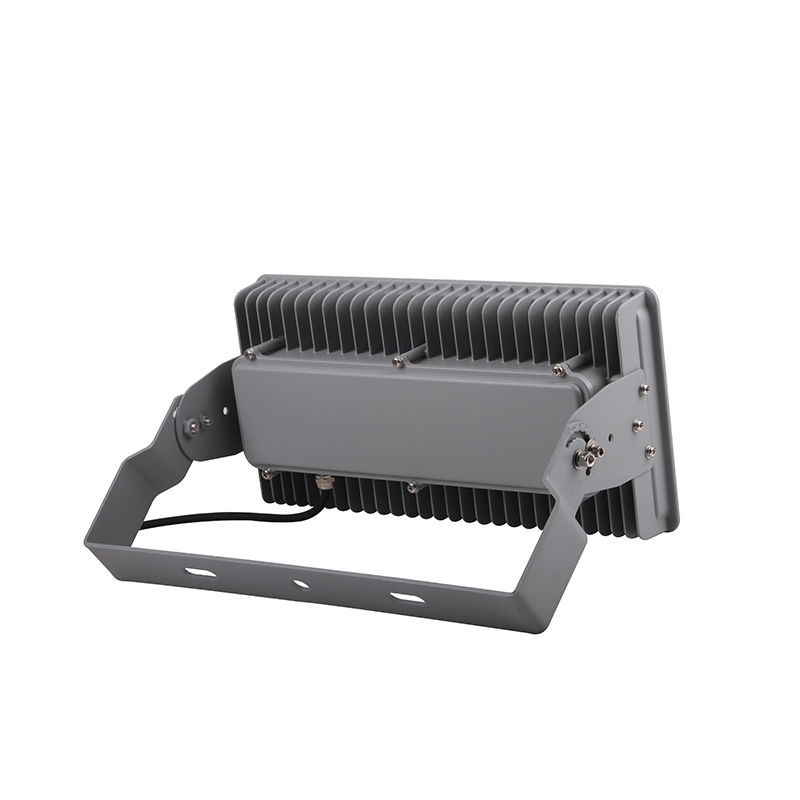

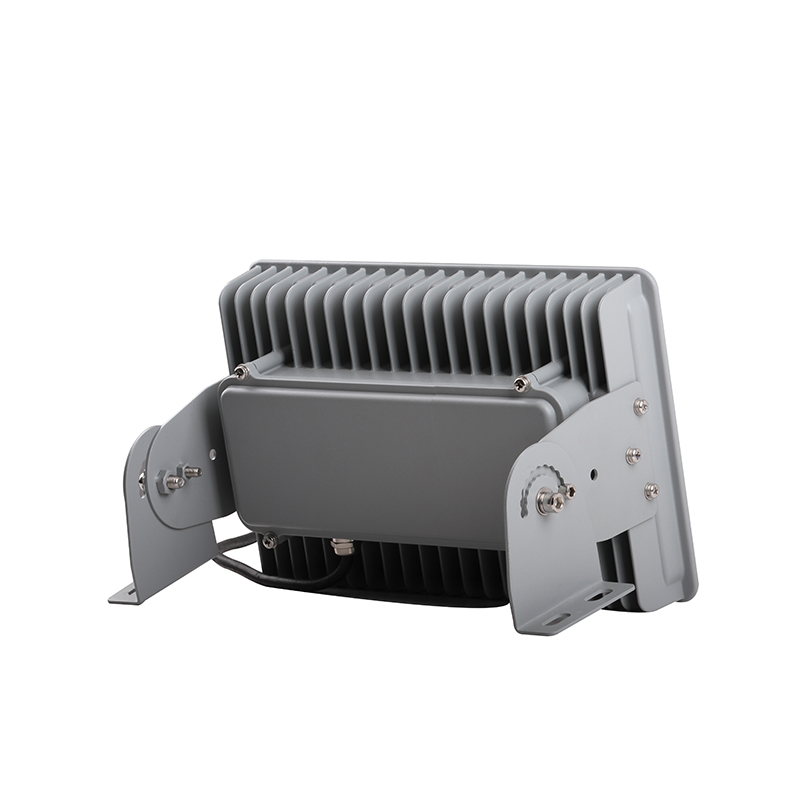

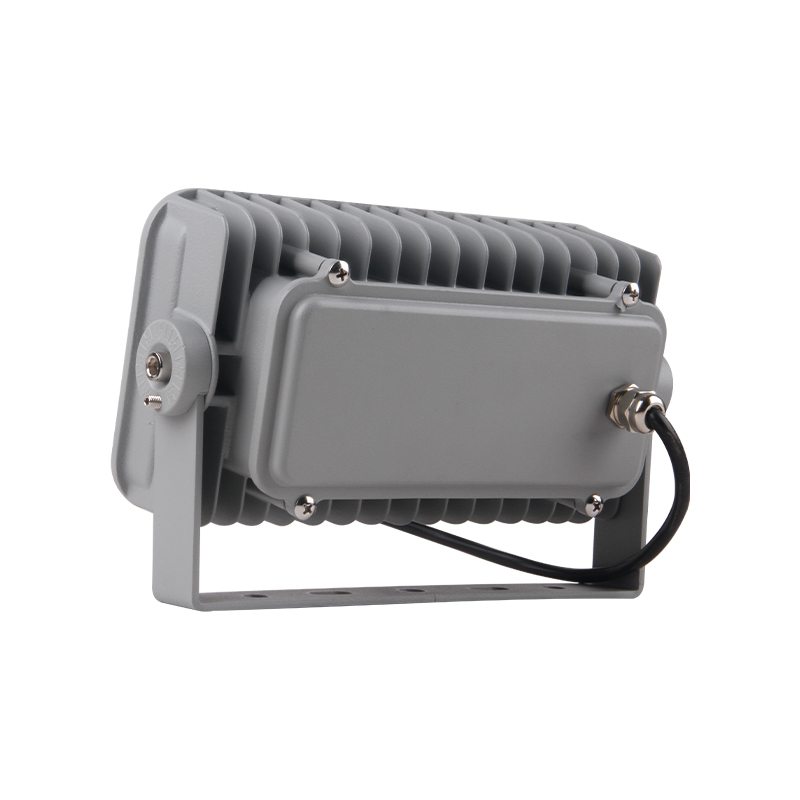

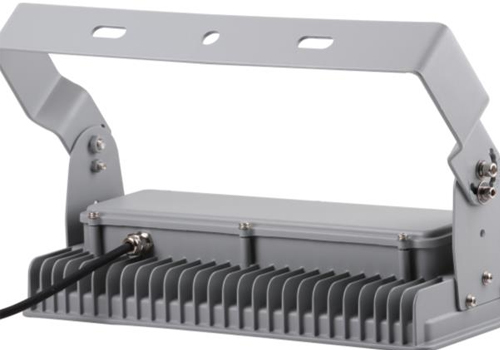

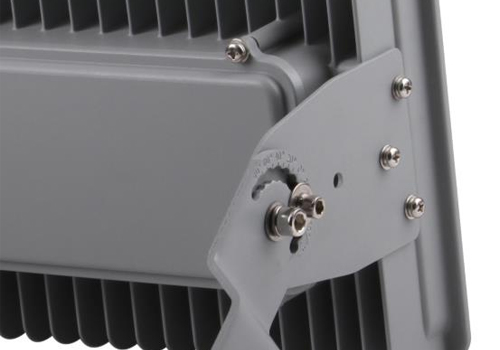

Universal U bracket enables on-site angle adjusting, offers various mounting applications.

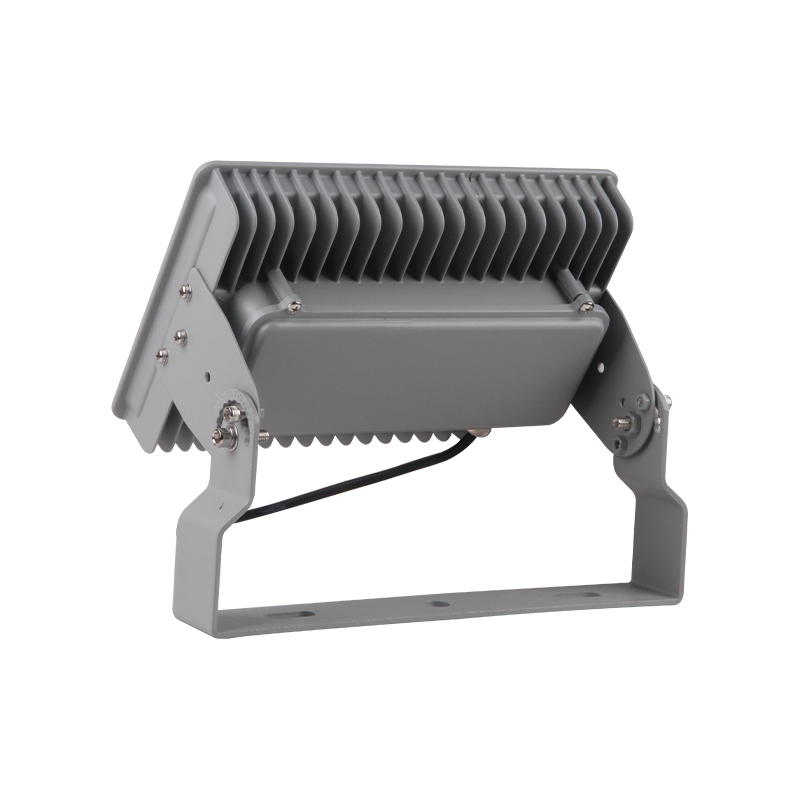

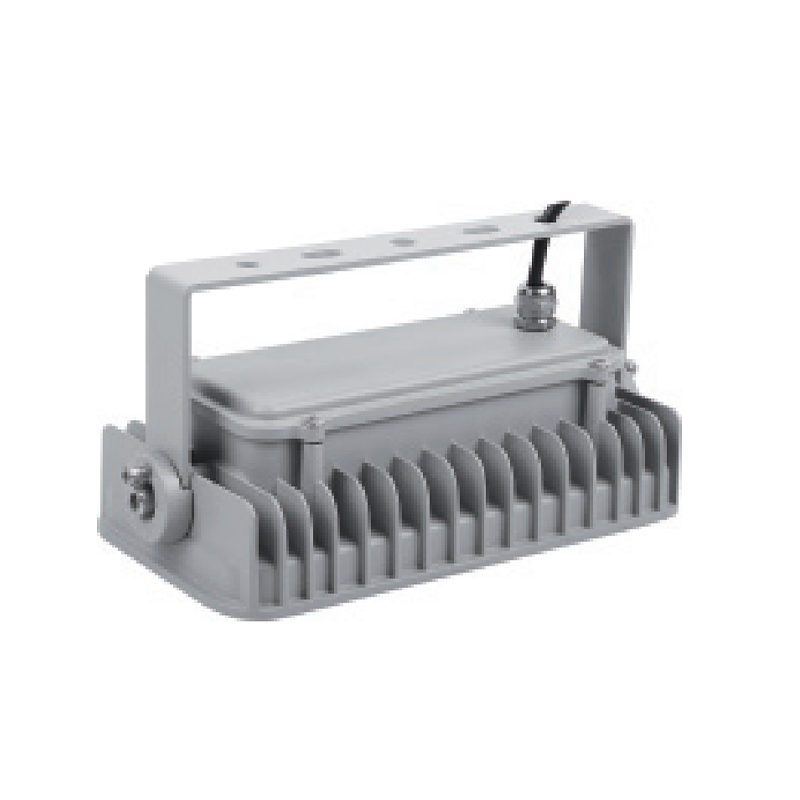

Large cooling fins withstand high temperature.

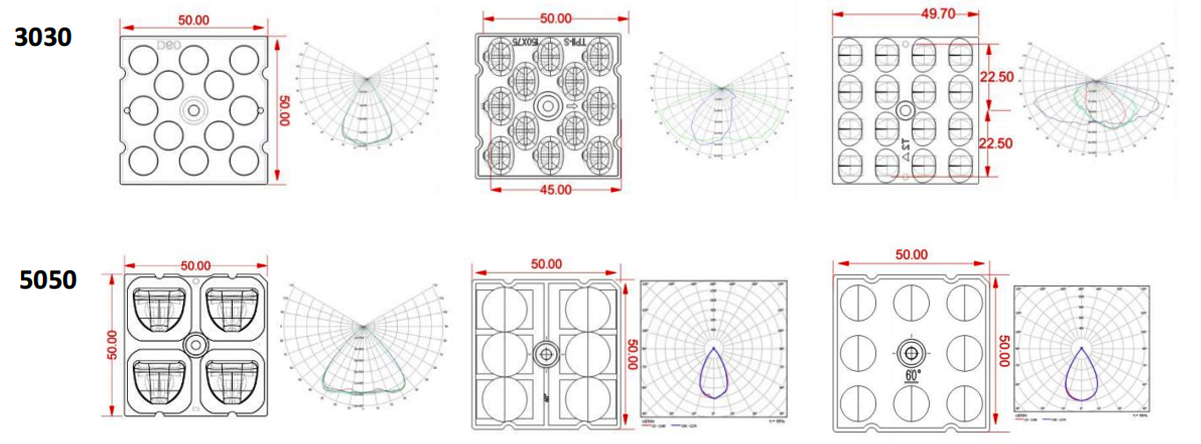

OPTICS AVAILABLE
Beam angle:
Symmetrical: 30°, 60°, 90°
Asymmetrical: T2, T3

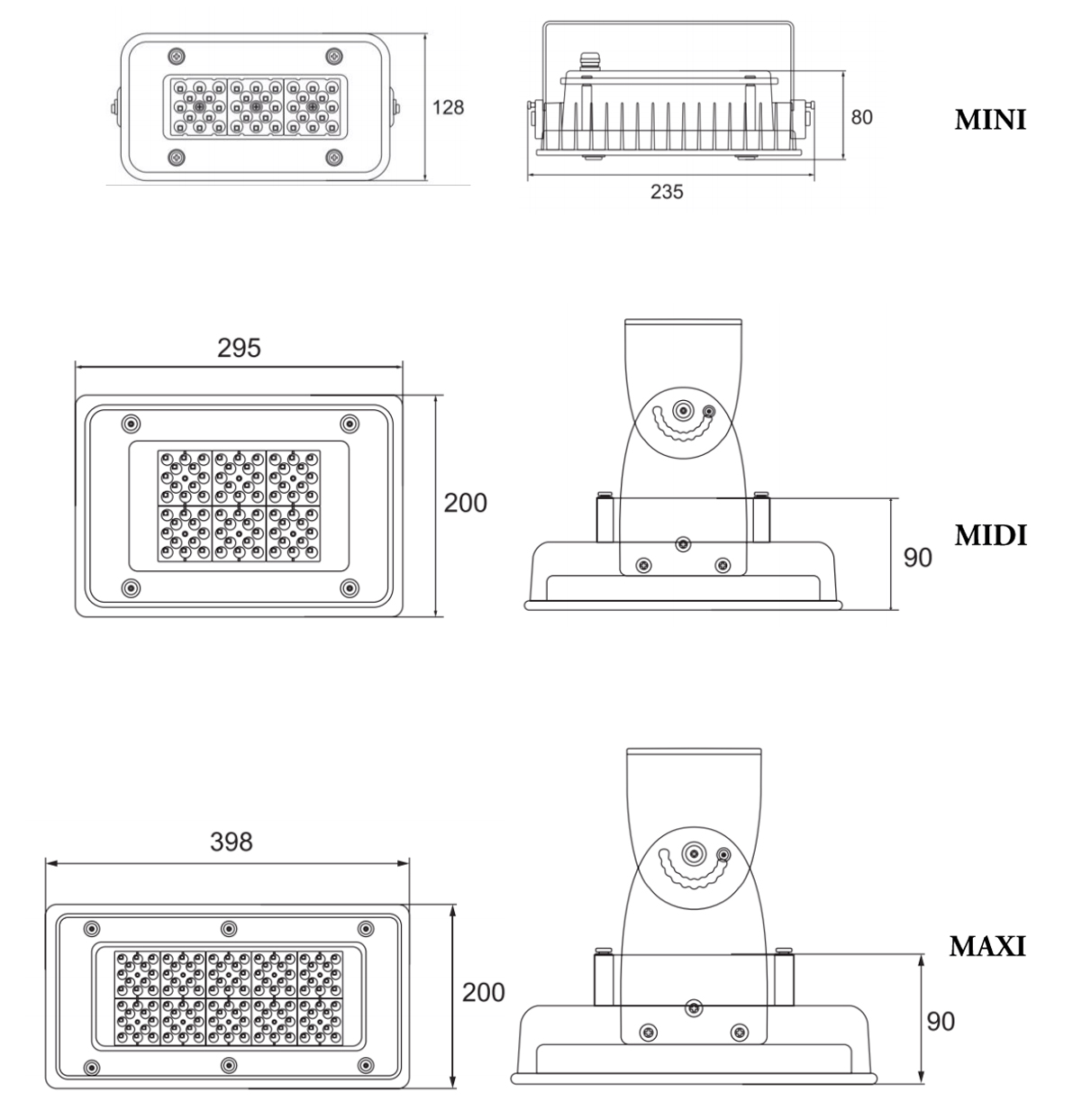

DIMENSIONS (mm)


ORDER INFORMATION

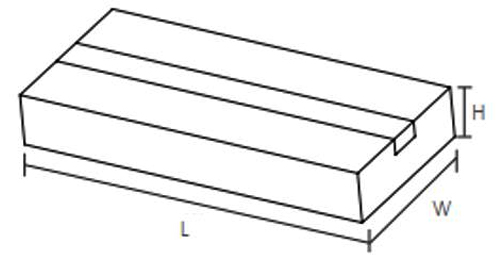

LOGISTICS DATA

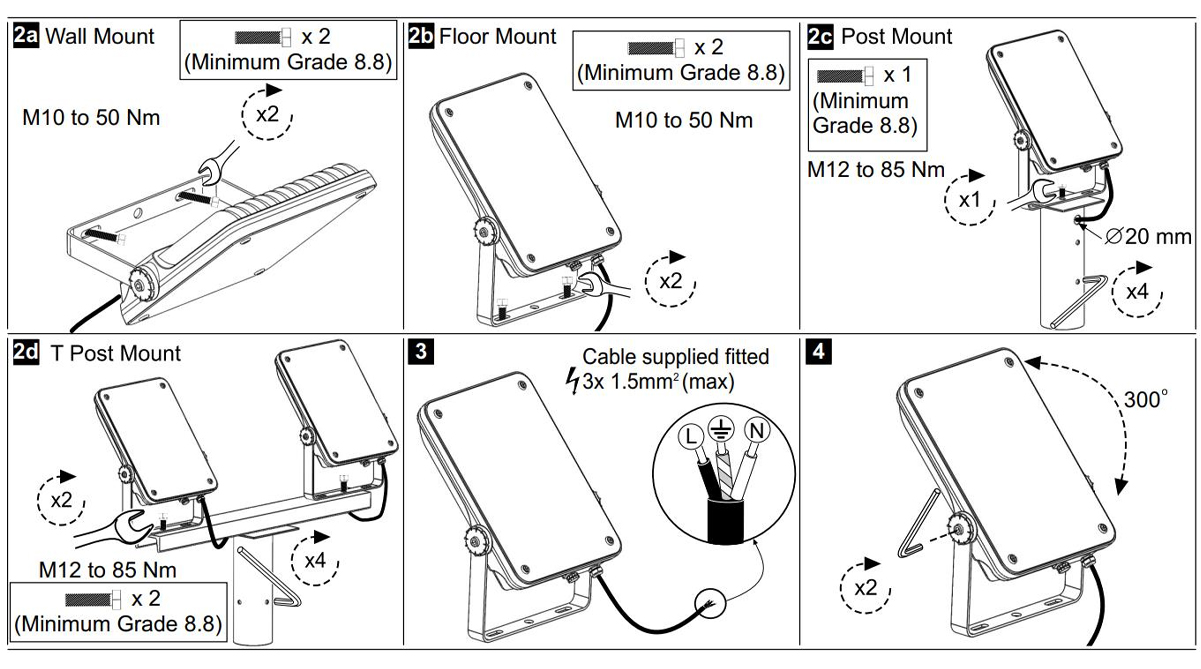

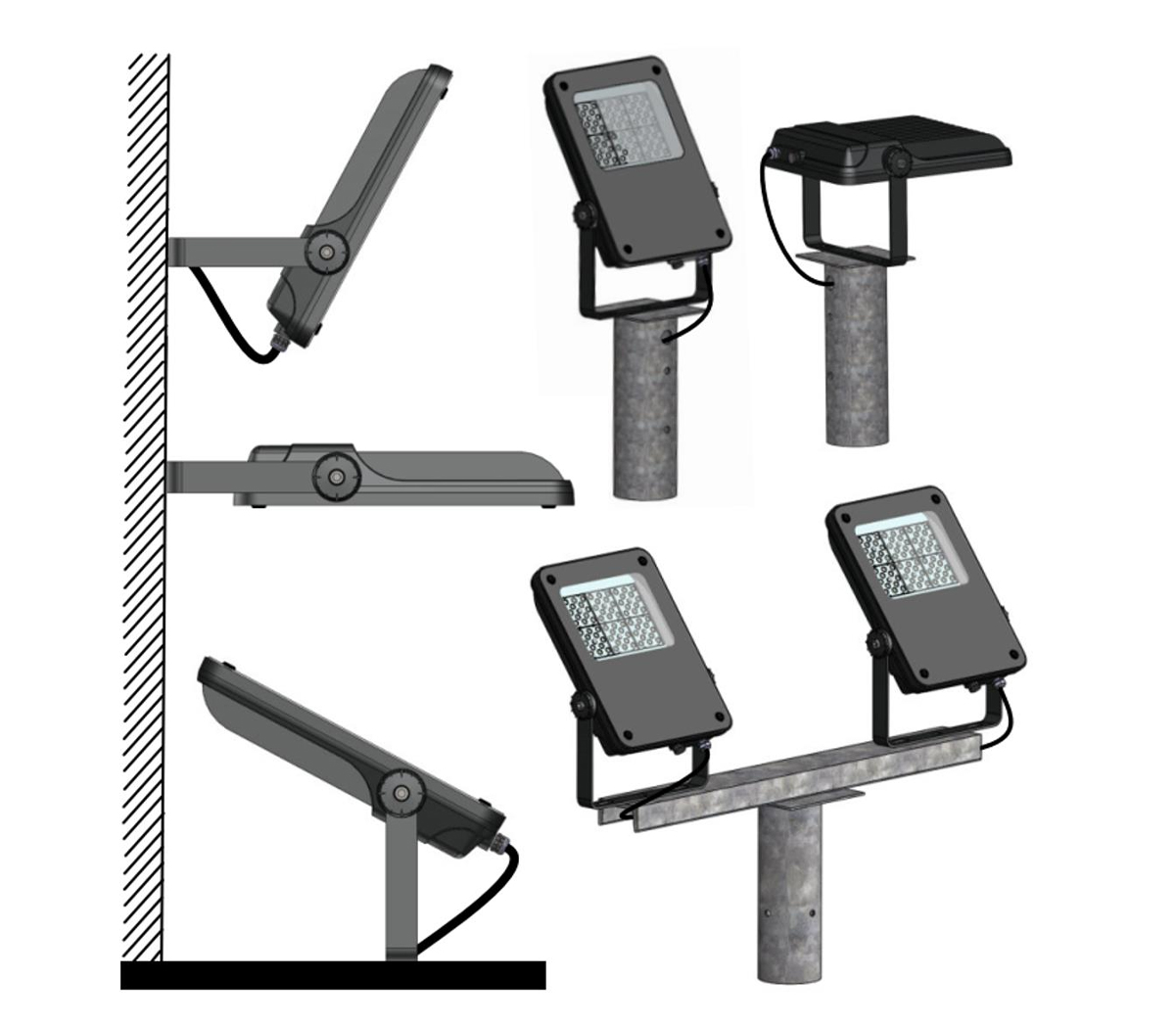

INSTALLATION
Universal bracket for T/Bar bracket and wall mounting.
