FEATURES1.Tool-free buckle design makes installation and maintenance easy.2.Housing made o...
NOVA FLOOD has become a highly competitive product in the market with its excellent design and functionality. Its design of opening the gear compartment without tools makes maintenance extremely convenient. This feature not only reduces the difficulty of maintenance, but also improves the reliability of the equipment, while reducing potential problems caused by operational complexity.
The product adopts a modular LED engine design, which can be selected from one module to six modules according to needs, with high flexibility. This modular design not only meets the lighting needs of different scenarios, but also significantly improves cost-effectiveness. Users can flexibly adjust the configuration according to actual usage, thereby optimizing budget allocation.
Future-oriented technology upgrades have also been fully considered. The luminaire supports easy replacement of the LED engine and gear compartment, ensuring the compatibility and upgradability of the equipment in future technological developments. This forward-looking design allows customers to worry about additional costs due to technology updates.
The body is made of high-pressure die-cast aluminum and coated with corrosion-resistant polyester powder coating, which makes it have excellent durability and corrosion resistance. This material choice not only extends the service life of the equipment, but also further improves its reliability in harsh environments.
The universal bracket design makes it suitable for T/Bar bracket and wall mounting, meeting a variety of installation needs. This flexible installation method provides great convenience for users while reducing the complexity of the installation process.
MAIN APPLICATIONS
![]() ROAD & HIGHWAY |
![]() BRIDGES |
![]() URBAN & RESIDENTIAL AREAS |
![]() SQUARE & PEDESTRIAN AREAS |
TECHNICAL SPECIFICATIONS

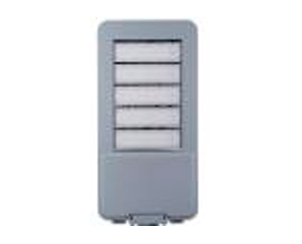

| SPEC | ![]() F01 |
![]() F02 |
![]() F03 |

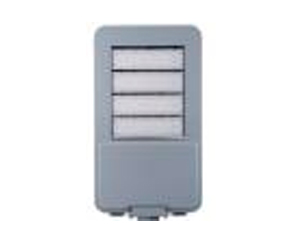

![]() F04 |
![]() F05 |

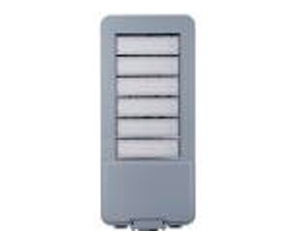

![]() F06 |
| Wattage | 30-60w | 60-120w | 90-180w | 120-240w | 150-300w | 180-360w |
| Input voltage | 100-277V / 50-60Hz | |||||
| Color temperature | 3000-6500K | |||||
| Color rendering index | CRI > 70 | |||||
| Operating temperature | -40°C ~ +50°C | |||||
| Housing material | ADC12 | |||||
| Ingress protection | IP66 | |||||
| Impact strength | IK10 | |||||
| Surge protection | 10KV/20KV | |||||
| Weight | 5.9kg | 7.1kg | 8.2kg | 9.2kg | 10.4kg | 11.5kg |
DESIGN IN DETAILS

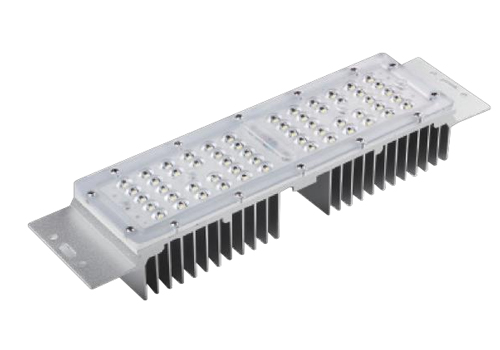

![]() Led module Multiled module optional with luminaire efficiency up to 160lm/w, long lifespan 50000 hours. |

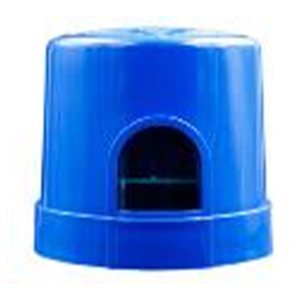

![]() Photocontrol (optional) Optional with NEMA socket & photocell/shorting cap. |

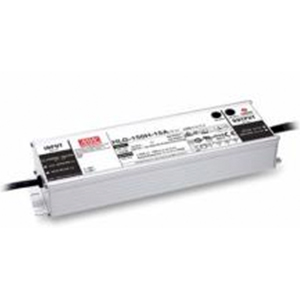

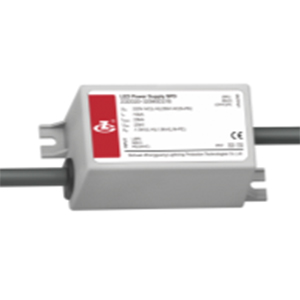

![]() Power supply unit High performance led driver - 0-10v dimming upon request - Driver brand can choose among MOSO, Meanwell, Philips, Osram. |

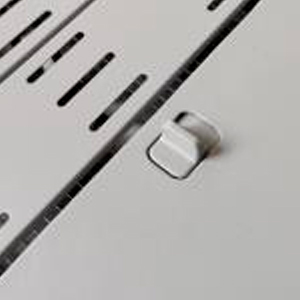

![]() Knob Toolless opening of gear compartment, easy for maintenance. |

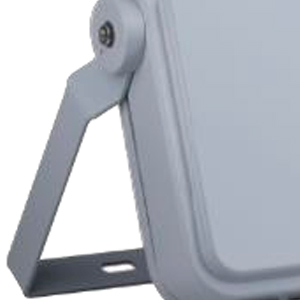

![]() Bracket Universal bracket for T/Bar bracket and wall mounting. |
![]() Power disconnector Automatically of luminaire when gear compartment open and after close turn on, safety for workers when during maintenance. |

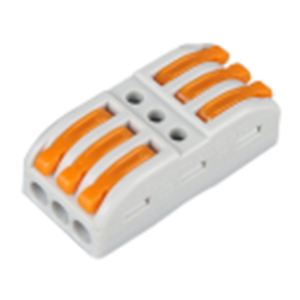

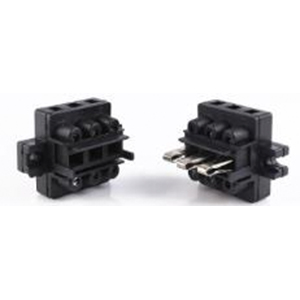

![]() Connector Quick plug-in connector, tool-less, save time. |
![]() SPD 10kv (20kv optional)surge protection device, more reliable protection for the led power supply unit. |
LED MODULE AVAILABLE

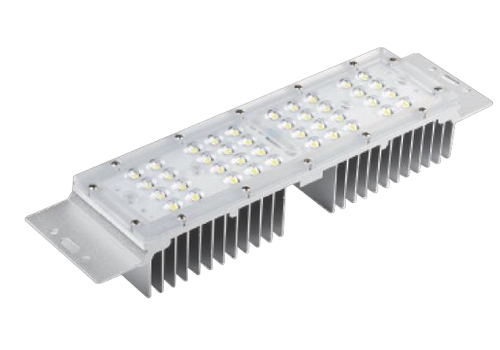

![]() 5050 LED MODULE LED Qty: 32pcs Wattage: 50w |

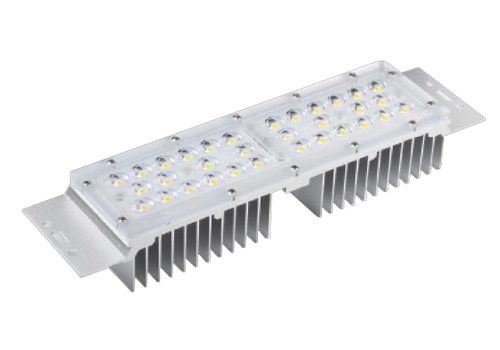

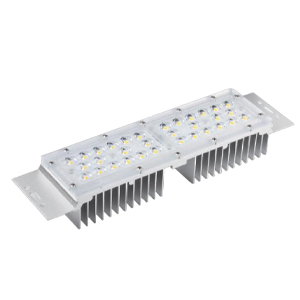

![]() 3030 LED MODULE LED Qty: 40pcs Wattage: 30w |

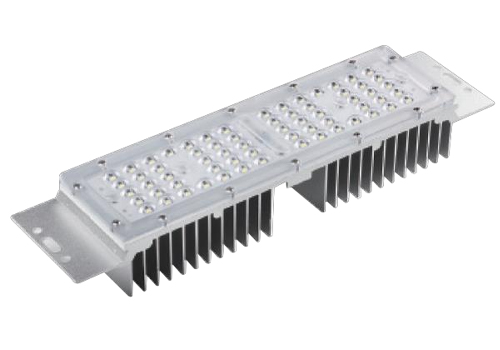

![]() 3030 LED MODULE LED Qty: 56pcs Wattage: 50w |
![]() 3030 LED MODULE LED Qty: 64pcs Wattage: 60w |

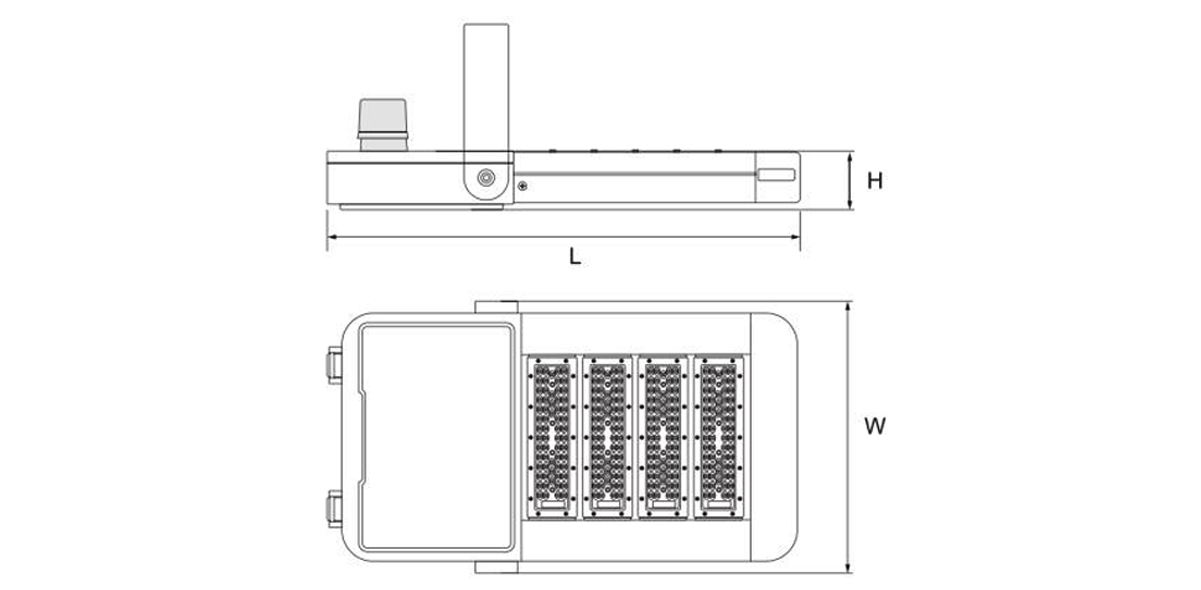

DIMENSIONS (mm)
| MODEL | Length(L) | Width(W) | Height(L) |
| NOVA F01 | 420mm | 395mm | 90mm |
| NOVA F02 | 500mm | 395mm | 90mm |
| NOVA F03 | 580mm | 395mm | 90mm |
| NOVA F04 | 660mm | 395mm | 90mm |
| NOVA F05 | 740mm | 395mm | 90mm |
| NOVA F06 | 820mm | 395mm | 90mm |
ORDER INFORMATION
| Order code | LED type | LED Qty | Module Qty |
Rated Wattage | Luminaire efficiency up to |
Luminous flux | CCT | CRI |
| NVF101 | 3030 | 56 | 1 | 50w | 125Im/w | 6250lm | 3000K-6500K | >70 |
| NVF102 | 3030 | 112 | 2 | 100w | 125Im/w | 12500lm | 3000K-6500K | >70 |
| NVF103 | 3030 | 168 | 3 | 150w | 125Im/w | 18750lm | 3000K-6500K | >70 |
| NVF104 | 3030 | 224 | 4 | 200w | 125Im/w | 25000lm | 3000K-6500K | >70 |
| NVF105 | 3030 | 280 | 5 | 250w | 125lm/w | 31250lm | 3000K-6500K | >70 |
| NVF106 | 3030 | 336 | 6 | 300w | 125Im/w | 37500lm | 3000K-6500K | >70 |
| NVF201 | 5050 | 32 | 1 | 50w | 150lm/w | 7500lm | 3000K-6500K | >70 |
| NVF202 | 5050 | 64 | 2 | 100w | 150lm/w | 15000lm | 3000K-6500K | >70 |
| NVF203 | 5050 | 96 | 3 | 150w | 150lm/w | 22500lm | 3000K-6500K | >70 |
| NVF204 | 5050 | 128 | 4 | 200w | 150lm/w | 30000lm | 3000K-6500K | >70 |
| NVF205 | 5050 | 160 | 5 | 250w | 150lm/w | 37500lm | 3000K-6500K | >70 |
| NVF206 | 5050 | 192 | 6 | 300w | 150lm/w | 45000lm | 3000K-6500K | >70 |
| Remark: - Wattage can be customized upon project request. - Standard housing painting color light grey, other color can be painted upon request. |
||||||||
LOGISTICS DATA
| MODEL | Packing unit (pcs/carton) |

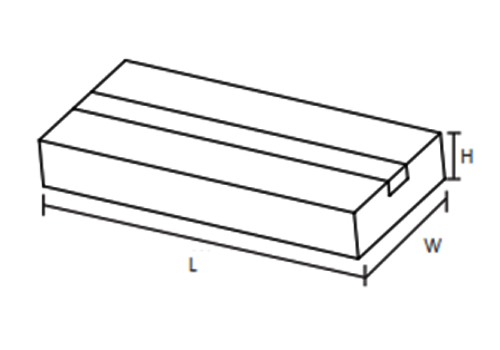

Carton size(mm) (Length*Width*Height) |
Net weight | Gross weight | Volume |
| NOVA F01 | 1 | 490*440*140mm | 5.9kg | 6.4kg | 30.2dm³ |
| NOVA F02 | 1 | 570*440*140mm | 7.1kg | 7.7kg | 35.1dm³ |
| NOVA F03 | 1 | 650*440*140mm | 8.2Kg | 9.0kg | 40.0dm³ |
| NOVA F04 | 1 | 730*440*140mm | 9.2kg | 10.2kg | 45.0dm³ |
| NOVA F05 | 1 | 810*440*140mm | 10.4kg | 11.5kg | 49.9dm³ |
| NOVA F06 | 1 | 890*440*140mm | 11.5kg | 12.6kg | 54.8dm³ |

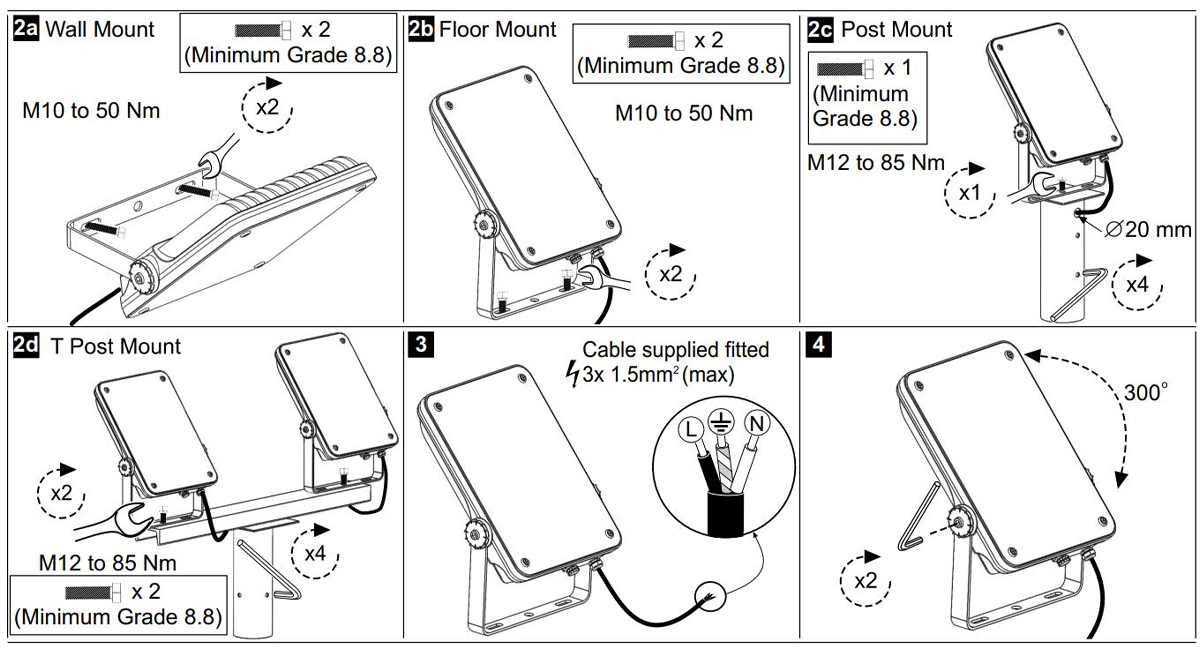

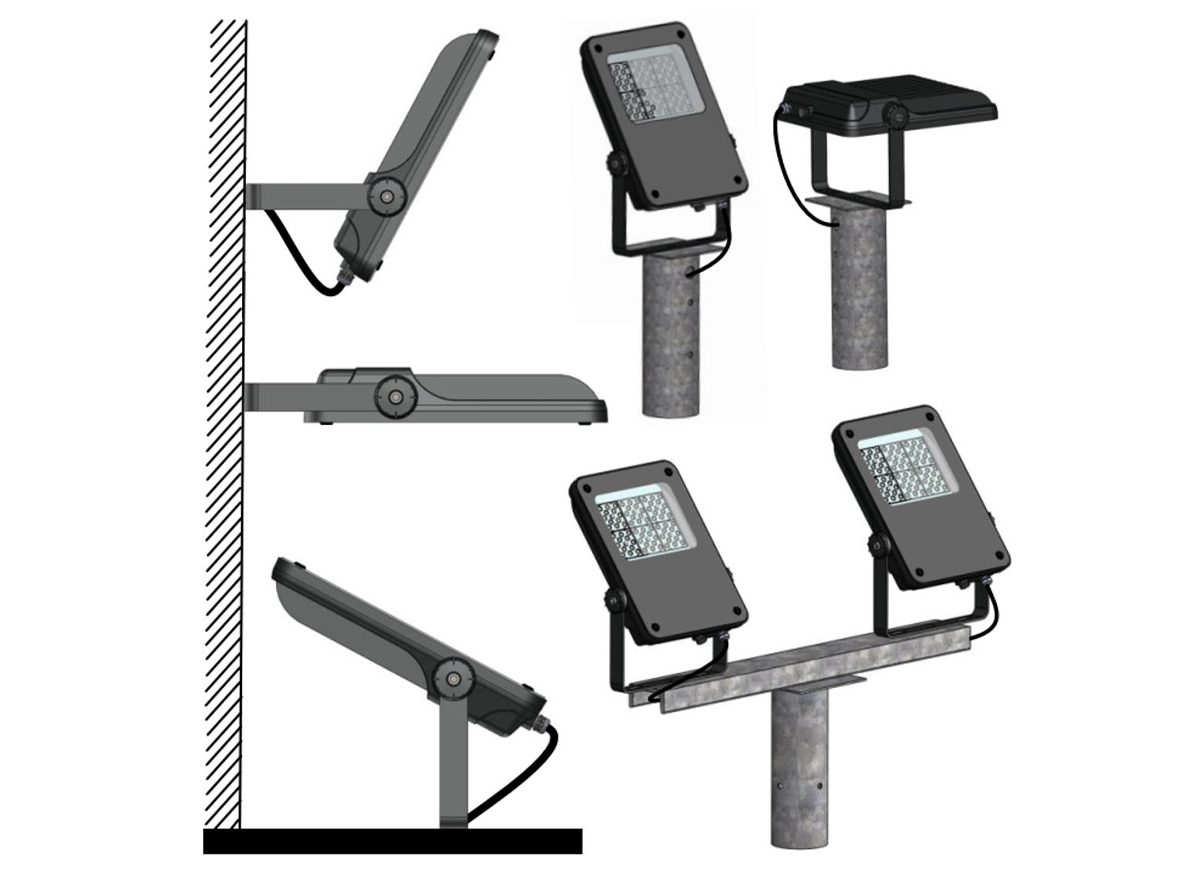

INSTALLATION
Universal bracket for T/Bar bracket and wall mounting.
