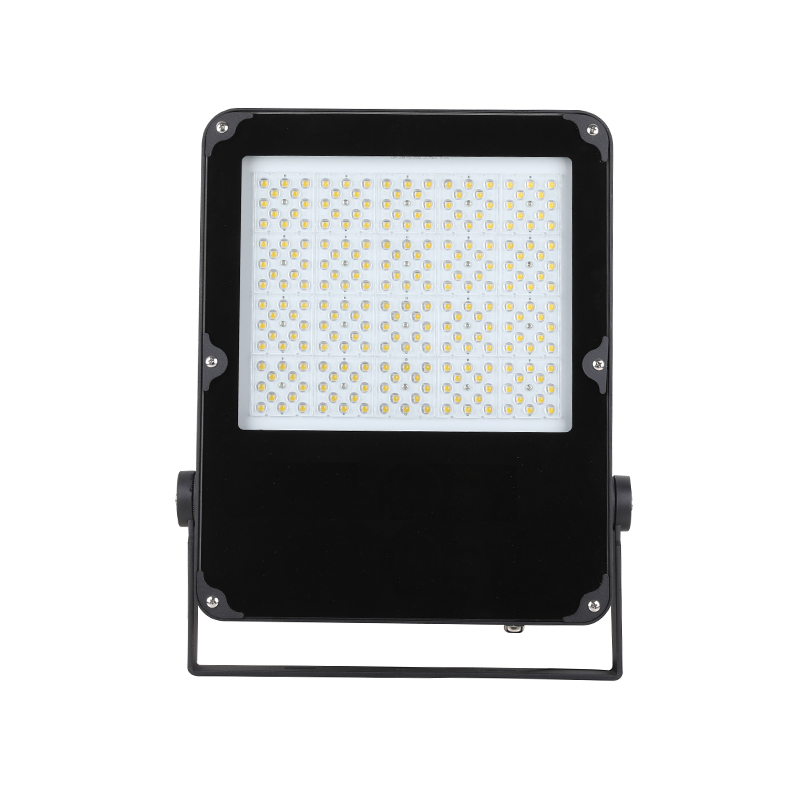

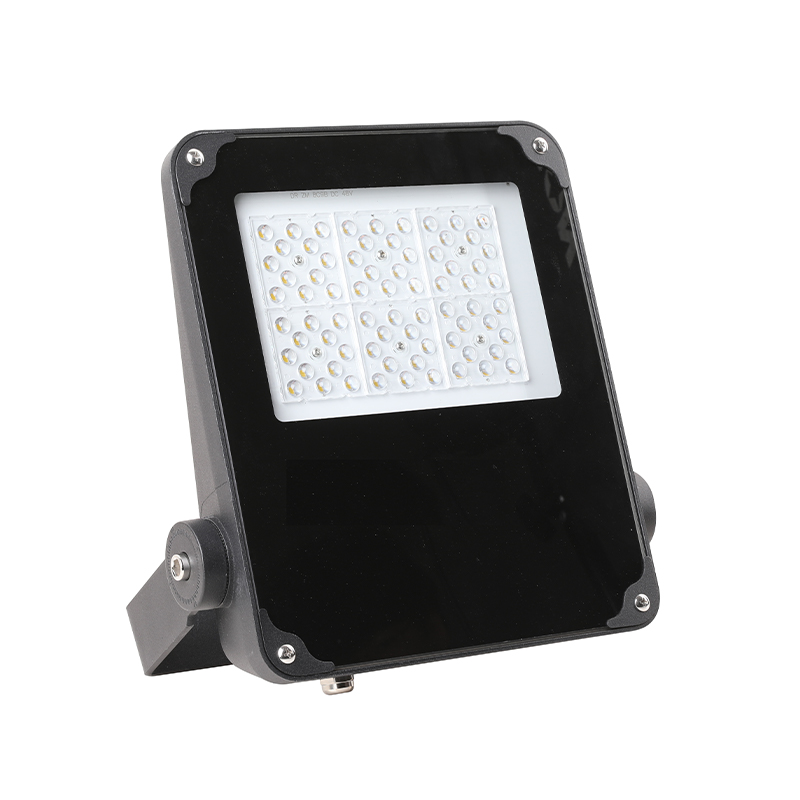

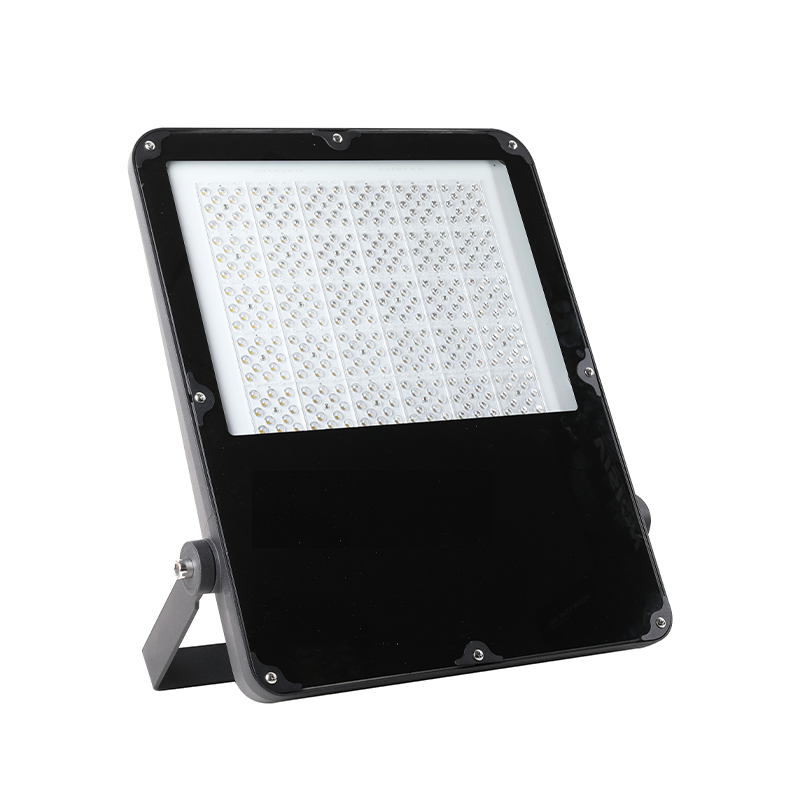

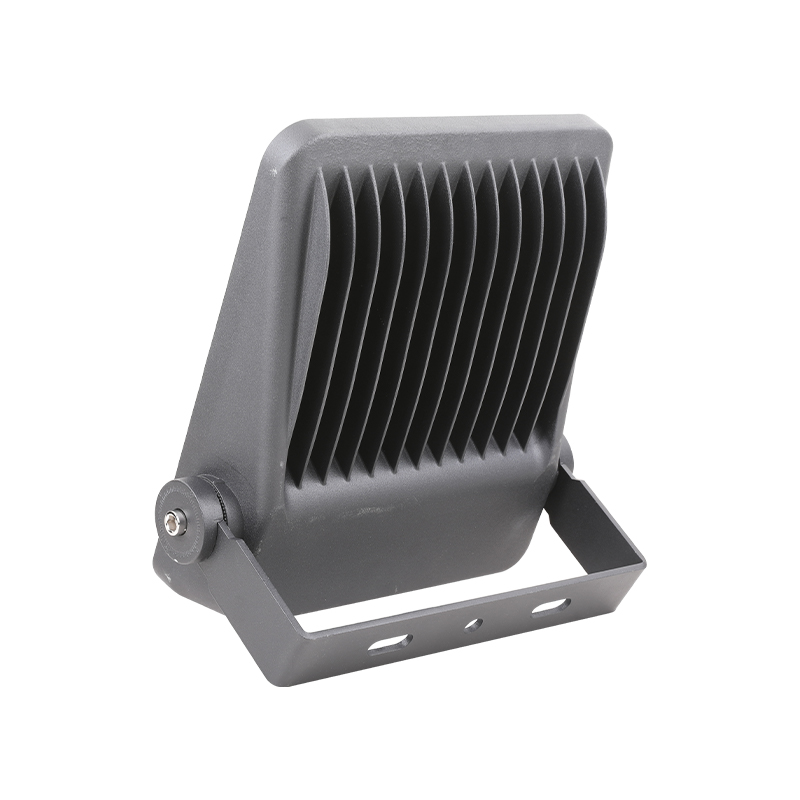

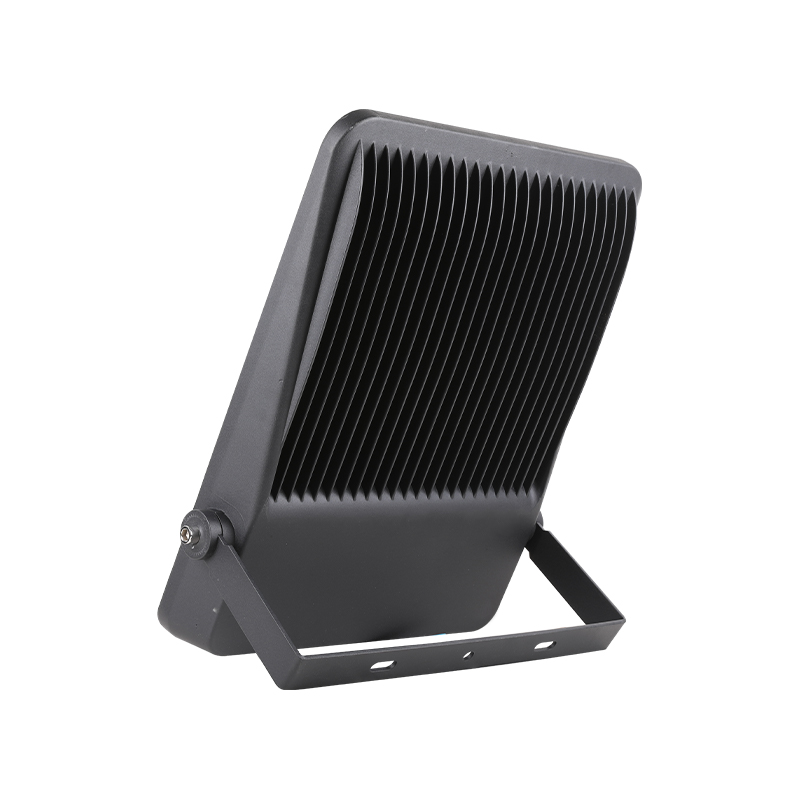

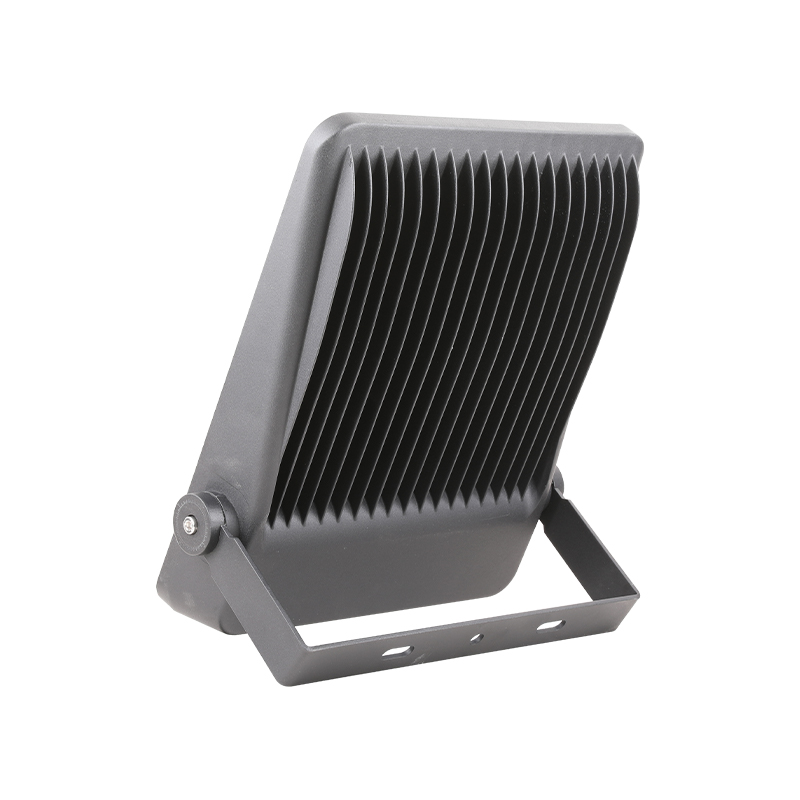

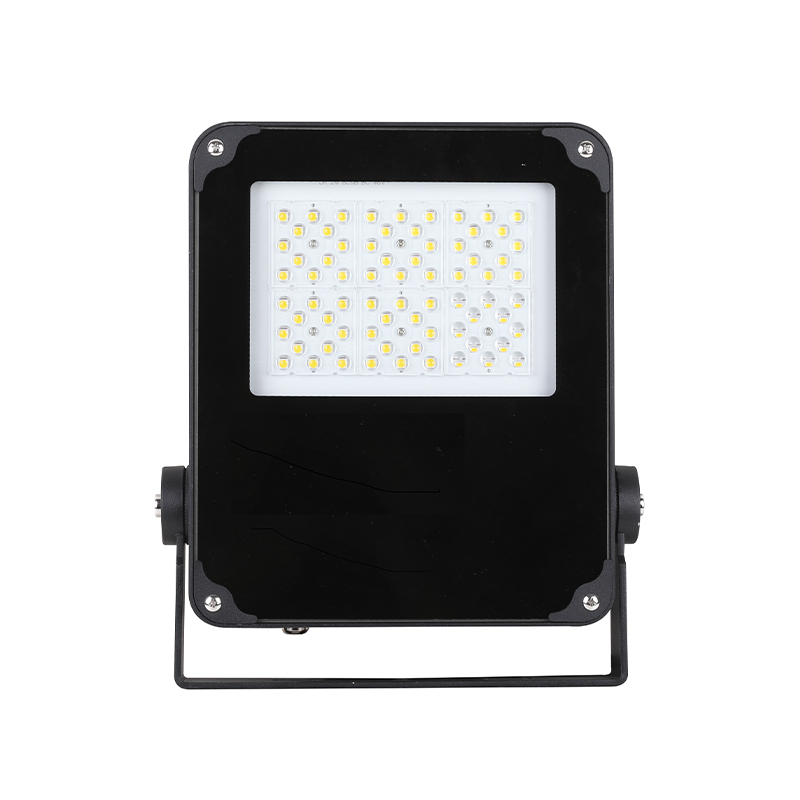

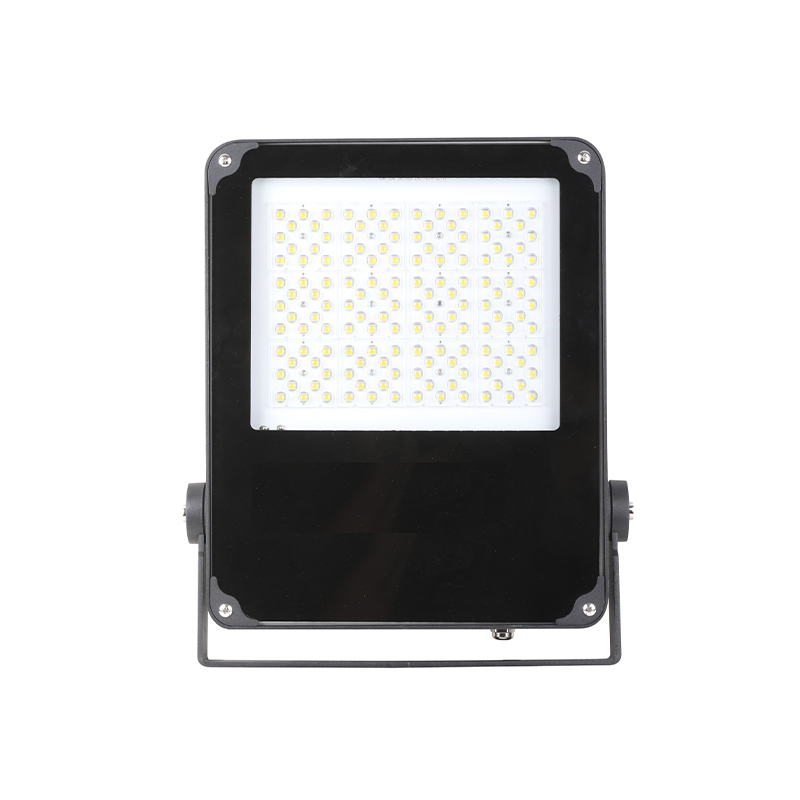

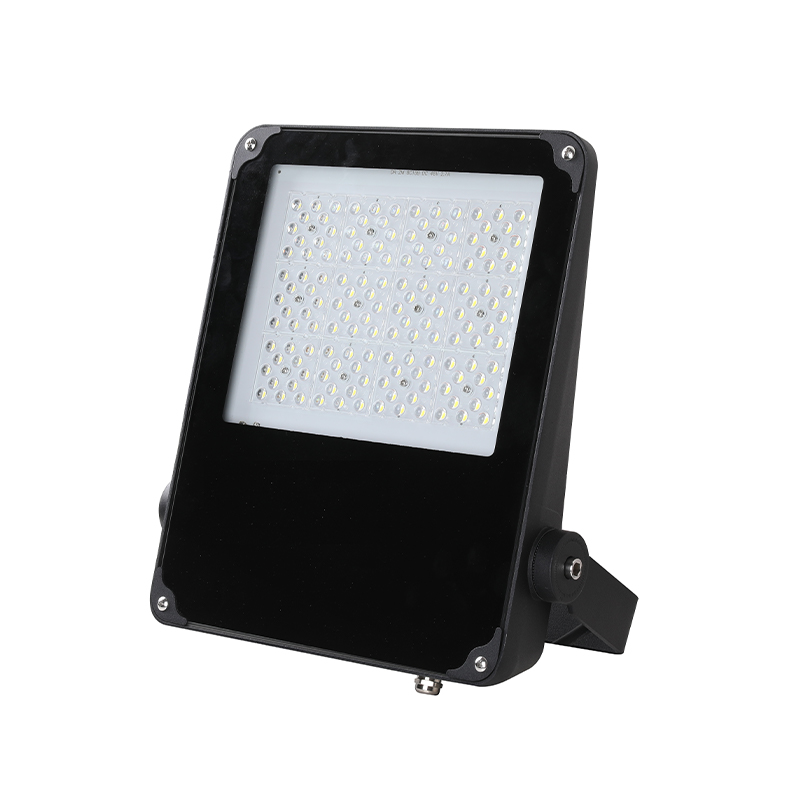

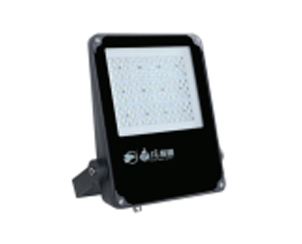

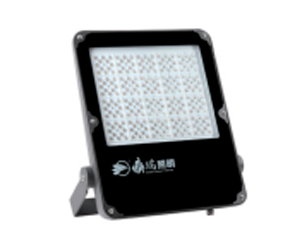

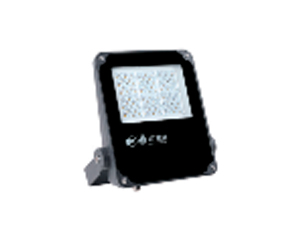

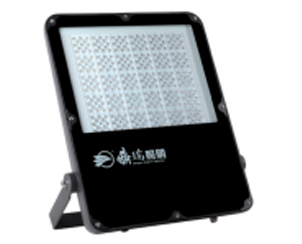

60w-400w IP66 IK08 GUARDIAN Series LED Flood Light

Product Description

Flexible and diverse size options: 4 sizes are available to suit different project requirements, flexible and efficient, with higher cost-effectiveness.
Rich optical lens configuration: supports a variety of optical lenses to meet the lighting needs of different scenarios.
Symmetrical and asymmetric light distribution: Symmetrical or asymmetric light distribution can be selected according to actual needs to optimize the lighting effect.
Future-oriented upgrade design: LED engines and gearboxes can be easily replaced to adapt to future technological developments.
Sturdy and durable body: Made of high-pressure die-cast aluminum, the surface is covered with corrosion-resistant polyester powder coating to ensure long-term reliability.
Excellent heat dissipation performance: equipped with durable heat sinks to optimize thermal management and extend service life.
Versatile installation method: supports T/Bar bracket and wall-mounted installation to adapt to a variety of installation environments.

MAIN APPLICATIONS

ROAD & HIGHWAY

BRIDGES

URBAN & RESIDENTIAL AREAS

SQUARE & PEDESTRIAN AREAS

TECHNICAL SPECIFICATIONS

SPEC	S	M	L	XL
Wattage	30-60w	80-150w	150-240w	300-400w
Input voltage	100-277V / 50-60Hz
Color temperature	3000-6500K
Color rendering index	CRI > 70
Operating temperature	-40°C ~ +50°C
Housing material	ADC12
Ingress protection	IP66
Impact strength	IK08
Surge protection	10KV/20KV
Diffuser	Tempered glass
Weight	3.9kg	5.6kg	7.4kg	11.6kg

DESIGN IN DETAILS

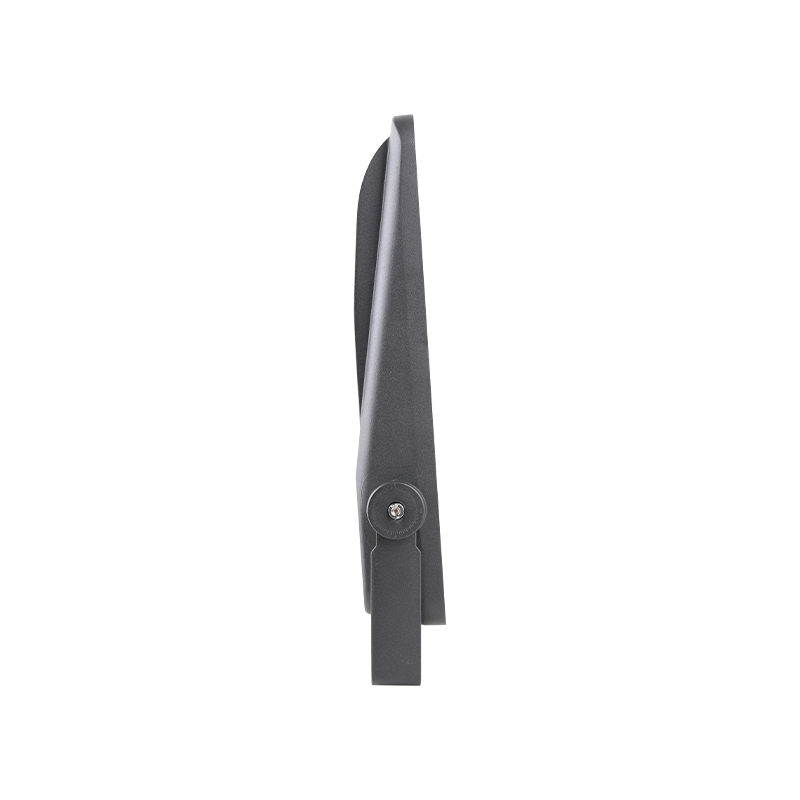

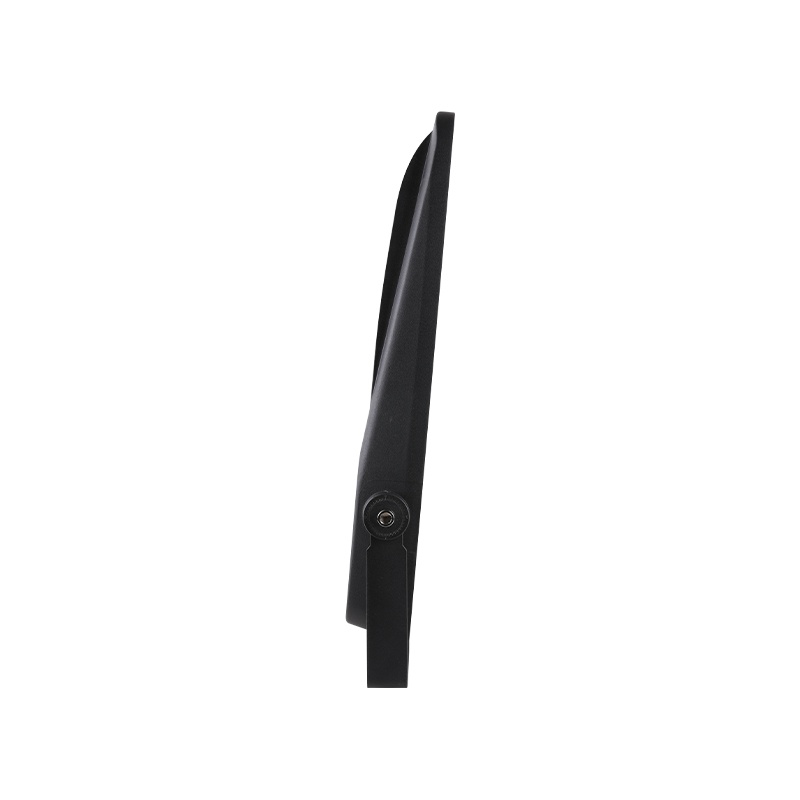

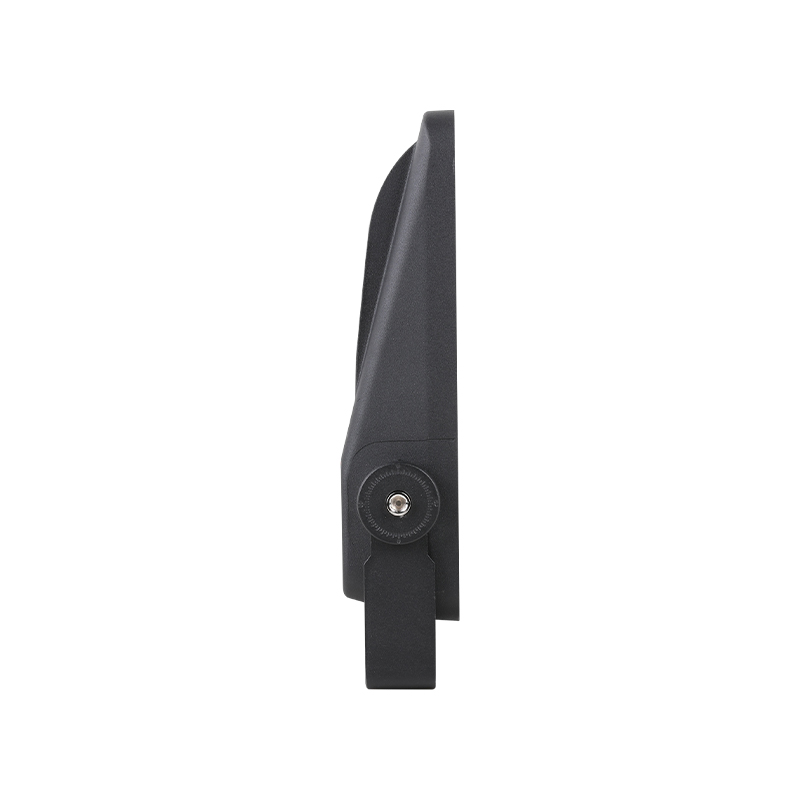

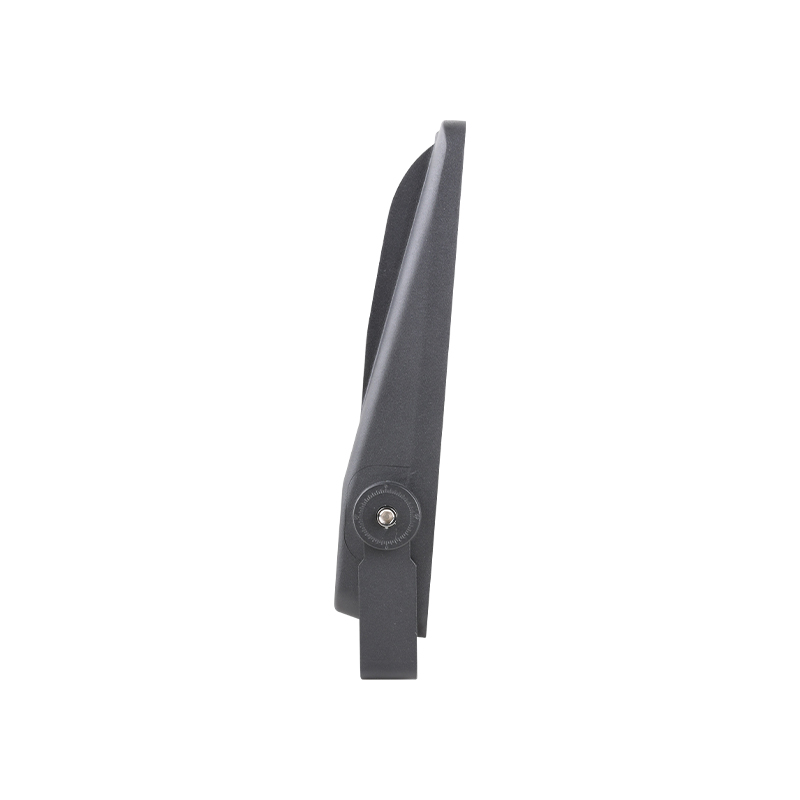

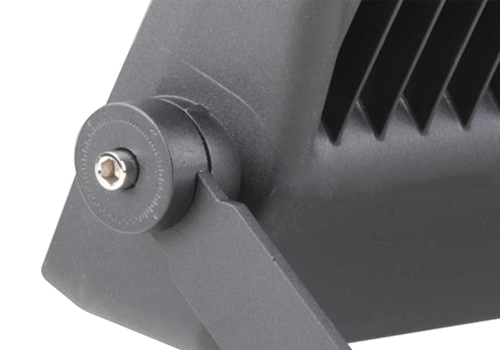

Universal U bracket enables on-site angle adjusting, offers various mounting applications.

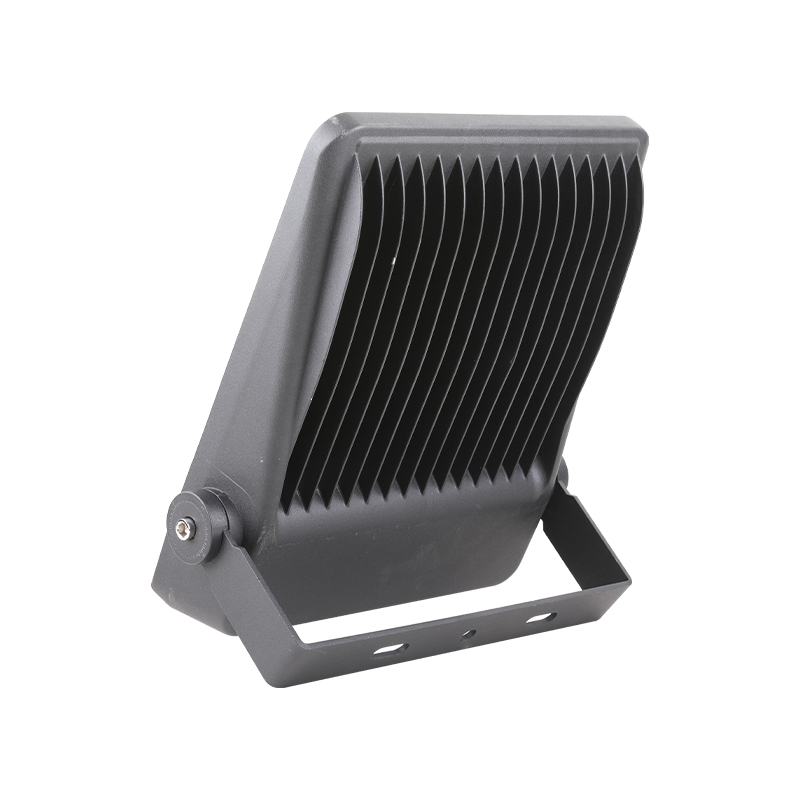

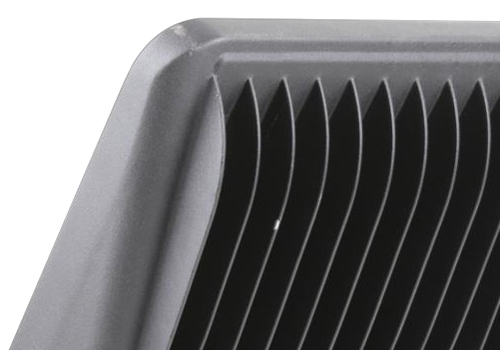

Large cooling fins withstand high temperature.

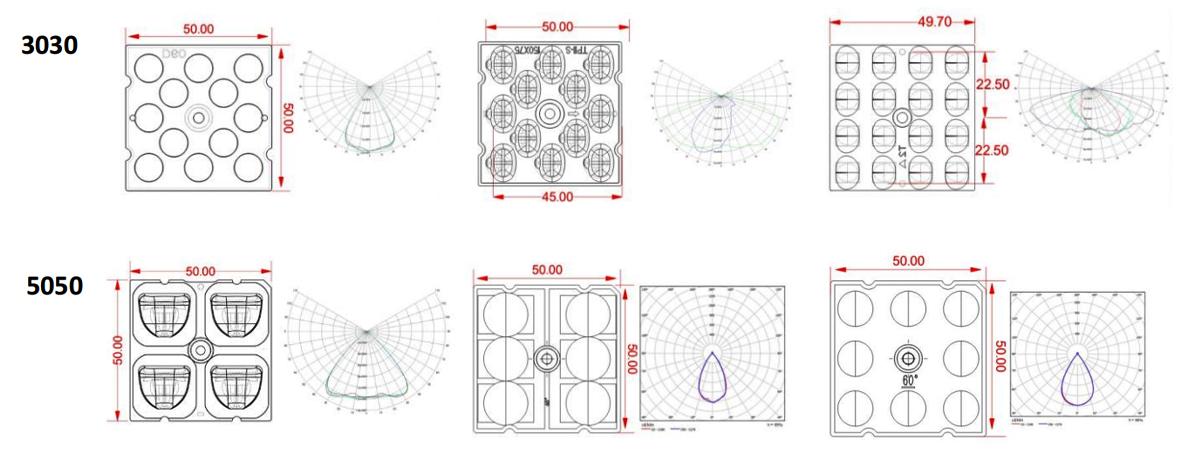

OPTICS AVAILABLE
Beam angle:
Symmetrical: 30°, 60°, 90°
Asymmetrical: T2, T3

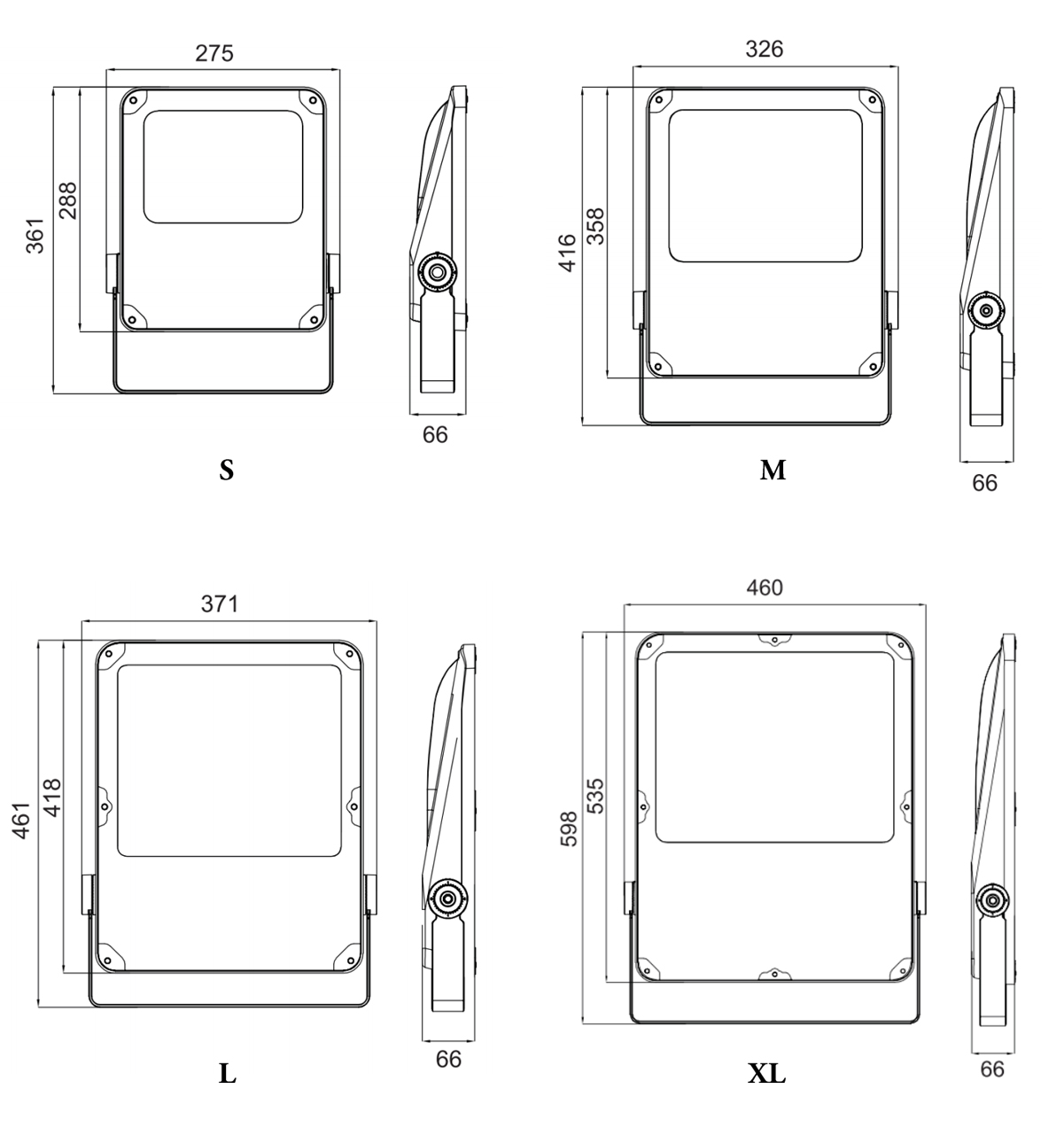

DIMENSIONS (mm)


ORDER INFORMATION

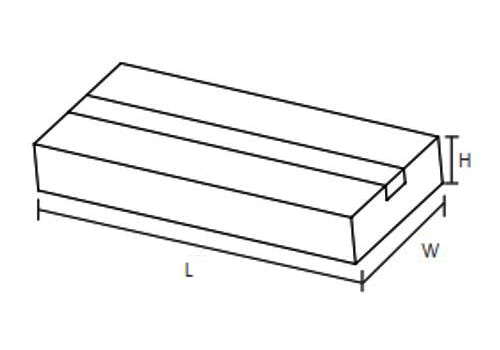

LOGISTICS DATA

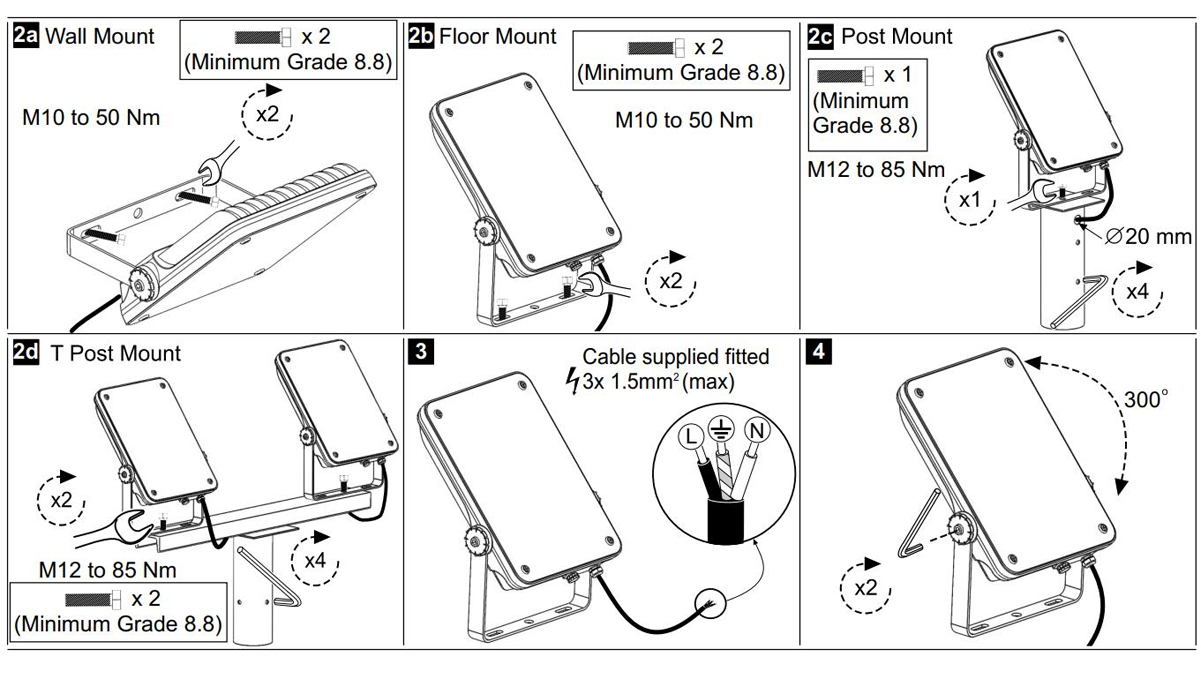

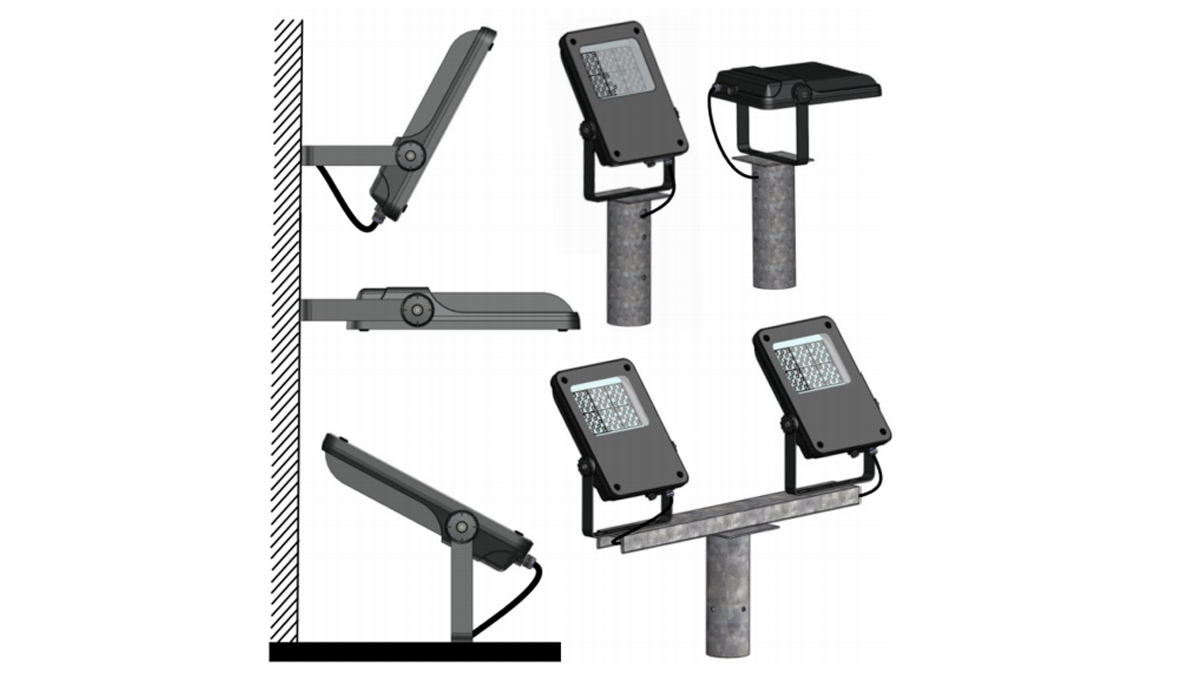

INSTALLATION
Universal bracket for T/Bar bracket and wall mounting.
