APPLICATION AREA

Product Description

FEATURES
1. Available in six sizes, more cost-effective for projects.
5050/3030 chip led, 120-180lm/w High-pressure die-cast aluminum body with durable corrosion-resistant polyester powder coating.
2. IP66, lk09 10 kv/20kv SPD optional.
3. Adjustable spigot angle 0±15°.
4. The unique detachable design allows the upper housing and driver board to be quickly disassembled without the help of any tools, which facilitates the inspection, repair and replacement of internal components and improves the maintenance efficiency of the equipment.
5. Safety switch/Photocell/Shorting cap/Smart sensor optional upon request 5 years warranty.

MAIN APPLICATIONS


ROAD & HIGHWAY
BRIDGES
URBAN & RESIDENTIAL AREAS
SQUARE & PEDESTRIAN AREAS


TECHNICAL SPECIFICATIONS

SPEC
MINI
MIDI
MAXI
Wattage 30-75w 80-150w 150-200w
Input voltage 100-277V/50-60Hz
Color temperature 3000-6500K
Color rendering index CRI>70
Operating temperature -40℃~+50℃
Housing material ADC12
Ingress protection IP66
Impact strength IK08/IK09 optional
Surge protection 10KV/20KV
Diffuser Tempered glass
Spigot diameter 50mm/60mm
Weight 4.3kg 5.6kg  6.8kg


DESIGN IN DETAILS

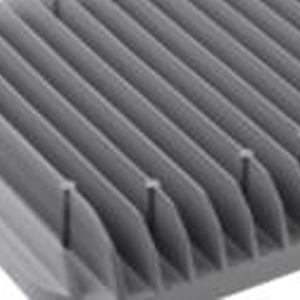

Body
Heavy-duty cast aluminum body with corrosion resistant polyester powder coating.

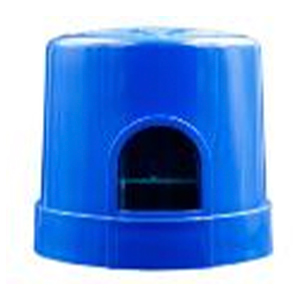

Photocontrol (optional)
Optional with NEMA socket & photocell/shorting cap.

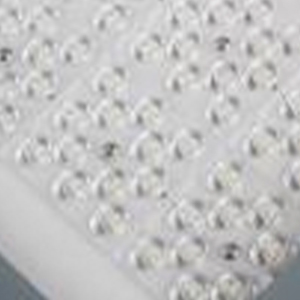

Led chips
Lumileds 3030 & 5050 led chips with luminaire efficiency up to 150lm/w, long lifespan 50000 hours.

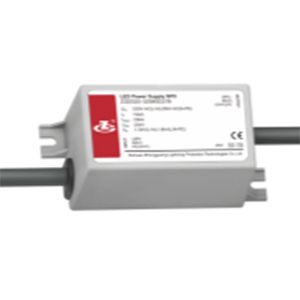

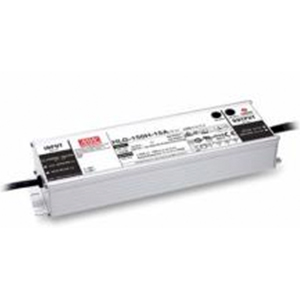

Power supply unit
High performance led driver
- 0-10v dimming upon request
- Driver brand can choose among
MOSO, Meanwell, Philips, Osram.

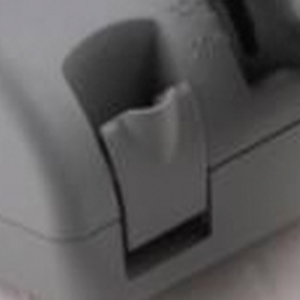

Buckles

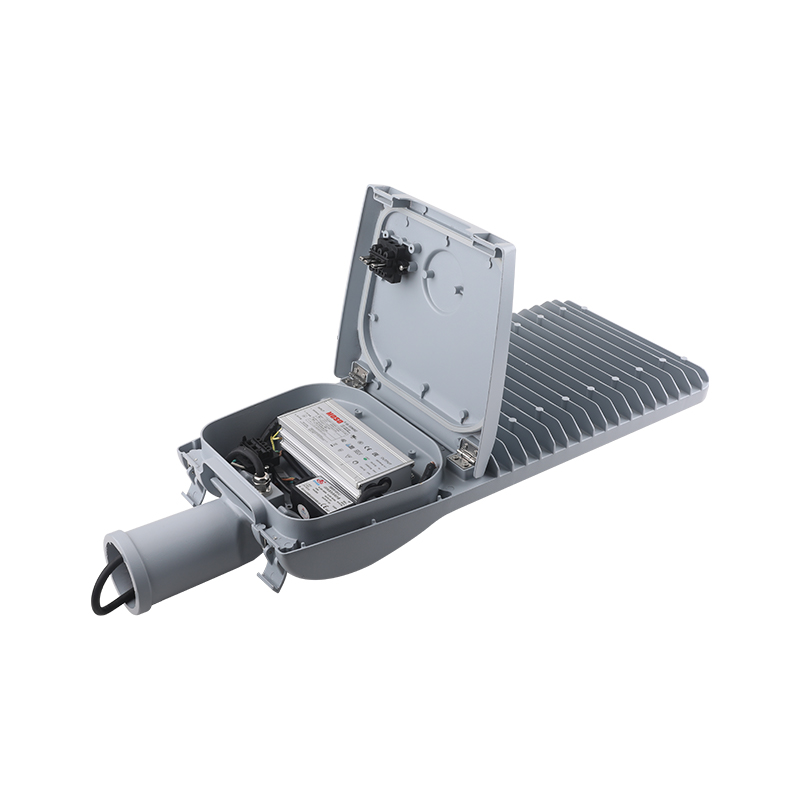

Toolless opening of gear compartment, easy for maintenance.

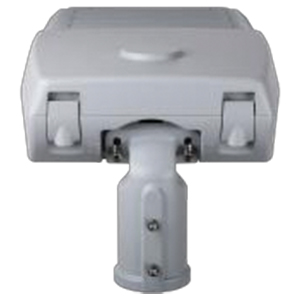

Spigot
Wide adjustable angle from 0°-±15° for side entry and post top mounting.

Power disconnector
Automatically off luminaire when gear compartment open and after close turn on, safety for workers when during maintenance.

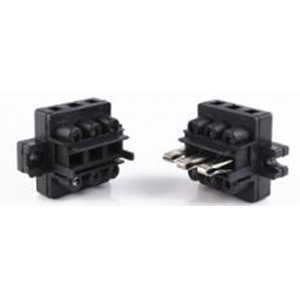

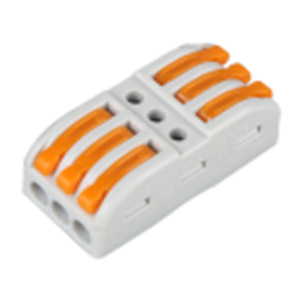

Connector
Quick plug-in connector, tool-less, save time.
SPD
10kv (20kv optional) surge protection device, more reliable protection for the led power supply unit.

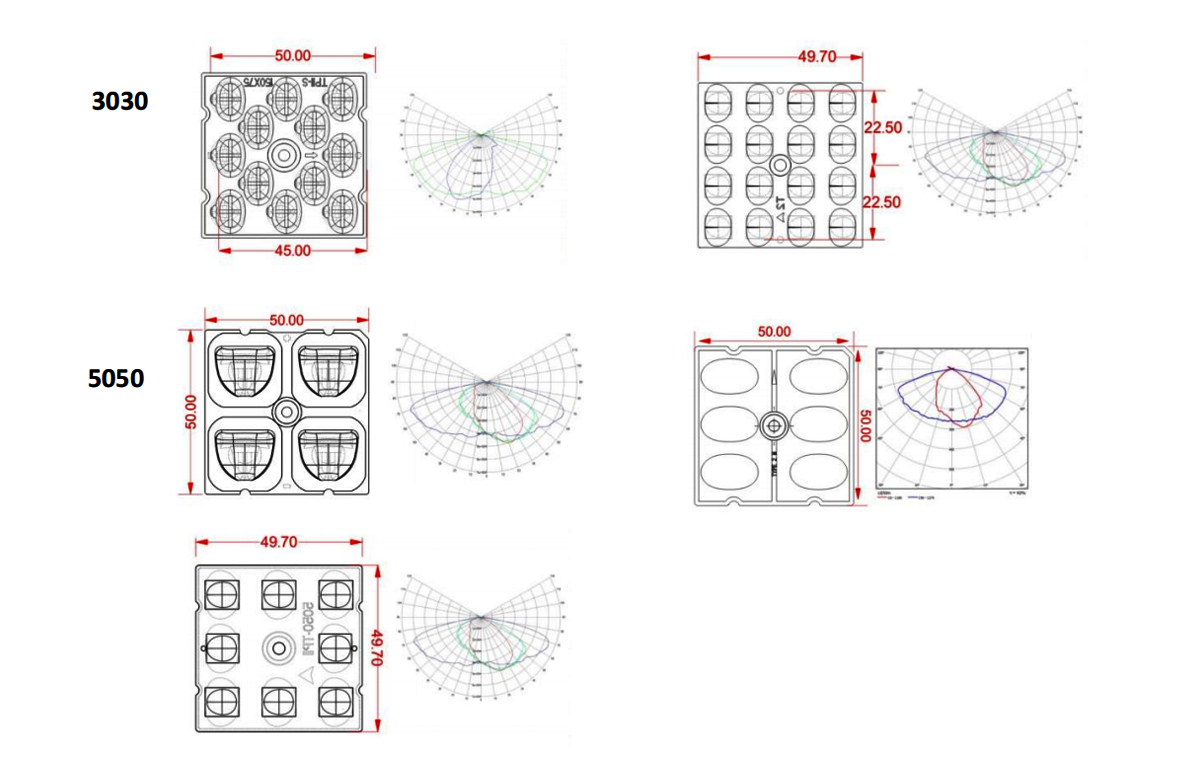

OPTICS AVAILABLE

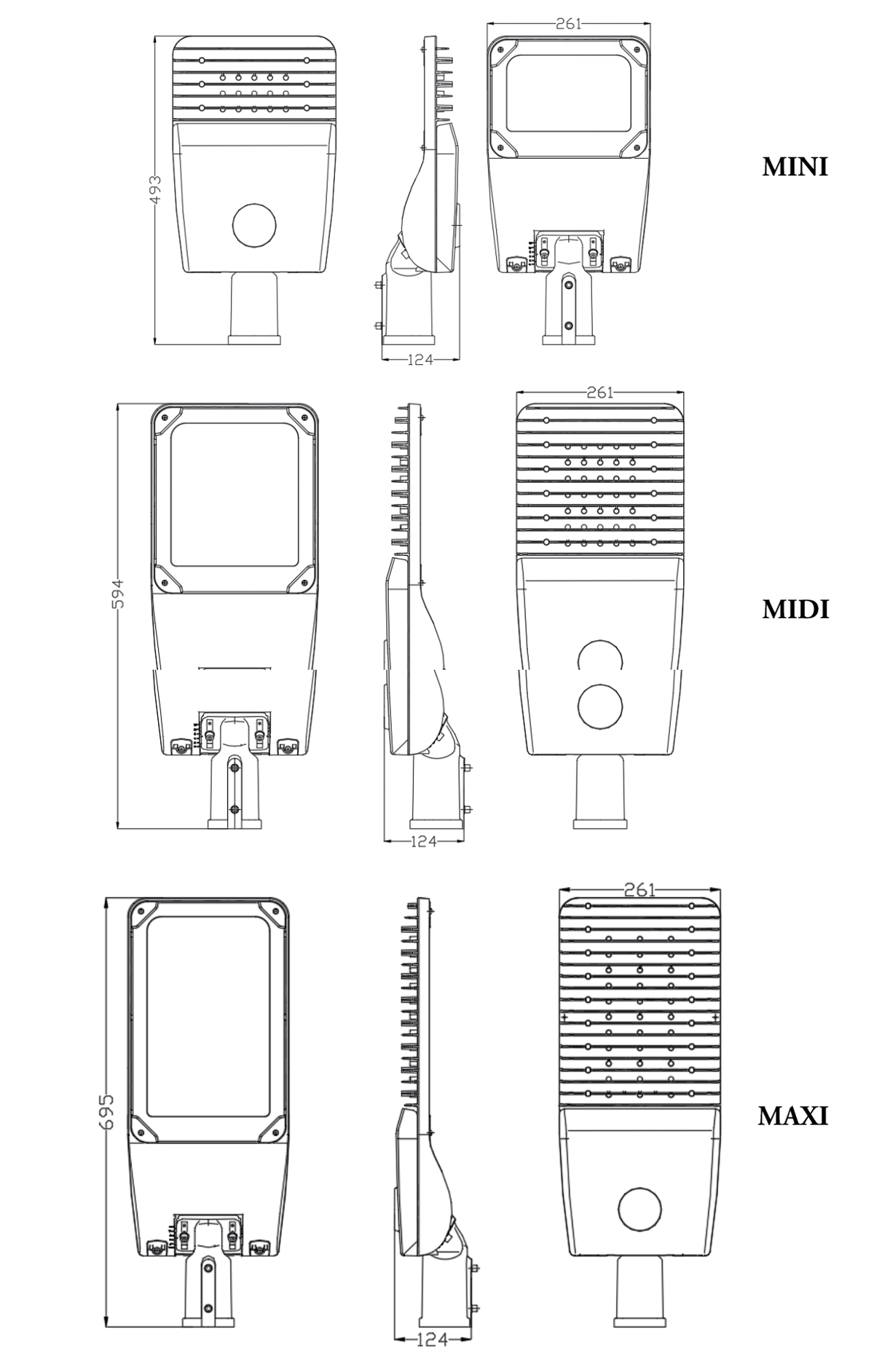

DIMENSIONS (mm)


ORDER INFORMATION

Order code LED type LEDQty  Optics
 Qty		 Rated Wattage Luminaire
efficiency up to		 Luminous flux CCT CRI
ATP101 3030  96  6   60w 120lm/w 9600lm 3000K-6500K >70
ATP201 3030  192  12   120w 120lm/w 14400lm 3000K-6500K >70
ATP301 3030  288  18   180w 120lm/w 21600lm 3000K-6500K >70


Remark:
- Wattage can be customized upon project request.
- Standard housing painting color light grey, other color can be painted upon request.

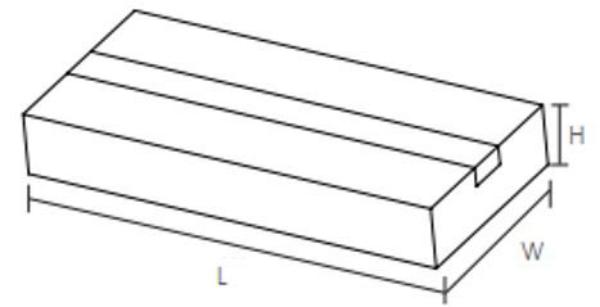

LOGISTICS DATA

MODEL Packing unit
(pcs/carton)		 Carton size(mm)
(Length*Width*Height)		 Net weight Gross weight Volume
ATLANTICPRO MINI 1  510*280*180mm 4.3kg 4.8kg 25.7dm³
ATLANTICPRO MIDI 1  610*280*180mm 5.6kg 6.2kg 30.7dm³
ATLANTICPRO MAXI 1  710*280*180mm 6.8kg 7.5kg 35.7dm³


INSTALLATION

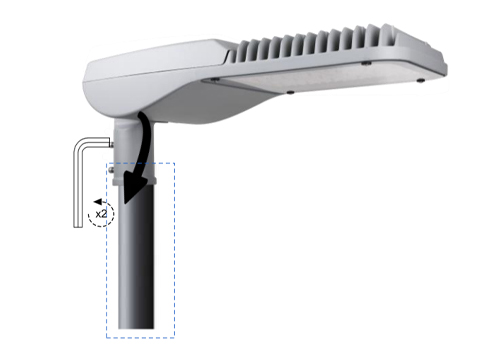

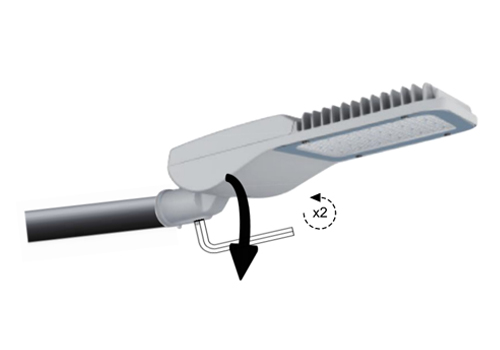

Tighten the luminaire to the pole by allen wrench.

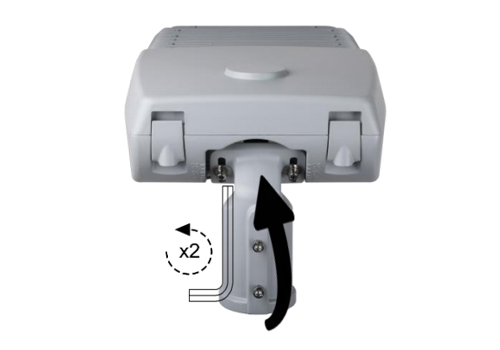

Loosen the screws by allen wrench and rotate the spigot adjust to side entry position.

Only one hand tools required for installing the luminaire.

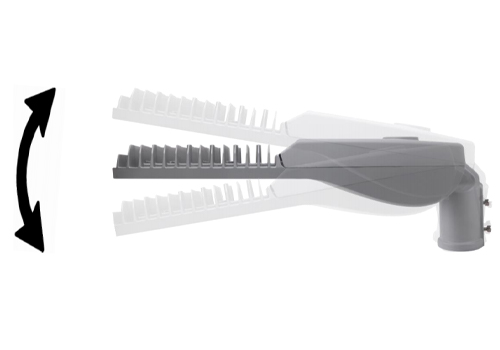

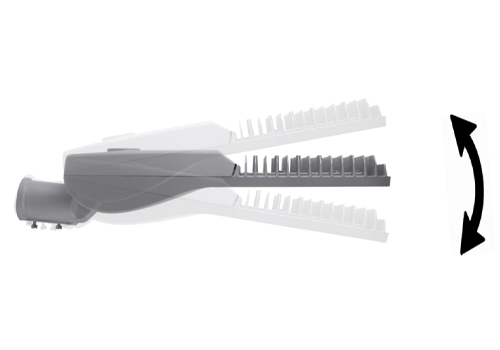

-15° to 15°.

-15° to 15°，Spigot angle can be adjusted by -15°,-10°,0°,5°, 10°,15°.

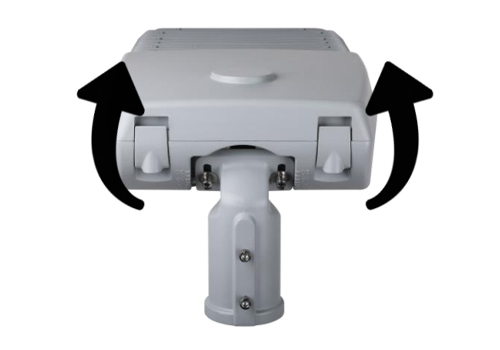

Press two buckles to open gear compartment.

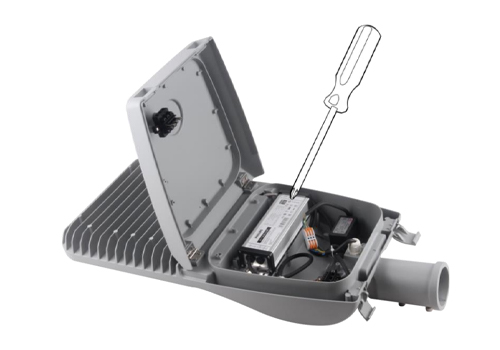

Place the gear compartment cover to the locked position, using cross screwdriver loosen the screws and replace the failed electronic parts, then lock the gear compartment.

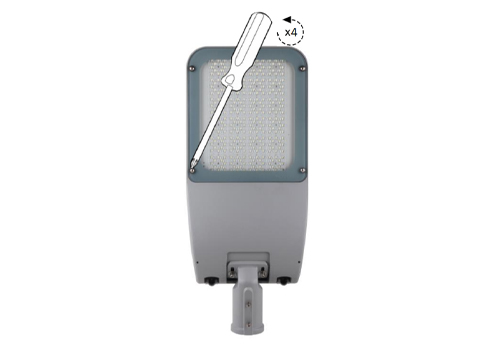

Loosen the screws and remove the glass, then continue loosen the screws locked on pcb, remove failed pcb and replace with a new one. Connect and tighten each part back step by step.
